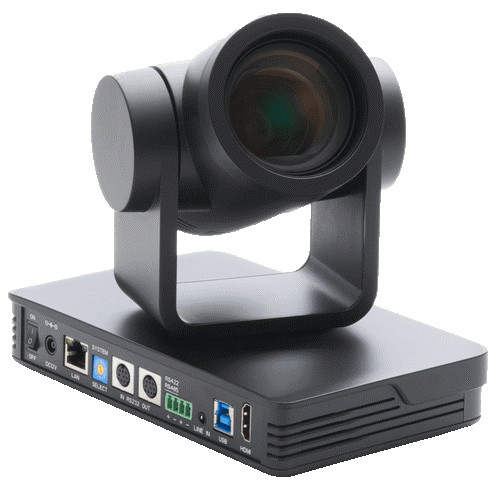

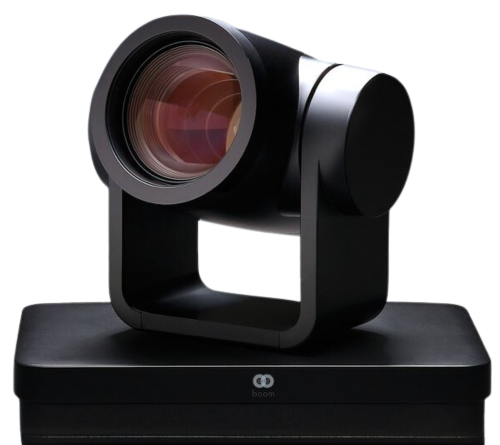

Boom Magna 4k Ultra HD PTZ Conference Camera, 82° FOV, Auto-focus - BM010030
• A powerful camera for superior meetings
• Take your video conferencing to the next level with Ultra HD 4K @ 60fps and 12x optical zoom.
• Enjoy superior image quality with Sony CMOS sensor and excellent low light optimization. Multiple video outputs, noise reduction, remote control and multi-codec IP streaming make the Boom MAGNA your go to camera for medium to large conference rooms.
• Anyone passionate about video collaboration needs this camera. Better meetings. Simply.
A powerful camera for superior meetings
Take your video conferencing to the next level with Ultra HD 4K @ 60fps and 12x optical zoom. Enjoy superior image quality with Sony CMOS sensor and excellent low light optimization. Multiple video outputs, noise reduction, remote control and multi-codec IP streaming make the Boom MAGNA your go to camera for medium to large conference rooms. Anyone passionate about video collaboration needs this camera. Better meetings. Simply.
• Ultra HD 4K @ 60fps
• 82° field of view
• PTZ with 12x optical zoom
• USB 3.0, HDMI and LAN
• Sony CMOS sensor
• Remote control for quick PTZ
• PTZ Control: UVC, VISCA, Pelco-D/P,
• Onvif via RS232, RS422/RS485, LAN, Remote
• IP Streaming: H.265, H.264, RTSP, RTMP
• 3-year warranty
• Classroom
Video enabled hybrid classrooms allow students to participate both in-person and remotely enabling learning and collaboration from all corners of the globe.
• Broadcast
Connect with audiences in real time with broadcast and streaming equipment that bridge the gap between in person and virtual events.
• Town hall
Connect with members and the community with video conferencing tools that enable natural conversations and facilitate the easy exchange of ideas.
• Medium and Large Conference Rooms
Body language such as eye contact and facial expressions are an important part of building rapport and establishing trust. Video enabled meeting spaces allow for better collaboration and enhanced negotiations in the workplace and beyond.
• Collaboration and Training
Bring teams together for events, collaboration and training whether in a hybrid environment or completely virtual.
Dimensions
- Length: 7.13in/181mm
- Width: 4.53in/115mm
- Height: 5.87in/149mm
- Weight: 2.54lbs/1.15kg
- USB cable: 9.8ft/3m
- Power supply: 8ft/2.4m
- RS232: 6.6ft/2m
Compatibility
- Zoom, Teams, Webex, Meet, Bluejeans, GoToMeetings, Skype and more
System Requirements
- Windows 7 or later 10
- Mac OS 10.7 or later
- Chrome OS Version 29.0.1547.70 or later
- 2GB RAM or more needed for 1080p video streaming
- 1GB for 720p streaming
- USB-A port, HDMI port, LAN, RS232 or RS422/RS485
Technical Specifications
- Multiple resolutions
- 4K Ultra HD up to 3840 x 2160 @60fps
- Sensor: 4K Sony CMOS 1/2.8in, F1.6 ~8±5%
- Pixels 8.51MP, 16:9
- View angle: 82°
- PTZ Parameters:
- Pan: ±170°
- Tilt: -30°/+90°
- Zoom: 12x optical
- Pre-sets: 255 (10 with remote)
- Focus: Auto, Manual, One Push
- Video output: USB 3.0, HDMI, LAN, RS232, RS422, RS485
- Video compression: H.264, H.265, MJPEG, YUY2, NV12
- Network protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA, Pelco P/D
- Audio input: Double track 3.5mm linear input
- Audio output: HDMI, LAN, USB 3.0
- Input voltage: DC12V ±10%
- Input current: <1A
- Power: < 12W
- Temperature: 15°F - +120°F (-10°C - +50°C)
- Mounting: Tripod thread, wall & ceiling mount (optional)
Package Contents
- Part number: BM01-1030 US, BM01-2030 EU, BM01-2040 UK
- MAGNA camera
- IR remote control
- USB 3.0 cable (USB-A)
- RS232 cable
- Power supply
- Quick guide
Warranty Information
- 3-year Limited hardware warranty
