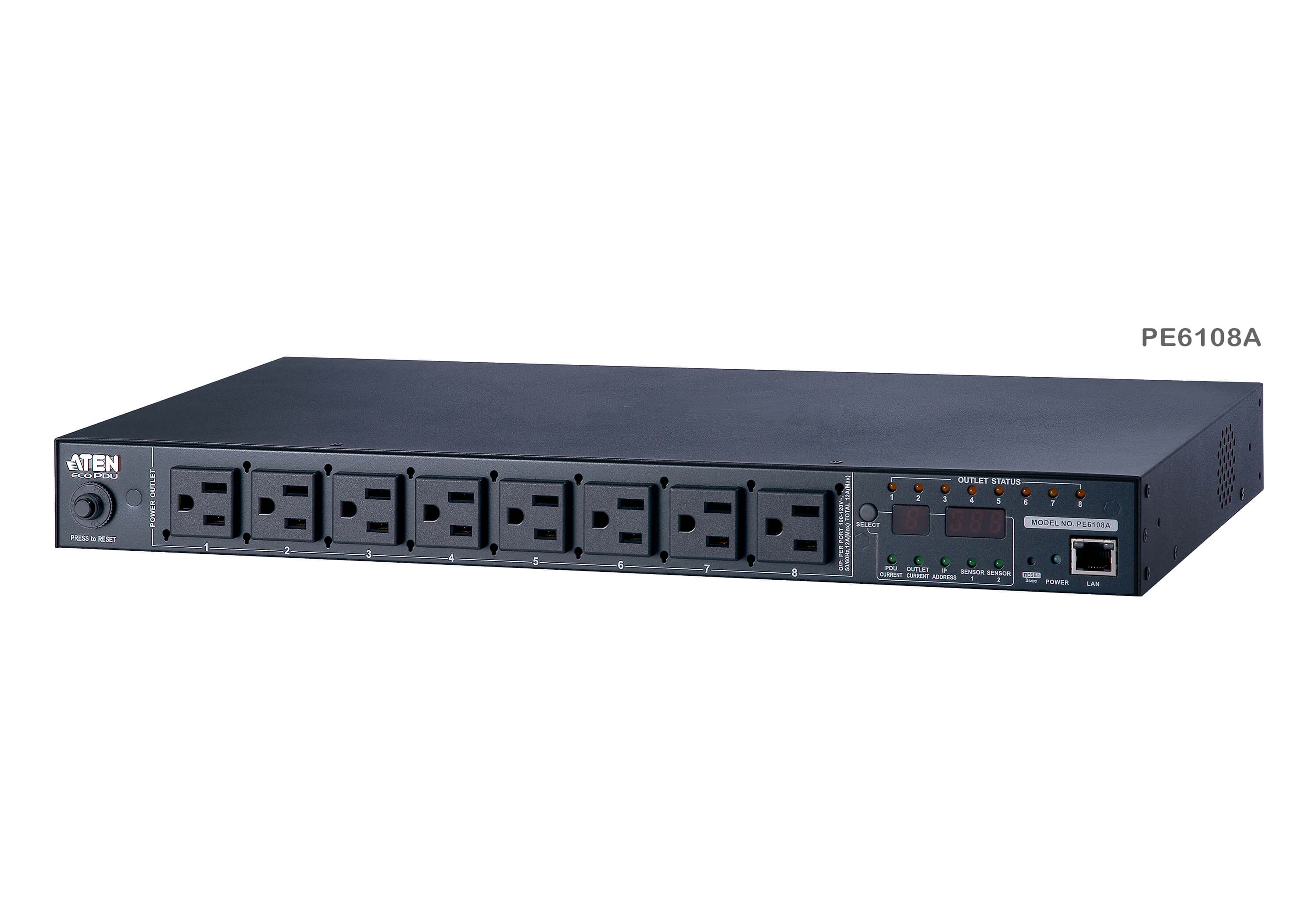

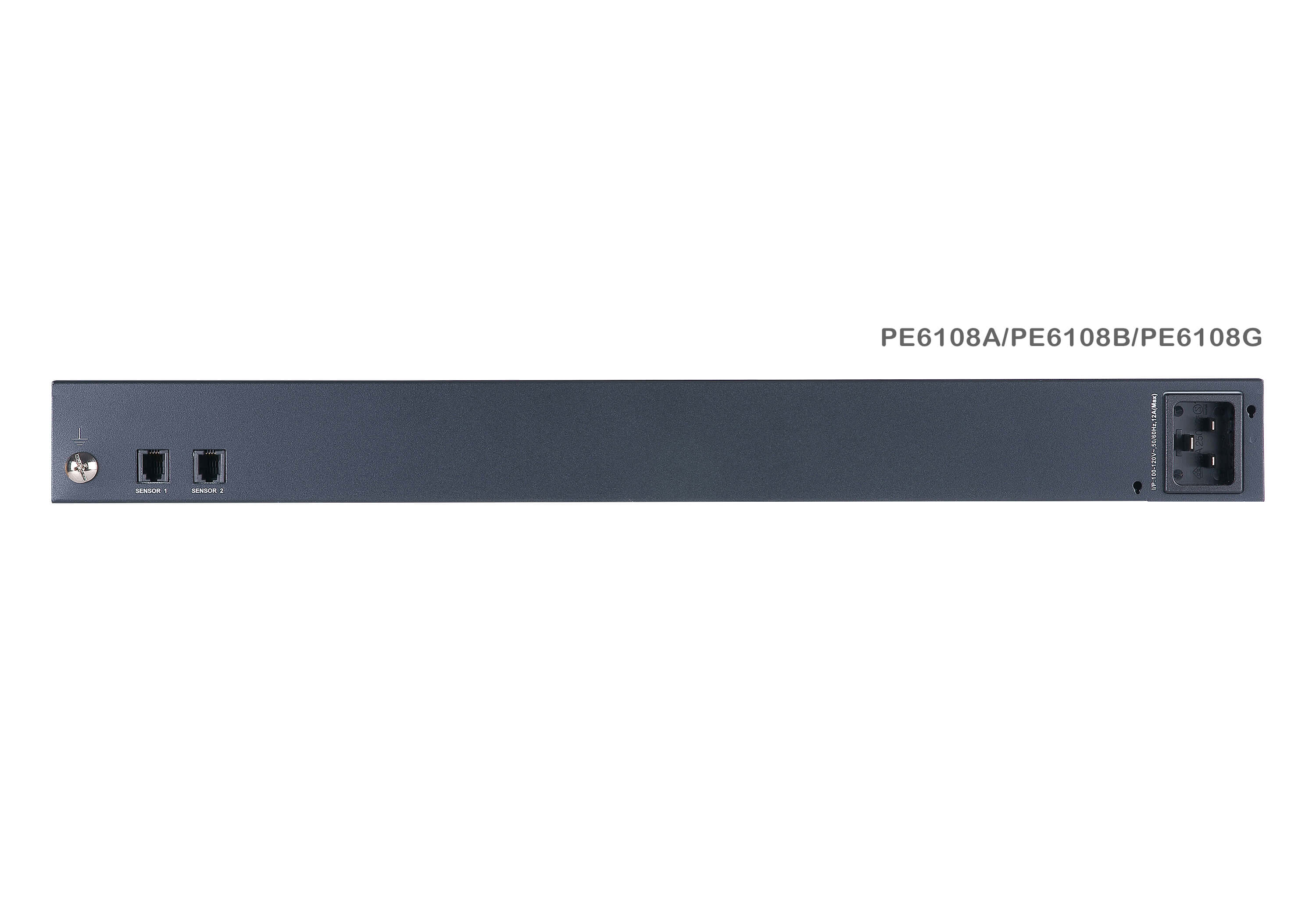

Aten Power Distribution Unit, 8 Outlets, 1U, Metered and Switched eco PDU - PE6108G

Aten
ATPE6108GPOWCONVR
R 8,473.46 Ex VAT

• Remote power outlet control (On, Off, Power Cycle) by individual outlets

• Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level

• Proactive Overload Protection (POP) – automatically powers off outlets when current overloads to protect operating devices Management

• Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping, Telnet

• 8 outlets
• 15A (UL derated 12A) / 10A
• PDU Power Measurement

The PE6108 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data centre IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the centre’s health environment via sensors*.

The eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs at the PDU device level from practically any location via a TCP/IP connection.

Package Contents

1x PE6108 Power Distribution Unit

1x Power Cord

1x Rack Mount Kit

1x User Instructions



Function

PE6108G

Electrical



Nominal Input Voltage

100 – 240 VAC

Maximum Input Current

10A Max

Input Frequency

50-60 Hz

Input Connection

IEC 60320 C14

Input Power

2300 VA(Max)

Outlet Type

Total: 8 x IEC320 C13

Nominal Output Voltage

100 – 240 VAC

Maximum Output Current (Outlet)

C13: 10A(Max)

Maximum Output Current (Bank)

10A(Max)

Maximum Output Current (Total)

10A(Max)

Breakers

1 x 15A Non-Fuse Breaker

Metering

Bank level Current, Voltage, VA , PF and KWh Monitoring

Outlet Switching

Yes

Environment Sensor Ports

2

Metering Accuracy

Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%

Physical Properties



Dimensions (L x W x H)

43.24 x 22.04 x 4.40 cm
(17.02 x 8.68 x 1.73 in.)

Weight

2.77 kg ( 6.1 lb )

Power Cord Length

3 m

Environmental



Temperature (Operating / Storage)

0 – 50°C / -20 – 60°C

Humidity (Operating & Storage)

0 – 80% RH, Non-Condensing





EMC Verification

CE, Others by Request

Safety Verification

TUV-CB, CE-LVD, Others by Request

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.





PE6108G Datasheet PDF
