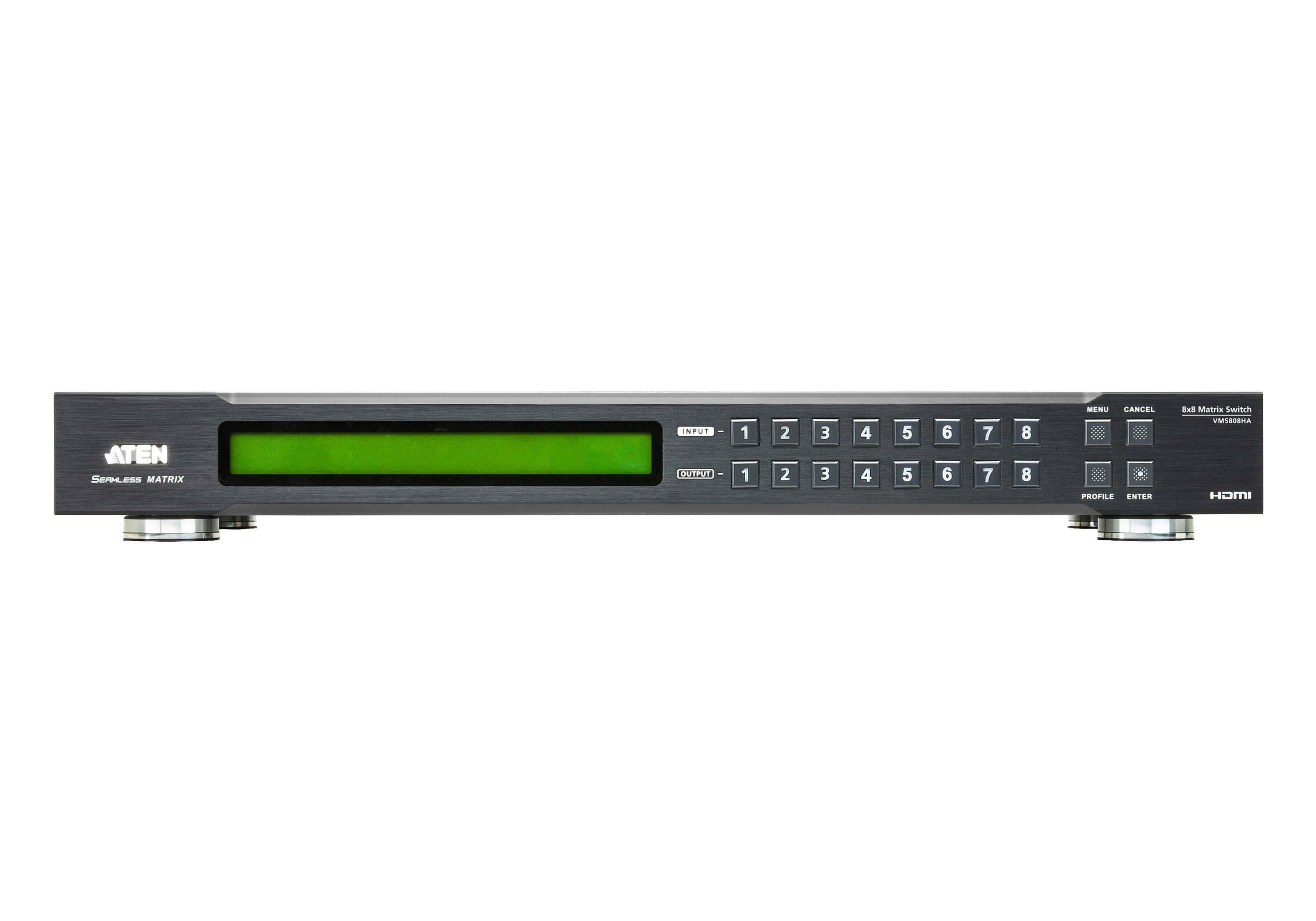

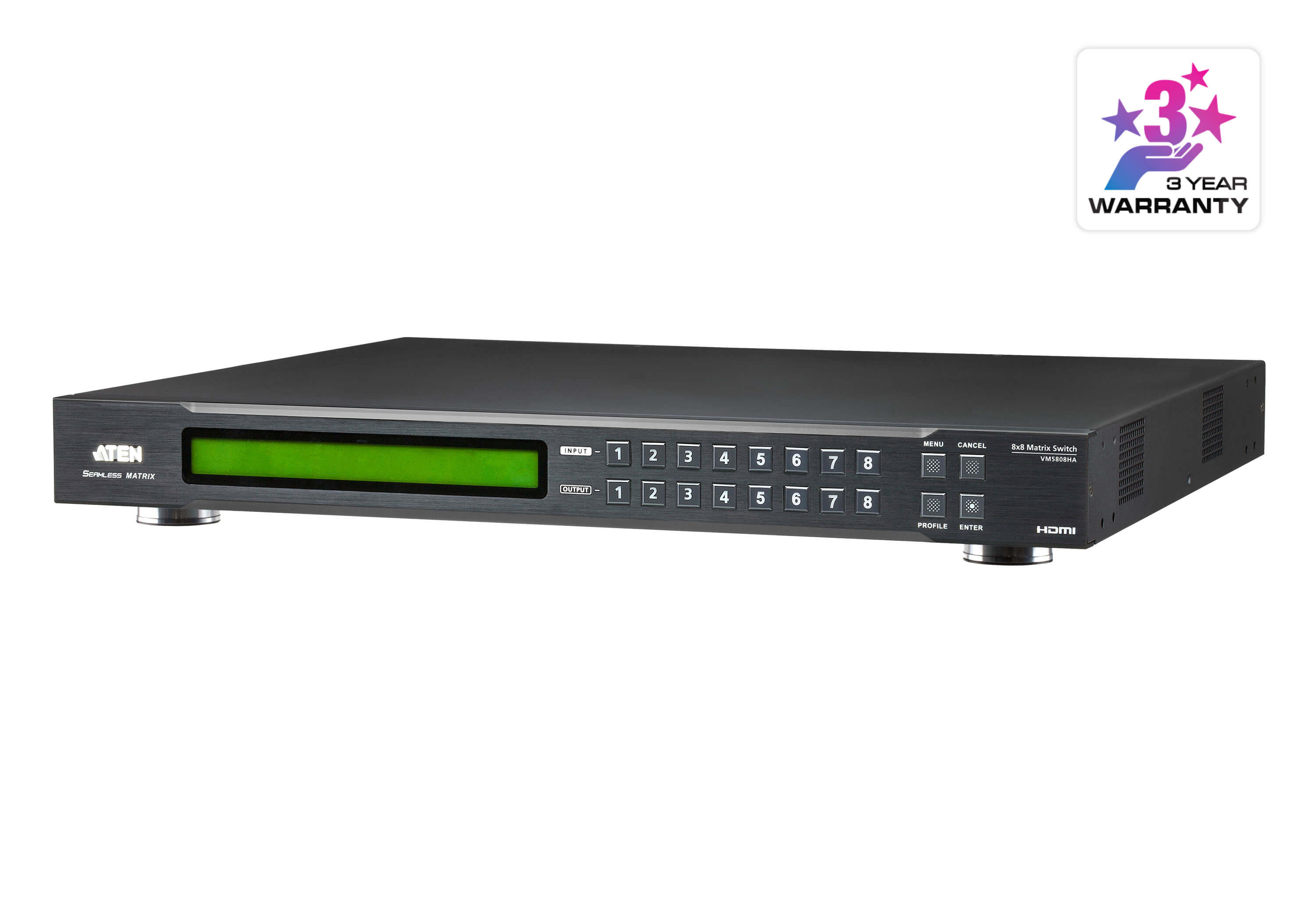

Aten Matrix Switch, HDMI, 8 Port - VM5808HA
• Routes any of 8 HDMI sources to any of 8 HDMI displays
• Local HDMI output – enables previewing of up to 8 video sources in a multi-view window
• Multiple system configuration methods including front panel pushbuttons / RS-232 / Ethernet (Telnet / Web GUI) connection, ATEN Video Matrix Control app, and ATEN Control System
• ATEN Seamless Switch technology – adopts FPGA to unify video formats so as to provide continuous video streams, real-time switching, and stable signal transmission
The 8 x 8 HDMI Matrix Switch allows any of the 8 HDMI input signals to be routed to any of the 8 HDMI output channels with no compromise on flexibility. Multiple methods are available when it comes to controlling the device, such as through the front panel pushbuttons, RS-232, and Ethernet (Telnet / Web GUI) connections. Plus, the VM5808HA supports ATEN Video Matrix Control app for device status viewing and controlling. It can also be integrated with ATEN Control System, a platform where Ethernet-based ATEN Video Matrix Switches and third-party devices (such as projectors, lights, AV devices) are centrally monitored, managed, and controlled. Signal management is made efficient with the front panel LCD, giving users a quick view of all port connections. In addition, the local HDMI output port allows real-time monitoring of multiple sources on a single display exactly where the Matrix Switch is located.
As the ultimate video wall solution, the FPGA-based VM5808HA features ATEN's exclusive Seamless Switch technology, ensuring uninterrupted video streams, real-time control, and stable signal transmission. The built-in scaler automatically scales any input video feed to match the native resolution of the output display for the best video and picture quality. To prevent screen tearing, the VM5808HA adopts FrameSync technology to synchronize the scaler output frame rates to the input signal frame rates, guaranteeing stunning tear-free video walls.
Speaking of audio functionality, the Matrix Switch features audio de-embedding, enabling digital audio from any HDMI input to be assigned to the stereo output for added flexibility of installation. The VM5808HA is an HDMI video routing solution ideal for scenarios where customizable, real-time AV signal transportation from multiple sources to one or more destinations is required, from control centres, server rooms, to any kind of video wall applications.
Package Contents
1x HDMI Matrix Switch with Scaler
1x power cord
1x mounting kit
1x user instructions
|
Video Input |
|
|
Interfaces |
8 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
|
Max. Distance |
5.0 m |
|
Video Output |
|
|
Interfaces |
8 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
|
Max. Distance |
15 m |
|
Video |
|
|
Max. Data Rate |
6.75 Gbps (2.25 Gbps Per Lane) |
|
Max. Pixel Clock |
225 MHz |
|
Compliance |
HDMI (3D, Deep Colour) |
|
Max. Resolution |
Up to 1080p |
|
Max. Distance |
Up to 15 m |
|
Audio |
|
|
Output |
1 x Mini Stereo Jack Female (Green) |
|
Control |
|
|
RS-232 |
Connector: 1 x DB-9 Female (Black) |
|
Ethernet |
1 x RJ-45 Female |
|
EDID Settings |
EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support) |
|
Connectors |
|
|
Power |
1 x 3-Prong AC Socket |
|
Power |
|
|
Maximum Input Power Rating |
100-240 VAC; 50-60 Hz; 1.0A |
|
Power Consumption |
AC110V:58.1W:272BTU |
|
Environmental |
|
|
Operating Temperature |
0-40°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
5.54 kg ( 12.2 lb ) |
|
Dimensions (L x W x H) |
43.24 x 37.82 x 4.40 cm |
|
Carton Lot |
1 pc |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
|
Input Resolutions |
1080P HDMI |
720 x 480p 60 Hz (4:3) / (16:9) |
|
640 x 480 @ 60/72/75 Hz |
1280 x 720p 60 Hz (16:9) |
|
|
800 x 600 @ 56/60/72/75 Hz |
1920 x 1080i 60 Hz (16:9) |
|
|
1024 x 768 @ 60/70/75 Hz |
1920 x 1080p 60 Hz (16:9) |
|
|
1280 x 800 @ 60 Hz |
720 x 576p 50 Hz (4:3) / (16:9) |
|
|
1280 x 1024 @ 60/75 Hz |
1280x720p 50Hz (16:9) |
|
|
1366 x 768 @ 60 Hz |
1920 x 1080i 50 Hz (16:9) |
|
|
1400 x 1050 @ 60 Hz |
||
|
1440 x 900 @ 60 Hz |
||
|
1600 x 1200 @ 60 Hz |
||
|
1680 x 1050 @ 60 Hz |
||
|
1920 x 1080 @ 60 Hz |
||
|
1920 x 1200 @ 60 Hz (Reduced Blanking) |
||
|
640 x 480p 60 Hz (4:3) |
