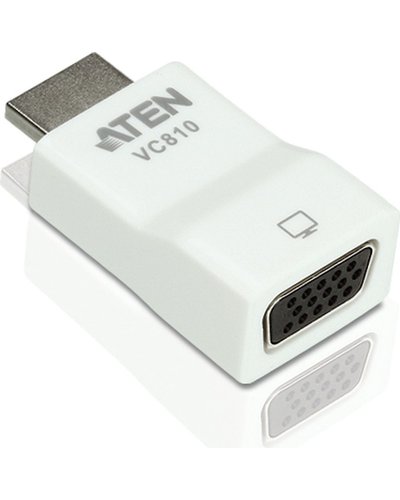

Aten Converter, HDMI to VGA - VC810
• Converts HDMI signals to VGA output
• Superior video quality – up to 1920 x 1200, 1080p
• Supports wide screen formats
• Non-powered
The VC810 is an HDMI-to-VGA converter that allows you to connect an HDMI source (e.g. laptop, PC, Ultrabook, etc.) directly to a VGA display (e.g. projector, LCD monitor, etc.) without upgrading to an HDMI-compatible display at extra cost. It supports frequently used video resolutions of up to 1920 x 1200. The VC810 is compact and convenient to install with no software needed – simply make the hardware connections. In addition, this plug-n-play converter does not require an external power source, which is ideal for environments like conference room where briefings or presentations take place, ensuring great portability, installation simplicity, and manageability.
|
Video Input |
|
|
Interfaces |
1 x HDMI Type A Male (Black) |
|
Impedance |
100 Ω |
|
Video Output |
|
|
Interfaces |
1 x HDB-15 Female (Black) |
|
Impedance |
75 Ω |
|
Video |
|
|
Max. Pixel Clock |
200 MHz |
|
Max. Resolution |
Up to 1920 x 1080/60Hz |
|
Environmental |
|
|
Operating Temperature |
0 - 60 ºC |
|
Storage Temperature |
-10 - 70 ºC |
|
Humidity |
40 - 85% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.01 kg ( 0.02 lb ) |
|
Dimensions (L x W x H) |
4.55 x 2.30 x 1.48 cm |
|
Carton Lot |
40 pcs |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
