Aten True 4K Presentation Switch - VP1420

Aten
ATVP1420SWIHDMIX
R 13,305.62 Ex VAT

• Analog/Digital AV Matrix Switching – switch among 3 HDMI and 1 VGA inputs to 2 HDMI outputs and support of audio embedding/de-embedding

• Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, Contact Closure, and web-based GUI through Ethernet

• Superior video quality – True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI); HDR support

• Scaler – supports video upscaling to 4K for display A and downscaling to 1080p for display B

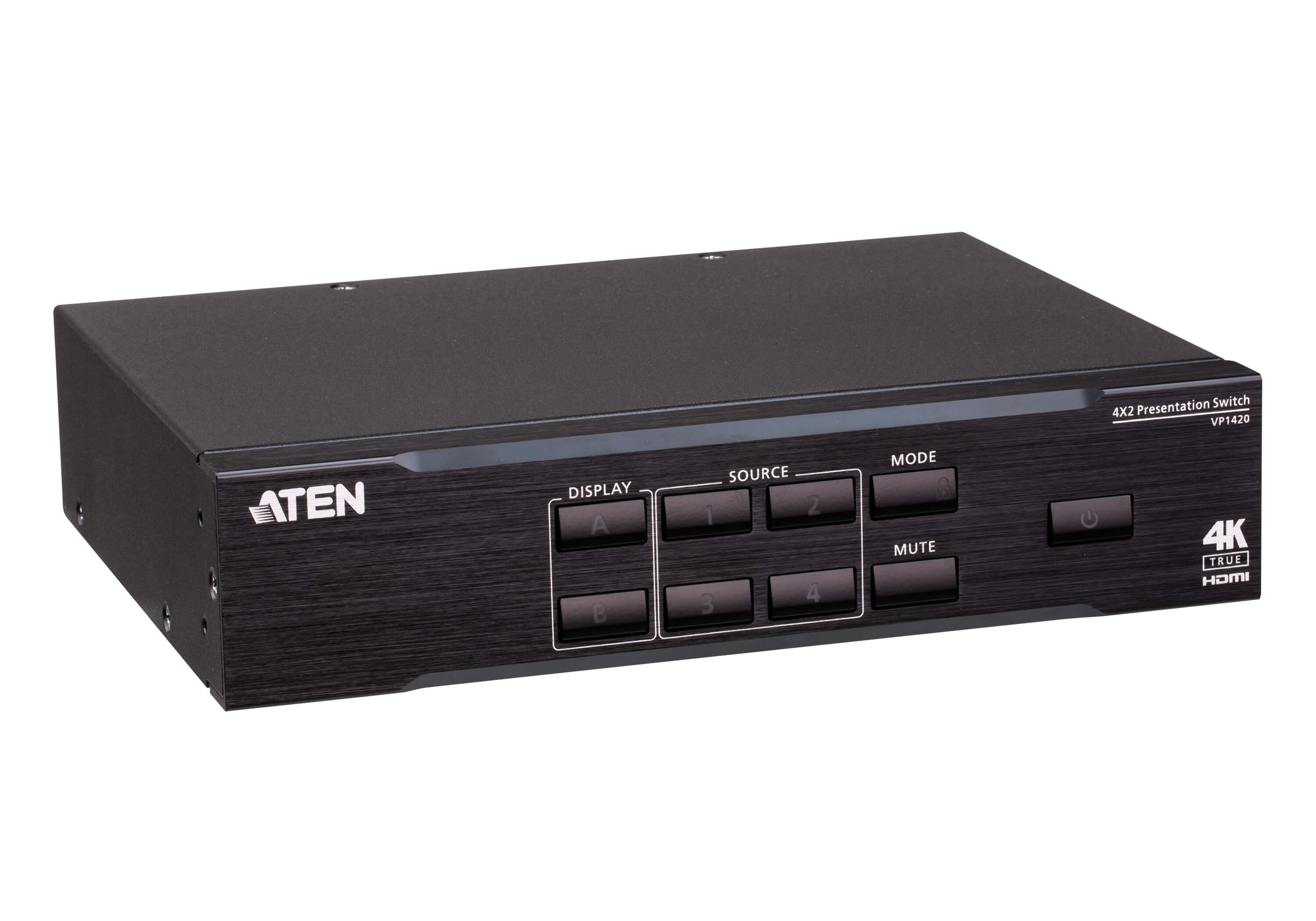

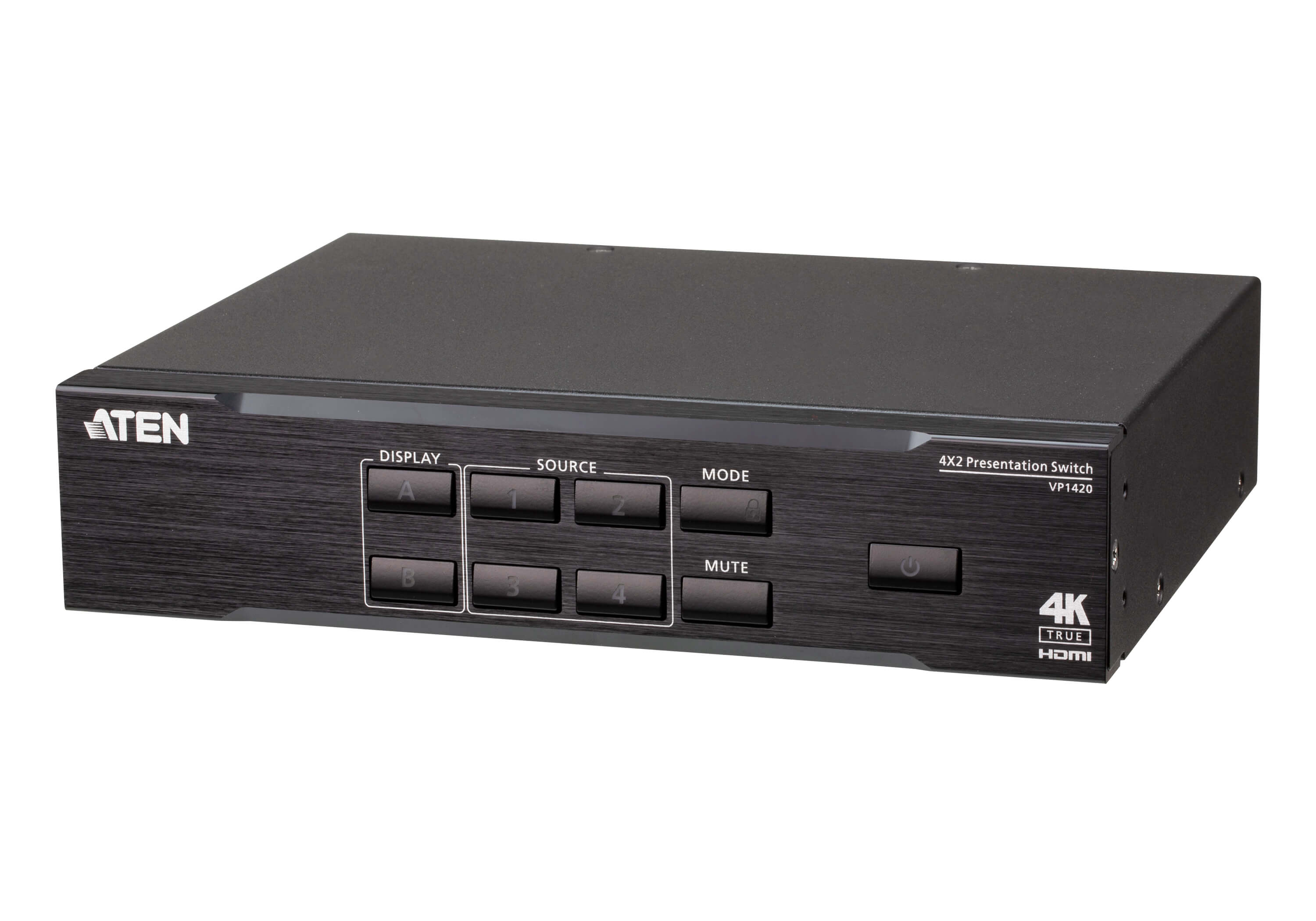

ATEN VP1420 is a multi-in-one presentation switch that integrates a video matrix, True 4K scaler, audio processor, and analogue-to-digital converter functions into one compact device. With four analogue/digital inputs to two HDMI outputs, it is designed to boost the impact of any professional presentation in small- to medium-size meeting rooms.

True 4K, HDR Visual Clarity

Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) with HDR to deliver vivid content in every presentation.

Smooth AV Switching Scaled to Perfection

Connect up to 4 sources (3 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.

Flexible Audio Embedding / De-Embedding

Supports stereo audio embedding and HDMI audio de-embedding to different audio outputs to ease adaptation to your preferred audio setup.

Versatile Control, Streamlined Operations

Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.

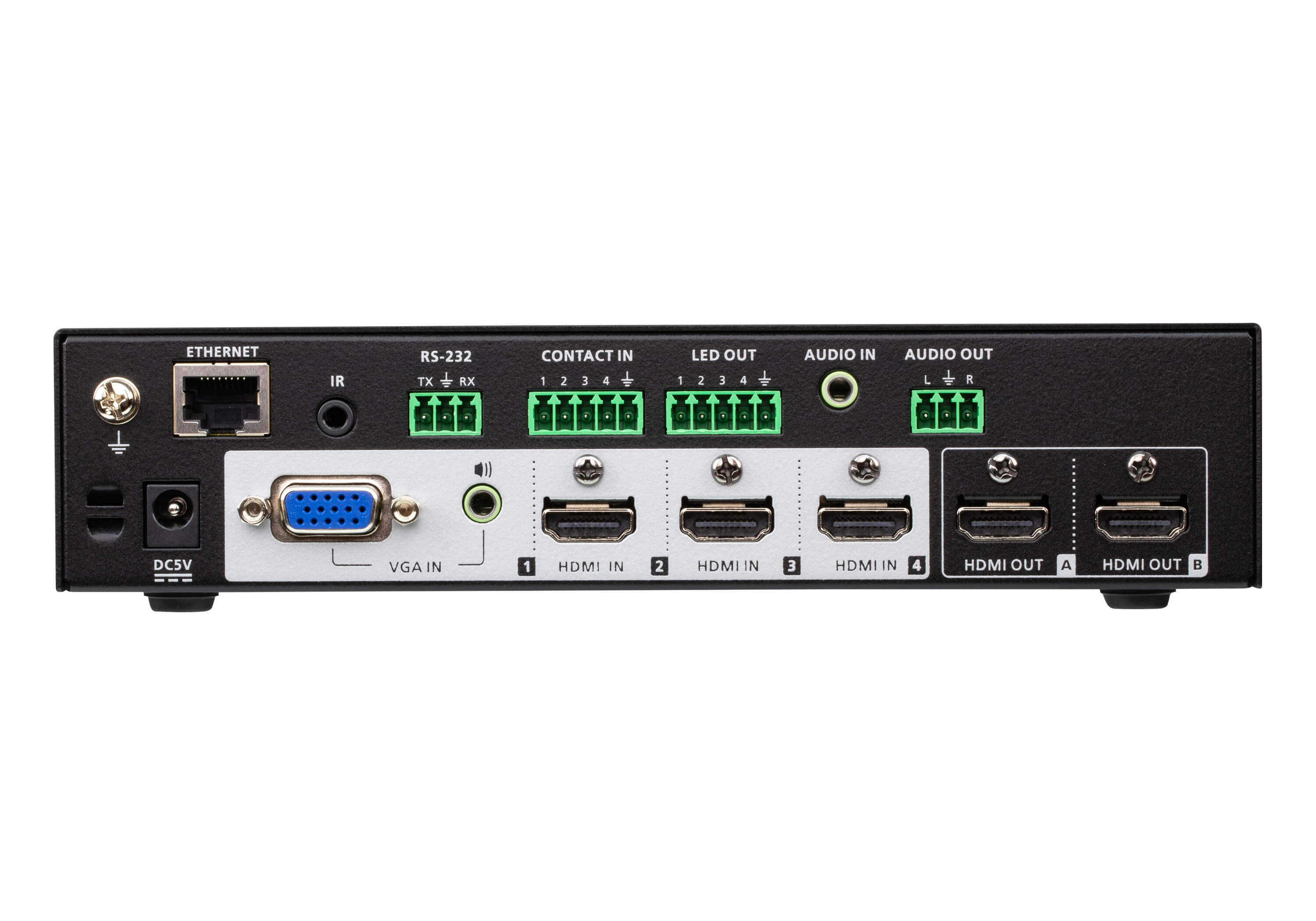

Video Input

Interfaces

3 x HDMI Type A female (Black)
1 x VGA (HDB-15) Female (Blue)

Max. Distance

HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m
VGA: 1080p@60Hz at 15m

Video Output

Interfaces

2 x HDMI Type A female (Black)

Max. Distance

HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m

Video

Max. Resolution

HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
VGA: Up to 1080p@60Hz

Compliance

HDMI (3D, Deep Colour, 4K); 4K HDR
HDCP 2.2 Compatible; Consumer Electronics Control (CEC)

Audio

Input

Stereo Audio (VGA): 1 x mini stereo Jack female (Green)
Stereo Audio (HDMI): 1 x mini stereo Jack female (Green)

Output

Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole

Control

RS-232

1 x Captive Screw Connector, 3-pole

IR

1 x Mini Stereo Jack Female (Black)

Ethernet

1 x RJ-45 Female (Silver)

Contact In

1 x Captive Screw Connector, 5-pole

LED Out

1 x Captive Screw Connector, 5-pole
LED out power: +5 VDC, 0.2 A

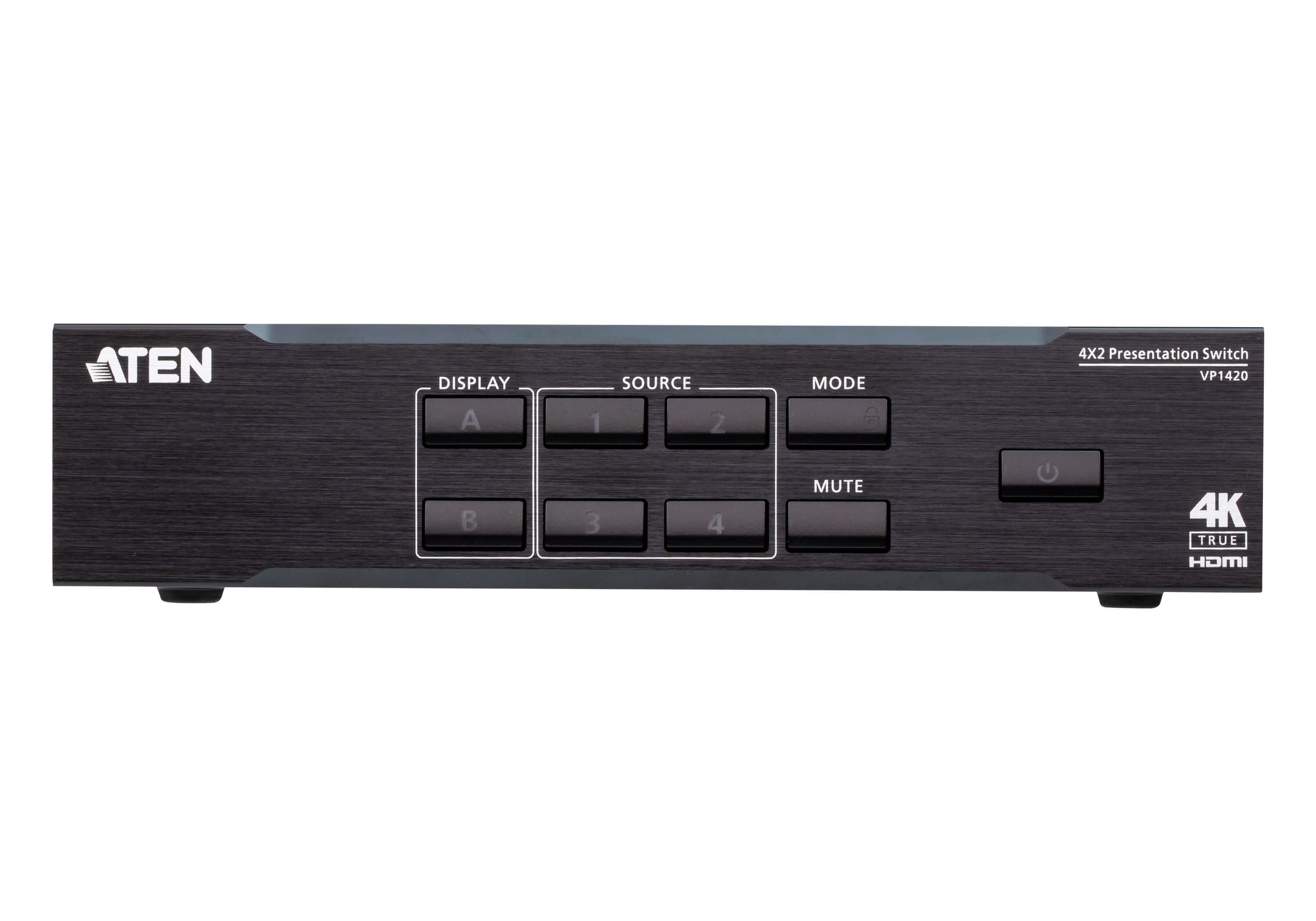

Switches

Power

1 x Pushbutton (LED: Green / Orange)

Video Input Port Selection

4 x Pushbutton (LED: Green)

Video Output Port Selection

2 x Pushbutton (LED: Orange)

Selection

Mute: 1 x Pushbutton
Mode / Unlock: 1 x Pushbutton

EDID Settings

EDID Mode: ATEN Default / Display A / Remix

Connectors

Power

1 x DC Jack (Black)

Power Consumption

DC5V:7.21W:38BTU

Environmental

Operating Temperature

0-40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

1.09 kg ( 2.4 lb )

Dimensions (L x W x H)

20.00 x 16.05 x 4.40 cm
(7.87 x 6.32 x 1.73 in.)

Carton Lot

3 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VP1420 Datasheet PDF
