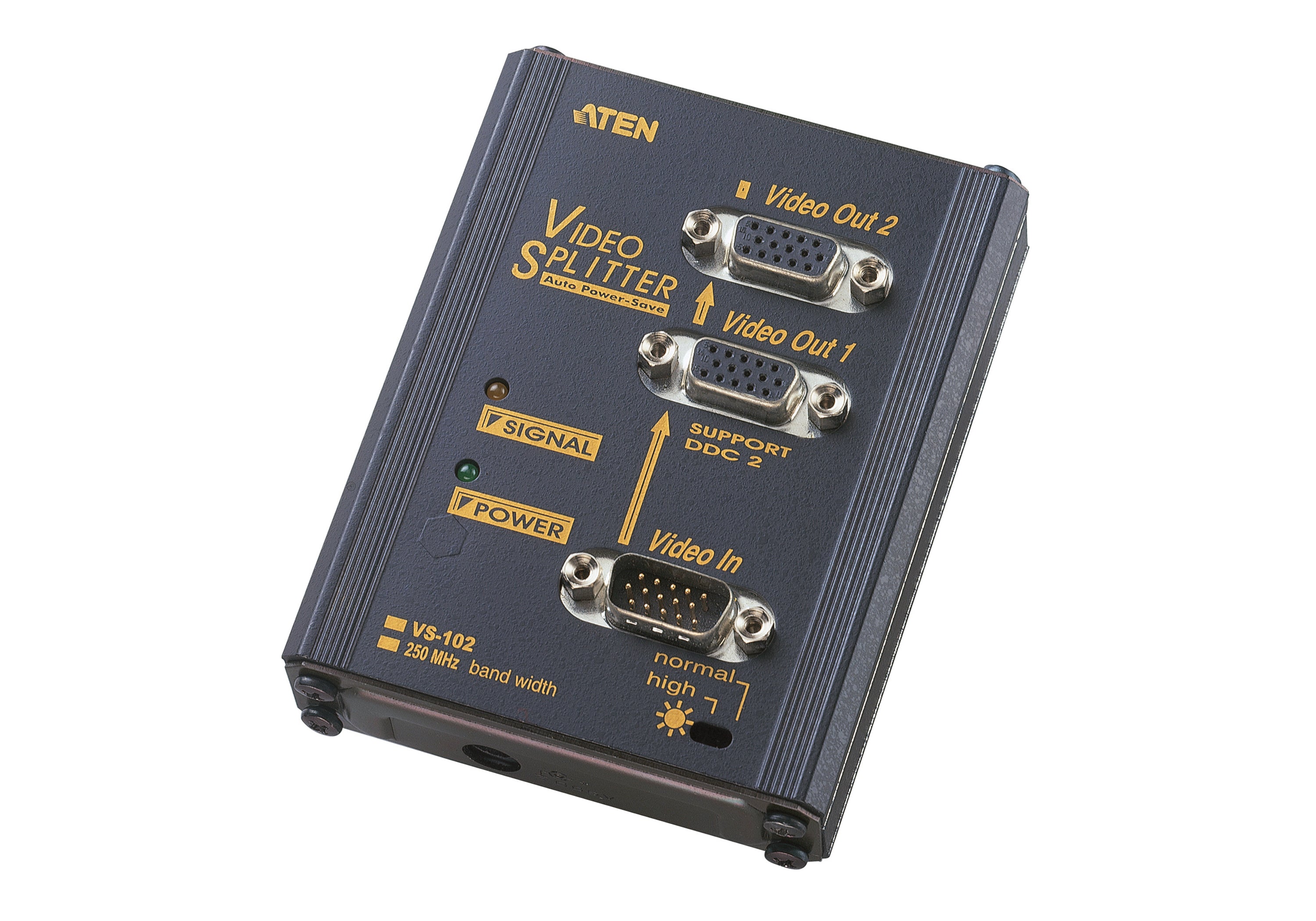

Aten Splitter, VGA, 2 Port - VS102
• One video input to 2 video outputs.
• High video resolution - up to 1920 x 1440.
• Supports up to 250 MHz bandwidth.
• Cascadable to 3 levels-provides up to 8 video signals.
VS102 video splitters provides video input signals to 2 video outputs each at 250 MHz after duplication. Users can boost video signals from the video gain knob within a transfer range up to 65m.
Package Contents
- 1x 2-Port Video Splitter
- 1x Power Adapter
- 1x User Instructions
|
Video Input |
|
|
Interfaces |
1 x HDB-15 Male (Blue) |
|
Impedance |
75 Ω |
|
Max. Distance |
1.8 m |
|
Video Output |
|
|
Interfaces |
2 x HDB-15 Female (Blue) |
|
Impedance |
75 Ω |
|
Video |
|
|
Max. Bandwidth |
250 MHz |
|
Max. Resolution |
Up to 1920 x 1440 |
|
Max. Distance |
Up to 65 m |
|
Connectors |
|
|
Power |
1 x DC Jack |
|
Power Consumption |
DC9V:1.22W:6BTU |
|
Environmental |
|
|
Operating Temperature |
0-50°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
0.19 kg ( 0.42 lb ) |
|
Dimensions (L x W x H) |
10.36 x 7.90 x 2.82 cm |
|
Carton Lot |
20 pcs |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
VS102 Datasheet PDF
