Aten Multiport Dock, USB - UH3237 – Solution Technologies
Online Support Ask An Expert

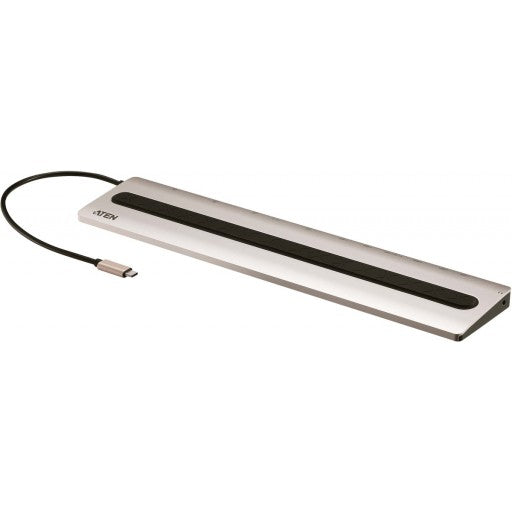

Aten Multiport Dock, USB - UH3237

Aten
ATUH3237CONCONVR
R 3,022.39 Ex VAT

• Expands up to 13 devices instantly through a USB-C cable

• Supports USB power delivery 3.0 (PD3.0) for laptop charging up to 85W via USB-C PD power adapter–power profiles include 5V, 9V, 12V, 15V, 20V

• Supports single display output resolution up to 4K@30 (3840x2160@30Hz) on a single HDMI or dual display output at 1080p (1920x1080@60Hz)

• Compatible with Apple M1 chip devices; 1 x USB 3.2 Gen 1 Type-A port supports Battery Charging Specification Revision 1.2 (BC 1.2) for fast-charging device

The ultra-sleek ATEN USB-C Multiport Dock is a one-step total upgrade for your laptop that provides all the extra expansion capabilities that you need. Simply use one cable to add up to 13 devices, with power delivery pass-through to boost your productivity with extra HDMI, VGA, USB 3.2 Gen 1, USB 2.0, SD/MicroSD, Ethernet and Audio connections.

Enjoy stunning 4K video or a dual HD monitor setup with HDMI, and VGA functionality. The UH3237 routes video from a source computer to a HDMI monitor via a single cable while maintaining the highest quality 4K resolution. You can also mirror or extend your Windows USB-C laptop to two monitors at 1920 x 1080@60hz.

The UH3237 also supports USB-C Power Delivery Pass-Through up to 85W, which means it can provide power to your device via a USB-C PD power adapter with the PD profile specifications of 5V, 9V, 12V, 15V, 20V.

Package Contents

1x USB-C Multiport Dock with Power Pass-Through

1x User Instructions



Computer Connections

1

Connectors

Computer

30 cm USB 3.1 Gen1 Type-C tethered cable

Device

2 x USB 2.0 Type-A Female (Black)*
3 x USB 3.2 Gen 1 Type-A Female (Blue)*
1 x USB 3.2 Gen 1 Type-C Female (Data Only)*

*The total output of 6 USB Ports is max. 5V, 10W.

Video Output

2 x HDMI Female
1 x VGA Female

LAN Ports

1 x Gigabit Ethernet Female (Black)

Audio

1 x 3.5mm stereo 4-pole microphone and headphone jack

Power

1 x USB Type-C Female*

* Supports USB Power Delivery 3.0 for charging up to 85W, power profiles includes 5V, 9V, 12V, and 20V.
* For device charging, a Limited Power Source (LPS) certified single port USB-C PD power adapter over 65 Watt is recommended.
* The minimum system power requirement for basic USB functions and video output should be at least 5V, 15W.

Performance

Flash Memory

1 x SD Card Slot (SD/SDHC/SDXC)
1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 128G)

Video Resolution

Single View:
HDMI - 3840x 2160@30hz or VGA -1920 x 1080@60hz
Dual View*:
2 x HDMI – 1920 x 1080@60hz

* For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single-view output.

Power Consumption

DC5V:15W:66BTU

System Requirements

Windows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html

Mac OS X 10.12 and above, USB-C enabled computer

iPadOS 13.1 and above, iPad Pro (USB-C)*
*iPad Pro only supports single view in mirror mode

Environmental

Operating Temperature

0–40°C

Storage Temperature

-20–60°C

Humidity

0–80% RH, Non-condensing

Physical Properties

Housing

Top Cover – Aluminum
Bottom Panel - Plastic

Weight

0.37 kg ( 0.81 lb )

Dimensions (L x W x H)

35.03 x 7.50 x 1.48 cm
(13.79 x 2.95 x 0.58 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



UH3237 Datasheet PDF
