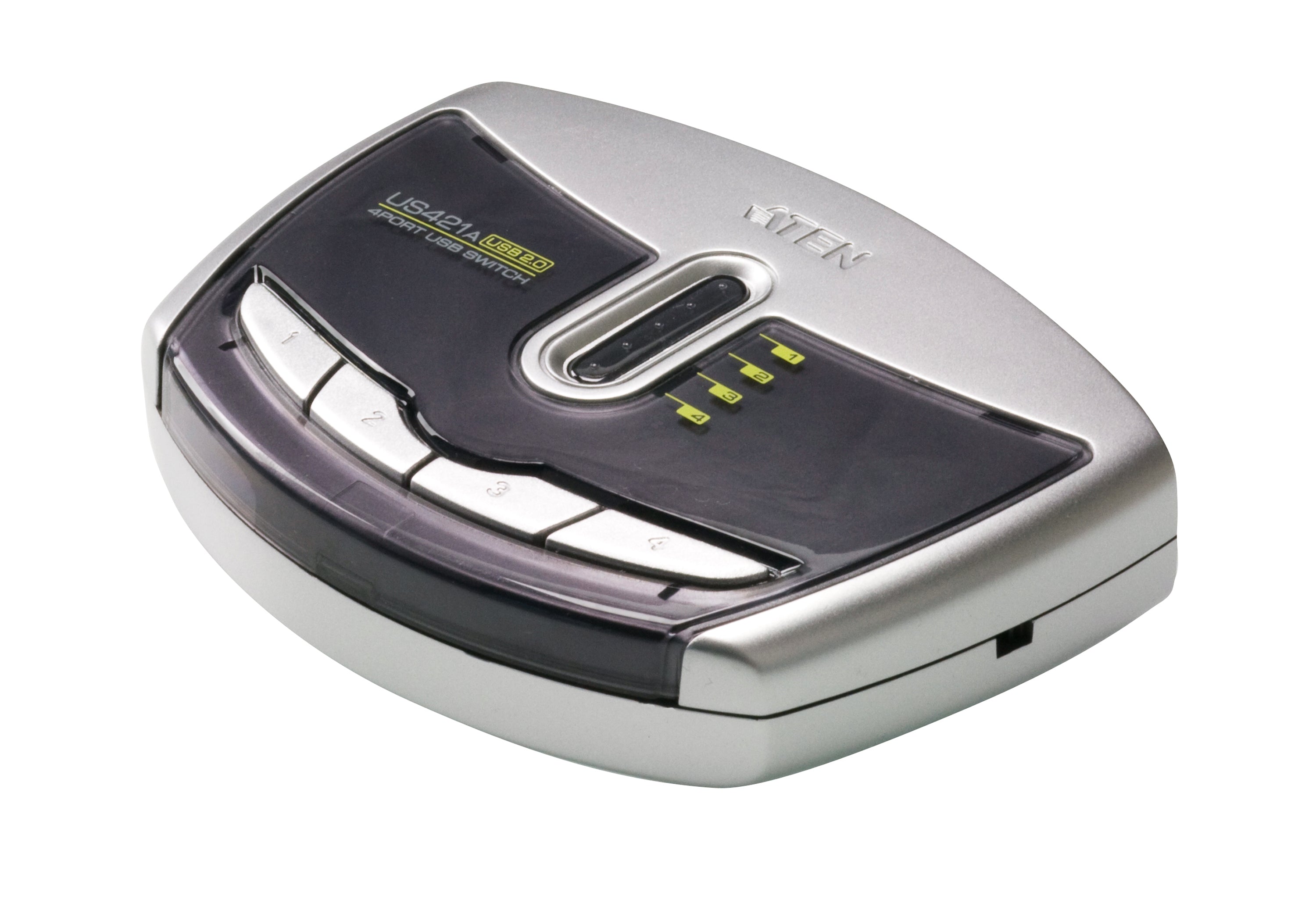

Aten Peripheral Switch, USB 2.0, 4 Port - US421A
• Enables four computers to share a single USB peripheral device
• Simple port selection via pushbuttons, configuration utility, or Auto Switch function
• Auto Switch Function - no need for print server
• Buzzer indicates switching between computers
The US421A is a 4-port USB 2.0 Peripheral Switch that allows up to 4 computers to share the use of a single USB peripheral device (such as a printer, scanner, mass storage drive, etc.) on a one-at-a-time basis.
The peripheral focus can be given to a computer manually by using pushbuttons on the switch, using the software-based configuration utility, or by the Auto Switch function.
Compatible with both Windows and Mac, and with multifunction printer support, the US421A is the ideal way to share the latest USB 2.0 peripherals in a multimedia office environment.
Package Contents
1x 4-Port USB 2.0 Peripheral Switch
1x USB Type-A to USB Type-B Cable (1.8m)
1x User Instructions
|
Console Connections |
4 |
|
Port Selection |
Pushbuttons, Software, Auto Switch |
|
Connectors |
|
|
Computer |
4 x USB Type B |
|
Device |
1 x USB Type A |
|
LEDs |
|
|
Devices |
1 (Orange) |
|
Selected |
4 (Green) |
|
Switches |
4 x Pushbutton |
|
Power |
USB Bus Powered |
|
Environmental |
|
|
Operating Temperature |
0–40˚C |
|
Storage Temperature |
-20–60˚C |
|
Humidity |
0–80% RH, Non-condensing |
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.10 kg ( 0.22 lb ) |
|
Dimensions (L x W x H) |
10.40 x 7.96 x 2.20 cm |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
US421A Datasheet PDF
