Aten Converter, HDMI/VGA to HDMI, 2 Port - VC1280

Aten
ATVC1280CONCONVR
R 3,566.43 Ex VAT

• Supports Auto Switch – the VC1280 automatically switches to a newly plugged-in source

• Easily switches sources among 3 modes (HDMI/VGA/AUTO) via a pushbutton

• HDMI 1.4 (3D, Deep Colour, 4K); HDCP 1.4 compatible

• RS-232 Channel Transmission – allows you to connect to serial terminals or serial devices for firmware upgrade

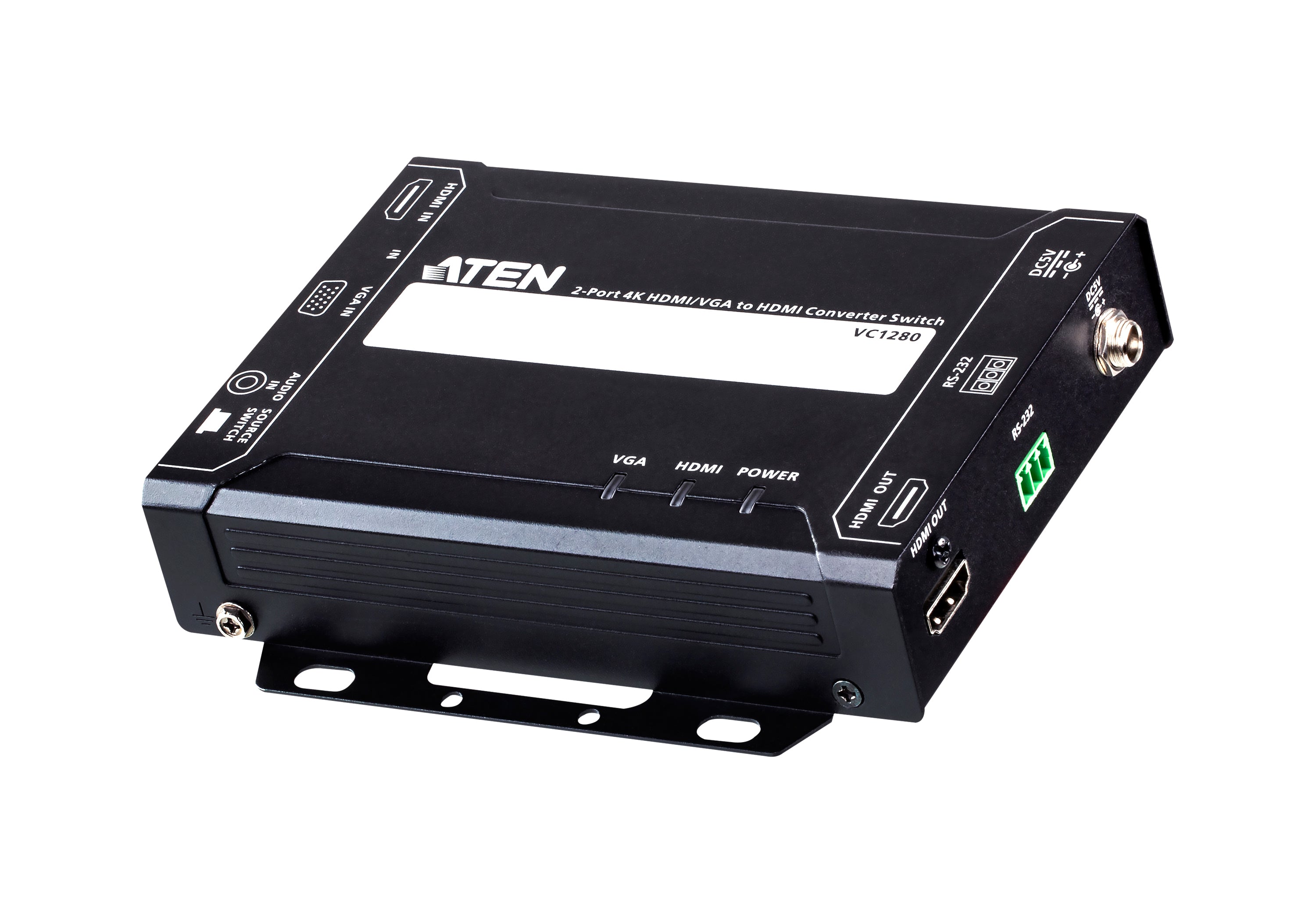

The ATEN VC1280 is a user-friendly device that simply connects HDMI and VGA sources to one HDMI display or projector. Apart from being compliant with HDCP 1.4, the VC1280 also supports HDMI 1.4 including 3D, Deep Colour and 4K (3840 X 2160@30 Hz). In addition, the VC1280 features built-in VGA conversion, which allows you to transmit VGA signals to HDMI output without using extra adapters or scalers.

The VC1280 offers 3 source switching modes – HDMI, VGA, and AUTO, it allows you to switch rapidly and intuitively via a pushbutton for real-time use. When the VC1280 operates on the AUTO input mode, it transmits the first detected input to the HDMI display, and automatically switches to a newly plugged-in source when it detects the signals.

Without any software or driver installation required, the VC1280 is a handy and easy-to-use multi-input A/V switch. It is ideal for user that needs automatic and quick switching to adopt. With the VC1280, you can effortlessly accelerate instant collaboration and work efficiency with co-workers.



LEDs

Status

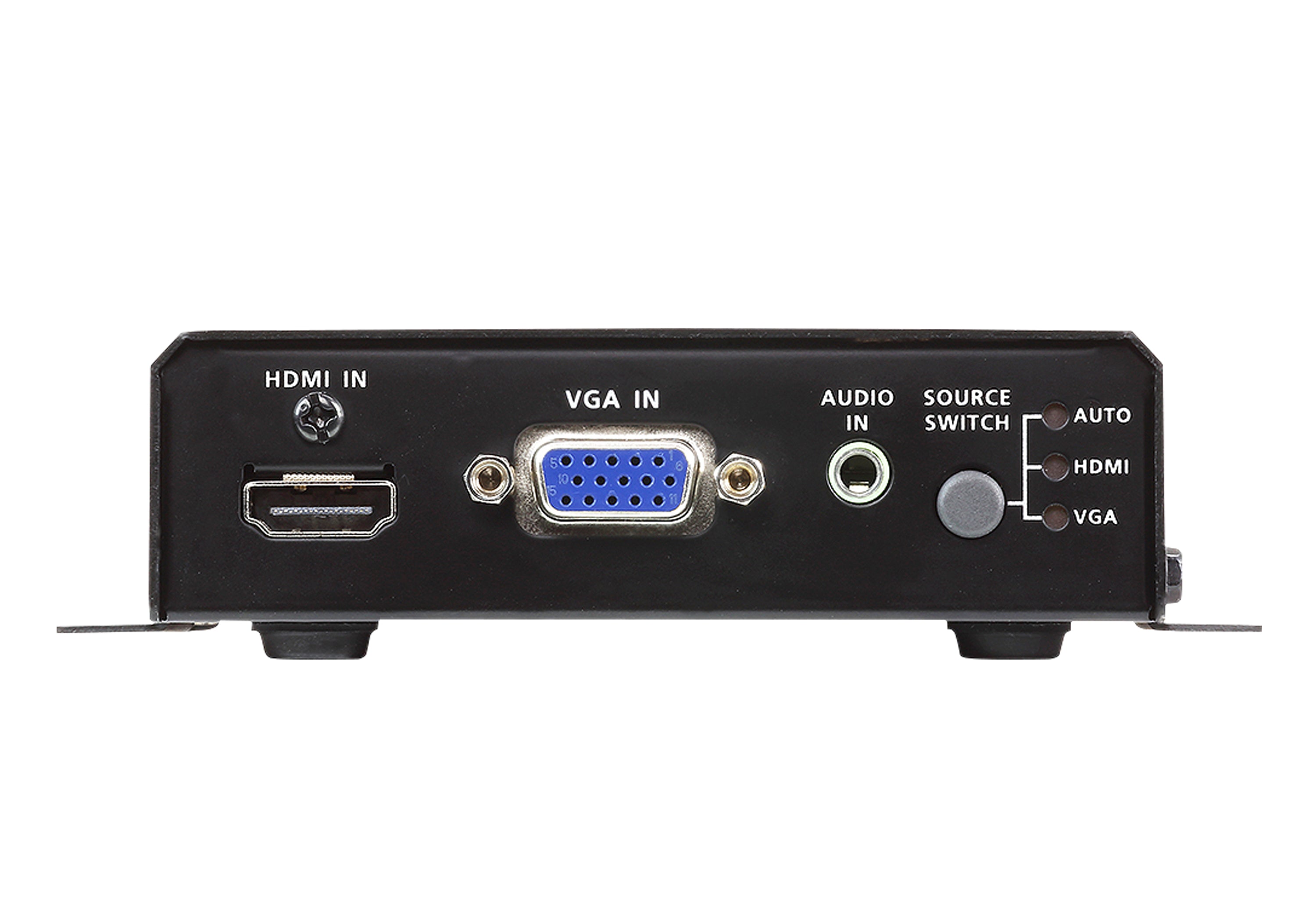

3 x LED (Front - Source Switching: AUTO / HDMI / VGA)
Colour: Orange

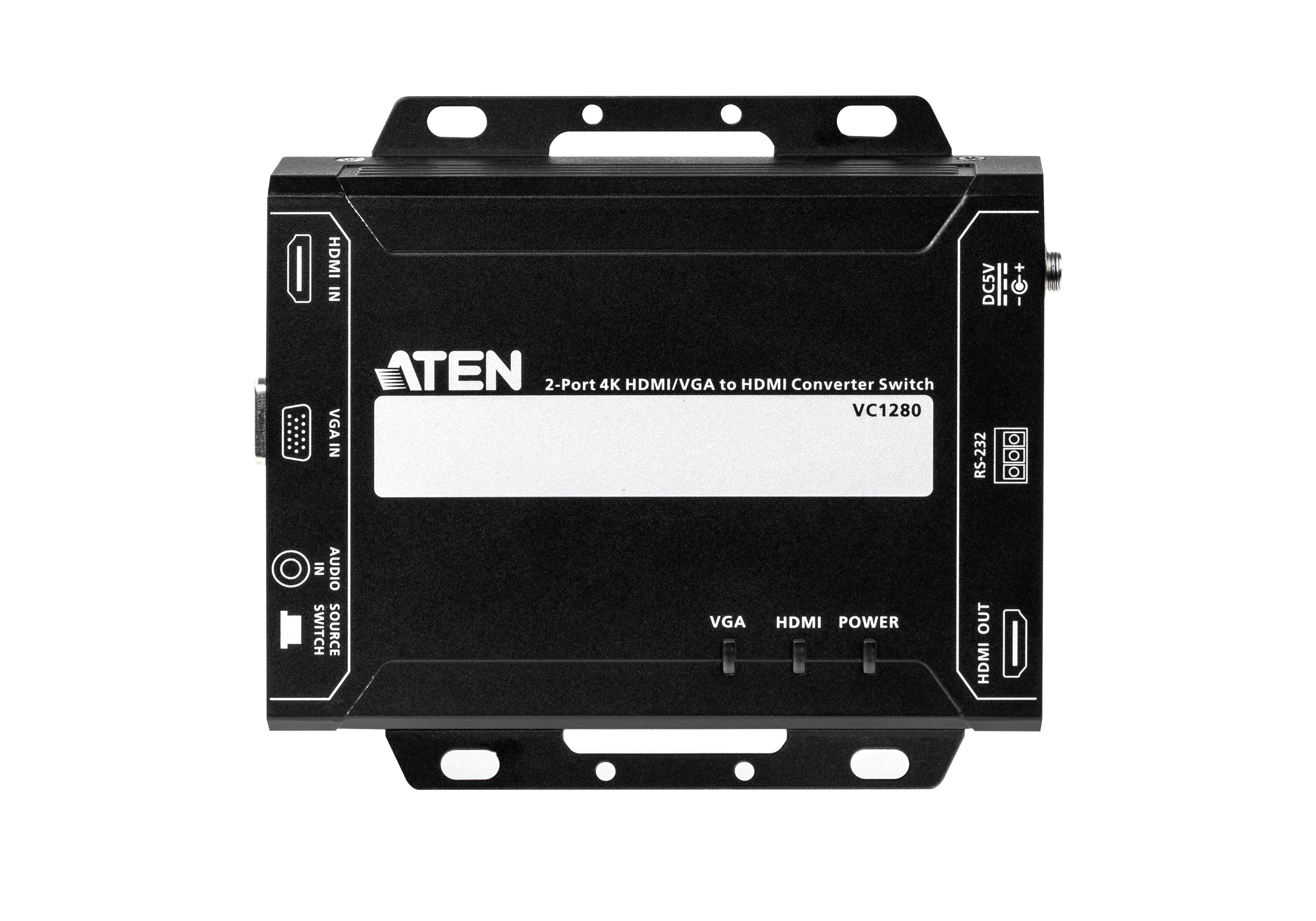

3 x LED (Top - HDMI / VGA / POWER)
Colour: HDMI – Orange / VGA – Orange / Power - Green

Video Input

Interfaces

1 x HDMI (Type A Female, Black)
1 x VGA (HDB-15 VGA Female, Blue)

Impedance

HDMI: 100 Ω
VGA: 75 Ω

Max. Distance

1.8 m - VGA (1920 x 1200)
3m - HDMI (3840 x 2160@30Hz)

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI 1.4 (3D, Deep Colour, 4K)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Video Input
3m - HDMI (3840 x 2160 @30Hz)
1.8m - VGA (1920 x 1200)
Video Output
15m - HDMI (3840 x 2160 @30Hz)

Audio

Input

1 x HDMI (Type A Female, Black)
1 x 3.5mm Stereo audio Jack Female (Green)

Control

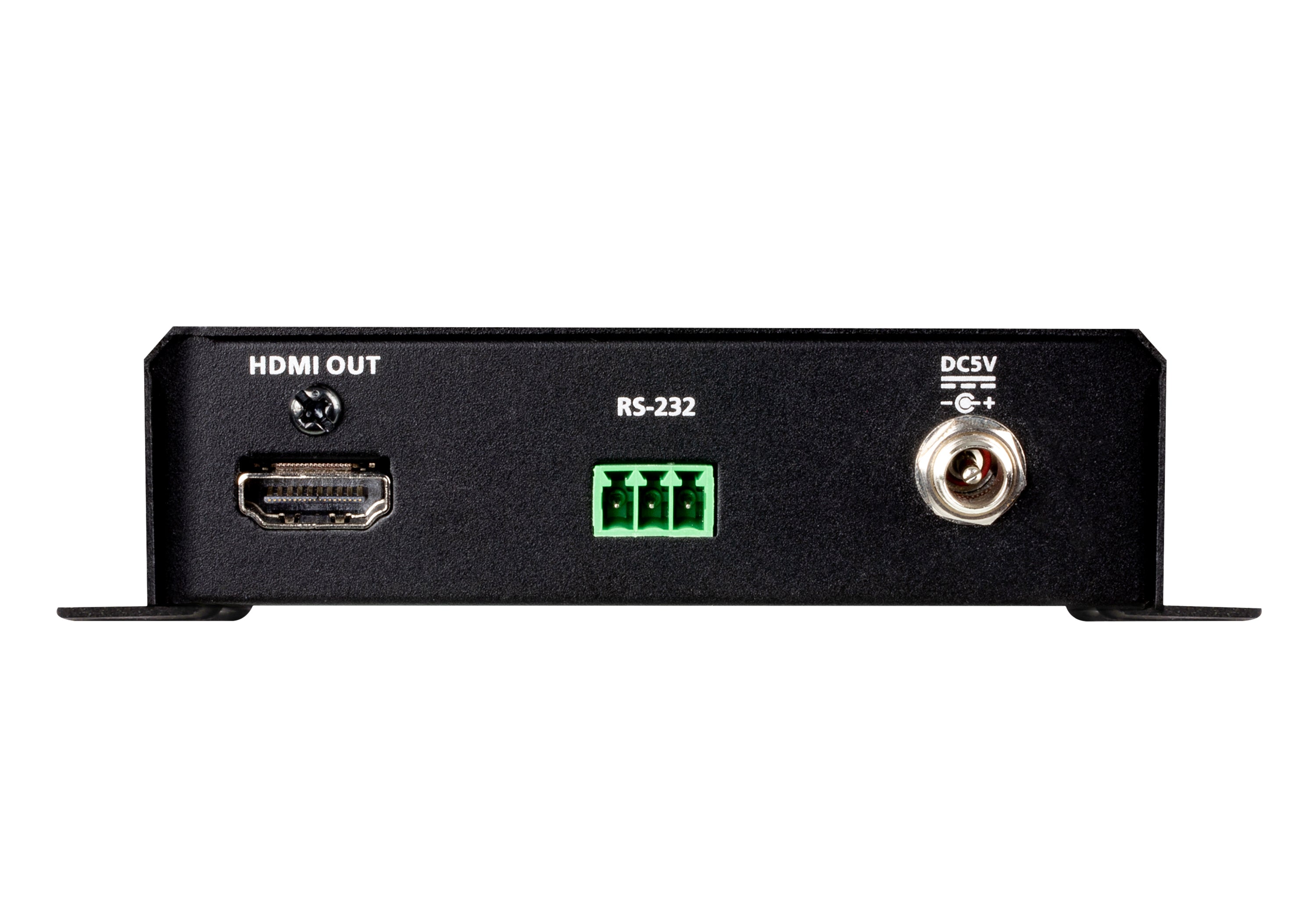

RS-232

FW upgrade & control:
Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits: 8,
Stop Bits: 1, no parity and flow control

Switches

Video Input Port Selection

Source switching: HDMI / VGA / AUTO
1 x Push Button

Connectors

Power

1 x DC Jack (with locking, black)

Power Consumption

DC5V:1.8W:8BTU

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.43 kg ( 0.95 lb )

Dimensions (L x W x H) with bracket

14.32 x 12.30 x 3.00 cm
(5.64 x 4.84 x 1.18 in.)

Dimensions (L x W x H) without bracket

13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
