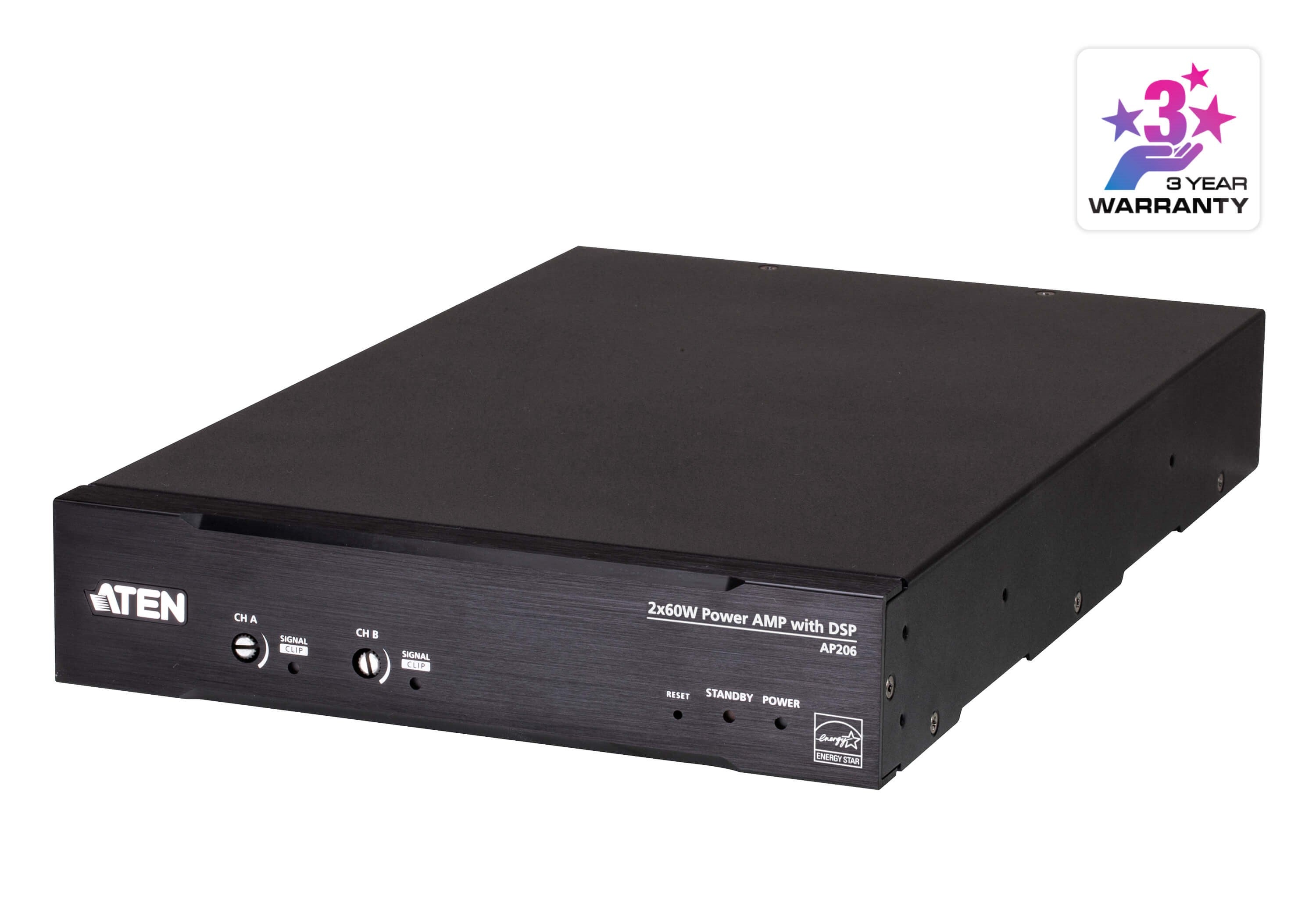

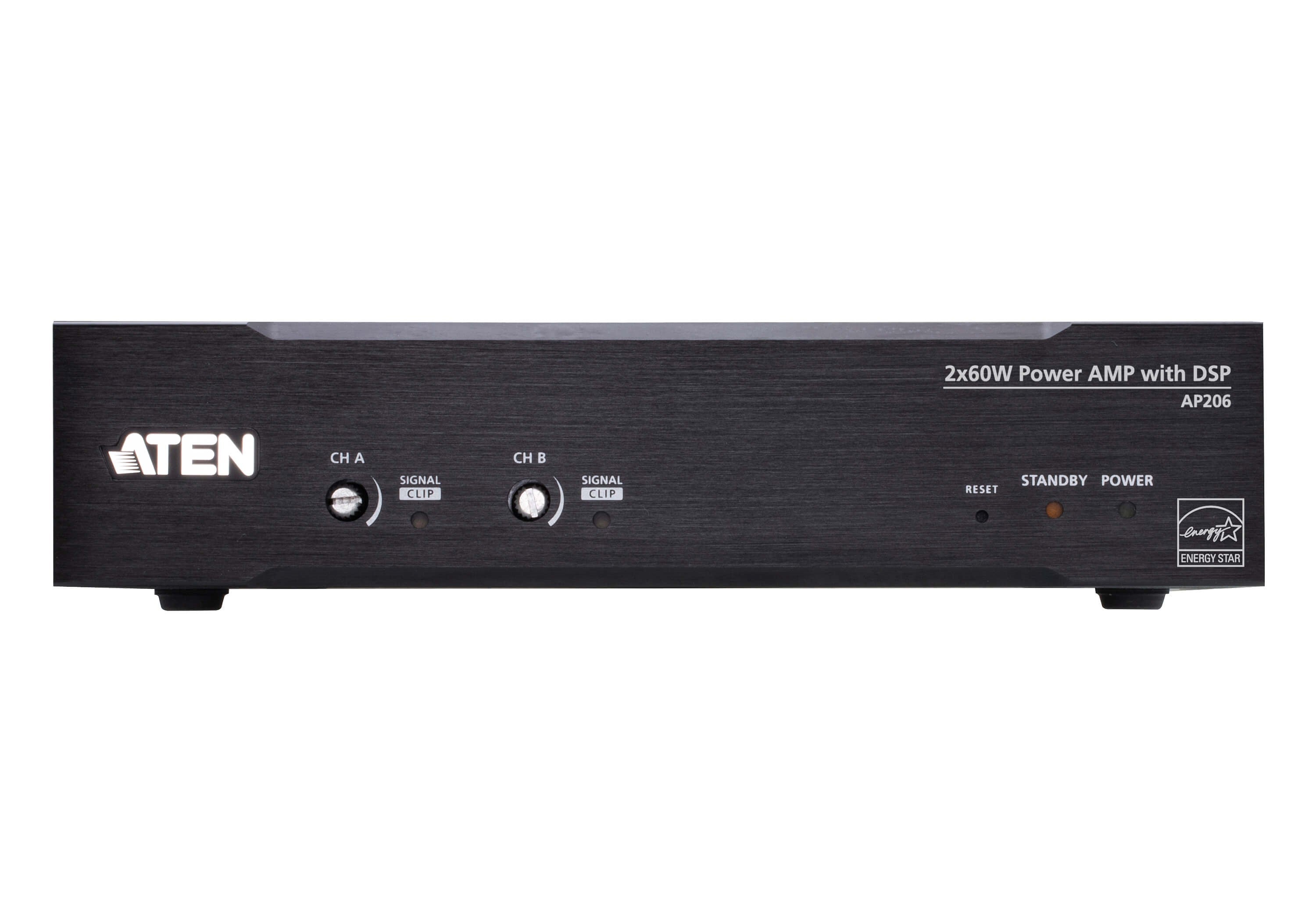

Aten Amplifier, 2 X 60W - AP206

Aten
ATAP206AMPAUDIO
R 16,066.40 Ex VAT

• A dual-channel DSP-equipped amplifier that delivers 60 W per channel in a compact enclosure

• Supports balanced / unbalanced line level inputs and drives 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems

• Class-D design with ENERGY STAR qualification for high power efficiency

• Supports VK Control System via RS-232 and Ethernet connection

• ATEN AP206 is a dual-channel DSP-equipped amplifier that delivers 60 W per channel in a compact enclosure. The support for balanced / unbalanced line level inputs and the capability of driving 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems have made AP206 suit a wide range of public address applications. Configurable through an intuitive WebGUI, the built-in DSP allows Speaker EQ, 5-band EQ, delay, limiter, and up to 20 pre-sets for precise tuning and extensive audio system protection purposes. Ground lift is deployed to eliminate unwanted hum noises from power circuit. Immersive sound experience is delivered with no compromise on power efficiency thanks to the amplifier’s Class-D design and ENERGY STAR qualification, conserving energy while lowering operational costs. Customizable Auto Standby mode enables the AP206 to automatically switch to “sleep” when the signal level comes lower than -40 / -50 dBu for 10 / 15 / 25 minutes.

• Speaking of the system protection circuit, the AP206, along with the speakers connected to it, are prevented from damages led by shorted outputs, over / under-voltage, high frequency overload, and over temperature. Plus, the amplifier will be muted when the heat sink temperature exceeds the limit. The fan less design avoids fan noise and prevents dust from building up inside the chassis.

• Engineered to deliver the ultimate flexibility, the AP206 features an expansion slot for plugging in AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals. The amplifier can also be integrated with VK Control System via RS-232 and Ethernet connection for comprehensive control even from a distance. Mounting hardware is available for rack or surface-mounting depending on the installation needs. With a rich set of features, the AP206 assures reliable amplification with professional audio quality and high power efficiency for any enterprise-grade applications that require high quality sound reinforcement and distribution.

• A dual-channel DSP-equipped amplifier that delivers 60 W per channel in a compact enclosure

• Supports balanced / unbalanced line level inputs and drives 4 ohm low impedance or 70/100V line (in Bridge mode) loudspeaker systems

• Built-in WebGUI-configurable DSP allows speaker EQ, 5-band EQ, delay, limiter, and up to 20 pre-sets for precise tuning and system protection

• Ground lift deployed to eliminate unwanted noises from power circuit.

• Class-D design with ENERGY STAR qualification for high power efficiency

• Customizable Auto Standby mode – Amplifier automatically switches to “sleep” when the signal level comes lower than -40 / -50 dBu for 10 / 15 / 25 minutes

• Integrated protection circuit – Protects the system from damages caused by Amp shortcut, Amp output over/under voltage, high frequency overload, and over temperature

• Amplifier will be muted when the heat sink temperature exceeds the limit

• Fan less design – Avoids fan noise and prevents dust from building up

• Expansion slot for add-on expansion card – Install AP901 2-CH Dante Expansion Card to make the sound system compatible with Dante network or AP902 2-CH Mic/Line Pre-AMP Expansion Card to receive two channels of mic / line input signals

• Supports VK Control System via RS-232 and Ethernet connection

• Supports rack or surface-mounting

• Firmware upgradable





System Specification

Rated Power

60Wrms / 120Wpeak per Channel @4Ω
120Wrms / 240Wpeak @70/100V Under Bridge Mode

Distortion

THD+N: <0.1%, 1kHz, 3dB before clipping

Frequency Response

50~20kHz, +/-3dB @4Ω, 1W

Sensitivity

Balanced: +4dBu
Unbalanced: -10dBV
(0dBu=0.775Vrms, 0dBV=1Vrms)

Amplifier Type

Class D

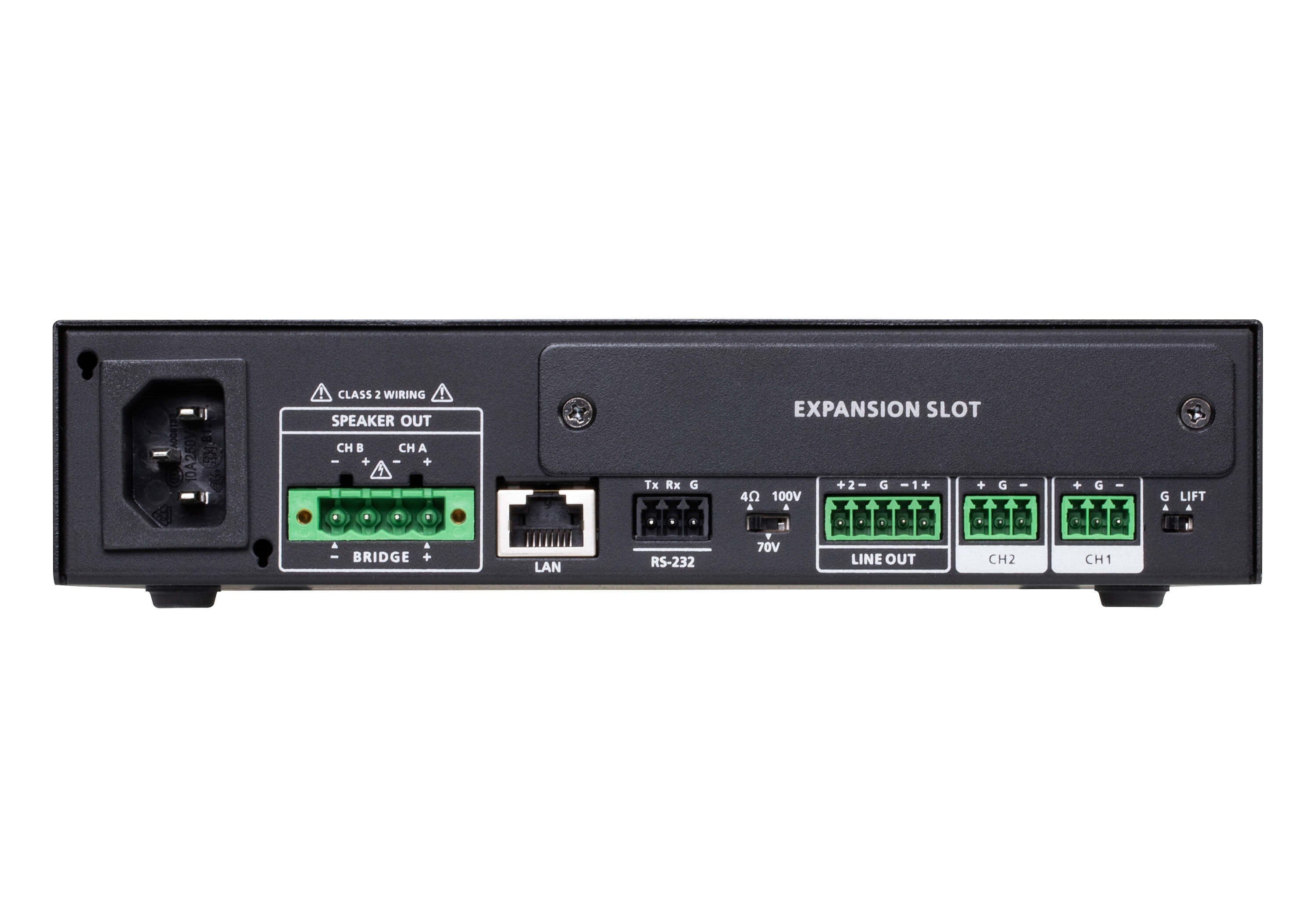

Audio Inputs

Interfaces

2 x 3-pin 3.5mm Euroblock (Bal/Unbal Line In)

Impedance

Balanced: 20kΩ / Unbalanced: 10kΩ

Detect Threshold

-50dBu

Audio Outputs

Interfaces

Line Output: 1 x 5-pin 3.5mm Euroblock
Speaker Output: 1 x 4-pin 5.08mm Euroblock

Impedance

Lo-Z: 4Ω / Hi-Z: 70V (40Ω), 100V (80Ω)
Line Output: 600Ω

Audio Effects

Built-In DSP

Protection

Output Shortcut
AMP Output over/under voltage
High Frequency Overload
Thermal Protect

Communication

RS-232

Connector: 3-pin, 3.5mm, Terminal Block
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

Power

Power Consumption

100-240V~, 50/60Hz, 2A with PFC

Compliance

Certification

FCC, CE, UKCA

Environmental

Operating Temperature

0~50℃

Humidity

0-80% RH, Non-Condensing

Storage Temperature

-20~60℃

Physical Properties

Weight

2.15 kg ( 4.74 lb )

Housing

Metal

Dimensions (L x W x H)

20.00 x 32.30 x 4.40 cm
(7.87 x 12.72 x 1.73 in.)



AP206 Datasheet PDF
