Aten Modular Digital Matrix Chassis, 32x32 - VM3200

Aten
ATVM3200SWIHDMIX
R 195,256.28 Ex VAT

• Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix Solutions

• Hot-pluggable fan and power modules for easy maintenance and higher reliability

• Live stream of connected video channels and image preview of video wall layouts via web GUI

• Multiple Control Methods – system management via front-panel pushbuttons, RS-232, RS-485/422, and Ethernet (Telnet / Web GUI) connections

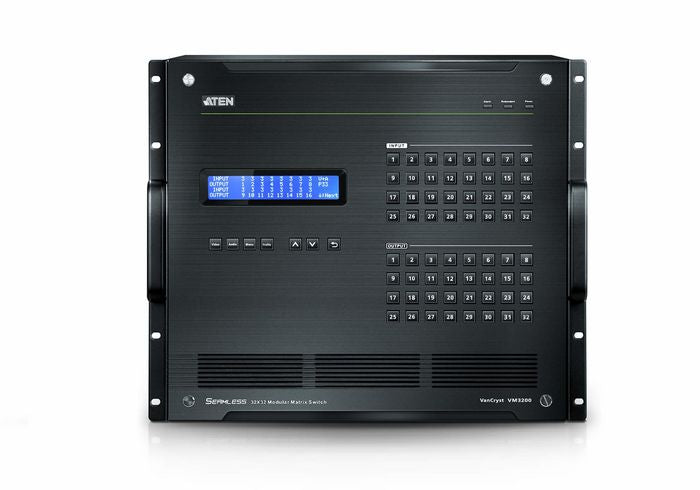

The VM3200 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.

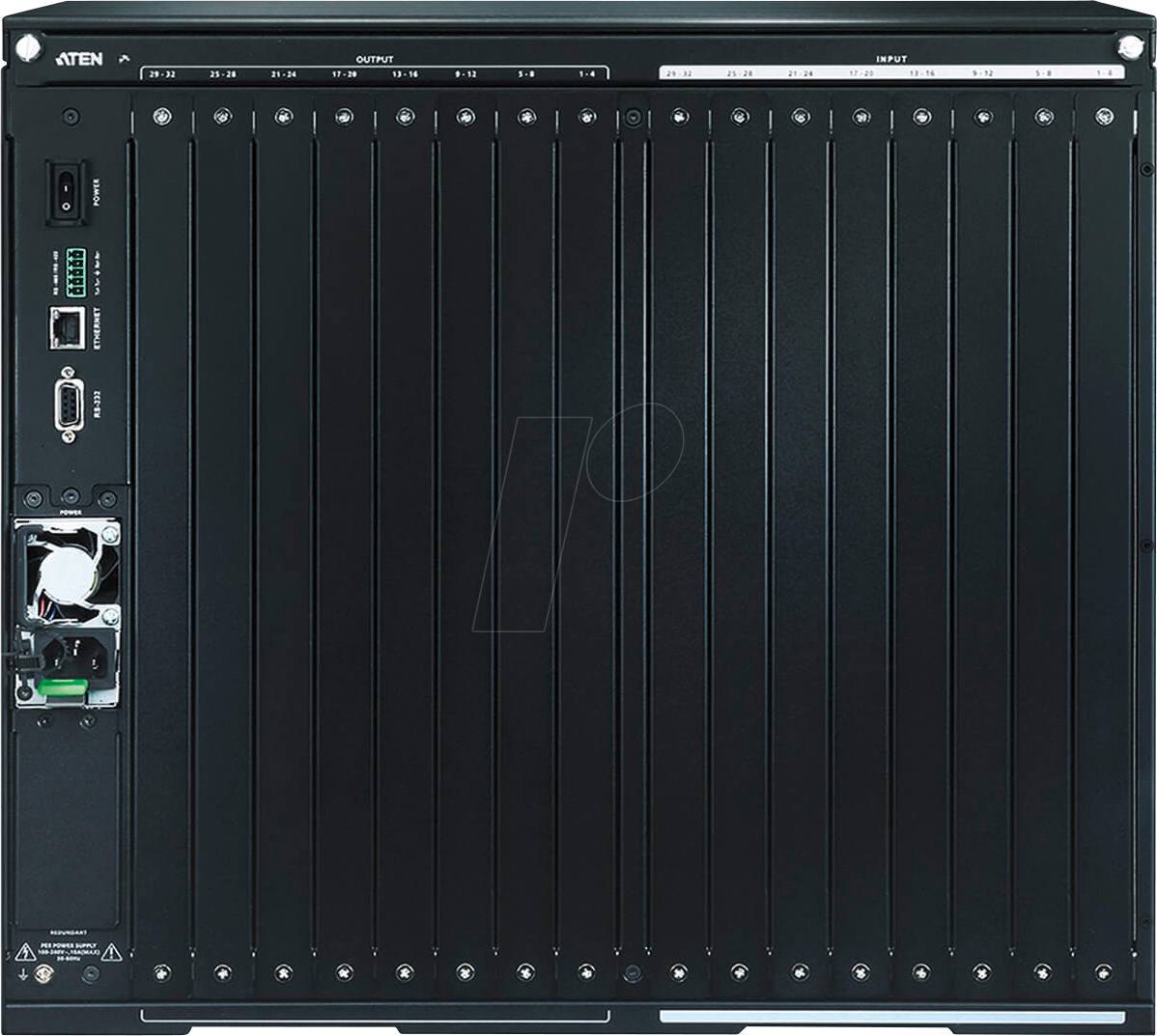

The VM3200 is easily expandable and accommodates a line-up of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion, it allows various combinations of digital video interfaces, including HDBaseT, DisplayPort, HDMI, DVI, 3G-SDI, and VGA. This makes it ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centres, and any application that requires customizable, high-speed A/V signal routing.

Package Contents

1x VM3200 32 x 32 Modular Matrix Switch

1x Power Module

1x Power Cord

1x Terminal Block connector

1x User Instructions

Board Input

8 x Slot

Board Output

8 x Slot

Video Input

Interfaces

Depends on which I/O board is inserted

Max. Data Rate

15.2 Gbps (3.8Gbps per Lane)

Audio

Input

Depends on which Input board is inserted

Output

Depends on which Output board is inserted

Control

RS-232

Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations:
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No

RS-485/RS-422

Connector: 1 x Captive Screw Connector, 5 Pole

Ethernet

Connector: 1 x RJ-45 Female

EDID Settings

EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)

Connectors

Power

1 x 3-Prong AC Socket

Power

Maximum Input Power Rating

100-240 VAC; 50-60Hz; 10A

Power Consumption

AC110V:800W:239BTU
AC220V:800W:236BTU

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Dimensions (L x W x H)

48.20 x 47.19 x 39.90 cm
(18.98 x 18.58 x 15.71 in.)

Weight

18.20 kg ( 40.09 lb )

Rack Height (U Spaces)

9U

Carton Lot

1 pc

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VM3200 Datasheet PDF
