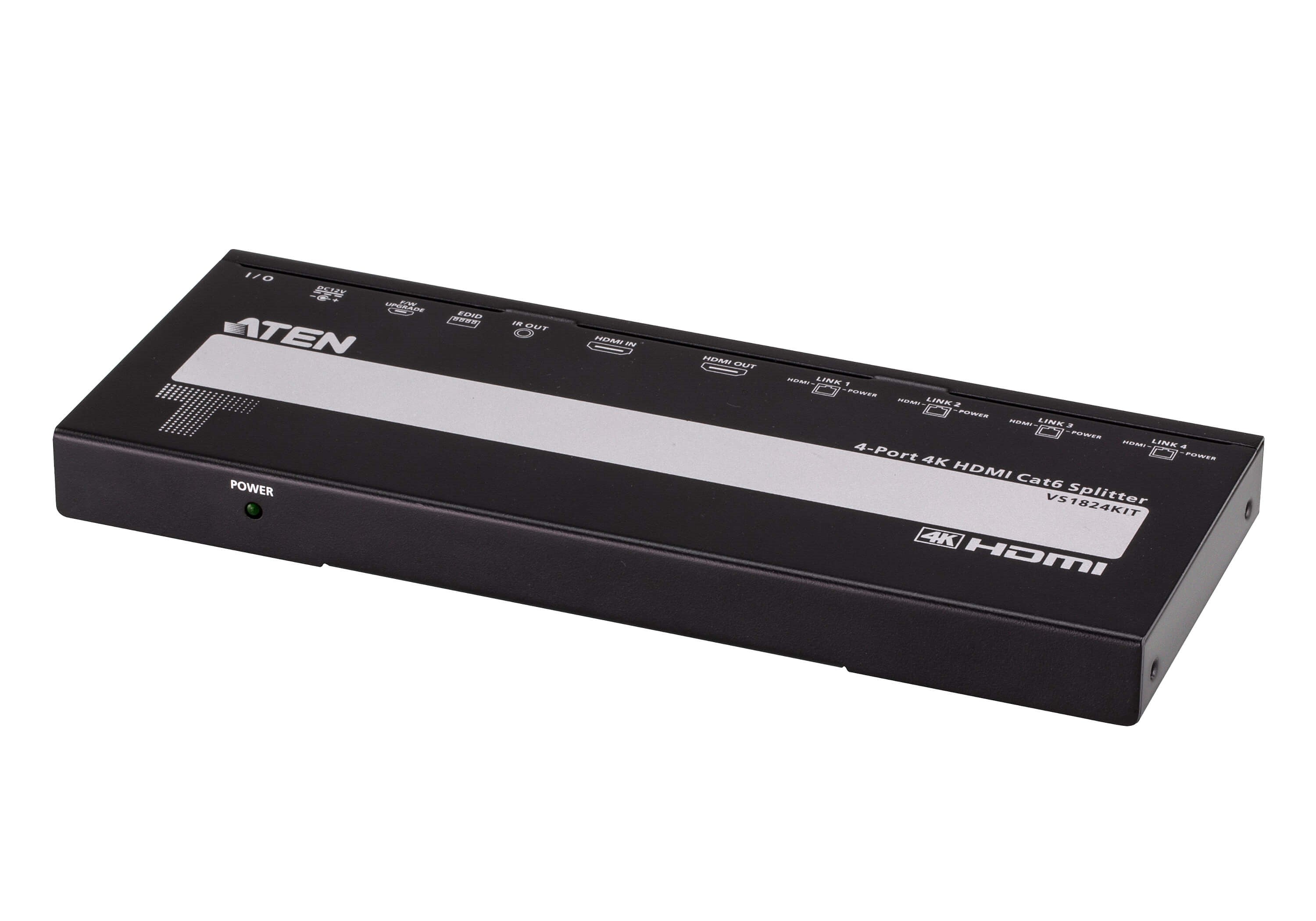

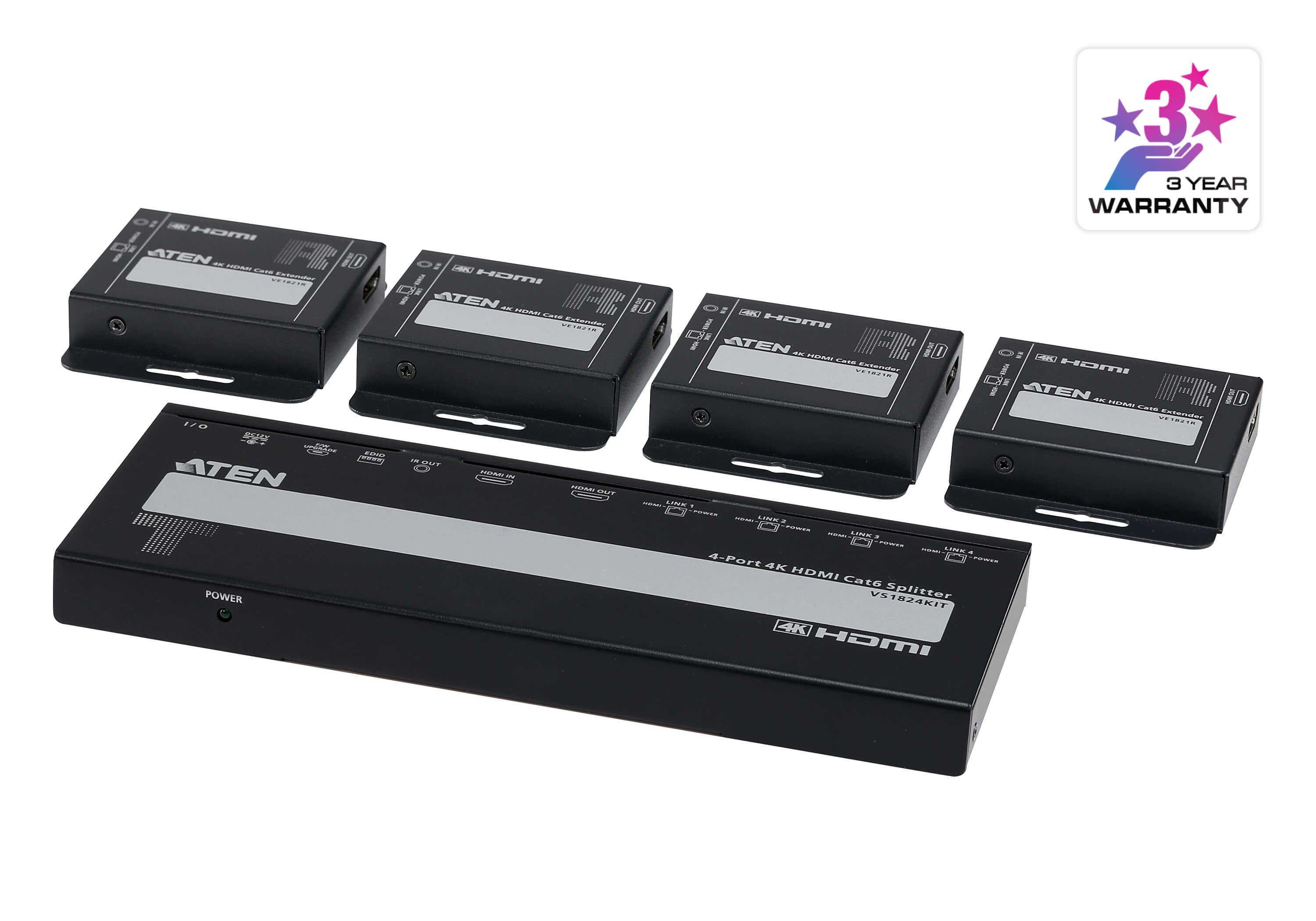

Aten 4K HDMI Cat6 Splitter with Receivers, 4-Port - VS1824KIT
• A kit that includes 1 splitter and 4 receivers to distribute 1 HDMI source to 4 displays up to 40m away via a single Cat 6 cable
• Supports up to 4K @ 30 Hz (4:4:4) for crystal-clear video presentation
• Power over Cable (PoC) functionality from splitter to receivers to avoid cluttered cable installation
• User-adjustable EDID switch on splitter for output video resolutions and audio capabilities configuration

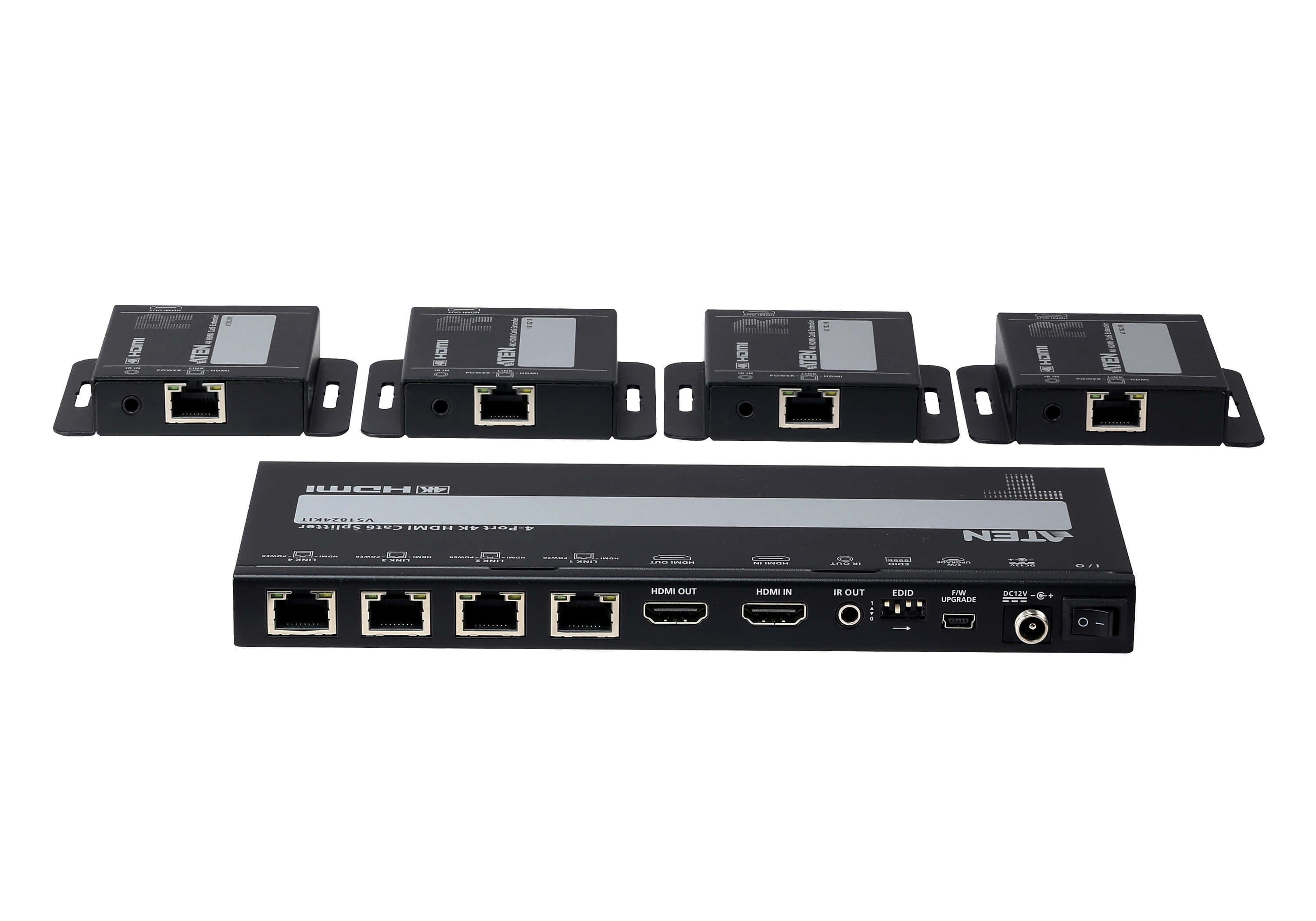

• The VS1824KIT is a kit that includes 1 splitter and 4 receivers, distributing an HDMI source at up to 4K @ 30 Hz (4:4:4) to 4 displays up to 40m away via a single Cat 6 cable. The system also supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus & DTS-HD Master Audio. Only one power adapter for the splitter is needed as a result of the receivers being powered by the splitter thanks to the Power over Cable (PoC) functionality, which also helps avoid cluttered cable installation. An HDMI local output port is built on the splitter for content monitoring or cascading purposes. Moreover, the splitter contains a user-adjustable EDID switch, enabling users to configure the output video resolutions and audio capabilities for seamless integration across the system. The receiver’s ultra-lightweight, palm-sized enclosure ensures flexible installation including mounting and placement in tight spaces.
• The kit comes with 1 IR blaster cable for the splitter and 4 IR receiver cables for receivers, allowing users to remotely control the source device from the receiver side. With plug-and-play operation, no software is required, enabling easy, immediate installation. The VS1824KIT delivers excellent AV transmission quality and installation flexibility within different installation scenarios, from meeting facilities, retail settings, showrooms, entertainment systems, and more.
• A kit that includes 1 splitter and 4 receivers to distribute 1 HDMI source to 4 displays up to 40m away via a single Cat 6 cable
• Supports up to 4K @ 30 Hz (4:4:4) for crystal-clear video presentation
• Supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus & DTS-HD Master Audio
• HDMI (3D, Deep Colour, 4K); HDCP 1.4 compliant
• Power over Cable (PoC) functionality from splitter to receivers to avoid cluttered cable installation
• HDMI local output port on splitter for content monitoring or cascading purposes
• User-adjustable EDID switch on splitter for output video resolutions and audio capabilities configuration

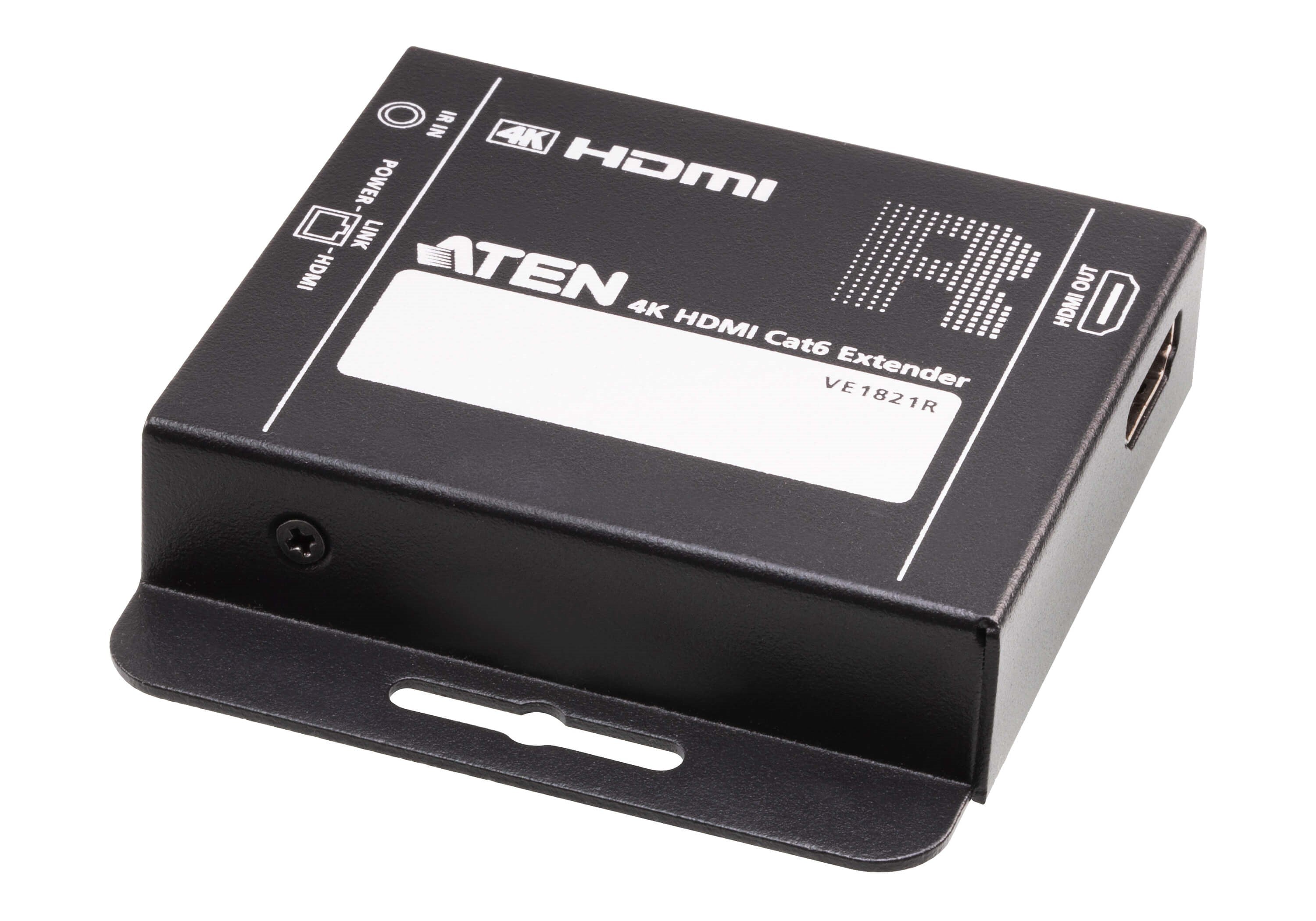

• VE1821R's ultra-lightweight, palm-sized case enables flexible installation including mounting and placement in tight spaces
• One-way IR channel for remote control of the source device from the receiver side
• Built-in 4KV/8KV ESD protection
• Plug-and-play – no additional software needed
|
Function |
VE1821R |
VS1824T |
|
Video Input |
||
|
Interfaces |
N/A |
1 x HDMI Type A Female (Black) |
|
Impedance |
N/A |
100 Ω |
|
Max. Distance |
N/A |
3 m |
|
Video Output |
||
|
Interfaces |
1 x HDMI Type A Female (Black) |
1 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
100 Ω |
|
Max. Distance |
3 m |
3 m |
|
Video |
||
|
Max. Data Rate |
10.2Gbps (3.4Gbps per lane) |
10.2Gbps (3.4Gbps per lane) |
|
Max. Pixel Clock |
340 MHz |
340 MHz |
|
Compliance |
HDMI (3D, Deep Color, 4K) |
HDMI (3D, Deep Color, 4K) |
|
Max. Resolutions / Distance |
Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910) |
Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910) |
|
Audio |
||
|
Input |
N/A |
1 x HDMI Type A Female (Black) |
|
Output |
1 x HDMI Type A Female (Black) |
1 x HDMI Type A Female (Black) |
|
Control |
||
|
IR Channel |
1 x Mini Stereo Jack Female (Black); |
1 x Mini Stereo Jack Female (Black); |
|
Connectors |
||
|
Unit To Unit |
1 x RJ-45 Female |
4 x RJ-45 Female |
|
Power |
1 x RJ-45 Female |
1 x DC Jack (Black) with locking |
|
Maintenance |
N/A |
Micro USB for F/W upgrade |
|
Switches |
||
|
Mode Switch |
N/A |
EDID Mode Selection |
|
Power |
N/A |
Power ON/OFF |
|
Power Consumption |
11WBTU/h |
11WBTU/h |
|
Environmental |
||
|
Operating Temperature |
0 - 40°C |
0 - 40°C |
|
Storage Temperature |
-20 - 60°C |
-20 - 60°C |
|
Humidity |
20 - 90% RH, Non-Condensing |
20 - 90% RH, Non-Condensing |
|
Physical Properties |
||
|
Housing |
Metal |
Metal |
|
Weight |
0.12 kg ( 0.28 lb ) |
0.44 kg ( 0.99 lb ) |
|
Dimensions (L x W x H) with bracket |
7.95 x 6.80 x 1.65 cm |
N/A (Housing comes without bracket) |
|
Dimensions (L x W x H) without bracket |
5.75 x 6.80 x 1.65 cm |
21.00 x 8.20 x 1.80 cm |
|
Note |
NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter. |
NOTE 1: The IR channel of the receiver is a unidirectional bypass channel, transmitting data from receiver to transmitter. |
|
Input Resolutions |
640x480 @ 60/67/72/75 Hz |
1080p 60 Hz |
|
720x400 @ 70 Hz |
480p 60 Hz (4:3)/(16:9) |
|
|
1024x768 @ 60/70/75 Hz |
720p 60 Hz |
|
|
1280x800 @ 60 Hz |
1080i 60 Hz |
|
|
1280x1024 @ 60/75 Hz |
640x480 60Hz (4:3) |
|
|
1400x1050 @ 60 Hz |
576p 50 Hz (4:3)/(16:9) |
|
|
1440x900 @ 60 Hz |
720p 50 Hz |
|
|
1600x1200 @ 60 Hz |
1080i 50 Hz |
|
|
1680x1050 @ 60 Hz |
1080p 24/25/30/50 Hz |
|
|
1920x1080 @ 60 Hz |
3840x2160p 24/25/30 Hz |
|
|
1920x1200@ 60 Hz |
4096x2160p 24/25/30 Hz |
VS1824KIT Datasheet PDF
