Aten Extender, DVI with Audio - VE600A

Aten
ATVE600AEXTDVIXX
R 2,590.99 Ex VAT

Uses Cat 5e cable to extend the distance between DVI source and DVI display device

Long distance transmission – up to 60 m

Audio enabled

Superior video quality – up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)

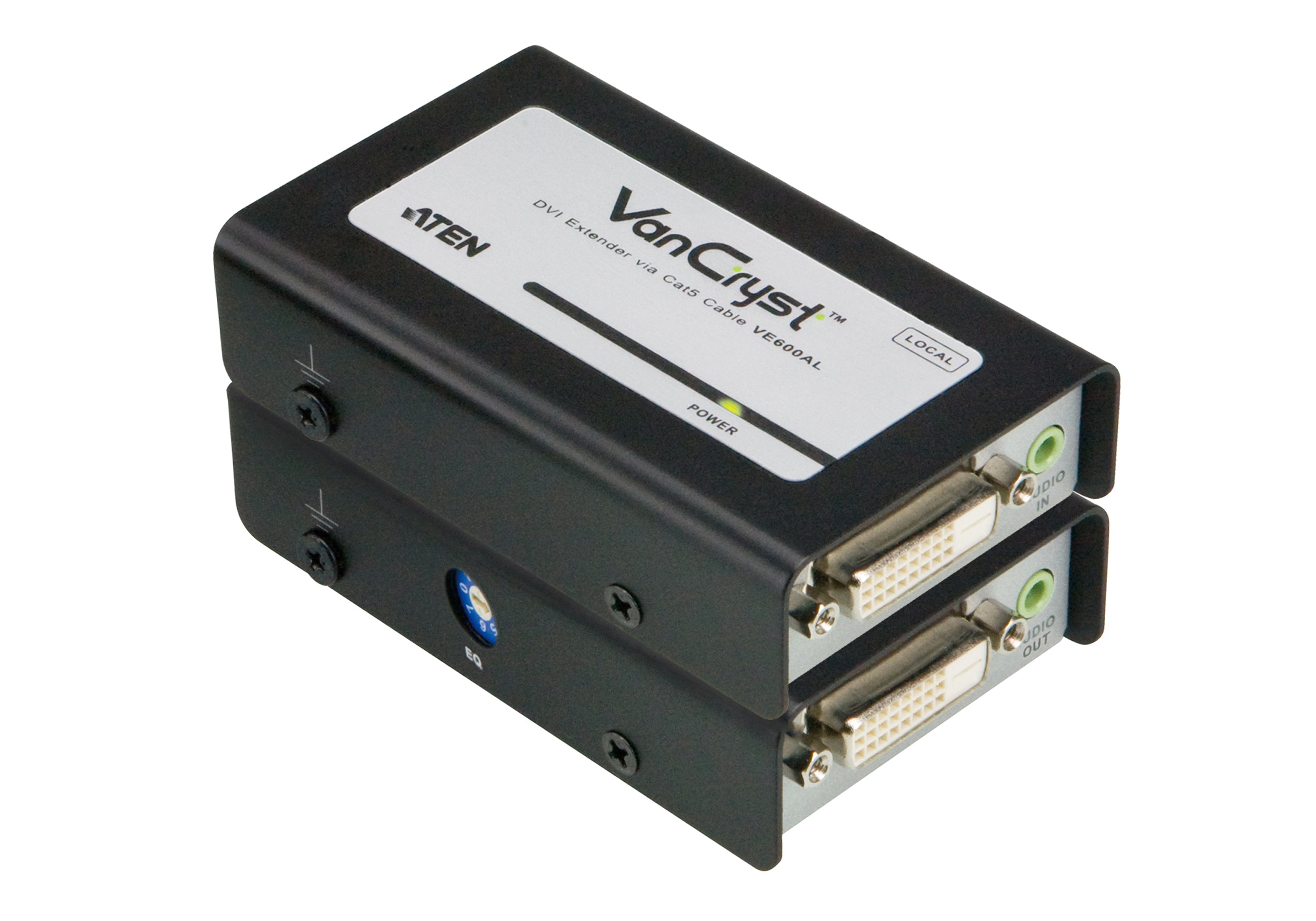

The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.



Package Contents

  • 1x VE600A DVI Extender with Audio Local Unit
  • 1x VE600A DVI Extender with Audio Remote Unit
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions

Function

VE600AL

VE600AR

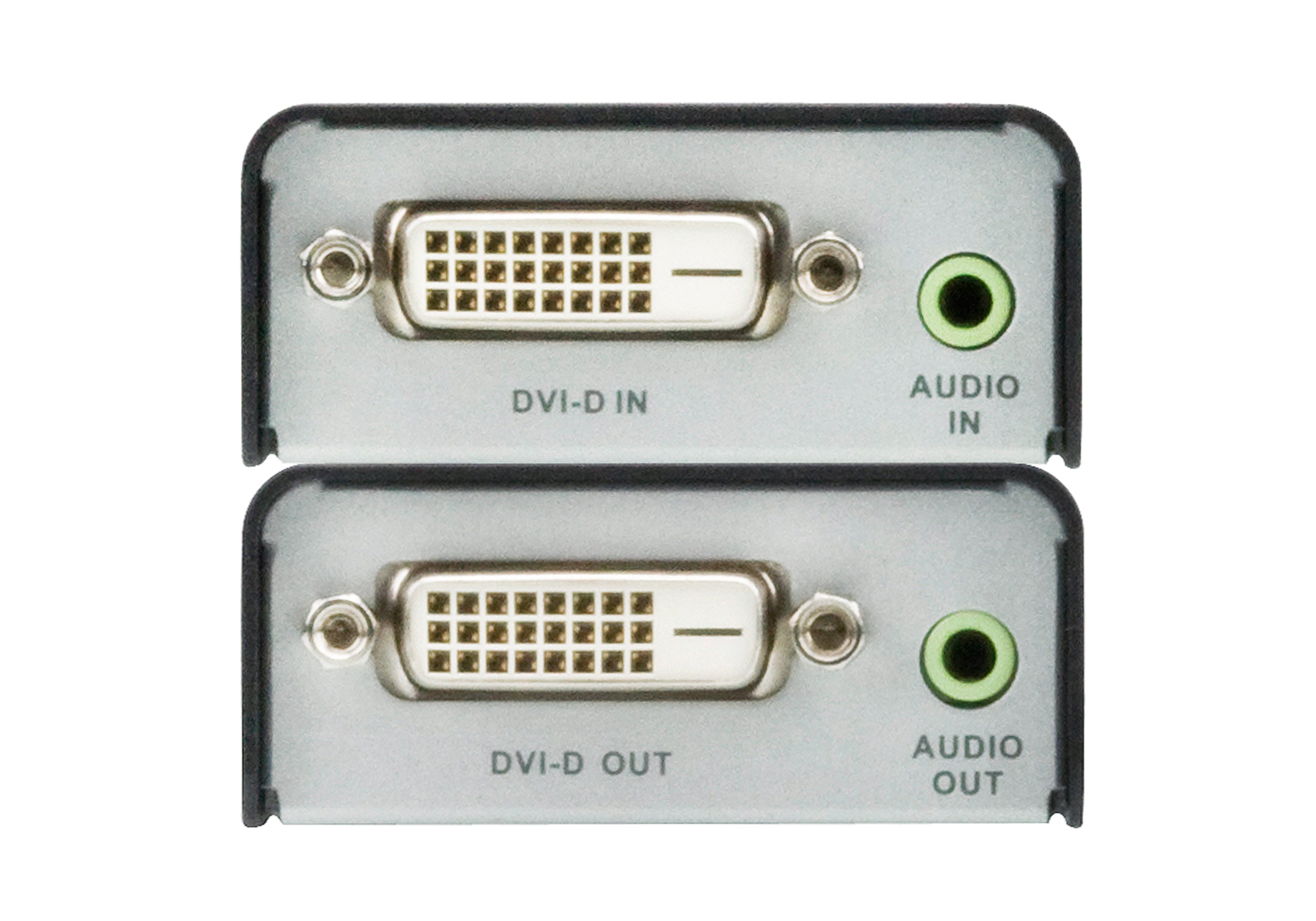

Video Input

Interfaces

1 x DVI-D Female (White)

N/A

Impedance

100 Ω

N/A

Max. Distance

1.8 m

N/A

Video Output

Interfaces

N/A

1 x DVI-D Female (White)

Impedance

N/A

100 Ω

Video

Max. Data Rate

6.75 Gbps (2.25 Gbps Per Lane)

6.75 Gbps (2.25 Gbps Per Lane)

Max. Pixel Clock

225 MHz

225 MHz

Compliance

HDCP Compatible

HDCP Compatible

Max. Resolutions / Distance

Up to 1080p@40m; 1080i@60m

Up to 1080p@40m; 1080i@60m

Audio

Input

1 x Mini Stereo Jack Female (Green)

N/A

Output

N/A

1 x Mini Stereo Jack Female (Green)

Connectors

Power

1 x DC Jack

1 x DC Jack

Power Consumption

DC5.3V:1.56W:7BTU

DC5.3V:0.76W:4BTU

Environmental

Operating Temperature

0 - 50°C

0 - 50°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.17 kg ( 0.37 lb )

0.17 kg ( 0.37 lb )

Dimensions (L x W x H)

9.13 x 5.60 x 2.40 cm
(3.59 x 2.2 x 0.94 in.)

9.13 x 5.60 x 2.40 cm
(3.59 x 2.2 x 0.94 in.)

Carton Lot

20 pcs

20 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
