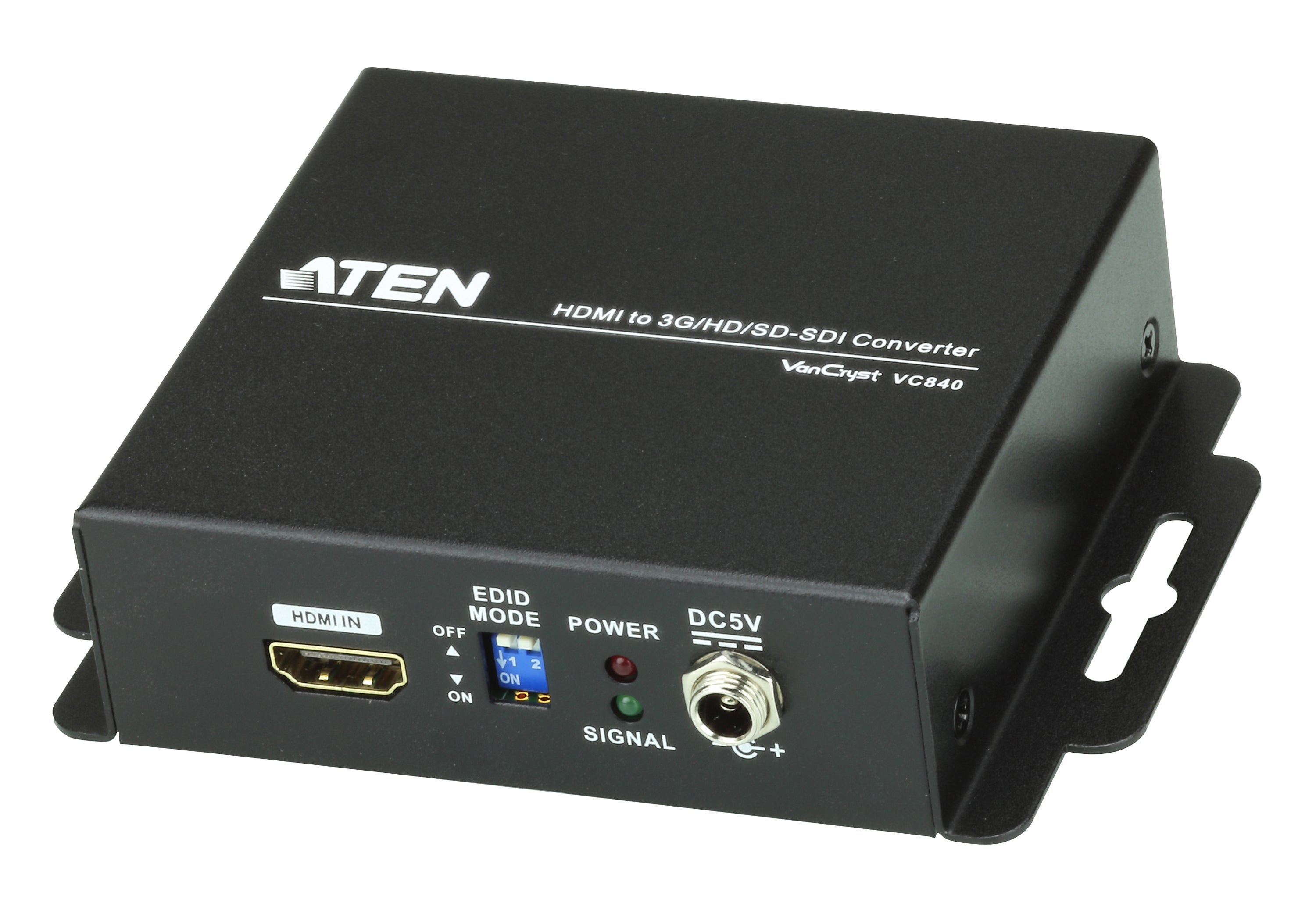

Aten Converter, HDMI to 3G-SDI with Audio - VC840

Aten
ATVC840CONCONVR
R 4,614.57 Ex VAT

• Converts an HDMI input signal to 3G/HD/SD-SDI formats in real-time while avoiding transformation loss for both audio and video signals

• Supports additional analog stereo audio and coaxial digital audio

• Offers 2 low-jitter SDI outputs for dual display

• Selectable EDID settings and EDID learning mode

The VC840 HDMI to 3G/HD/SD SDI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC840 provides 2 low jitter SDI outputs for dual display. The VC840 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.

Package Contents

1x VC840 HDMI to 3G/HD/SD-SDI Converter

1x Power Adapter

1x User Instructions



Video Input

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

3m at 1920*1080@60 (4:4:4)

Video Output

Interfaces

2 x BNC  (Gold)

Impedance

75 Ω

Video

Max. Data Rate

2.97  Gbps

Max. Pixel Clock

148.5 MHz

Supported Resolutions

NTSC@59.96Hz, PAL@50 Hz;
720p@50/59.94/60 Hz;
1080i@50/59.94/60 Hz;
1080p@23.97/24/25/29.97/30/50/59.94/60 Hz

Max. Distance

90m  (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)

Audio

Output

Analog: 2 x RCA  (Red/White)
Digital: 1 x RCA  (Yellow)

SDI Formats

SD-SDI (SMPTE 259M, up to 270  Mbps)
HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
3G-SDI (SMPTE 424M, 425M level  A, up to 2.97  Gbps)

EDID Settings

EDID Mode: Learn

Connectors

Power

1 x DC Jack

Power Consumption

DC5V:3.225WBTU

Environmental

Operating Temperature

0 - 40 ºC

Storage Temperature

-20 - 60 ºC

Humidity

20 - 90% RH,  Non-Condensing

Physical Properties

Housing

Metal

Weight

0.29 kg ( 0.64 lb )

Dimensions (L x W x H)

12.20 x 10.70 x 3.04 cm
(4.8 x 4.21 x 1.2 in.)

Carton Lot

5 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
