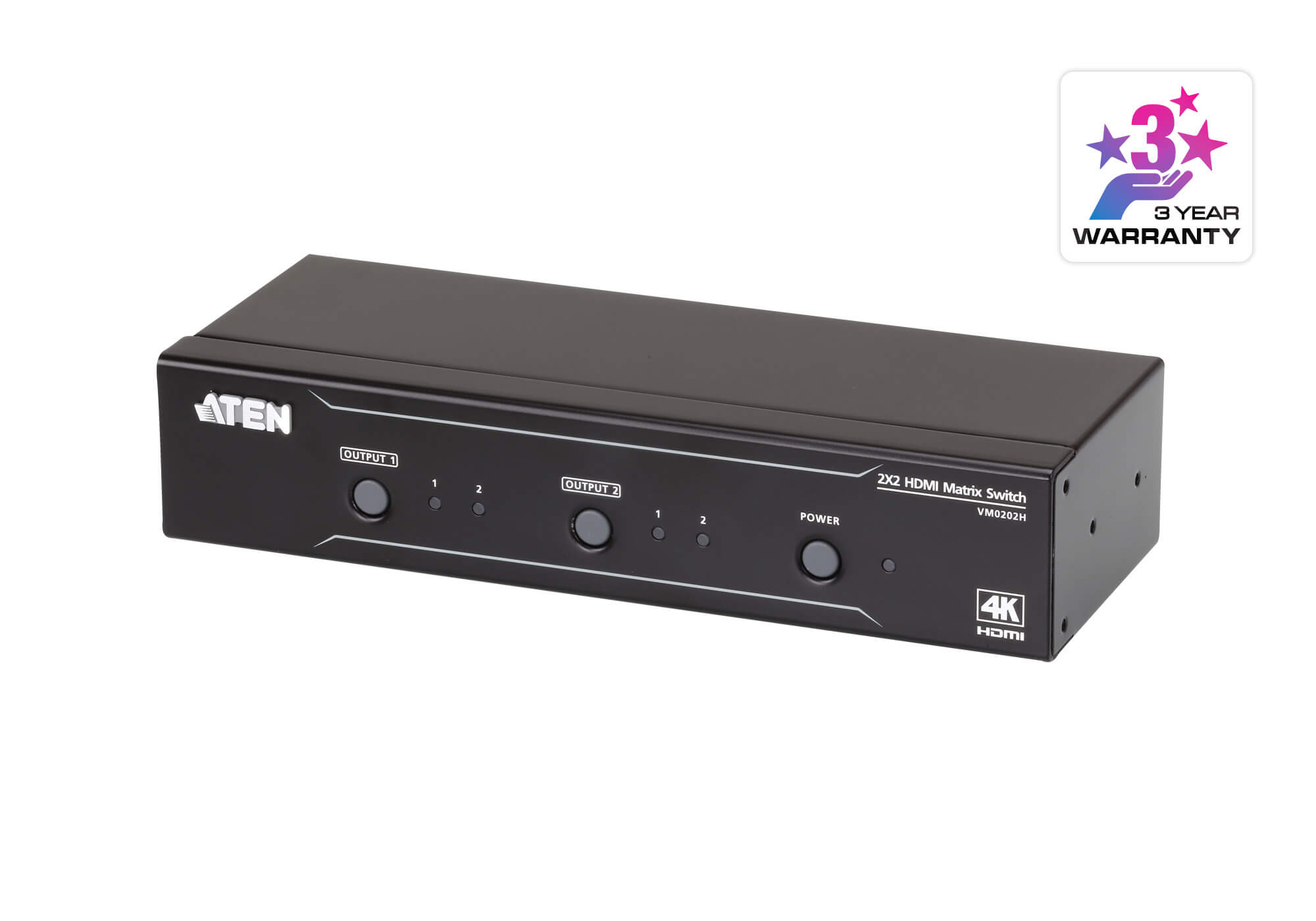

Aten Matrix Switch, HDMI, 2 Port - VM0202H

Aten
ATVM0202HSWIHDMIX
R 4,525.92 Ex VAT

• The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding.

• The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio.

• Supporting video resolutions up to 4096 x 2160 @ 60Hz(4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.

• The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides high-performance routing of 2 HDMI video sources such as high definition Blu-ray players, home theatre PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays.

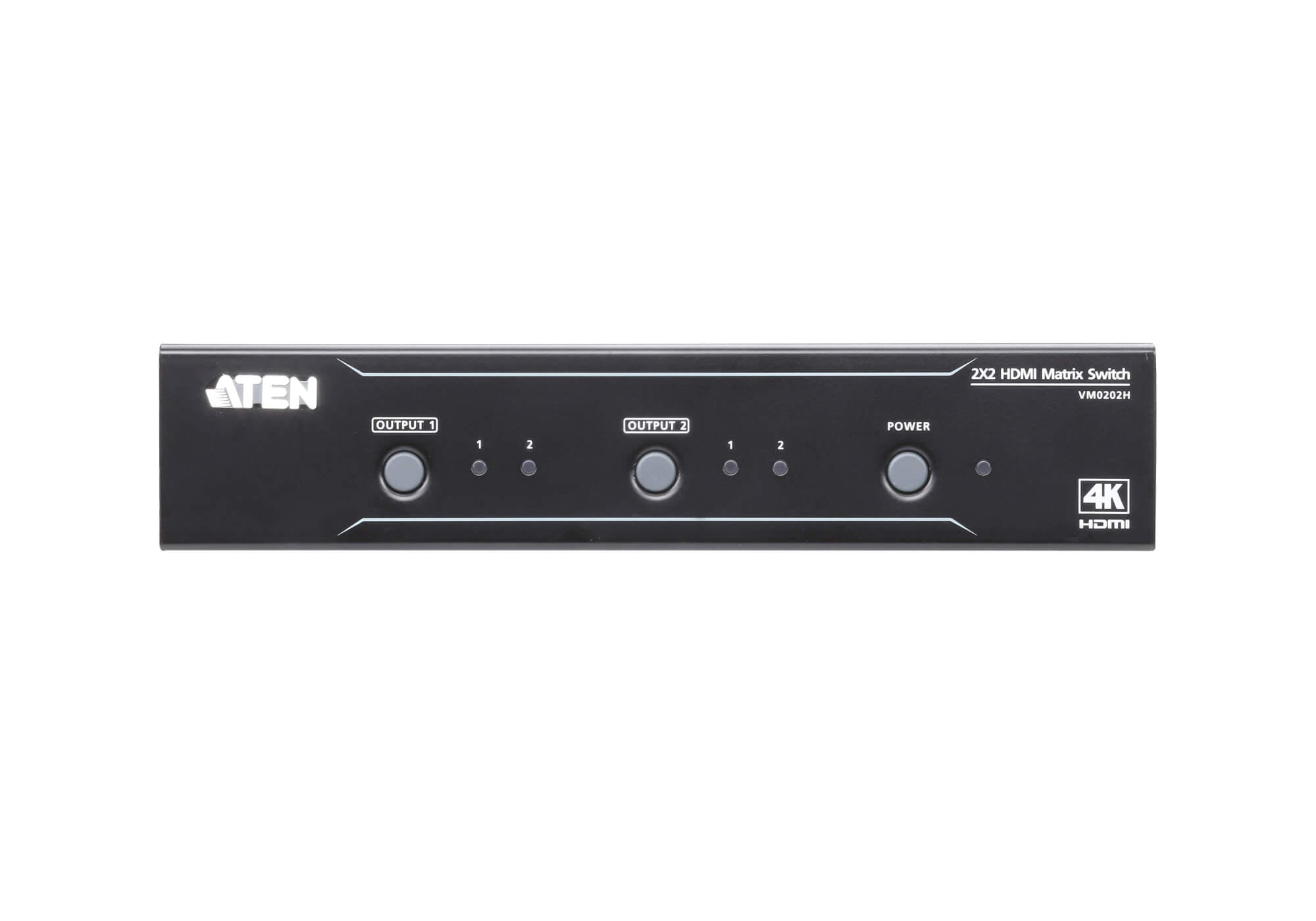

• In addition, the built-in audio de-embedder allows HDMI audio extraction for independent analogue audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.

The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz(4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications. The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides high-performance routing of 2 HDMI video sources such as high definition Blu-ray players, home theatre PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays. In addition, the built-in audio de-embedder allows HDMI audio extraction for independent analogue audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.

Features

  • Connects 2 HDMI sources to any 2 HDMI displays
  • Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
  • Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
  • Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
  • Supports Dolby True HD and DTS HD Master Audio
  • Auto switching – automatically detects and switches to a new source once connected (Default: off)
  • Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
  • Long-distance transmission up to 5 meters
  • HDMI (3D, 4K, Deep Colour); HDCP 2.2 Compatible
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
  • Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections
  • All metal casing
  • Firmware upgradable
  • Rack mountable

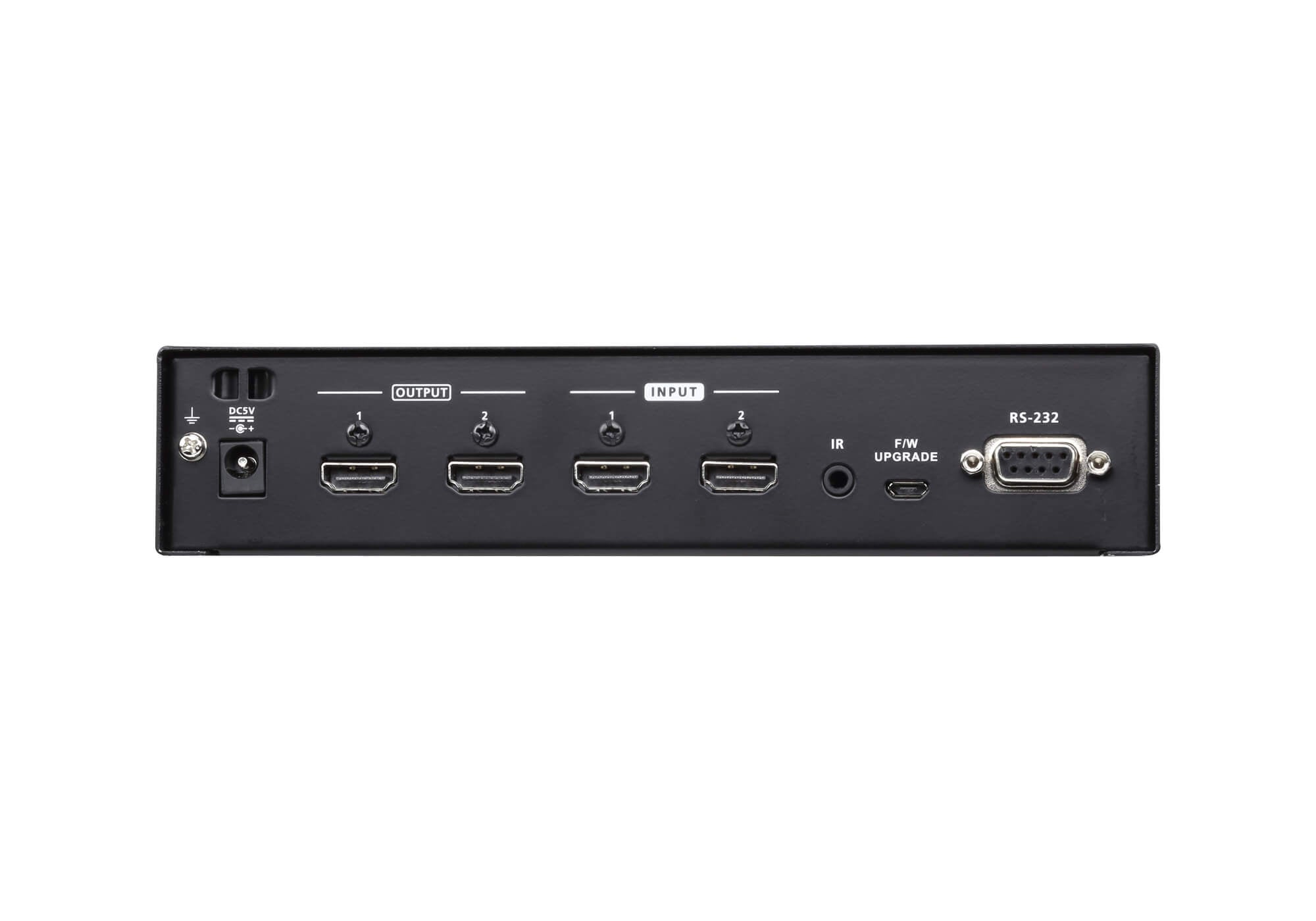

• Video Input

Interfaces 2 x HDMI Type A Female (Black)

Impedance 100 Ώ

Max. Distance 5 m



• Video Output

Interfaces 2 x HDMI Type A Female (Black)

Impedance 100 Ώ

Max. Distance 5 m



• Video

Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)

Max. Pixel Clock 600 MHz

Compliance

HDMI (3D, 4K, Deep Colour)

HDCP 2.2 Compatible

Consumer Electronics Control (CEC)

Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Max. Distance Up to 5 m



• Audio

Output

1 x Mini Stereo Jack Female;

1 x Captive Screw Connector, 3 pole



• Control

USB 1 x Micro USB; F/W upgrade

RS-232

Connector: 1 x DB-9 Female (Black)

Baud rate and protocol: Baud Rate: 19200,

Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

IR 1 x Mini Stereo Jack Female (Black)



• EDID Settings EDID Mode: Default / Port1 / Remix



• Connectors

Power 1 x DC Jack (Black)



• Power Consumption DC5V:2.47W:11BTU



• Environmental

Operating Temperature 0 - 40° C

Storage Temperature -20 - 60° C

Humidity 0 - 80% RH, Non-Condensing



• Physical Properties

Housing Metal

Weight 0.60 kg

Dimensions

(L x W x H)

20.00 x 7.60 x 4.20 cm

HDMI Display Devices

HDMI Source Devices

Speakers

IR

HDMI

Audio

IR

RS-232

Hardware / Software

Controller
