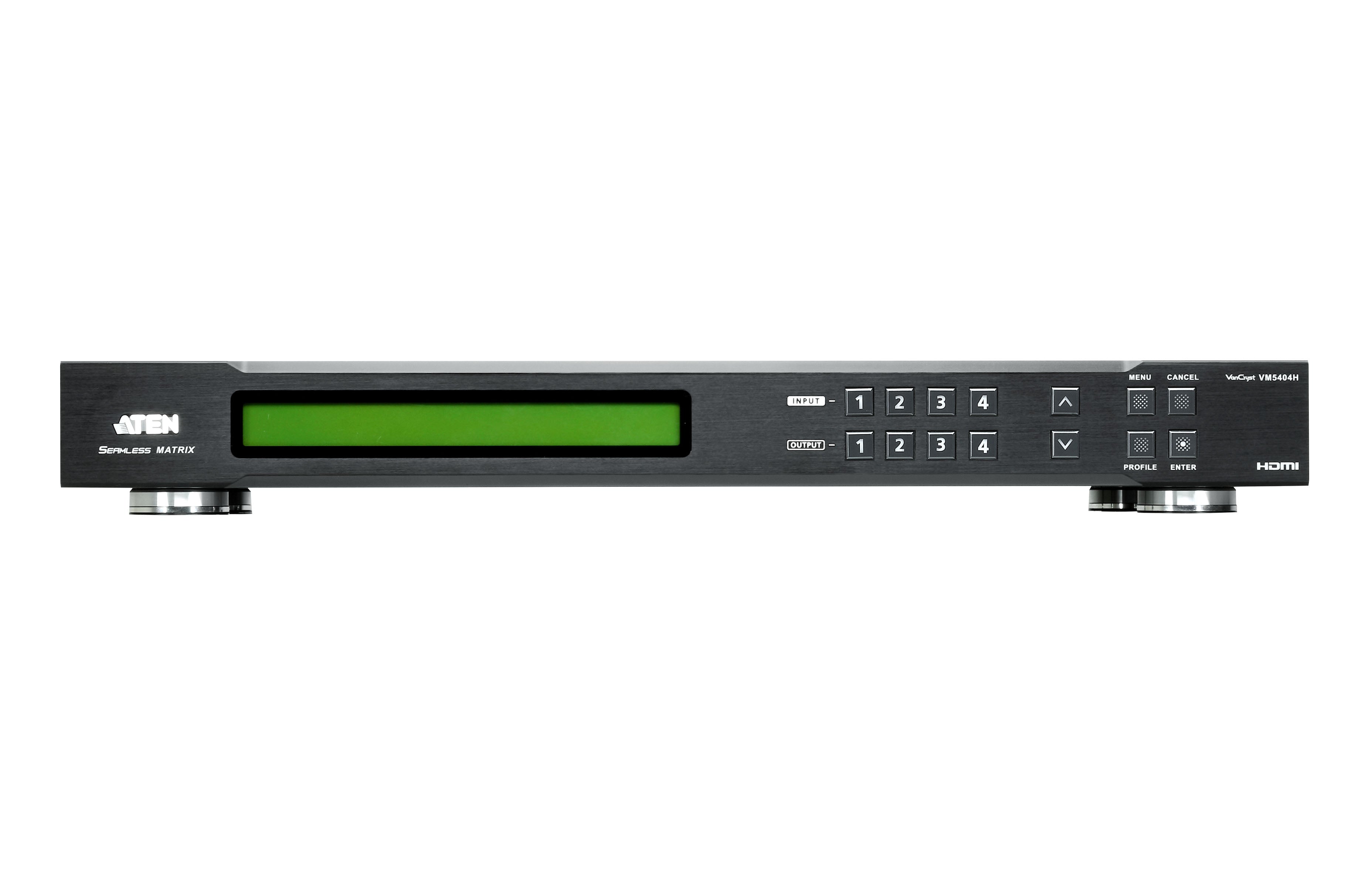

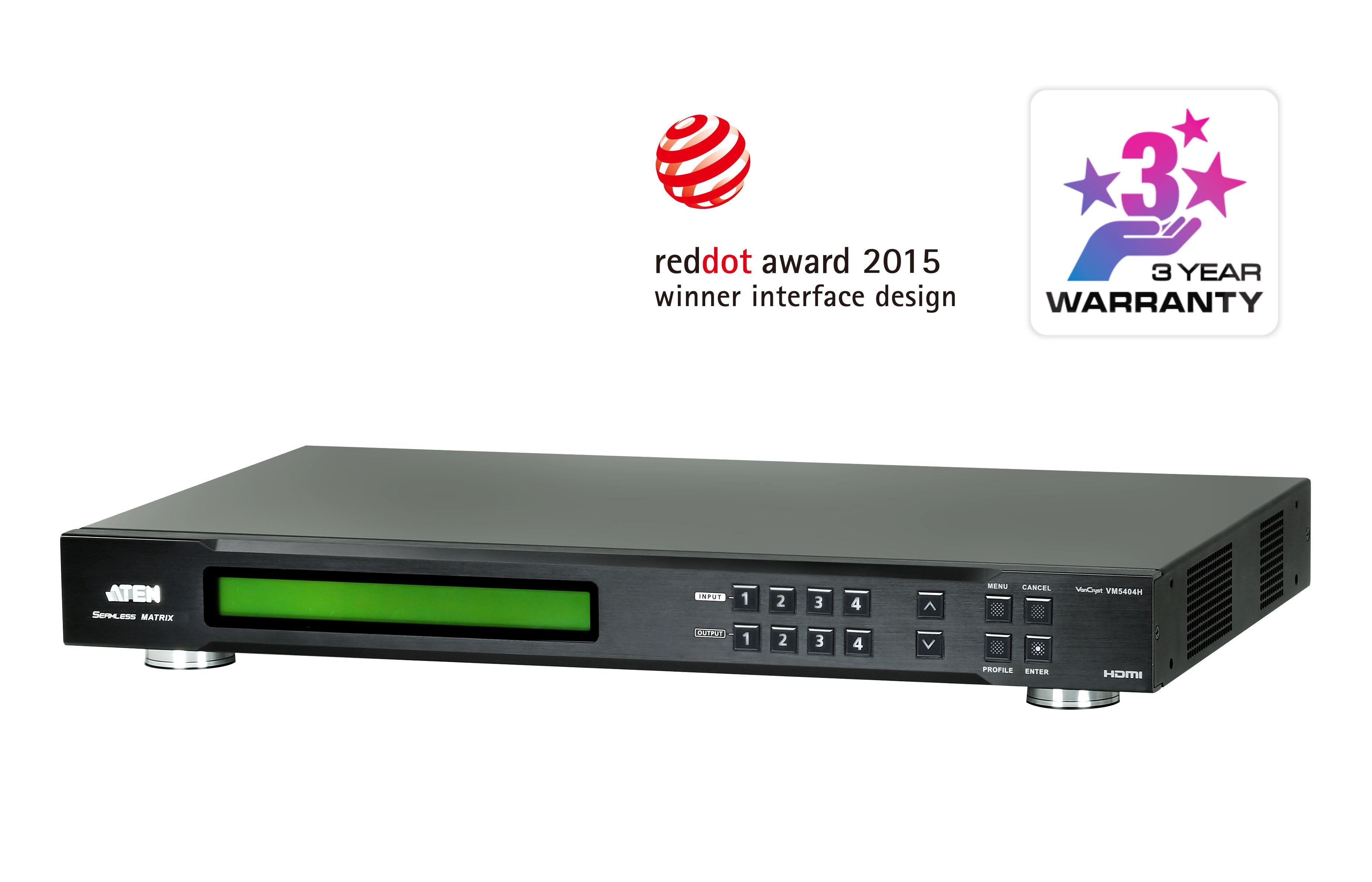

Aten Matrix Switch, HDMI, 4 Port - VM5404H

Aten
ATVM5404HSWIHDMIX
R 41,759.20 Ex VAT

• Connects any of 4 HDMI sources to any of 4 HDMI displays

• Seamless Switch™ – ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions*

• HDMI (3D, Deep colour); HDCP 1.4 compatible

• Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections

The VM5404H 4 x 4 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays, with a quick view of all port connections via the front panel LCD.


The VM5404H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, the VM5404H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.

The VM5404H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centres, and installations that require real-time reports.

Package Contents

1x VM5404H 4 x 4 HDMI Matrix Switch with Scaler

1x Power Cord

1x IR Remote Control

1x IR Receiver

1x Mounting Kit

1x User Instructions

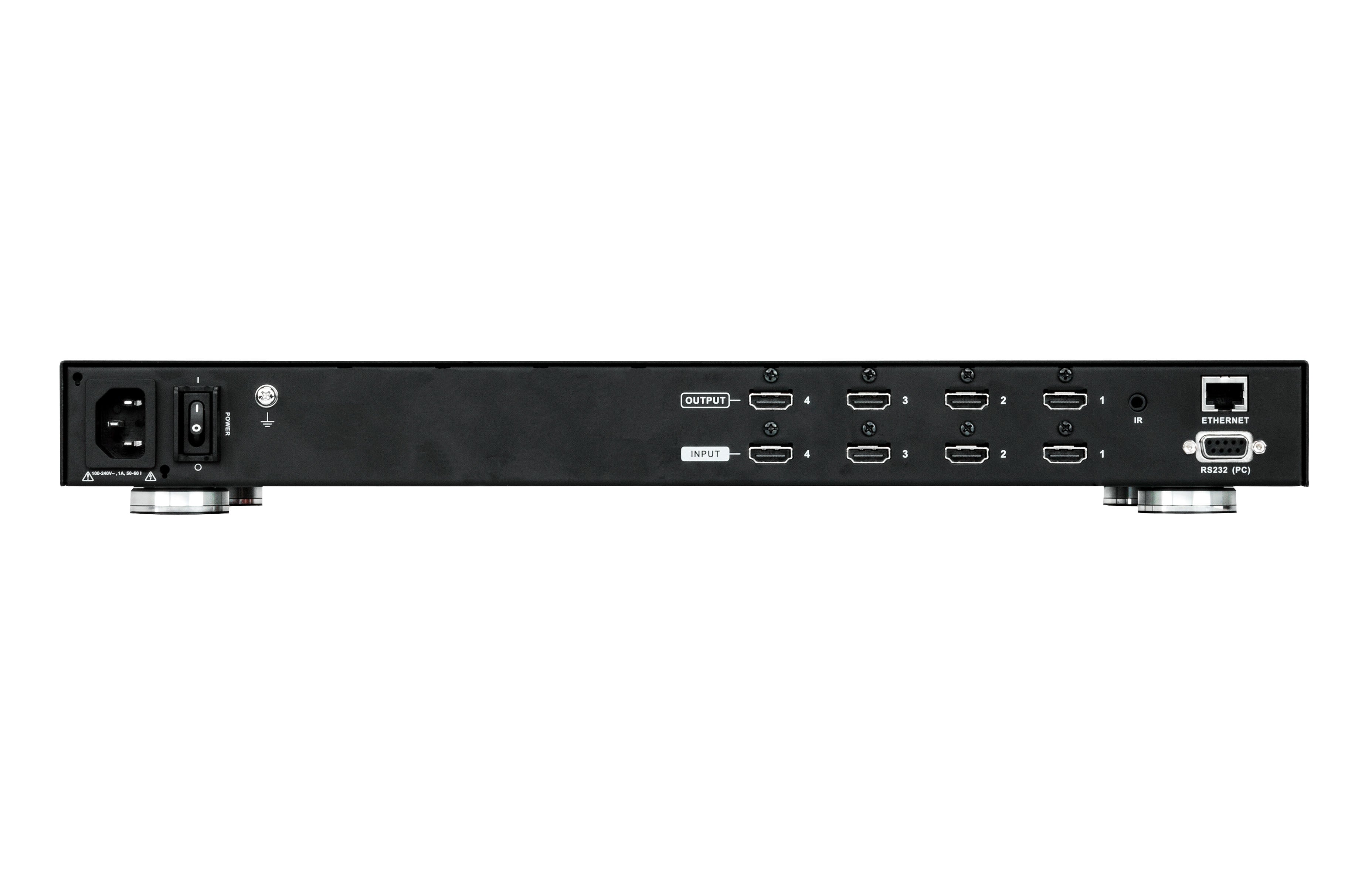

Video Input

Interfaces

4 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

3.0 m

Video Output

Interfaces

4 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

15 m

Video

Max. Data Rate

6.75 Gbps (2.25 Gbps Per Lane)

Max. Pixel Clock

225 MHz

Compliance

HDMI (3D, Deep Colour)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)

Max. Resolution

Up to 1080p

Max. Distance

Up to 15 m

Control

RS-232

Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

IR

1 x Mini Stereo Jack Female (Black)

Ethernet

1 x RJ-45 Female

EDID Settings

EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)

Connectors

Power

1 x 3-Prong AC Socket

Power

Maximum Input Power Rating

100-240 VAC; 50-60 Hz; 1.0A

Power Consumption

AC110V:34.1W:160BTU
AC220V:34.4W:161BTU

Environmental

Operating Temperature

0-50°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

4.05 kg ( 8.92 lb )

Dimensions (L x W x H)

43.24 x 26.23 x 4.40 cm
(17.02 x 10.33 x 1.73 in.)

Carton Lot

1 pc

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
