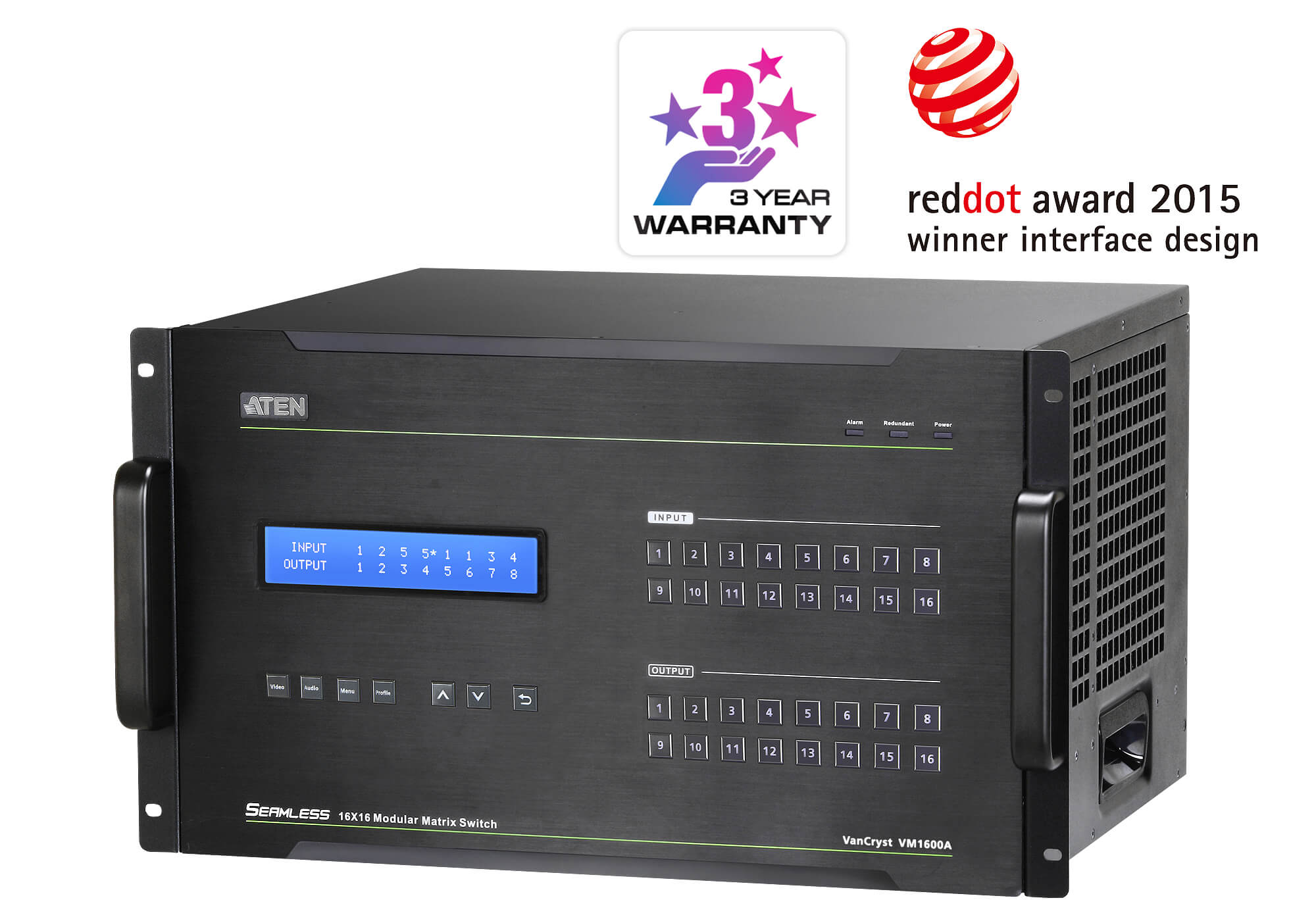

Aten Matrix Switch, HDMI, 16 Port Modular - VM1600A

Aten
ATVM1600ASWIHDMIX
R 97,581.97 Ex VAT

• Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix Solutions

• Hot-pluggable: Modular Fan Design Power Module Easy integration of I/O boards

• Optional redundant power supply for continuous operation

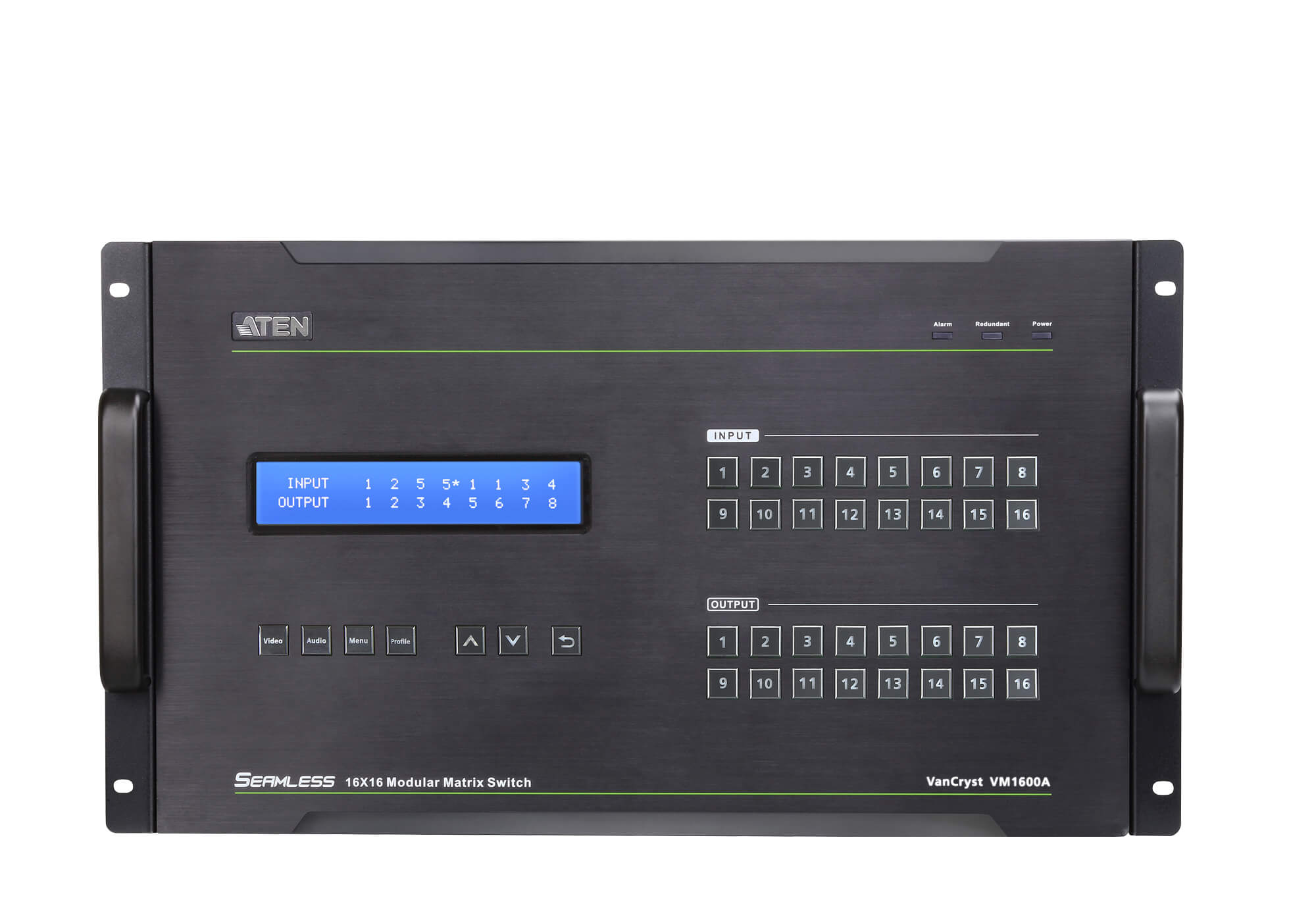

• Multiple Control Methods – system management via front-panel pushbuttons, RS-232 control, and Ethernet connections (Web GUI)



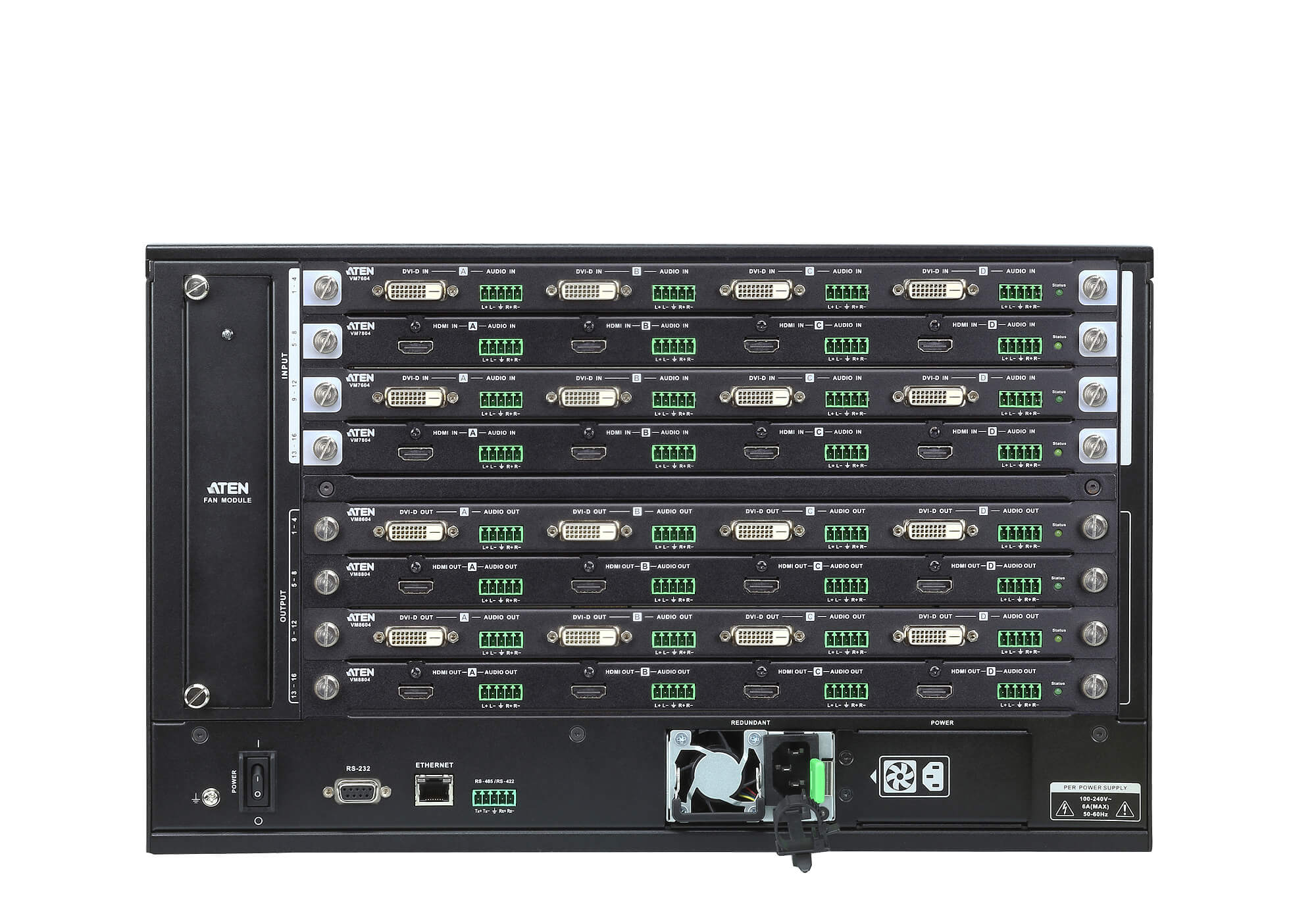

The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.

The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centres, and any application that requires customizable, high-speed A/V signal routing.

Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.



Package Contents

1x VM1600A Modular Matrix Switch

1x Power Cord

1x Terminal Block connector

1x Fan Module (pluggable)

1x Power Module (pluggable)

1x User Instructions

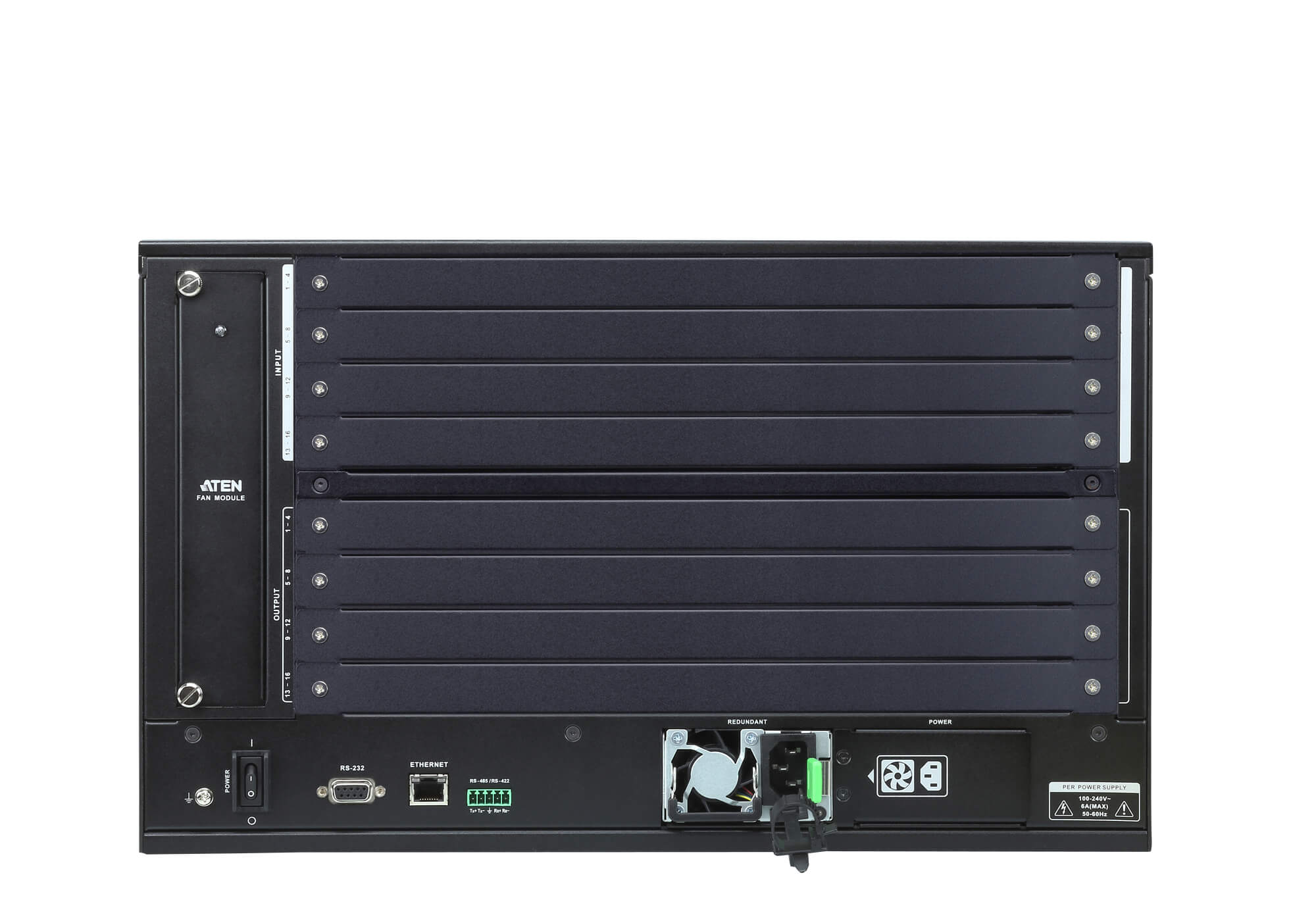

Board Output 4 x Slot
Board Input 4 x Slot
Video Input
Interfaces Depends on which I/O board is inserted
Max. Data Rate 15.2 Gbps (3.8Gbps per Lane)
Audio
Input Depends on which Input board is inserted
Output Depends on which Output board is inserted
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations:
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
RS-485/RS-422 Connector: 1 x Captive Screw Connector, 5 Pole
Ethernet Connector: 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power 1 x 3-Prong AC Socket
Power
Maximum Input Power Rating 100-240 VAC; 50/60Hz; 3/6 A
Power Consumption AC110V:460W:166BTU
AC220V:460W:156BTU
Fan Airflow: 55.2 cfm
Operating Voltage: 10.2 - 12VDC
Operating Temp: -10 - 60°C
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing

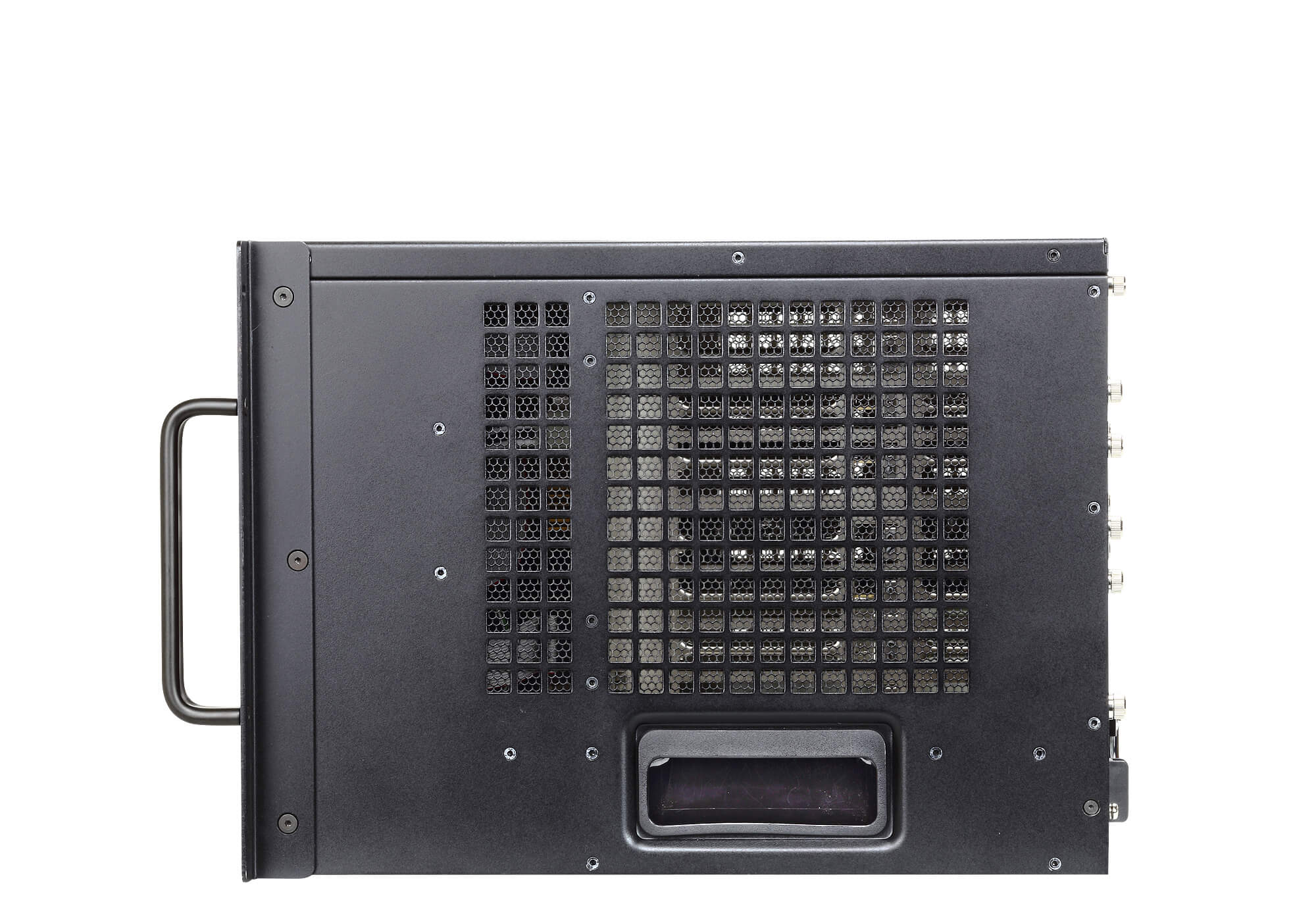

Physical Properties
Housing Metal
Weight 15.11 kg ( 33.28 lb )
Dimensions (L x W x H) 48.20 x 46.66 x 26.59 cm
(18.98 x 18.37 x 10.47 in.)
Rack Height (U Spaces) 6U
Carton Lot 1 pc
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
