Aten Switch, HDMI, 8 Port - VS0801H

Aten
ATVS0801HSWIHDMIX
R 3,523.18 Ex VAT

• Allows up to eight HDMI sources to be connected to one HDMI display

• Quick and easy switching between HDMI sources via front panel pushbuttons or IR remote control

• Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA, and WUXGA (1920x1200)

• Built-in bi-directional RS-232 serial port for high-end system control *

With more and more HDMI devices entering the Home Theatre market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theatre system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theatre PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display.

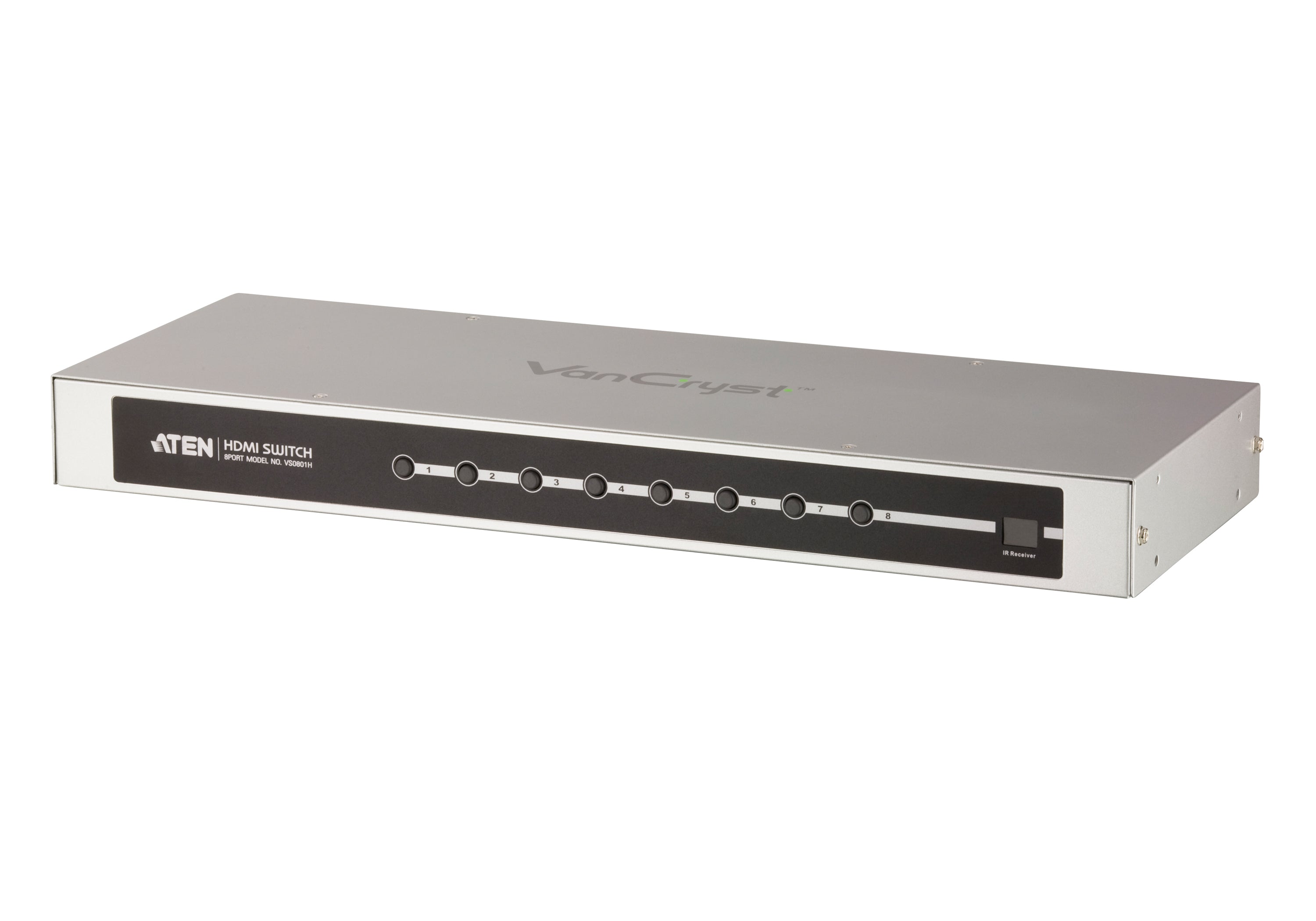

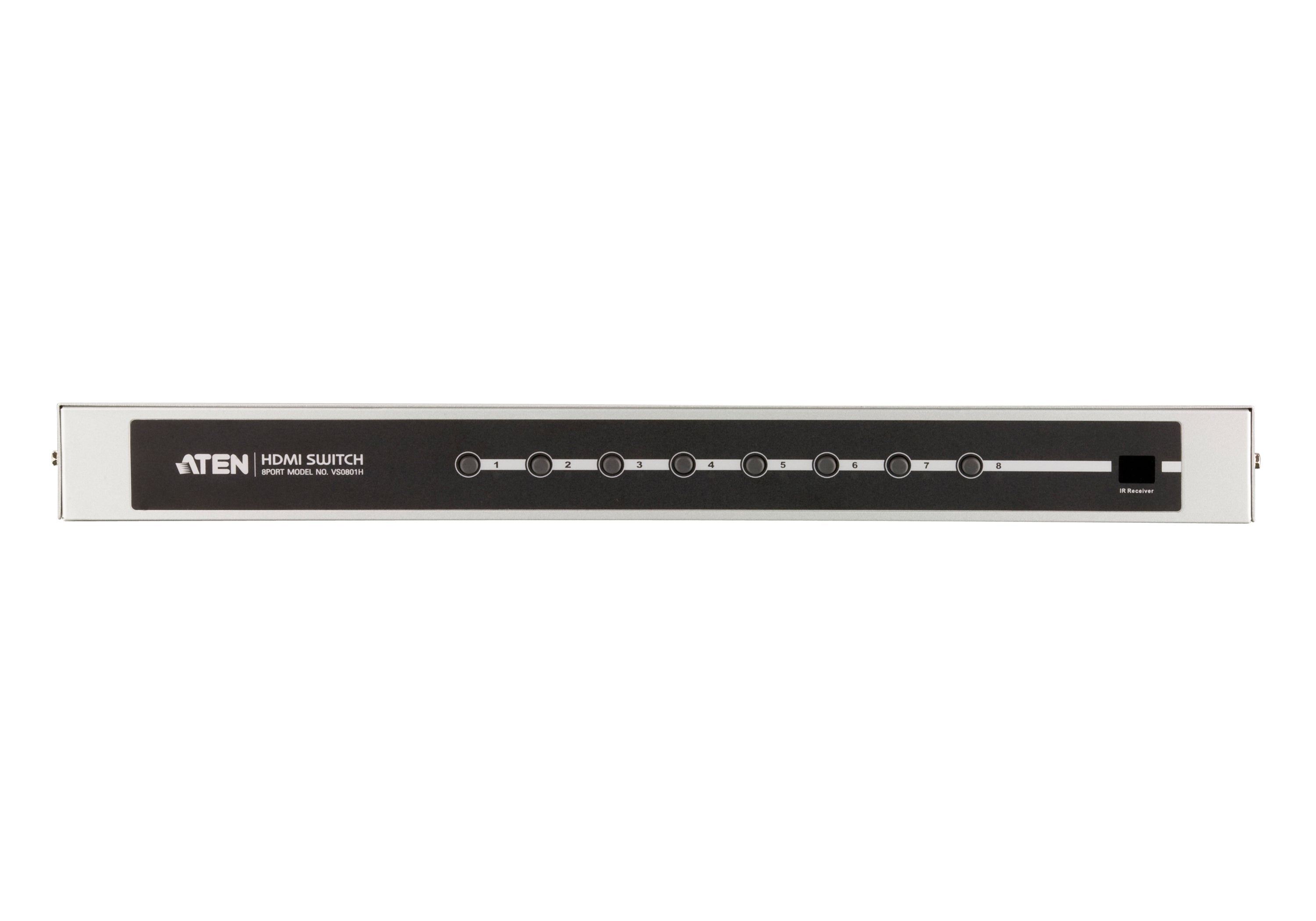

The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H's built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theatre software package.

Package Contents

  • 1x VS0801H 8-Port HDMI Switch
  • 1x IR Remote Control Unit
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions

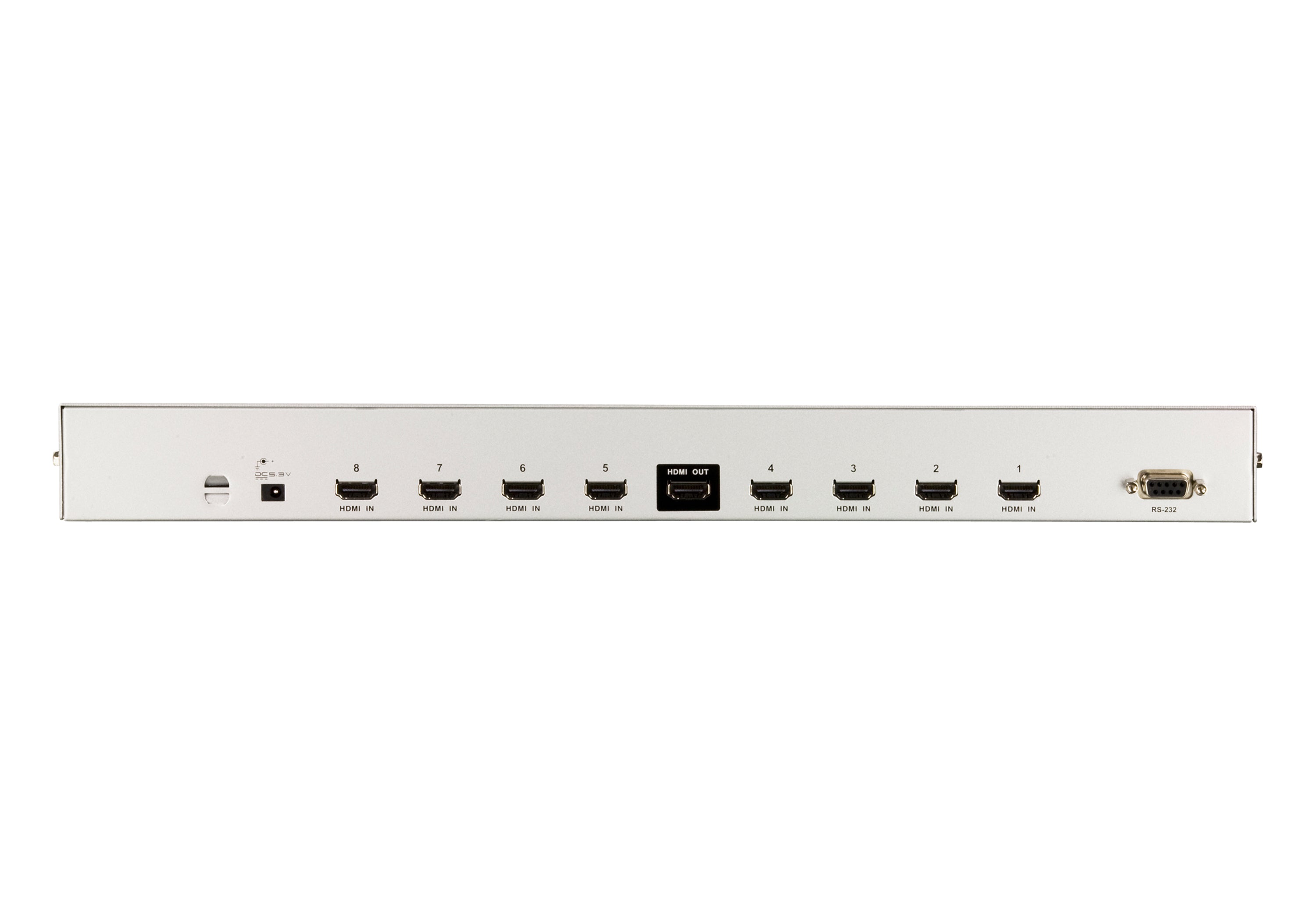

Video Input

Interfaces

8 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

3m @1920X1080@60 (4:4:4)

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

15m @1920X1080@60 (4:4:4)

Video

Max. Data Rate

6.75 Gbps (2.25 Gbps Per Lane)

Max. Pixel Clock

225 MHz

Compliance

HDMI (3D, Deep Colour)
HDCP Compatible
Consumer Electronics Control (CEC)

Max. Resolution

Up to 1080p

Audio

Input

8 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

Control

RS-232

Connector: 1 x DB-9 Female (Black)
Baud Rate and Protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

Connectors

Power

1 x DC Jack

Power Consumption

DC5.3V:4.37W:20BTU

Environmental

Operating Temperature

0 - 50°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

1.75 kg ( 3.85 lb )

Dimensions (L x W x H)

43.70 x 15.98 x 4.40 cm
(17.2 x 6.29 x 1.73 in.)

Carton Lot

3 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VS0801H Datasheet  PDF
