Aten KVM Switch, USB 2.0, VGA, 4 Port - CS64U

Aten
ATCS64USWIKVMXX
R 1,965.68 Ex VAT

• Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B

• Computer Selection via hotkey

• Multiplatform support - Windows, Linux, Mac, and Sun

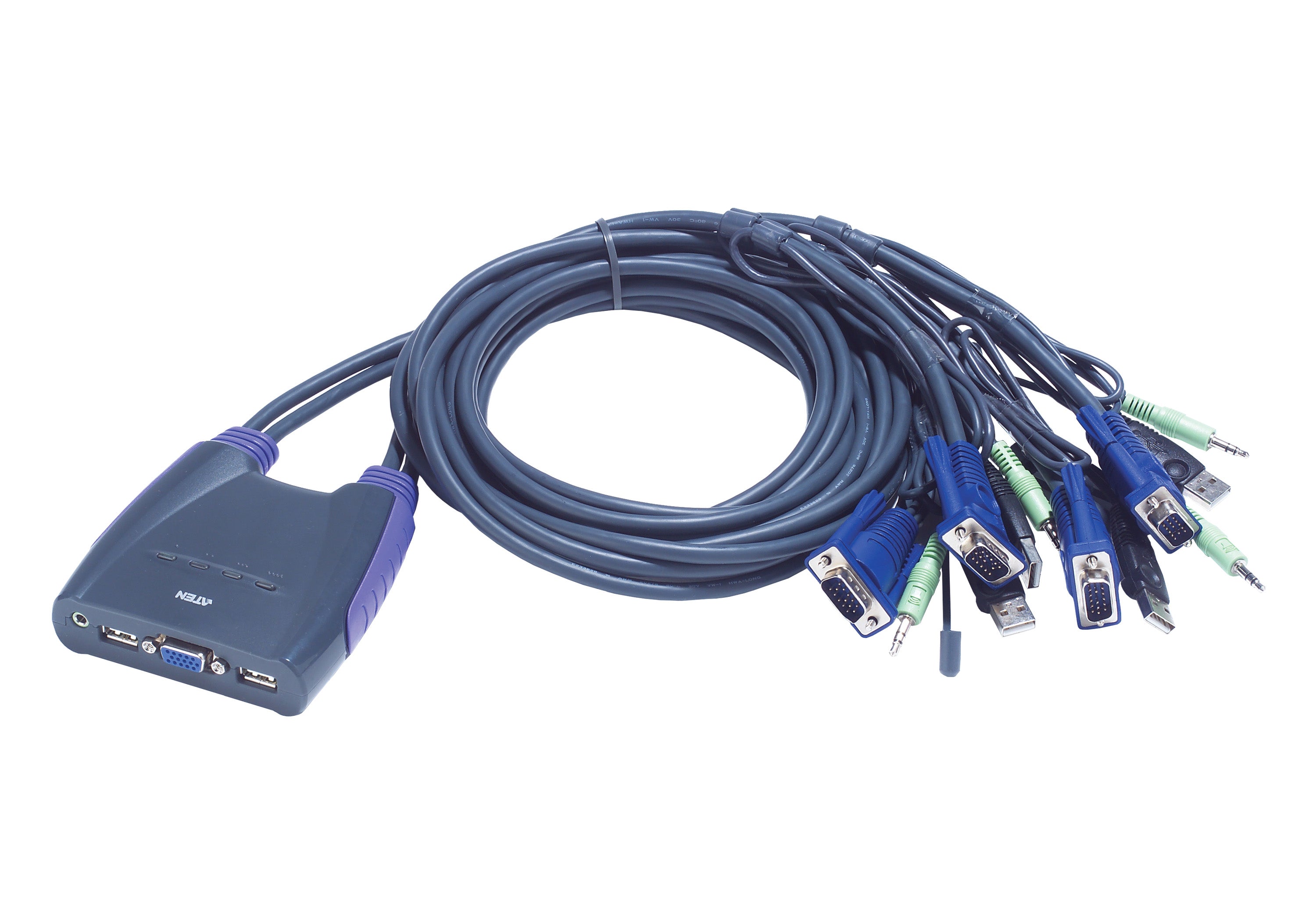

• Built-in 1.8 m cables and bus-powered design

The CS64U takes a giant step forward from prior cable KVM models, by offering built-in cables, USB peripheral sharing, and a firmware upgrade function that allows you to keep up with latest available versions.

Furthermore, the CS64U features enhanced Video DynaSync™ technology, which stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution. The CS64U also offers multiplatform support and computer selection via hotkeys to provide the ultimate in desktop convenience.



Package Contents

  • 1x 4-Port USB KVM Switch with Attached Cables
  • 1x User Instructions



Computer Connections

4

Port Selection

Hotkey

Connectors

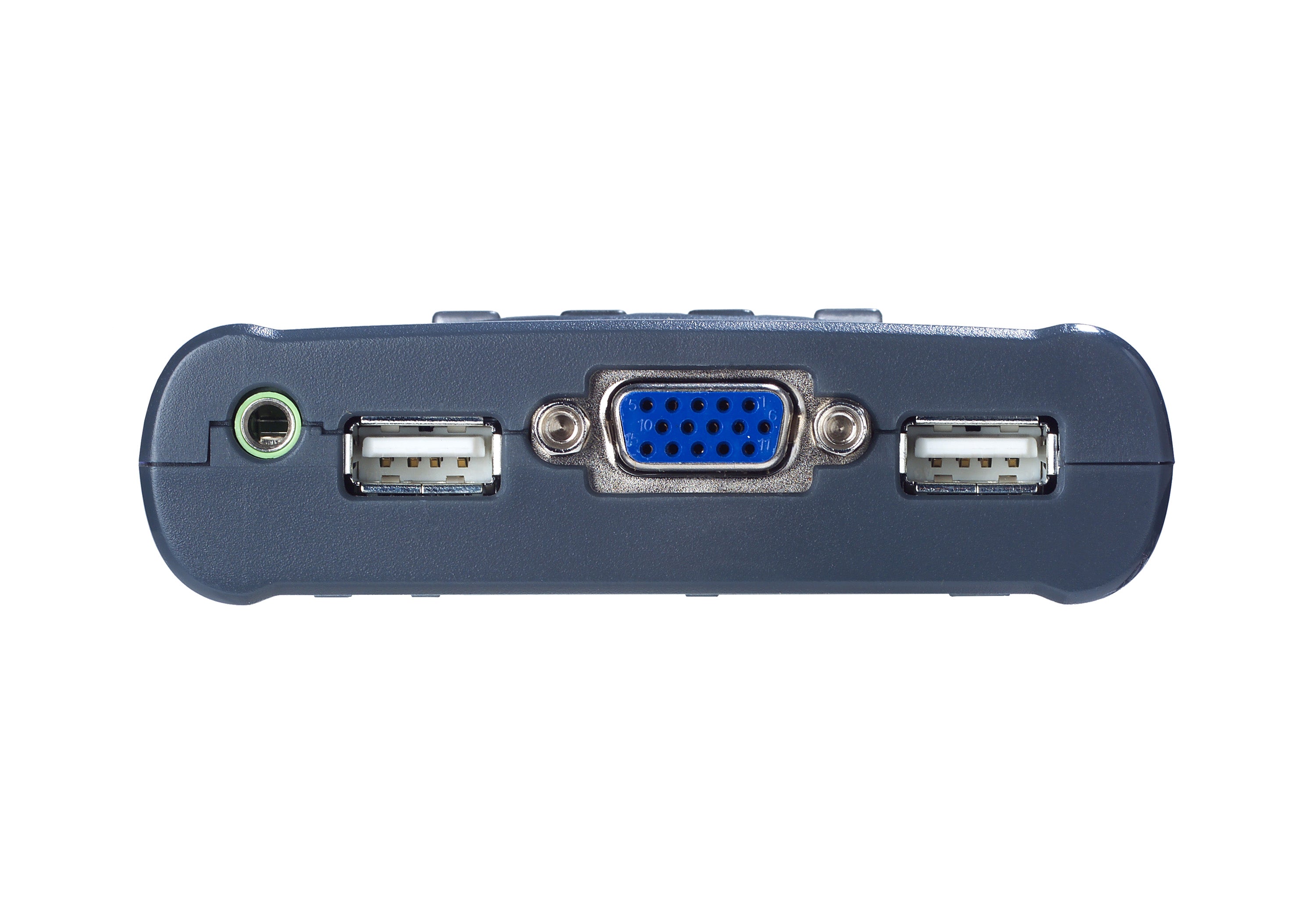

Console Ports

1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)

KVM Ports

4 x HDB-15 Male (Blue)
4 x USB Type A Male
4 x 3.5mm Audio Jack Male (Green)

LEDs

Selected

4 (Green)

Cable Length

Computer

4 x 1.8 m

Emulation

Keyboard / Mouse

USB

Video

2048 x 1536 @ 60Hz; DDC2B

Scan Interval

1-99 seconds

Power Consumption

DC5V:0.9W:8BTU

Environmental

Operating Temperature

0 – 50°C

Storage Temperature

-20 – 60°C

Humidity

0 – 80% RH, Non-condensing

Physical Properties

Housing

Plastic

Weight

0.73 kg ( 1.61 lb )

Dimensions (L x W x H)

9.41 x 9.72 x 2.60 cm
(3.7 x 3.83 x 1.02 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
