Aten Multistreaming Presentation Switch - VP2120 – Solution Technologies

Aten Multistreaming Presentation Switch - VP2120

Aten
ATVP2120WIRWPSYS
R 19,357.50 Ex VAT

• Supports ATEN Video Presentation Control App for convenient collaboration and meeting presentations control using your mobile device

• Bi-directional wireless content streaming of up to 4 participants simultaneously with quad-view support

• Built-in Audio DSP – mixes Mic input and HDMI input for HDMI or audio output

• Advanced online idea-sharing functions – Whiteboard, Chat Room, File Sharing, Group Broadcasting, and Video Capture

The ATEN VP2120 Seamless Presentation Switch integrates video matrix switch, AV streaming, audio mixing, and collaborative functions into one compact device.

With one HDMI input, dual HDMI outputs, plus four bi-directional streaming channels, VP2120 empowers BYOD collaboration for more efficient and productive meetings in huddle spaces and huddle rooms, as well as small- to medium-size meeting rooms.

Package Contents

1x VP2120 Seamless Presentation Switch

1x IR Receiver

1x IR Remote Control

1x Power Adapter

1x User Instructions

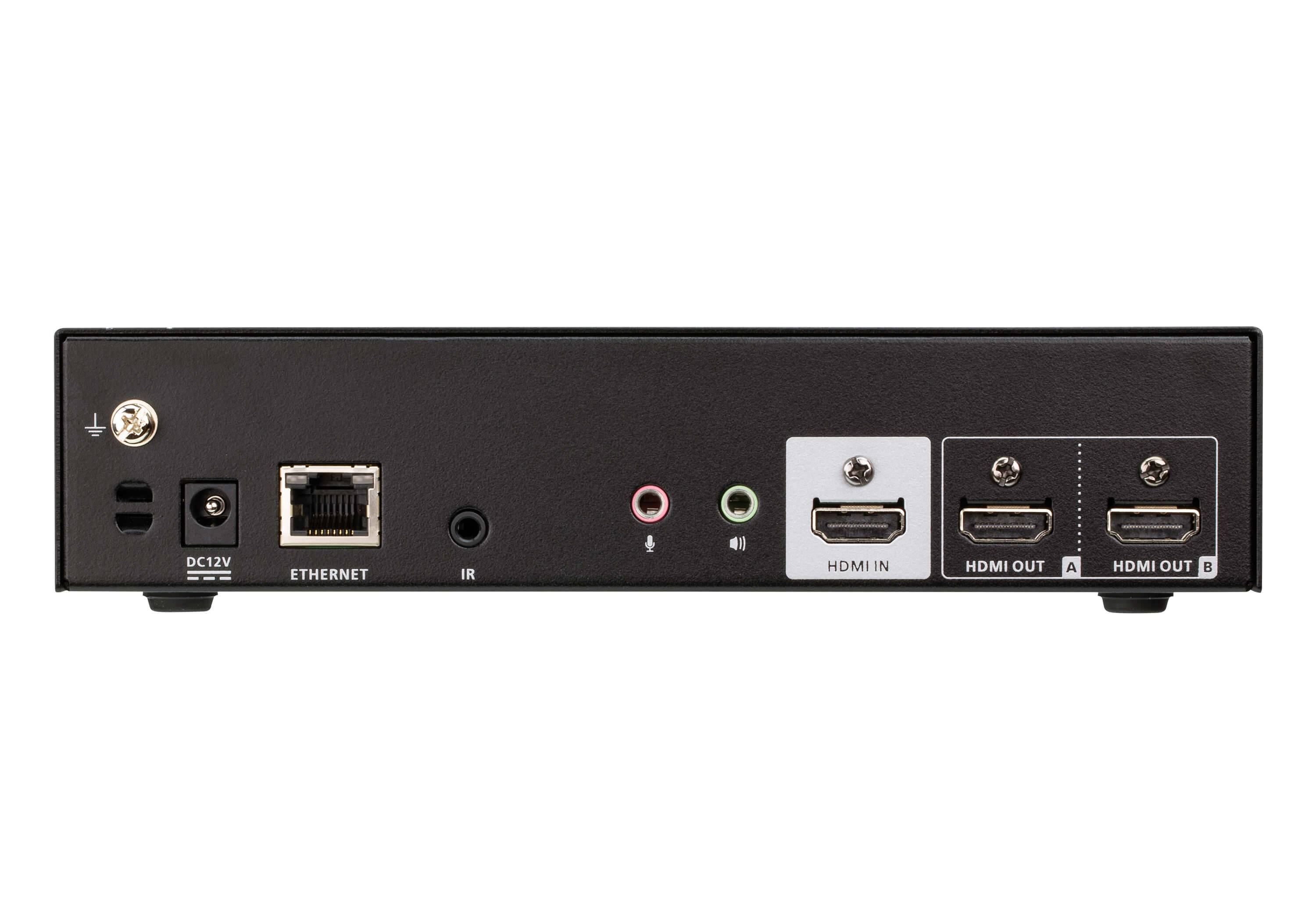

Video Input

Interfaces

1 x HDMI Type A female (Black)

Video Output

Interfaces

2 x HDMI Type A female (Black)

Max. Distance

HDMI: Up to 15m

Video

Max. Resolution

HDMI: Up to 1080p@60Hz

Compliance

HDMI: HDCP 1.4 Compatible; Consumer Electronics Control (CEC)

Audio

Input

Microphone: 1 x mini stereo Jack female (Pink)

Output

Stereo Audio: 1 x mini stereo Jack female (Green)

Connectors

Console Ports

USB 3.0: 1 x USB Type A Female (Blue)

Power

1 x DC Jack (Black)

Control

IR

1 x Mini Stereo Jack Female (Black)

Ethernet

1 x RJ-45 Female (Silver)

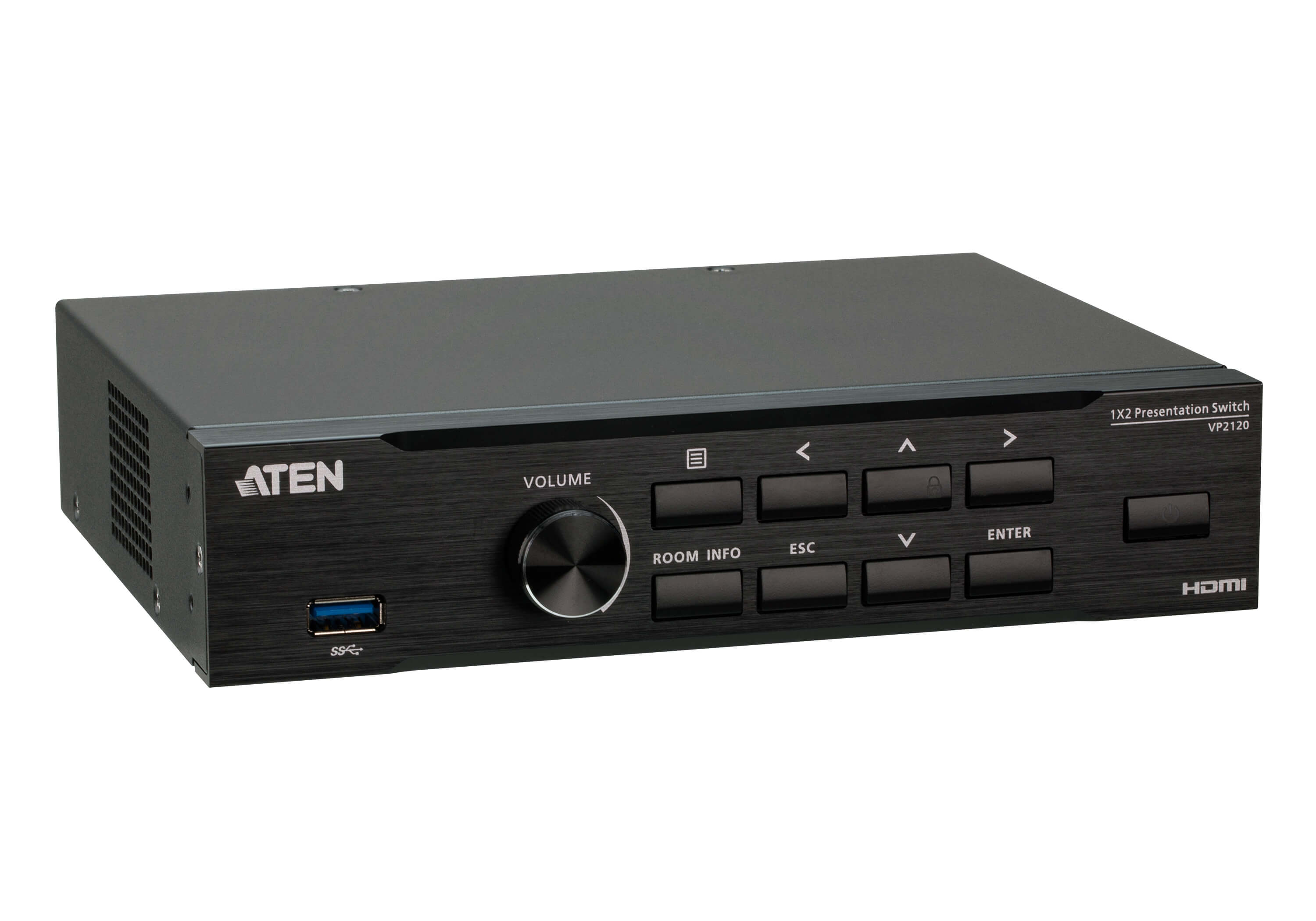

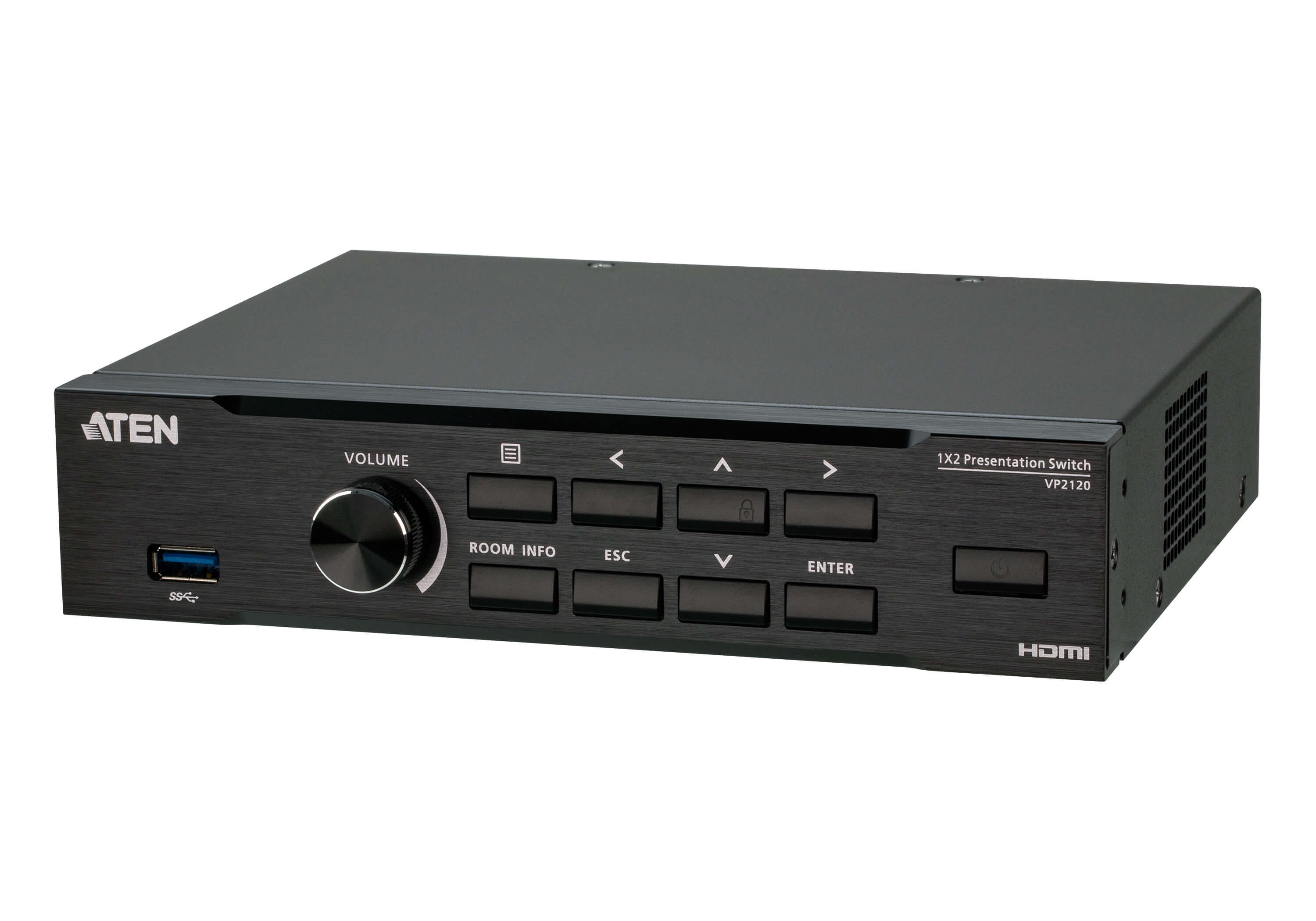

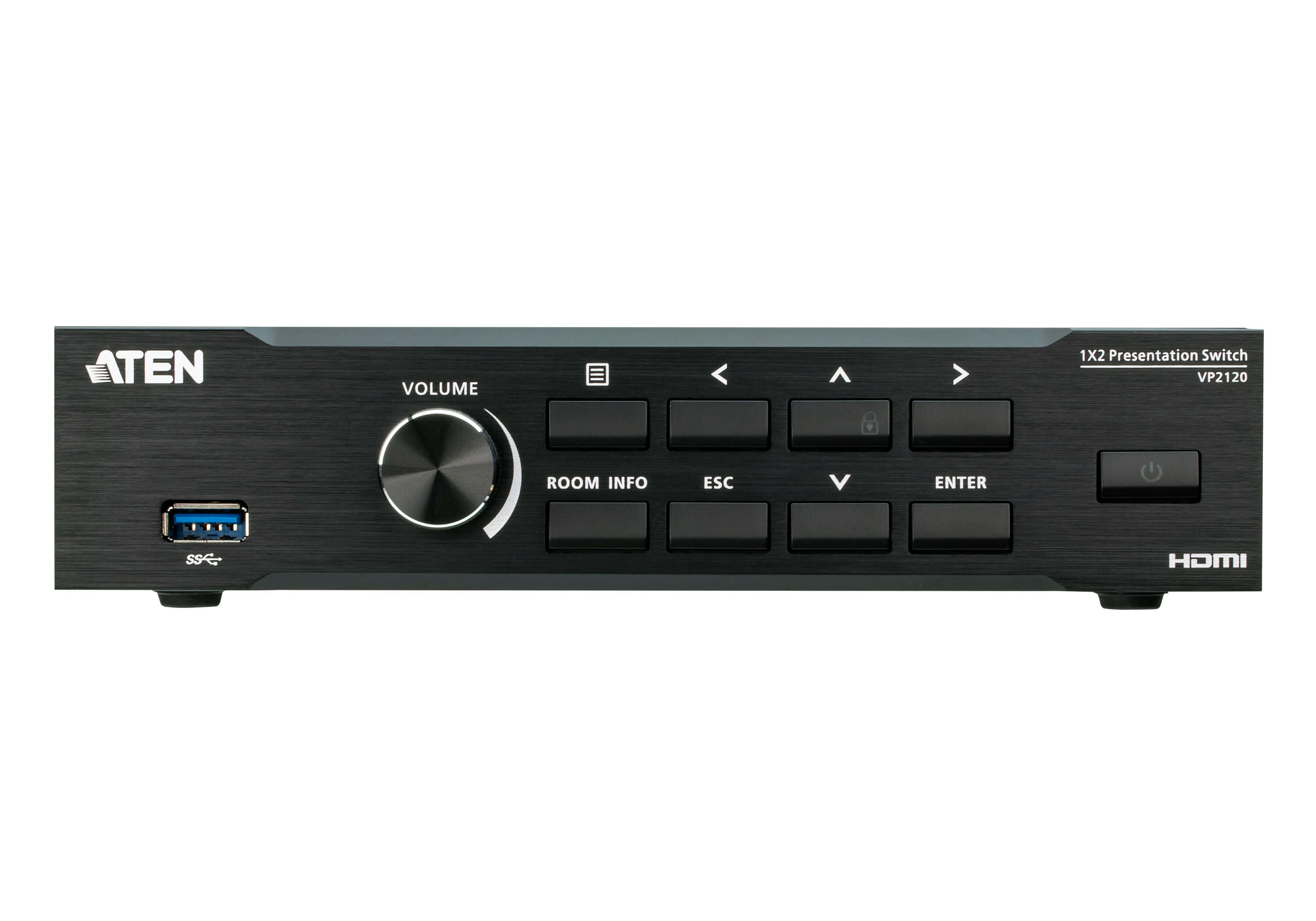

Switches

Power

1 x Pushbutton (LED: Green)

Selection

Room Info: 1 x Pushbutton
Menu: 1 x Pushbutton
Left: 1 x Pushbutton
Right: 1 x Pushbutton
Down: 1 x Pushbutton
Up/Unlock: 1 x Pushbutton
Volume: 1 x Knob
Enter: 1 x Pushbutton
ESC: 1 x Pushbutton

EDID Settings

EDID Mode: ATEN Default / Display A

Power Consumption

DC12V:14.46W:87BTU

Environmental

Operating Temperature

0-40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

1.14 kg ( 2.51 lb )

Dimensions (L x W x H)

20.00 x 16.92 x 4.40 cm
(7.87 x 6.66 x 1.73 in.)

Carton Lot

3 pc

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VP2120 Datasheet PDF
