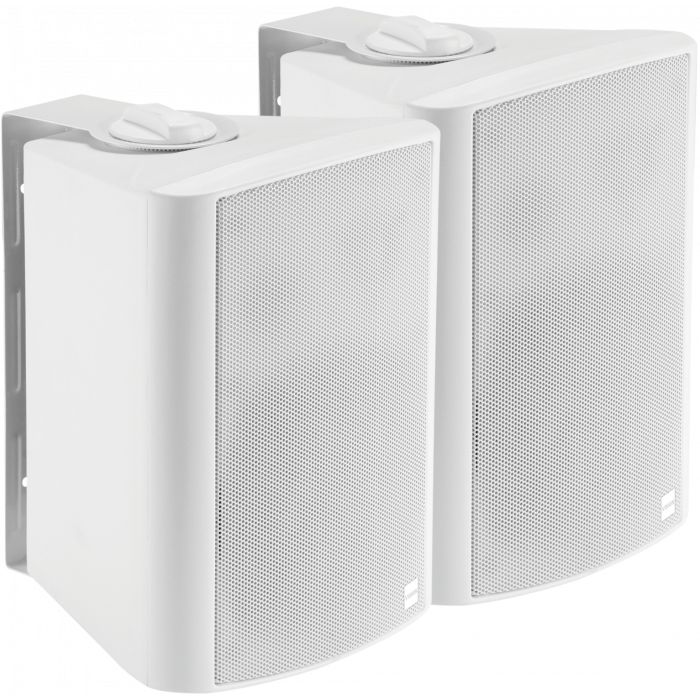

Vision Wall Speaker - 4820817
• Built-in 2 x 27 watt digital amplifier
• Two summed inputs (1 x Minijack / 1 x 2-Phono)
• Internal Power Supply
• Adjustable wall brackets included
The SP-900P are Vision’s most cost-effective audio solution. They are purpose-built for small meeting rooms and classrooms. Incredible value for money; they offer great sound quality and Vision’s trademark ease of installation. Perfect for meeting spaces.
2-Way
A 5.25″ woofer is complemented by a Mylar dome tweeter. The dome tweeter offers a wide dispersion so everyone in the room can hear at the same volume. This means loud and clear sound for meeting rooms and classrooms.
Volume Control
The volume dial is on the rear of the ‘master’ loudspeaker – the one containing the amplifier. It is alongside the hard power switch.
Wall Brackets
The brackets allow installers to easily tilt side to side, and the use of a dome tweeter means the speakers can be mounted on their sides allowing downward tilt. Alternately, leave the brackets off and use as shelf speakers.
Multiple Inputs
The rear panel of the master loudspeaker offers minijack and 2-phono (RCA) inputs.
PP Chassis
Heavy-weight plastic material is used for the chassis, allowing a rigid acoustic chamber for distortion-free sound.
Bass Reflex
A bass reflex port allows greater excursion of the woofer, allowing the woofer to produce lower frequencies, and the phase-delayed movement of air from behind the woofer to the front reinforces the bass even more.
Inputs Summed
The inputs are combined at input stage meaning there is no input selection switch. Note: when both inputs are connected all source and display devices in the system should be powered from the same mains power source, otherwise earth hums will occur.
PRODUCT DIMENSIONS
245 x 183 x 164 mm (tall x wide x deep for each speaker)
PACKAGED DIMENSIONS
395 x 235 x 275 mm
PRODUCT WEIGHT
Master: 2.7 kg
Slave: 2.5 kg
PACKAGED WEIGHT
5.5 kg
CONSTRUCTION MATERIAL
PP
COLOUR
White
WOOFER
5.25″ Paper
TWEETER
0.5" Mylar Dome
INPUTS
Minijack (3.5mm)
2-Phono (RCA)
(Summed)
SPEAKER OUTPUT
Removable Phoenix type
SPEAKER INPUT (ON SLAVE)
Bare Wire Screw type
LOW IMPEDANCE DYNAMIC POWER
2 x 27 watt at 8 ohms
LOW IMPEDANCE RMS POWER
2 x 15 watt at 8 ohms
SENSITIVITY
101 dB (1w/1m)
FREQUENCY RESPONSE
50 Hz-20 kHz
TOTAL HARMONIC DISTORTION (THD)
1%
ACCESSORIES INCLUDED
2 x Wall brackets
1 x Speaker Cable 5m
1 x Euro Figure-8 Power cable 1.8 m long
1 x UK Figure-8 Power cable 1.8 m long
1 x AU Figure-8 Power cable 1.8 m long
1 x US Figure-8 Power cable 1.8 m long
Note: no input cables included
POWER SUPPLY
100-240v 50/60Hz AC Internal Power Supply
WARRANTY
Lifetime return-to-base
COMPLIANCE
RoHS, WEEE, CE/EMC, FCC, RCM-POC, RCM-SDOC, UKCA-EMC, UKCA-LVD
ORDER PART CODE
SP-900P [EU SAP: 4820817 / US SAP: 14556661]
COUNTRY OF ORIGIN
China
4820817 Datasheet PDF
