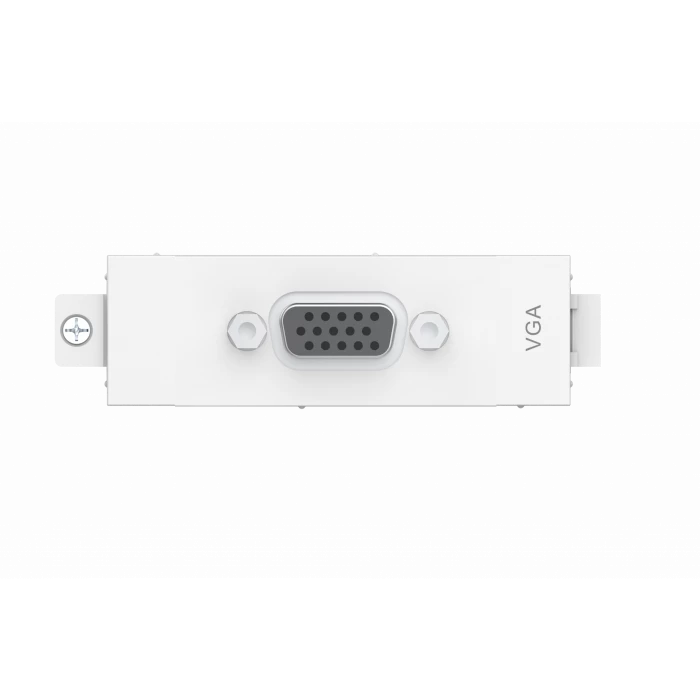

Vision Cable Termination System V3,VGA FemaleD Module - 3498783
• Female 15-pin D-sub connector for PC output

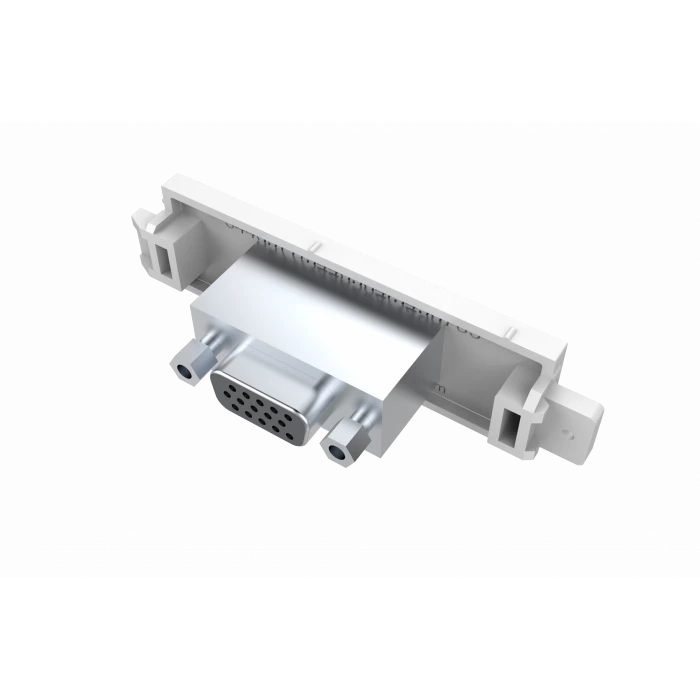

• Female D-Sub (VGA connector) on rear instead of phoenix connector
• Occupies 1 module space
This module is part of Vision's Techconnect connectivity faceplate family.
Fixes to Surround
Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.
Future-proof
If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
Flexible
Get to site and the client changes what they want on their AV faceplate? No problem.
COLOR
White
MATERIAL
ABS Plastic
PRODUCT DIMENSIONS

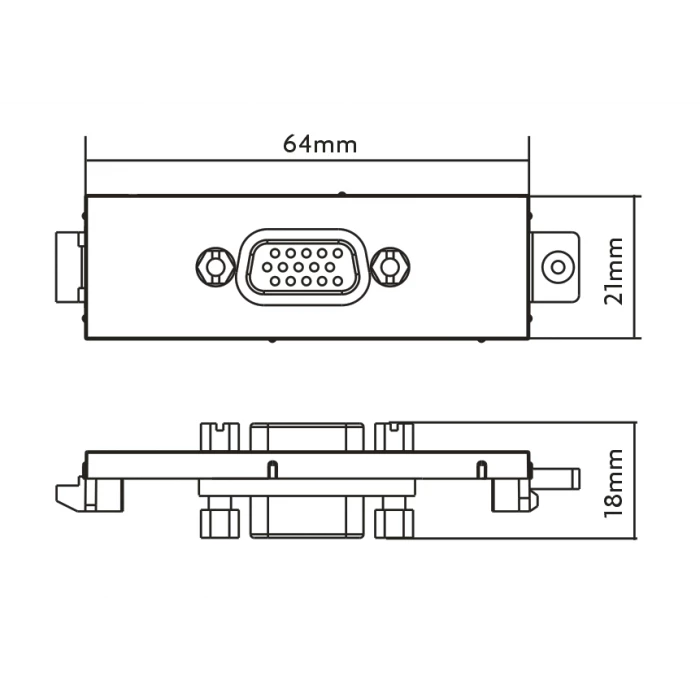

64 x 21 x 18 mm / 2.5" x 0.83" x 0.71" (height x width x depth)
PRODUCT WEIGHT
0.03 kg (0.07 lb)
PACKAGED WEIGHT
0.03 kg (0.07 lb)
PACKAGED DIMENSIONS
90 x 150 mm /3.5" x 5.9"
ORDER PART CODE
TC3 VGAFD [EU SAP: 3498783 / US SAP: 12980836]
COUNTRY OF ORIGIN
China
ISO
ISO 9001:2015
3498783 Datasheet PDF
