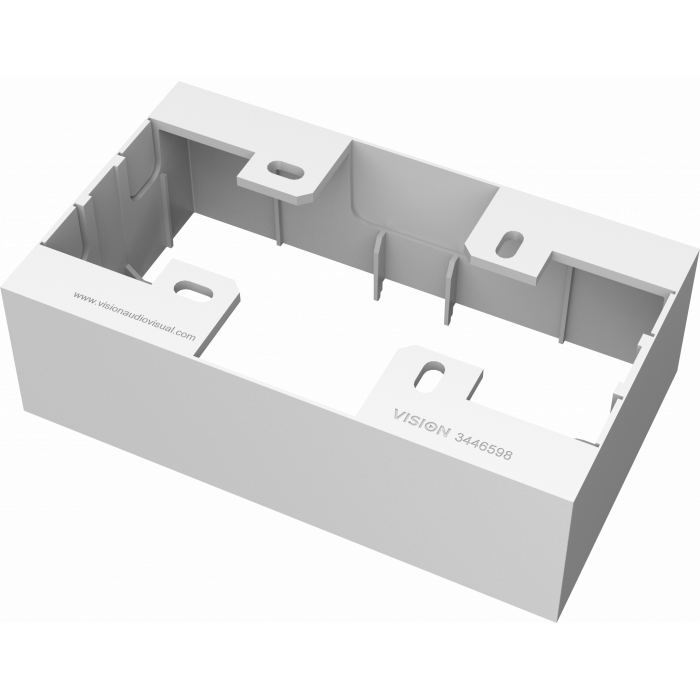

Vision Cable Termination System V3, 2-Gang Backbox - 3446598
• Fixes double-gang Techconnect surround to walls.
• Surface Mount
This back box is part of Vision’s Techconnect modular faceplate family. It attaches a surround to the wall.
Fixes to Walls
This back box fixes double-gang Techconnect surround to walls.
Future-proof
If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
Flexible
Get to site and the client changes what they want on their AV faceplate? No problem.
Strong
Techconnect parts are robust for the rigours of everyday use. They include strengthening ribs and reinforcing where required.
Proven
For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.
• COLOR
White
• MATERIAL
ABS Plastic

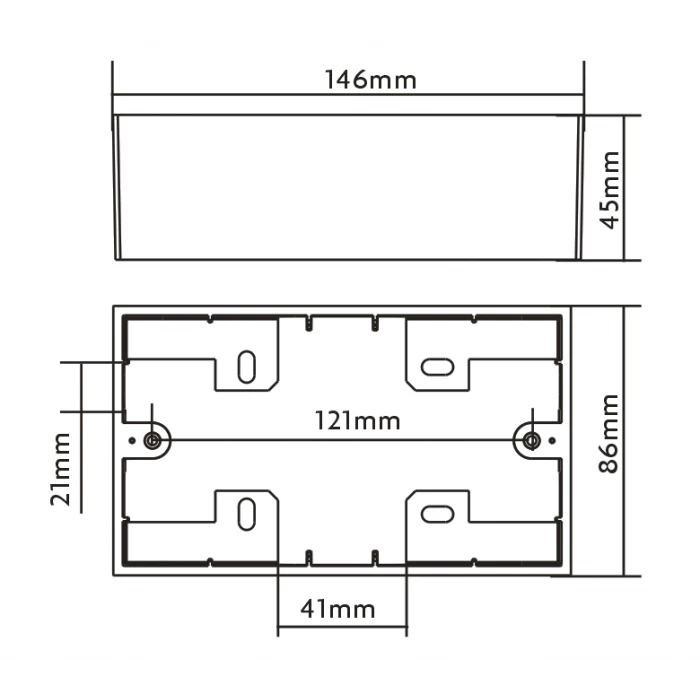

• PRODUCT DIMENSIONS
146 x 86 x 45mm / 5.75" x 3.39" x 1.77"
• PRODUCT WEIGHT
0.1 kg (0.2 lb)
• PACKAGED WEIGHT
0.1 kg (0.2 lb)
• PACKAGED DIMENSIONS
160 x 240 mm /6.3" x 9.4"
• ORDER PART CODE
TC3 BACKBOX2G [EU SAP: 3446598 / US SAP: 12939509]
• COUNTRY OF ORIGIN
China
• ISO
ISO 9001:2015
3446598 Datasheet PDF
