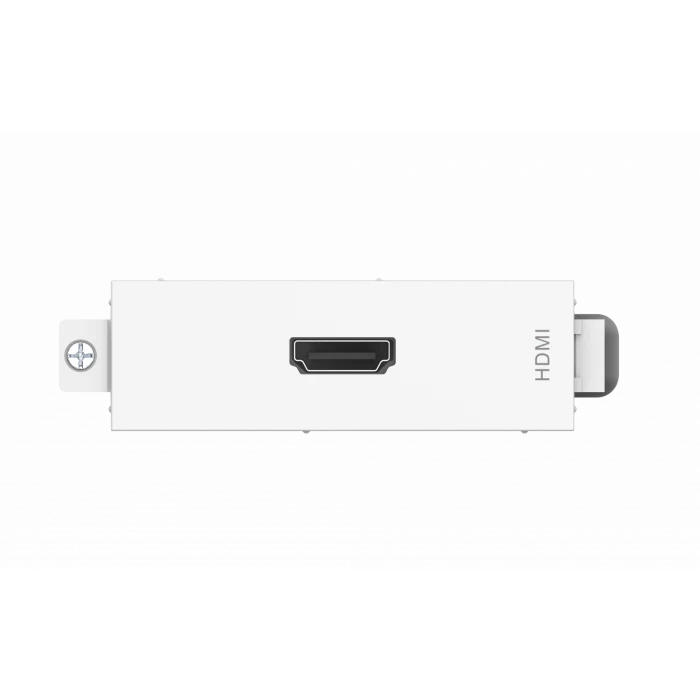

Vision Cable Termination System V3, HDMI Module - 3446573
• HDMI module v2.0 (4K)

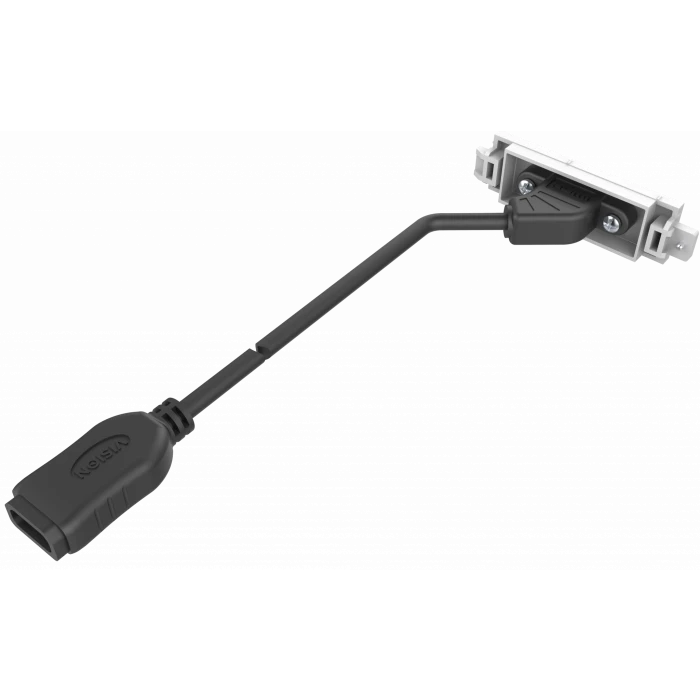

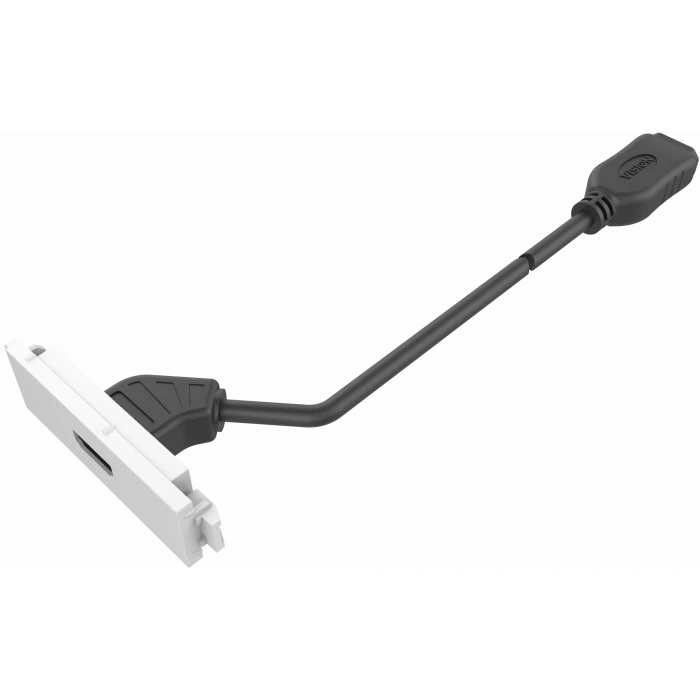

• Includes short cable at rear with female HDMI connector
• Carries digital audio and video over one cable
• Occupies 1 module space
This module is part of Vision's Techconnect connectivity faceplate family.
Fixes to Surround
Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.
Future-proof
If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
Flexible
Get to site and the client changes what they want on their AV faceplate? No problem.
Strong
Techconnect parts are robust for the rigours of everyday use. They include strengthening ribs and reinforcing where required.
Proven
For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.
COLOR
White
MATERIAL
ABS Plastic

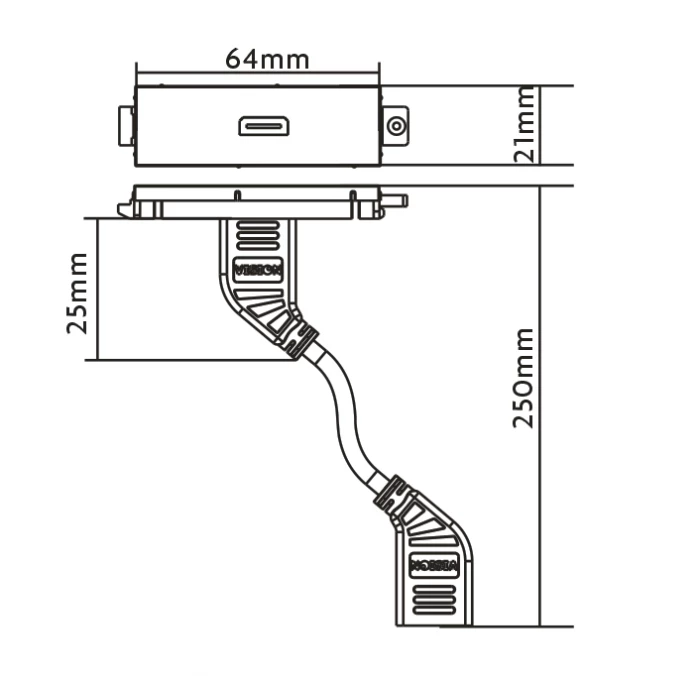

PRODUCT DIMENSIONS
64 x 21 x 250 mm / 2.5" x 0.83" x 9.8"
PRODUCT WEIGHT
0.1 kg (0.2 lb)
PACKAGED WEIGHT
0.1 kg (0.2 lb)
PACKAGED DIMENSIONS
120 x 200 mm / 4.72" x 7.87"
CONDUCTOR THICKNESS
AWG 28 (from August 2022 it will be 26)
TAIL LENGTH
200mm (7.87")
SUPPORTS 4K WITH INPUT AND OUTPUT CABLES NO LONGER THAN 3 METRES (10FT) EACH, DEPENDING ON THE QUALITY OF THE CABLES
ORDER PART CODE
TC3 HDMI [EU SAP: 3446573]
