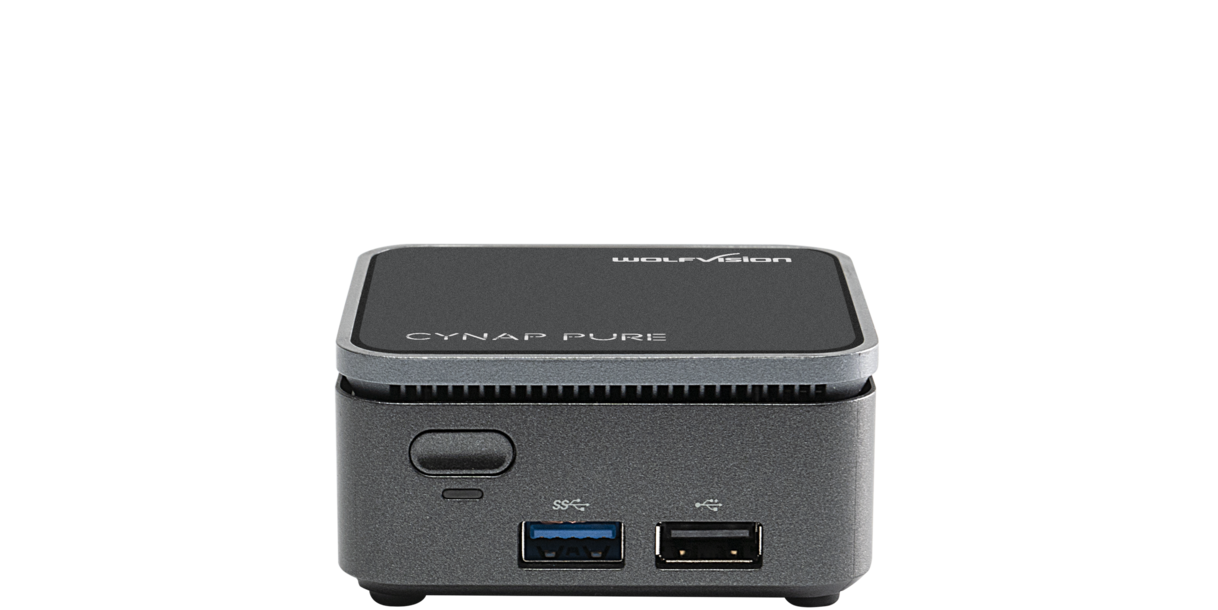

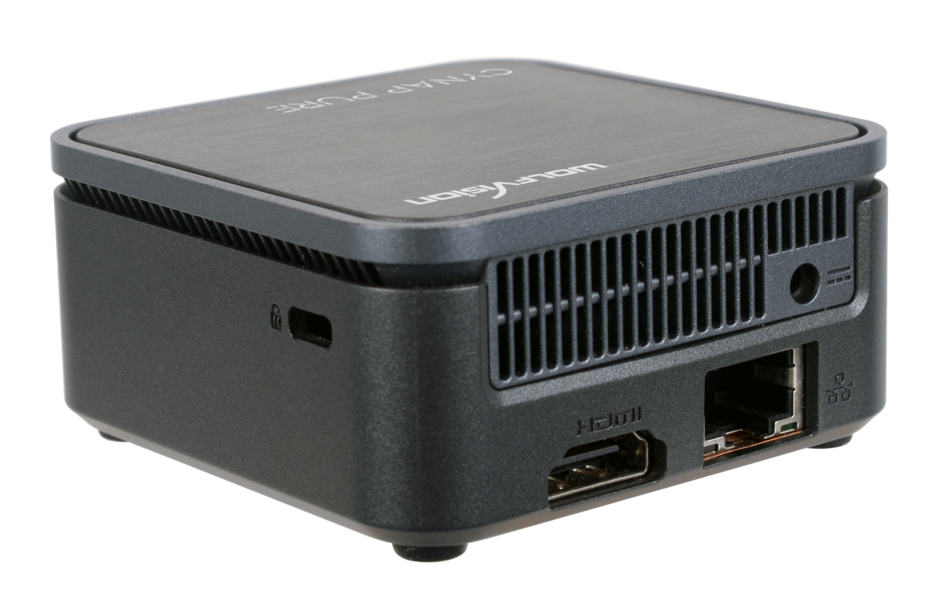

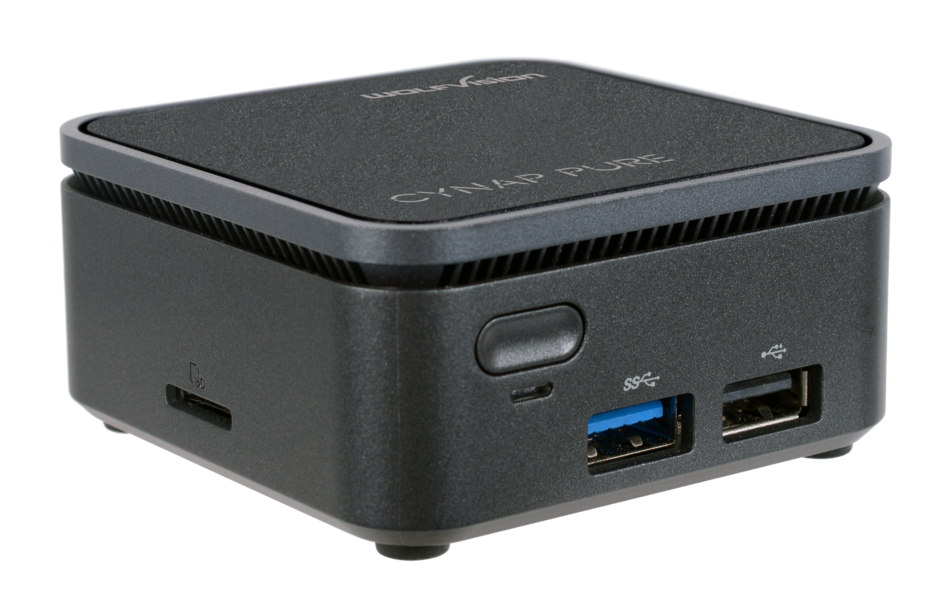

Wolfvision Wireless Presentation System - CYNAPPUREMI

Wolfvision
WVCYNAPPUREMIWIRWPSYS
R 17,486.63 Ex VAT

• Entry-level wireless screen sharing

• Entry-level simple BYOD wireless screen sharing - ideal for smaller classrooms, meeting rooms and huddle spaces everywhere.

• BYOD wireless screen sharing

• No apps, no dongles, no extra software needed

• 4K UHD output resolution

• Easy-to use user interface

• Room management APIs

• Peripheral device control

• Enterprise level security

No apps, no buttons, no cables, no hassle

Cynap Pure Mini supports AirPlay, Miracast, and Chromecast screen mirroring, so no apps, buttons, dongles, or extra software are needed when sharing content on-screen from any smartphone, laptop, or tablet

Enterprise level security

Network security is a key consideration, and our custom-built, closed, Linux system offers 100% wireless data encryption, IEEE802.1x authentication, plus customizable security features to give you exactly the level of protection you require.


Cynap Pure Mini supports AirPlay, Miracast, and Chromecast screen mirroring, so no apps, buttons, dongles, or extra software are needed when sharing content on-screen from any smartphone, laptop, or tablet.
Network security is a key consideration, and our custom-built, closed, Linux system offers 100% wireless data encryption, IEEE802.1x authentication, plus customisable security features to give you exactly the level of protection you require.
Cynap Pure Mini can be set up and used immediately. Settings are easy to configure, and you'll be up and running in no time at all!

Free firmware, no license fees

Regular firmware updates provide you with new features and improvements, helping to extend the life of your investment, and maximise your ROI.

Remote management & administration

The vSolution Link Pro software is available free of charge and enables easy remote setup, monitoring, management and updating of multiple systems in different locations.

This model is ideal for smaller classrooms, meeting rooms and huddle spaces.

  • Simple BYOD wireless screen sharing
  • No apps, no dongles, no extra software needed
  • 4K UHD output resolution
  • Easy-to use user interface







Features



Cynap Pure Mini

Operating system



Linux

Output resolution



2160p60/30, 1080p60/30, 720p60

Supported devices for wireless mirroring (up to 4K depending on device)



iOS, iPadOS, Android, Windows, macOS, Chrome OS

Supported mirroring protocols

AirPlay, Miracast (Peer-to-Peer and MICE), Chromecast, vSolution Cast



Max. no. of on-screen windows



4

Touchback functionality



Yes, for Windows (Miracast & vSolution Cast)

vSolution Link Pro software for remote management & firmware updates



Yes

Inputs/Outputs



HDMI Out x1, Front USB x2, 1x 1GigE LAN port

Audio



Via HDMI out, USB

Bluetooth device discovery



Yes

Wifi standards (Wi-Fi 5)



2.4 GHz in Access Point Mode / 2.4 and 5 GHz in Infrastructure Mode



Network protocols

TCP/IP, HTTP, HTTPS, SNTP/NTP, SSL, SSH, UDP



IP configuration

DHCP, Static (IP address, Subnet mask, Default gateway, DNS server), Proxy, Interface priority



Security authentication for LAN

IEEE 802.1X



Security encryption for wireless WLAN

WEP, WPA2, WPA2 Enterprise or IEEE 802.1X

External controlling

Multi-touch display, web interface, room control system, keyboard/mouse, optional remote control



Peripheral device control



Yes

Dimensions (L x W x H)



70 x 70 x 35 mm (2.76 x 2.76 x 1.37“)

Power consumption



24W

Weight



260g (0.57lb)

Optional accessories



Optional remote control

Included accessories



Power supply, VESA mount

Limited warranty

3 years (optional warranty extension up to 5 years)





CYNAPPUREMI Datasheet PDF
