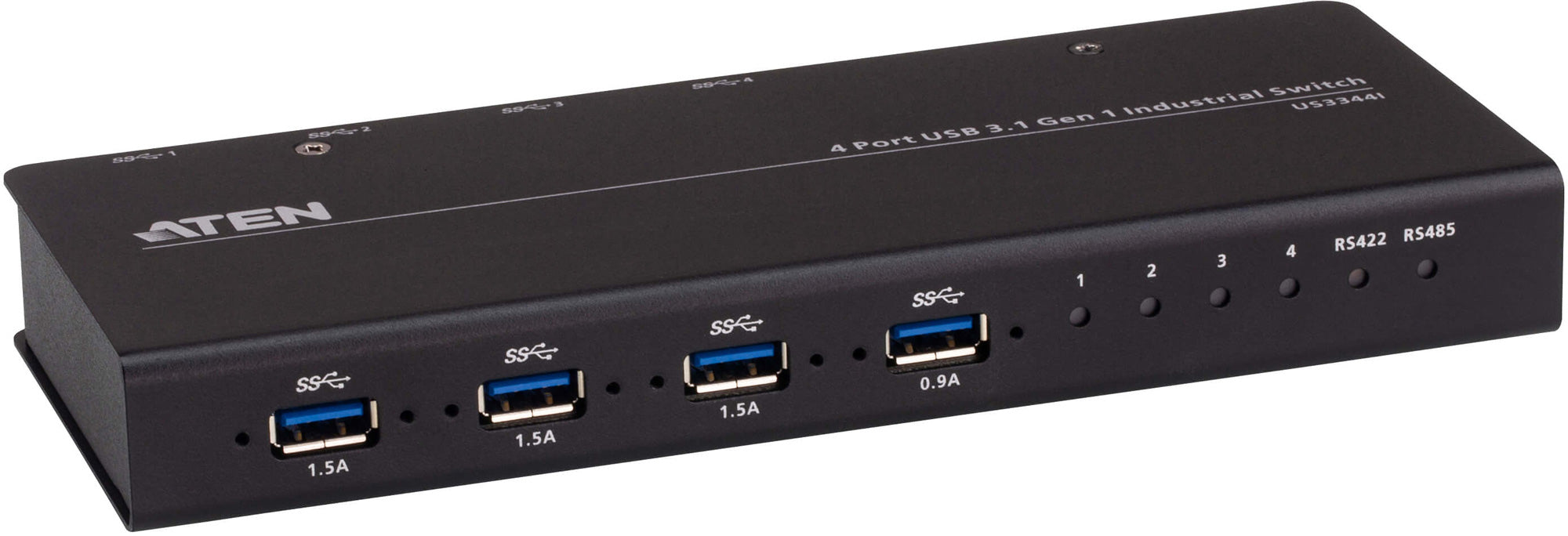

Aten Industrial Switch, USB 3.2, 4 Port - US3344i
• Enables 4 computers to share 4 USB 3.2 Gen1 devices
• Support port selection via remote controller or RS-422/RS-485 link through 5-pin terminal block
• Supports DC 9-24V power input by terminal block
• Supports USB BC 1.2 and over current protection
The US3344I is a 4-port USB 3.2 Gen 1 Industrial Switch that enables four computers to share and use USB 3.2 Gen 1 devices such as keyboard, mouse and other peripheral devices. Users can manually switch the focus to a particular computer using the pushbutton on the switch, or have the focus automatically switched based on detection of connected computers.
It eliminates the cost to implement the complicated redundant systems and equipment for each computer. The US3344I chassis and rack mountable design is suitable for any industrial environment. For extra convenience, it features an external remote control port that can simplify cabling layout. The US3344I allows for a neat and tidy installation – the USB cables are bundled to save the extra cost of purchasing USB cables.
Package Contents
1x 4x4 USB 3.2 Gen 1 Industrial Hub Switch
2x USB 3.2 Gen 1 Type-B to Type-A Cable 1.2M
2x USB 3.2 Gen 1 Type-B to Type-A Cable 1.8M
1x Remote Port Selector
1x Mounting Kit
1x Terminal Block Adapter Set (an RS-422/RS-485 and a DC terminal block adapter)
1x User Instructions
Computer Connections |
4 |
Connectors |
|
Computer |
4 x USB Type B Female (Blue) |
Device |
4 x USB Type A Female (Blue) |
Serial |
1 x 5-pin Terminal Plug (Green) |
Power |
1 x 2-pin 9-24V Terminal Plug (Green) |
Power (Optional) |
1 x 12V DC Jack Female (Black) |
Power Consumption |
DC12V:0.376W:117 |
Power Mode |
Terminal Block / DC Jack Power Adapter* |
Port Selection |
Remote port selector / Serial command |
LEDs |
|
Selected |
4 (Green) |
Serial |
RS422 (Orange ) |
Cable Length |
|
USB Cable |
2x USB 3.2 Gen 1 Type-B to Type-A Cables 1.2M |
Remote Port Selector |
1.8 m |
Environmental |
|
Humidity |
0–80% RH, Non-condensing |
Operating Temperature |
0–50°C |
Storage Temperature |
-20–60°C |
Physical Properties |
|
Housing |
Metal |
Weight |
0.51 kg ( 1.12 lb ) |
Dimensions (L x W x H) |
20.00 x 8.00 x 2.50 cm |
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
US3344i Datasheet PDF
