Aten Control Touch Panel, 10.1" - VK330
• 10.1” touch panel
• Natively installed ATEN Control System app and designed for the integrated use with the ATEN Control System
• Supports Power over Ethernet (PoE), which allows it to receive power and communication over a single Ethernet cable
• Flexible installation and available for the additional wall mount kit (ATEN VK302) and table top kit (ATEN VK304), as well as compatible for any standard VESA 75 x 75 mm mounts

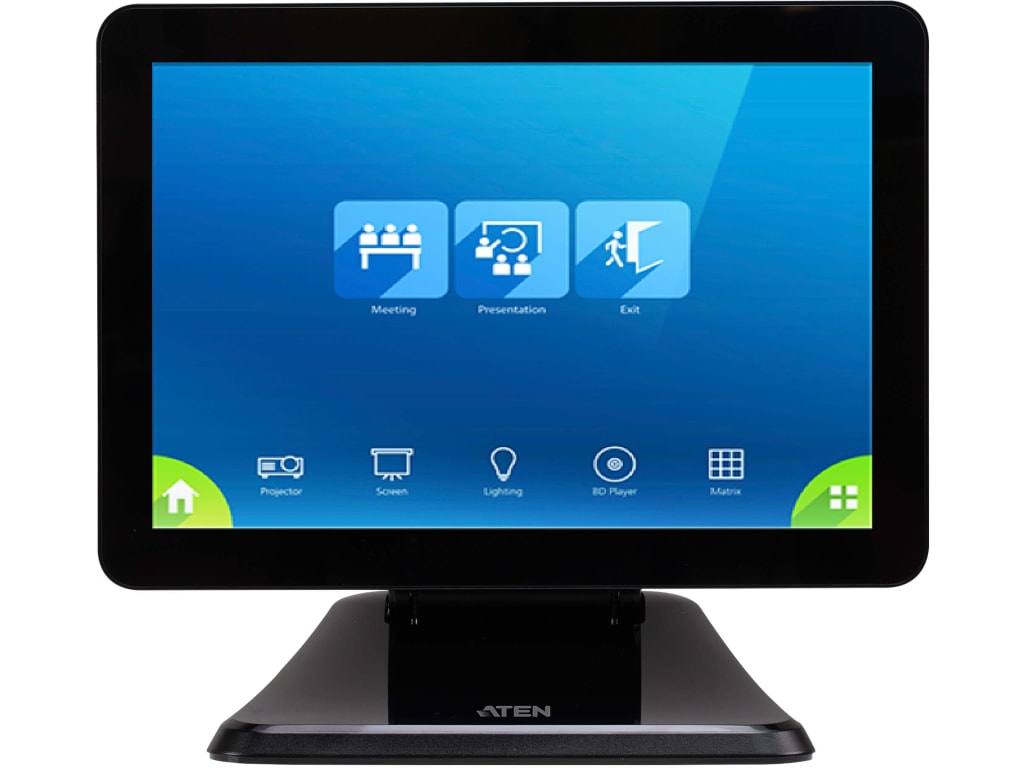

The ATEN VK330 is a 10.1” Touch Panel, featuring capacitive multi-touch TFT-LCD screen. Natively installed with the ATEN Control System app, the touch panel is compatible with ATEN Control Box and Control Pad.
The VK330 supports Power over Ethernet (PoE), which allows power and data to be carried over a single Ethernet cable to the touch panel, and makes it perfect to support the specific environments with those applications required solid and wired connection to ensure stability and high security demands.
It is an ideal solution for the high-security area such as militaries, hospitals, government offices, and corporate board rooms. For flexible installation, an additional wall mount kit (ATEN VK302) is available; the touch panel can be also desk mounted using the table top kit (ATEN VK304) or any standard VESA 75 x 75 mm mounts.
The ATEN Control System is a standard Ethernet-based management system consisting of controllers, expansion boxes, configurator, and control interfaces that connects all hardware devices to provide centralized control of devices directly and effortlessly from any mobile device or ATEN Control System interface. Now we have the VK330 touch panel join the ATEN Control System family to make our control system solution complete and that meets the demanding requirements for the target applications.
Accessories:
*The power adapter and power cord for this product are sold separately. For more information about this accessory, see Accessories.
|
Processor |
Quad-core |
|
Memory |
|
|
SDRAM |
2GB |
|
Flash |
8GB |
|
Panel Spec |
|
|
Display Type |
TFT-LCD |
|
Size |
10.1" |
|
Touch Screen |
Capacitive |
|
Resolution |
1280 x 800 |
|
Aspect Ratio |
16 : 10 |
|
Colour Depth |
8 bit |
|
Contrast Ratio |
800 : 1 |
|
Backlight |
LED |
|
Viewing Angle |
± 85° (H), ± 85° (V) |
|
Luminance |
500 cd/m² |
|
Interfaces |
|
|
Ethernet |
1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
|
USB |
1 x USB Type A |
|
Power Inputs |
|
|
Power over Ethernet (PoE) |
802.3 at PoE+ |
|
Power Consumption |
DC12V:12.8W:43.65BTU |
|
Environmental |
|
|
Operating Temperature |
0 – 40°C |
|
Storage Temperature |
–10 – 55°C |
|
Humidity |
10 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.68 kg ( 1.5 lb ) |
|
Dimensions (L x W x H) |
25.22 x 17.78 x 2.45 cm |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
VK330 Datasheet PDF
