Aten KVM Switch, 8-Port, 19” LCD - CL1308N

Aten
ATCL1308NSWIKVMXX
R 23,930.16 Ex VAT

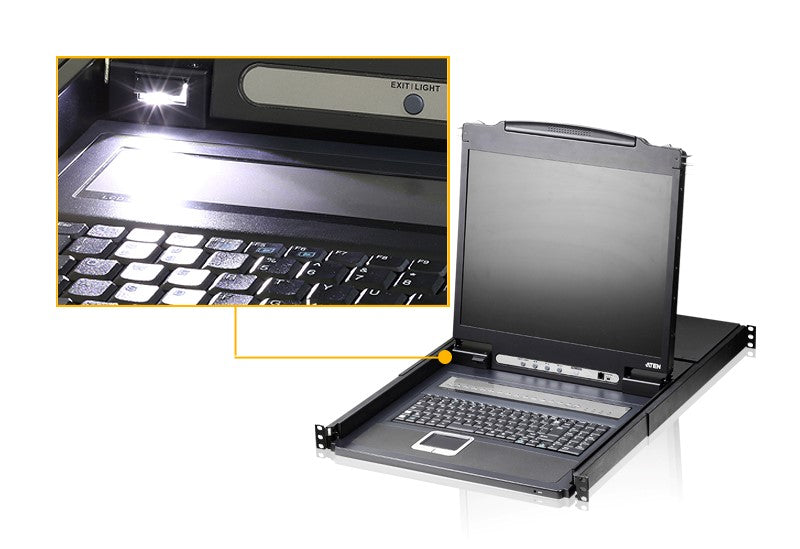

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

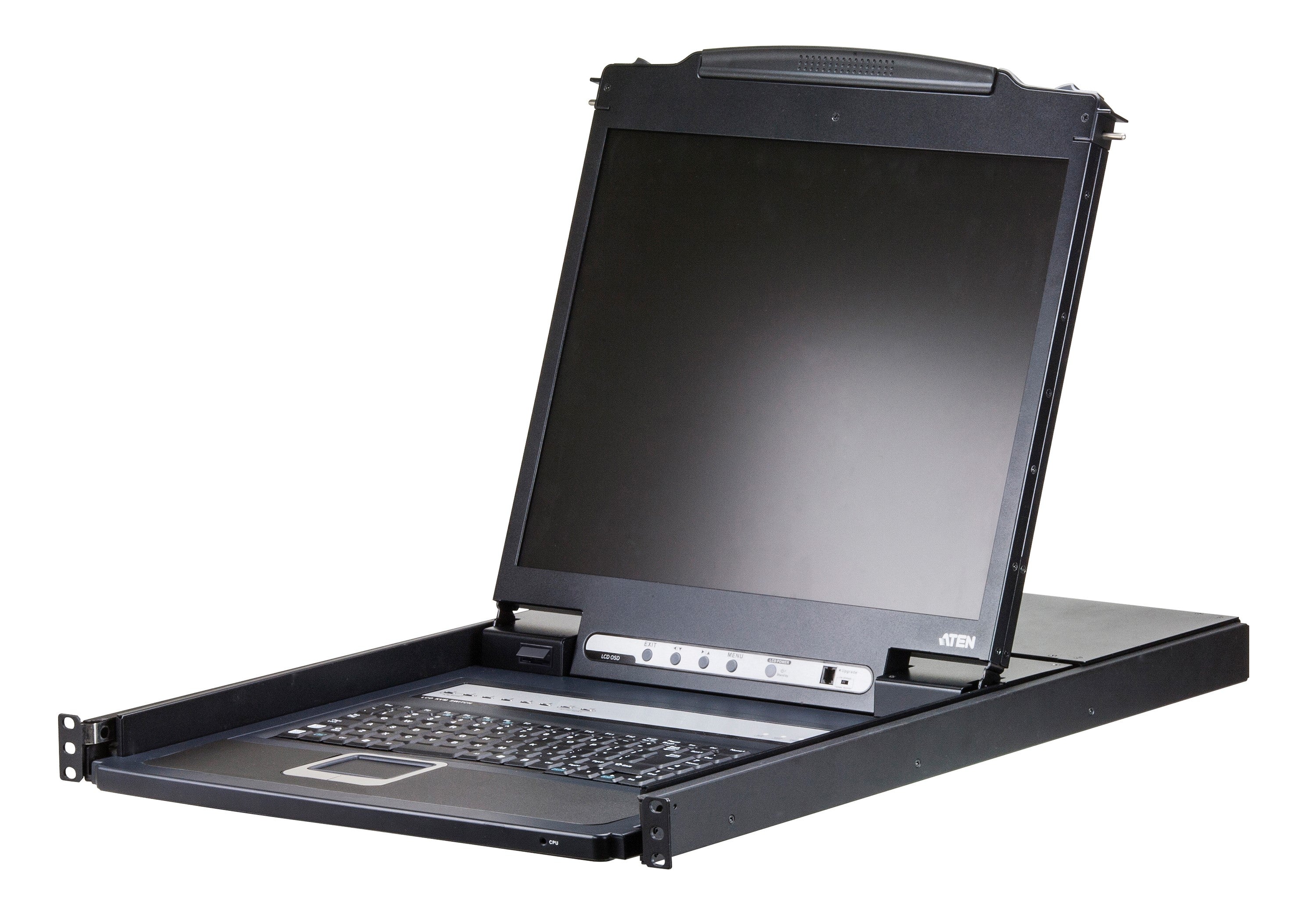

• Integrated KVM console with 19" LED-backlit LCD panel

• A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.

• USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere

With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.

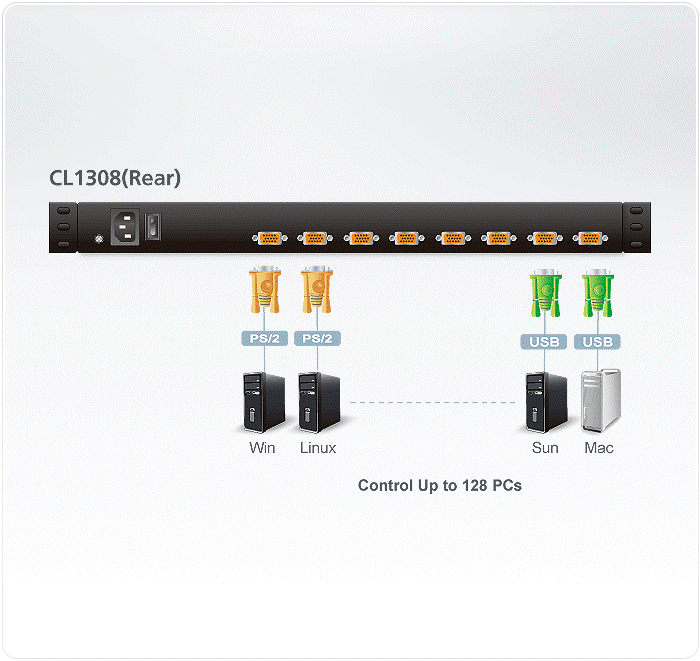

The CL1308 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.

Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.



Package Contents

1x CL1308 LCD KVM Switch with Rack Mount Kit

2x Custom KVM Cable (VGA, USB; 1.8m/6ft)

1x Firmware Upgrade Cable

1x Power Cord

1x User Instructions



Features:

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

• A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.

• Integrated KVM console with 19" LED-backlit LCD panel

• Dual Interface – supports computers with PS/2 or USB keyboards and mice

• Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun

• Supports USB keyboards for PC, Mac and Sun

• Auto PS/2 and USB interface detection

• USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere

• Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B

• Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu

• Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each

• Auto Scan feature for monitoring user-selected computers

• Broadcast mode – operations simultaneously performed on all selected computers

• Hot pluggable – add or remove computers without having to power down the switch

• Buzzer on/off via hotkey and OSD

• Rack mountable

• Optional rack mount kits available including easy installation options

• Keyboard language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese







Function

CL1308N

Computer Connections

Direct

8

Maximum

128 (via Cascade)

Port Selection

OSD, Hotkey, Pushbutton

Connectors

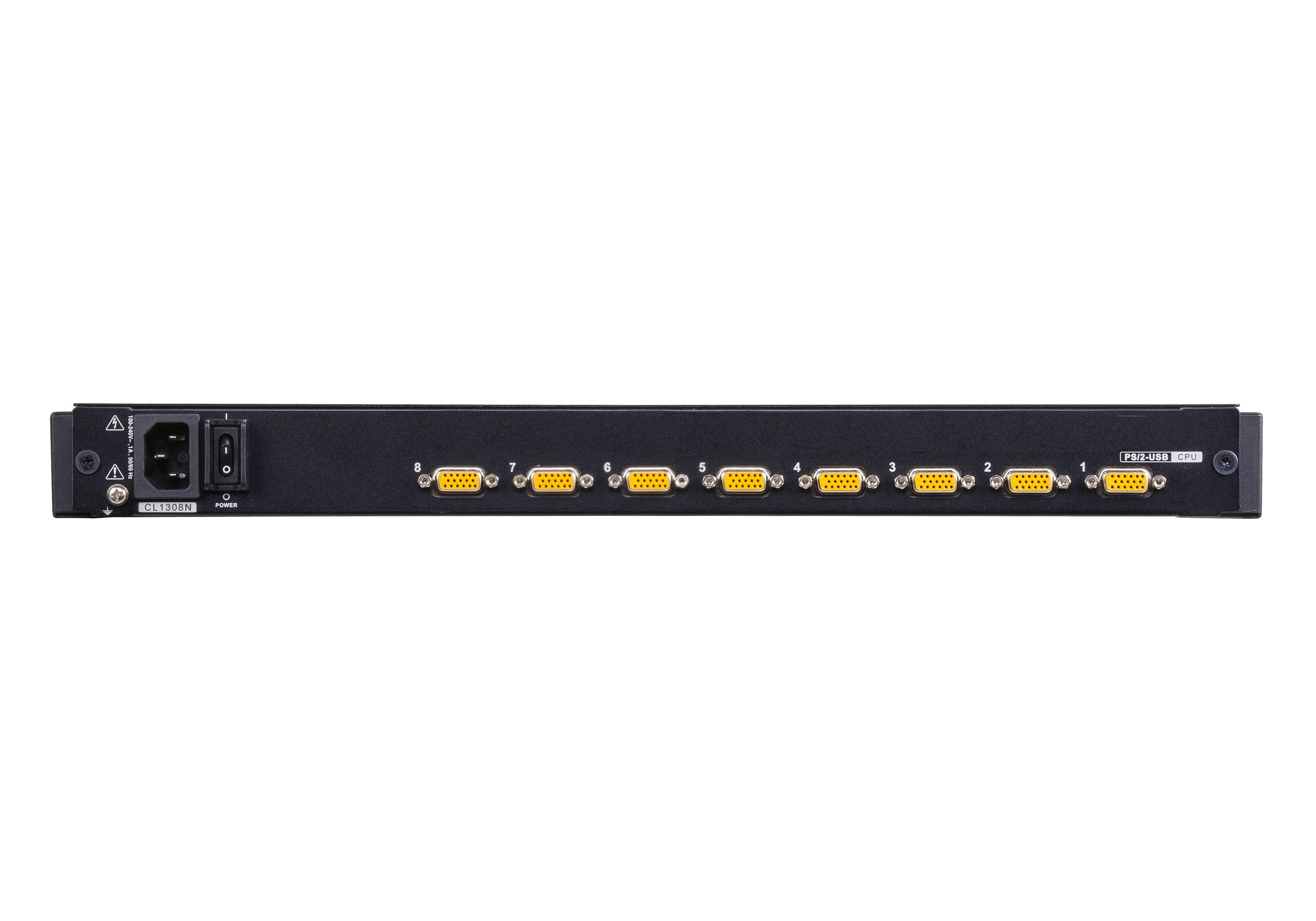

KVM Ports

8 x SPHD Female (Yellow)

Firmware Upgrade

1 x RJ-11 Female

Power

1 x IEC 60320/C14

Switches

Port Selection

8 x Pushbutton

Reset

1 x Semi-recessed Pushbutton

Firmware Upgrade

1 x Slide Switch

Power

1 x Rocker Switch

LCD Control

4 x Pushbutton

LCD Power

1 x LED Pushbutton

LEDs

Online

8 (Orange)

Selected

8 (Green)

Power

1 (Dark Green)
1 (Orange)

Lock

1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)

LED Illumination Light

1 x LED Illumination Light

Panel Spec

LCD Module

19" TFT-LCD

Resolution

1280 ×1024 @ 75 Hz

Response time

5 ms

Viewing Angle

170° (H), 160° (V)

Pixel Pitch

0.294 mm x 0.294 mm

Support Colour

16.77M colours

Contrast Ratio

1000:1

Luminance

250 cd/m²

Video

Input Video Resolution

up to 1920 × 1200 @ 60 Hz;
1280 × 1024 @ 75 Hz, DDC2B

Scan Interval

1-255 seconds

Emulation

Keyboard / Mouse

PS/2, USB

Maximum Input Power Rating

100-240 V AC; 50-60 Hz; 1A

Power Consumption

AC110V:24.4W:114BTU/h
AC220V:24.7W:116BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature

0-50°C

Storage Temperature

-20-60°C

Humidity

0 - 80% RH, Non-condensing

Physical Properties

Housing

Metal + Plastic

Rail Type

Single Rail

Weight

12.59 kg ( 27.73 lb )

Dimensions (L x W x H)

48.30 x 68.92 x 4.40 cm
(19.02 x 27.13 x 1.73 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
