Aten 4K DisplayPort to HDMI Active Adapter - VC986 – Solution Technologies

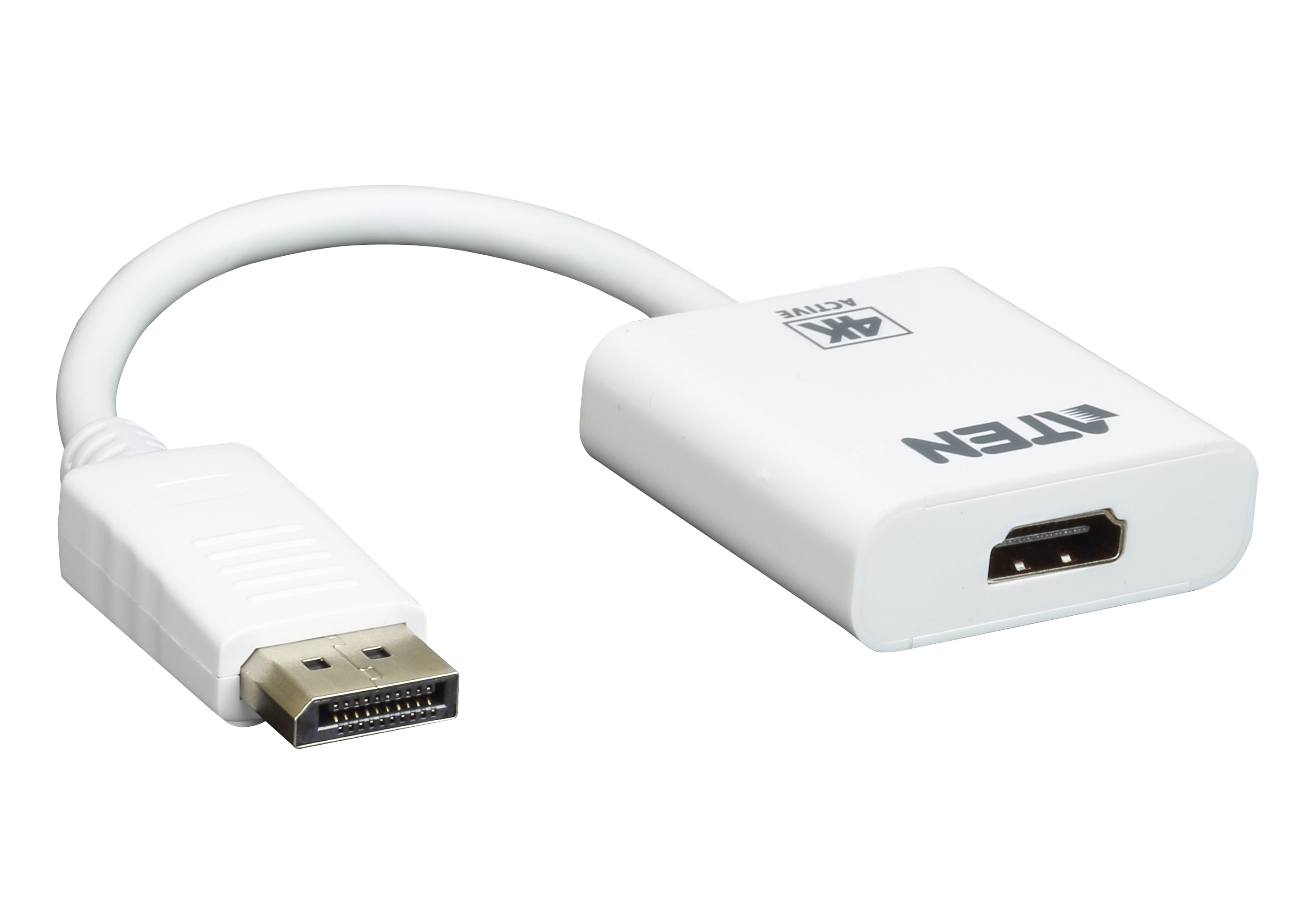

Aten 4K DisplayPort to HDMI Active Adapter - VC986

Aten
ATVC986CONCONVR
R 442.50 Ex VAT

• Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*

• Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD

• Supports AMD Eyefinity™ Technology (multi-screen setups)

• Audio supported

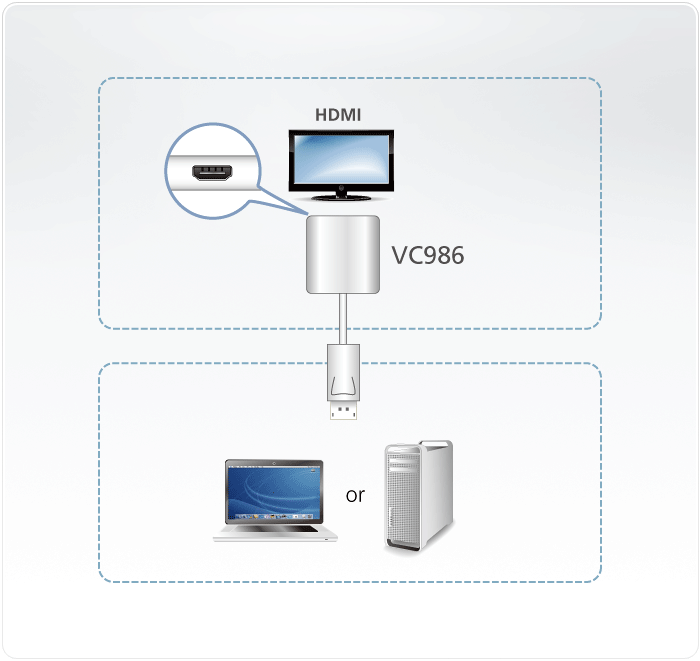

• The VC986 is an active DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.

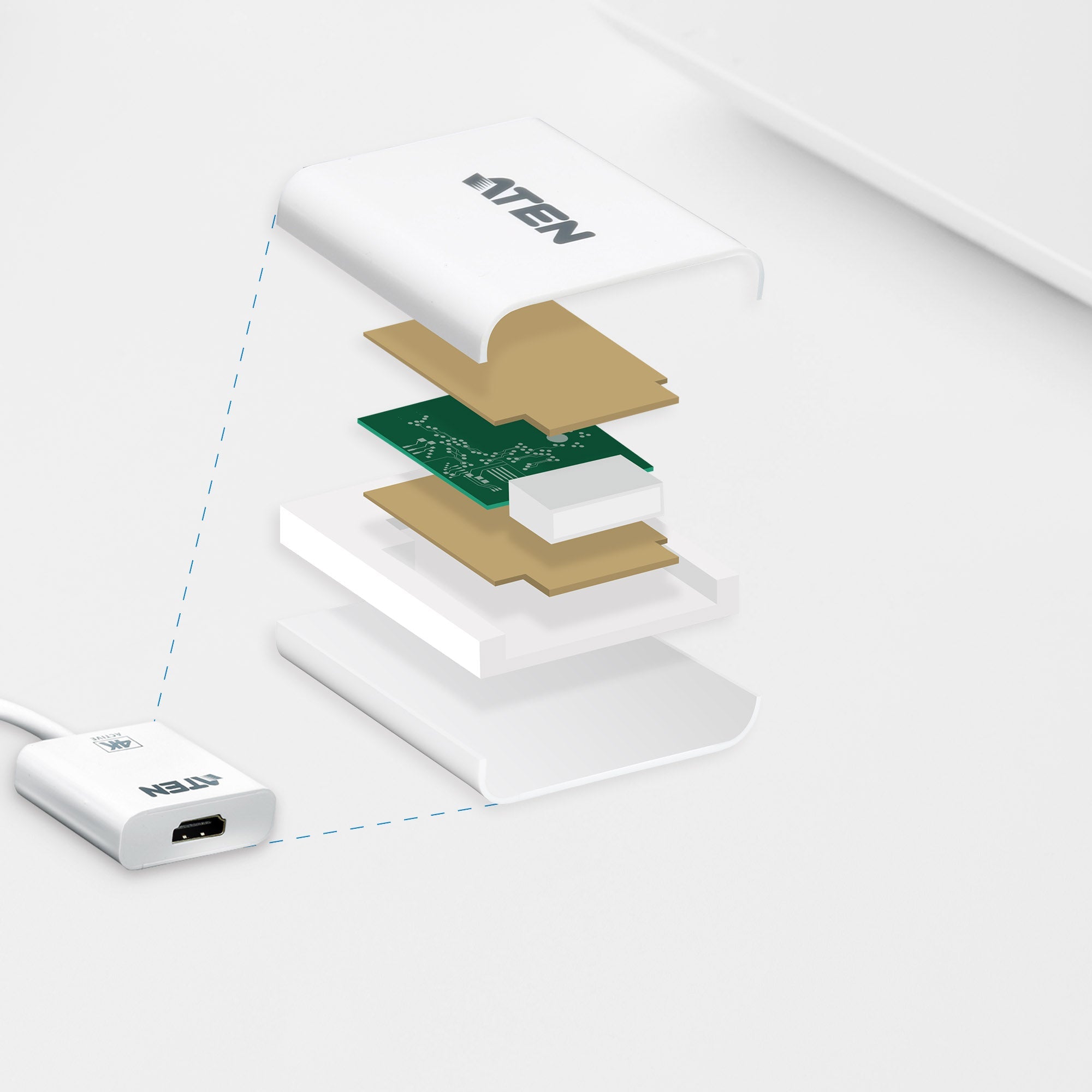

• The ATEN VC986 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.

• Converts DisplayPort signals to HDMI output

• Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD

• Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*

• Supports AMD Eyefinity™ Technology (multi-screen setups)

• Audio supported

• No software or driver installation required



Video Input

Interfaces

1 x DisplayPort Male (White)

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Video

Max. Pixel Clock

297 MHz

Max. Resolution

3840x2160@30Hz, 1920 x 1200@60Hz.

Compliance

DP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3

Audio

Output

1 x HDMI Type A Female (Black)

Environmental

Operating Temperature

0 - 50 ºC

Storage Temperature

-20–60 ºC

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Plastic

Weight

0.04 kg ( 0.09 lb )

Dimensions (L x W x H)

18.00 x 4.50 x 1.50 cm
(7.09 x 1.77 x 0.59 in.)

Carton Lot

40 pcs



VC986 Datasheet PDF
