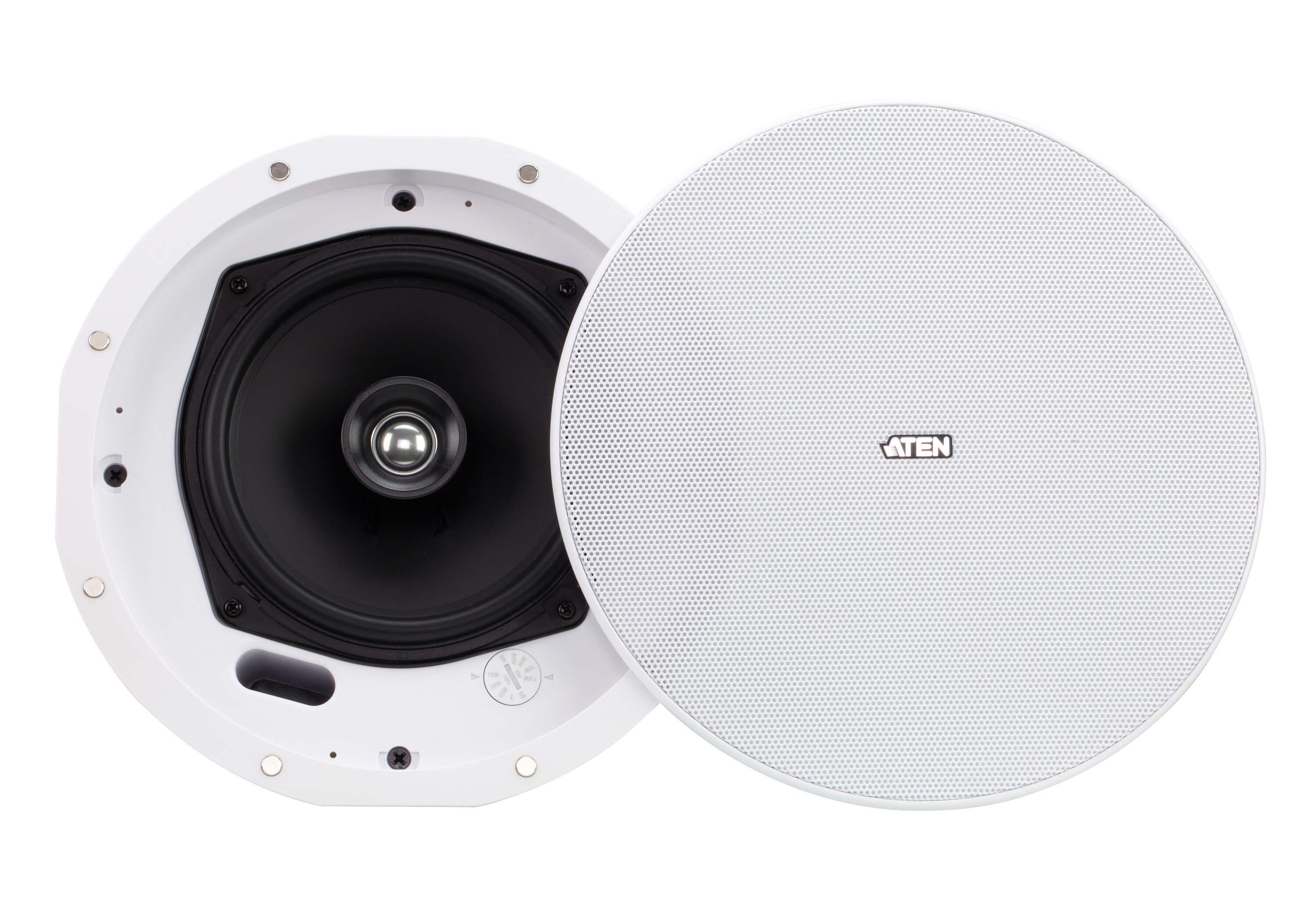

Aten Ceiling Speaker, 6.5" - AS106
• Coaxial design with premium components:
– 6.5” high output driver with rubber surround and heavy-duty voice coil
– 20 mm dome tweeter
• 80 – 20 kHz bandwidth with wide coverage for consistent, full-range coverage of the space while reducing the amount of the speakers needed
• Switchable for use as either an 8 Ω low-impedance speaker or as part of a 70V / 100V distributed loudspeaker system
• Ease of installation guaranteed with the magnetic grille, dog leg mounting system and cut-out template
The AS106 comes in a pair of 6.5” coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 6.5” woofer, 20 mm dome tweeter, and 60 W RMS, 120 W peak (8Ω) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 100 - 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed.

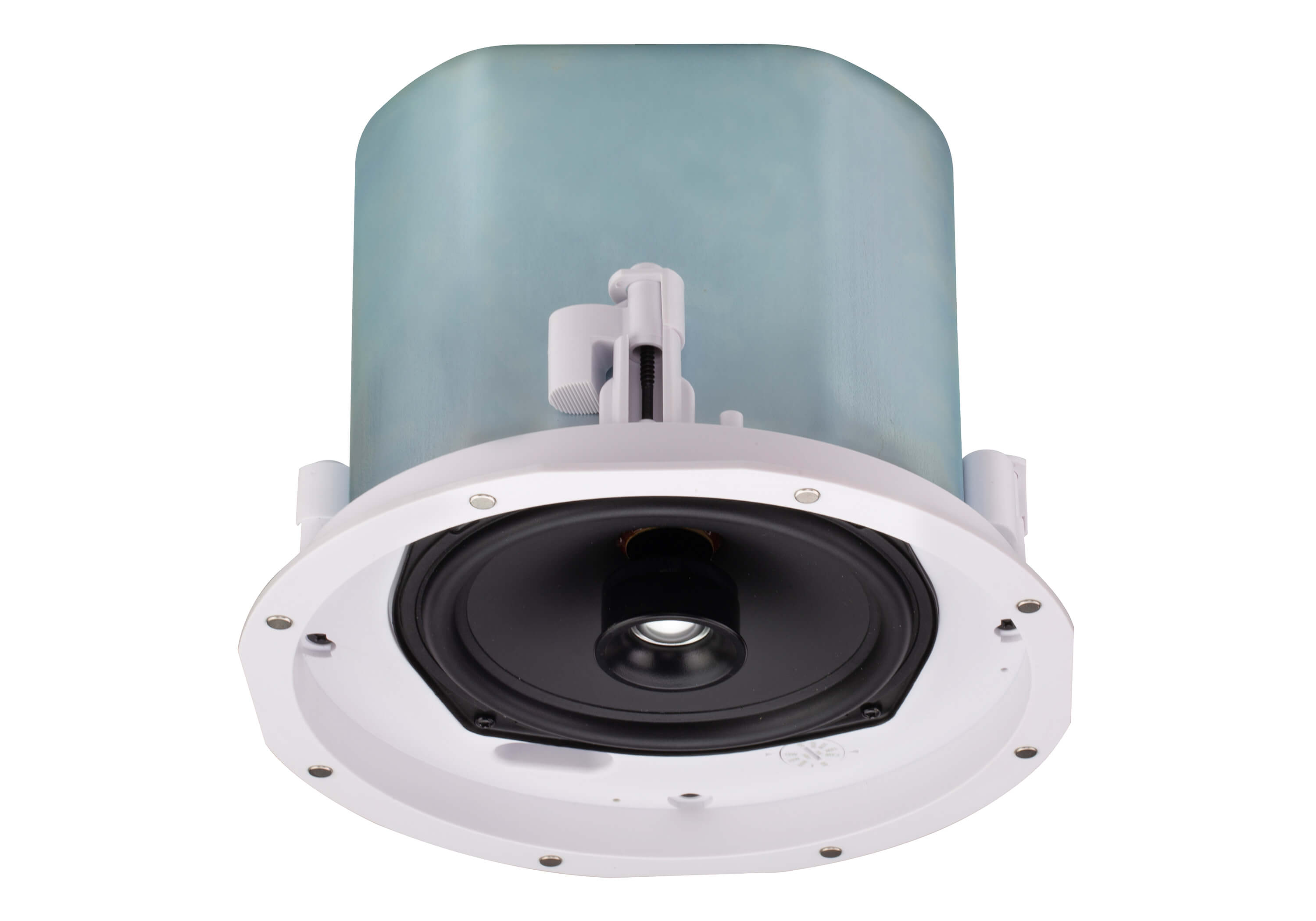

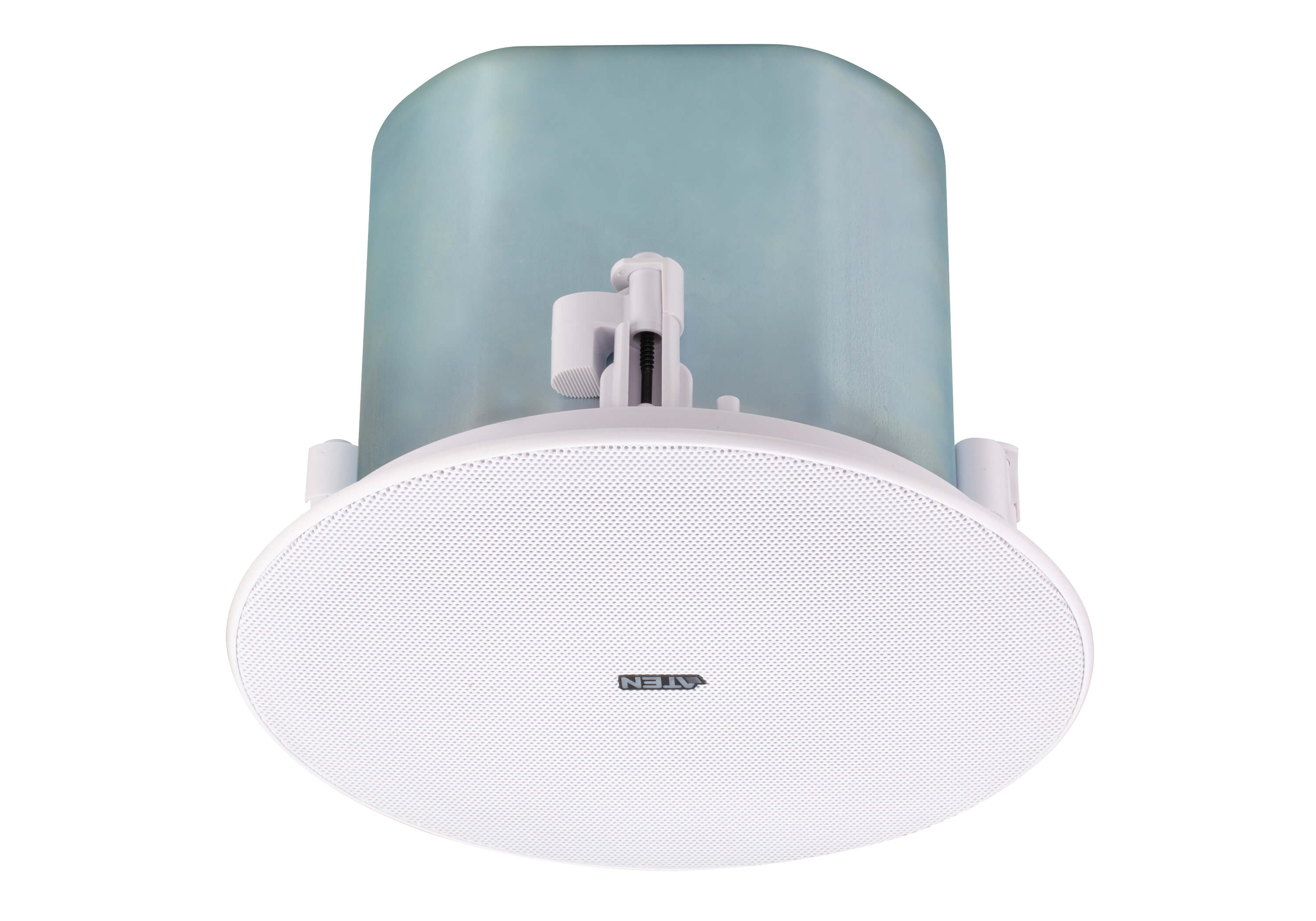

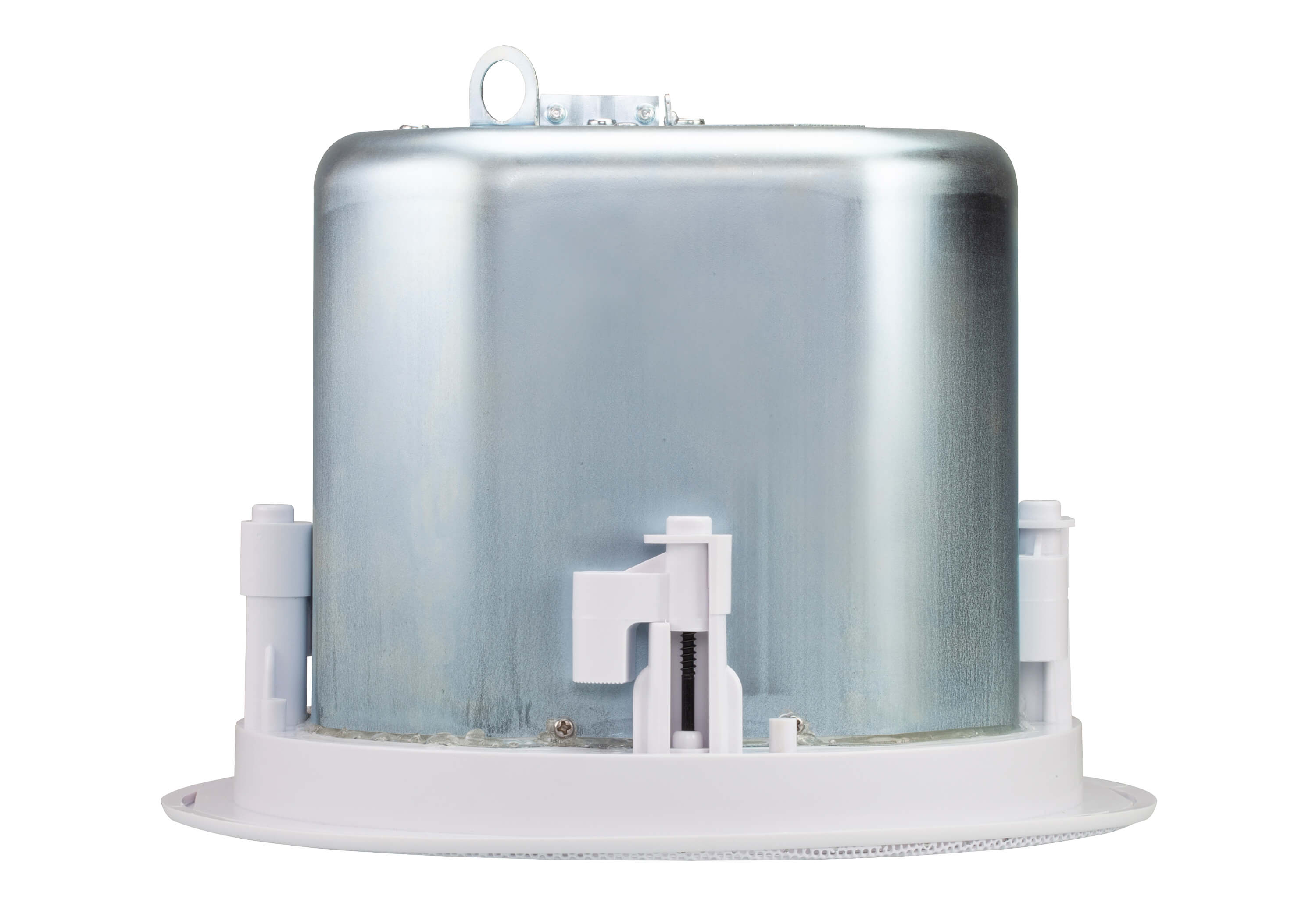

The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of cancelling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-coated steel back can, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cut-out template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.
AS106 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized commercial spaces that require a clear and intelligible sound solution without compromise on life safety.
System Specification |
|
LF Driver |
6.5" Paper Cone with Rubber Suspension |
HF Driver |
20mm PEI Dome Tweeter |
Frequency Response |
80~20kHz (-10dB) |
Distortion |
<=5% |
Rated Power |
60Wrms/120Wpeak |
Sensitivity |
90dBSPL, @1m, 1W, 1kHz |
Transformer Taps |
70V(7.5W, 15W, 30W, 60W) |
Compliance |
|
Certification |
CE, WEEE, RoHs |
Connectors |
|
Audio Inputs |

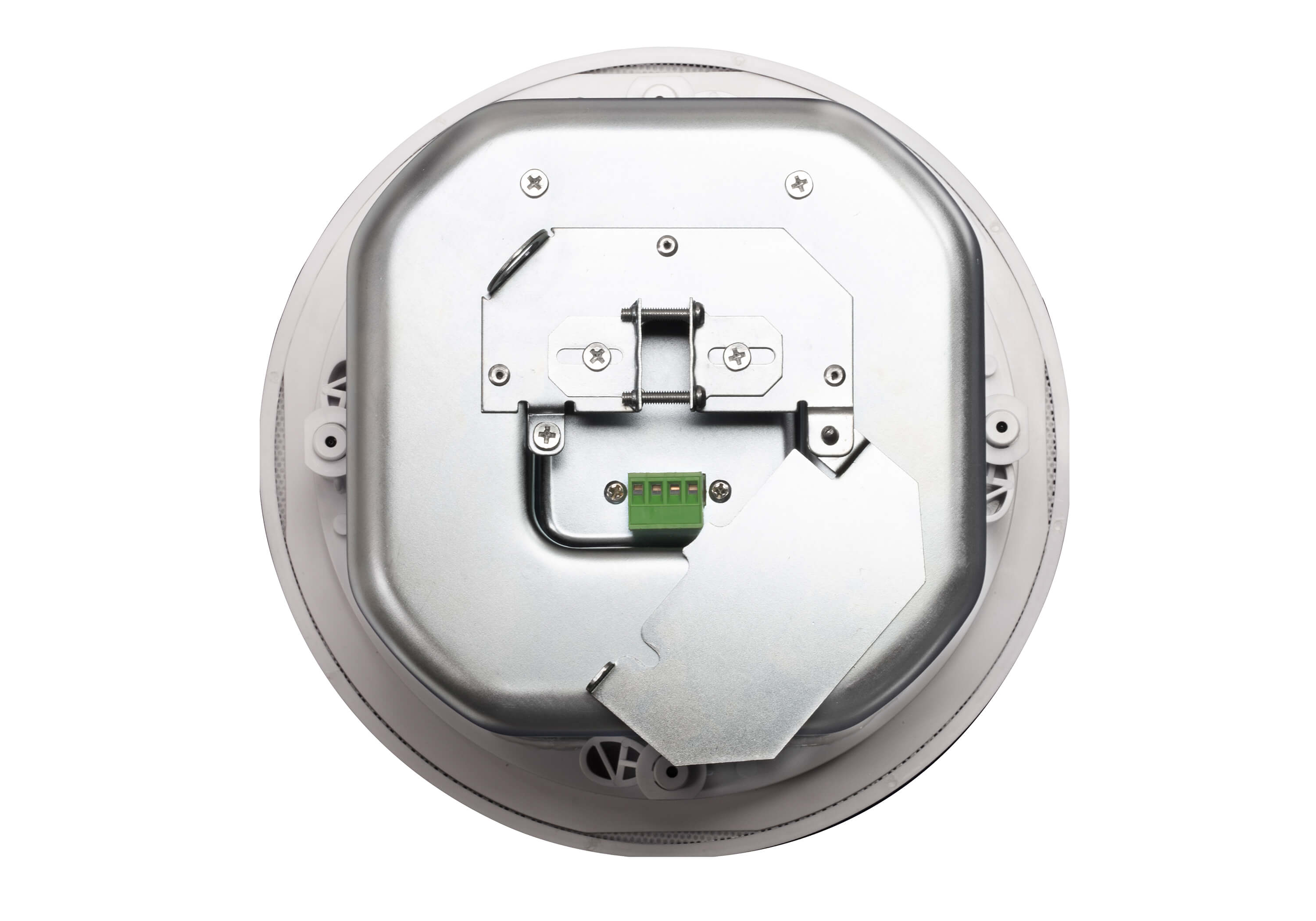

5.08mm Euroblock Connector |
Environmental |
|
Operating Temperature |
0 - 40°C |
Humidity |
0 - 80% RH, Non-Condensing |
Storage Temperature |
-20 - 60°C |
Physical Properties |
|
Weight |
3.70 kg ( 8.15 lb ) |
Housing |
UL94-V0 ABS Plastic Baffle |
Dimensions (L x W x H) |
25.72 x 25.72 x 19.75 cm |
Colour |
White Speaker Grille (Paintable) |
Cut-out Diameter |
221mm |
In-ceiling Clearance Height |
195mm |
Carton Lot |
2 Pcs/Carton |
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
AS106 Datasheet PDF
