Aten Control Keypad, 8 Button - VK0100

R 8,295.00 Ex VAT

• Fully-customizable 8-button Control Pad that integrates a controller with a keypad

• Supports various control interface connections: 2x RS-232 ports, 2x relay channels, 1x digital input, and 1x Ethernet port

• 14 layout combinations of 4 to 8 buttons

• Available in black or white colour

The VK0100 is a fully-customizable 8-button Control Pad that integrates a controller with a keypad as an all-in-one solution. Aimed for small/medium meeting room or classroom control, the VK0100 offers a ready-to-use solution that easily connects the devices, configures via the intuitive VK6000 Configurator Software, and flexibly customizes keypad button functions and layout to fulfil most applications.

The ATEN Control System is an Ethernet-based management system that connects all the hardware devices found in a room for centralized control effortlessly. The VK0100 Control Pad not only plays the role as the main controller that connects the hardware devices, but also acts as a control interface with customizable buttons and layout. Created with flexibility in mind, the one-gang Control Pad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego’s. By connecting to the local network, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the Control Pad. With the ready-to-go combo Control Pad, users instant and smart control of the facilities from a Control Pad that can manage any device in the room.

Note: This model is also available in black colour – Part number: VK01001, which is a built-to-order product. To place an order, please contact your regional ATEN representative.

*The power adapter for this product is sold separately. For more information about this accessory, see Accessories.

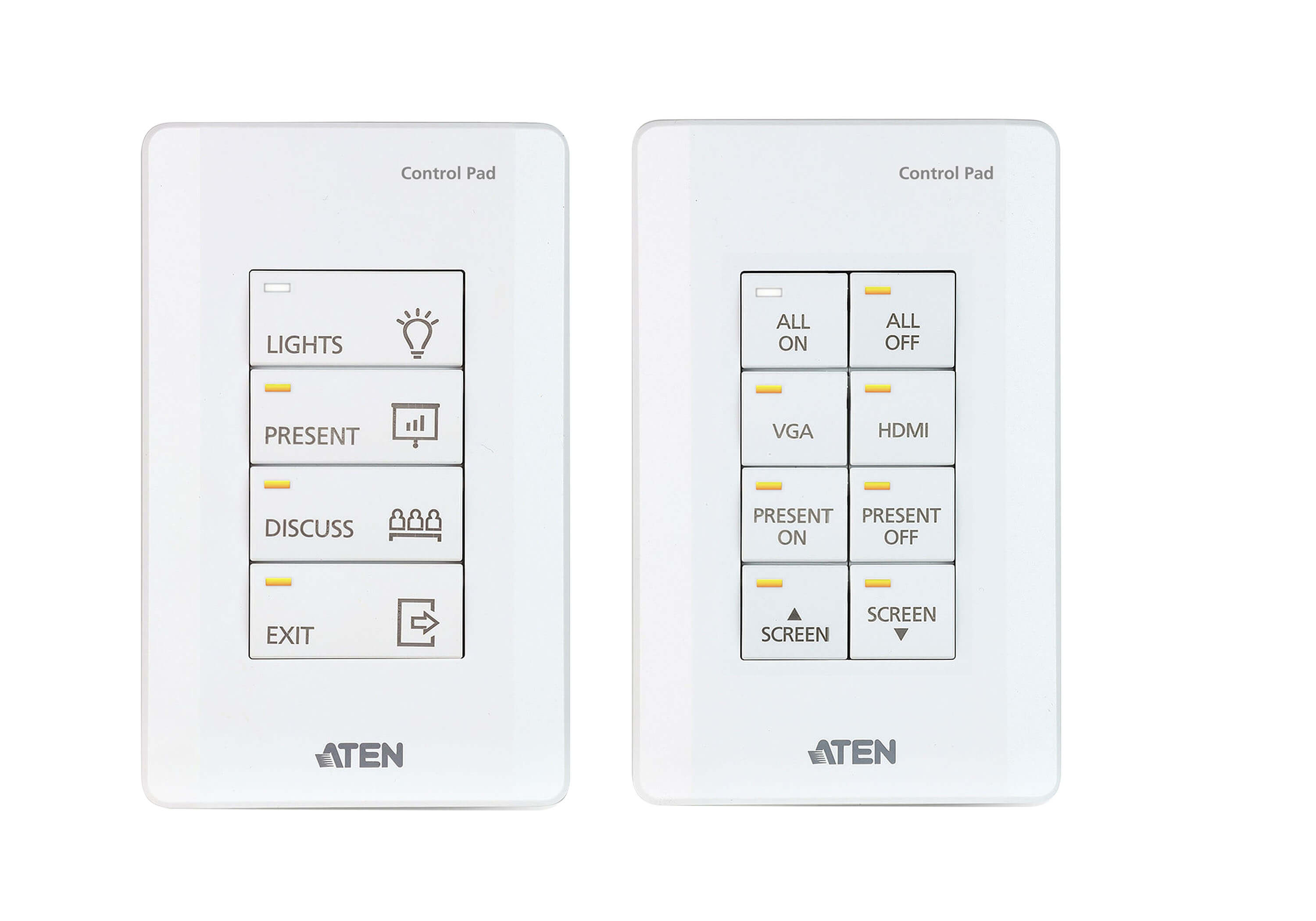

Keypad Layout Example

Custom button placement on the Control Pad can be set in 14 different combinations of 4 to 8 buttons.


Keypad Layout 4~8 buttons customizable in 14 keypad layouts
Serial • 2 x Bi-directional RS-232 Port
(2 x 3-Pole Terminal Block Connector);
 – Baud Rate: 300 to 115200 (default: 9600);
 – Data Bit: 8 (default) or 7;
 – Stop Bit: 1 (default) or 2;
 – Parity: None (default), even or odd
Relay • 2 x Relay Channel (2 x 2-Pole Terminal Block Connector);
• Normally open, isolated Relays;
• Contact Rating: Max 24 VDC, 1A
I/O • 1 x Digital Input Channel
(1 x 2-Pole Terminal Block Connector);
 – VDC Mode
Input Voltage Range: 0 to 5 VDC;
Programmable Range: 1 to 5 VDC;
 – Dry Contact Mode
Pull-up 2k ohms to + 5 VDC
Ethernet • 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
Subnet Mask:
Controller ID 1 x 16-segment Switch
Reset Button 1 x Semi-recessed Pushbutton
Power Consumption DC5V:1.1W:5BTU
Operating Temperature 0 – 50°C
Storage Temperature –20 – 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.16 kg ( 0.35 lb )
Dimensions (L x W x H) 11.63 x 7.06 x 4.80 cm
(4.58 x 2.78 x 1.89 in.)
Max. No. Allowed 10 licenses
Note Each time a mobile device connects to an ATEN Control Pad for remote control, one license on the Control Pad will be occupied. To purchase and add additional licenses to your ATEN Control Pad, contact your local sales representative for more information.
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
