Aten Control System - VK1100A

Aten
ATVK1100ACTLSYSTM
R 14,500.00 Ex VAT

• High-performance processor embedded with quad-core CPU and 512MB memory for designing and controlling complex projects

• USB port for easy project upload

• IR learning function for adding IR device drivers

• Supports centralized control and management by ATEN Unizon™

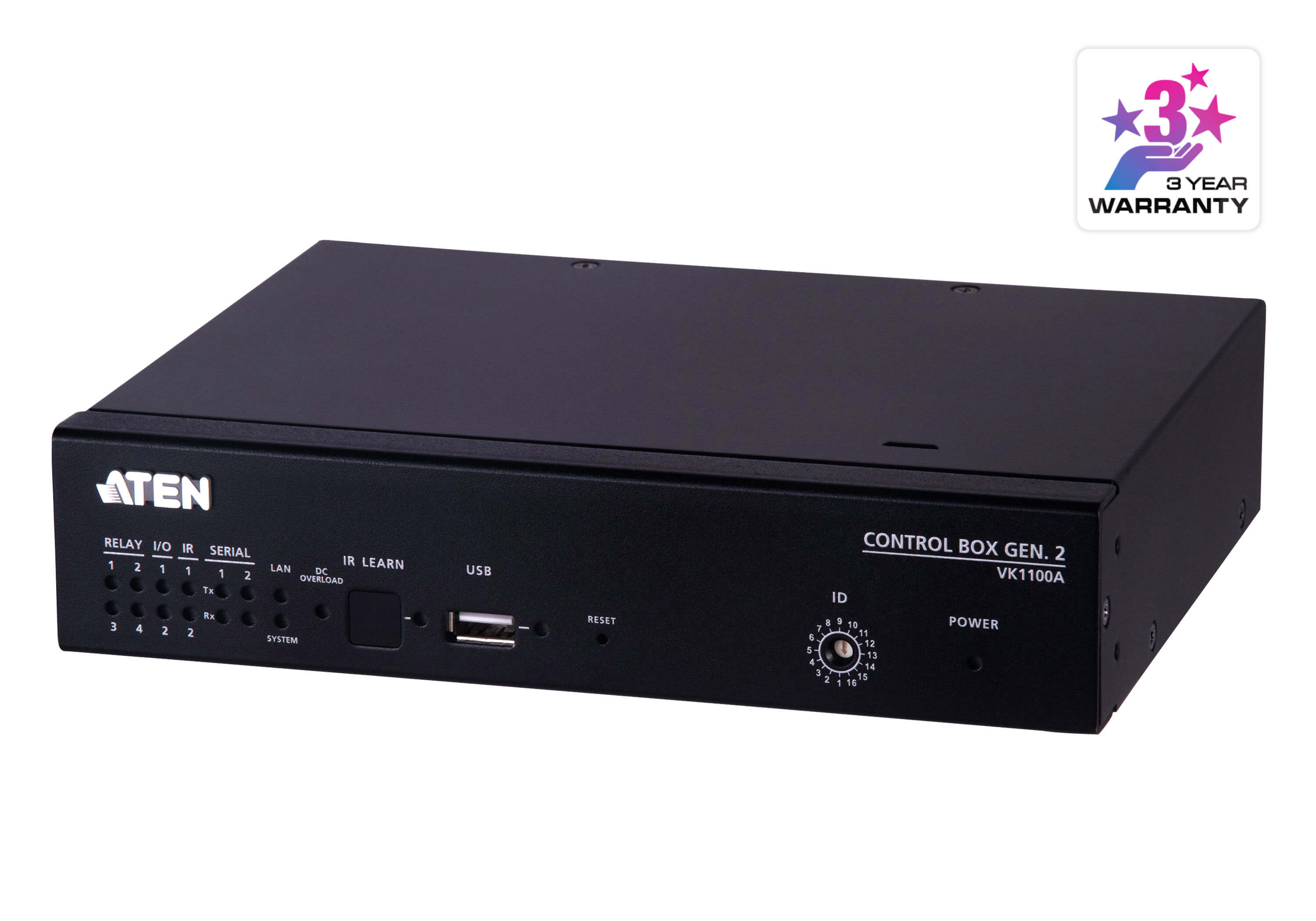

VK1100A ATEN’s 2nd-generation Control Box equipped with a quad-core CPU, Gbps LAN, and 512MB memory size, provides real-time response and status updates and can process complex, high-loading events with customized GUI designs, as well as multiuser access control to connected devices. Its LAN can be connected to ATEN Unizon™, a centralized management platform streamlining daily AV / IT management that provides users with the convenience to monitor, troubleshoot, and maintain multiple systems all at once.

The VK1100A Control Box is designed to easily manage any room setting, and can be deployed into an existing installation environment seamlessly not only with ATEN products, but also nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK1100A is the perfect solution for managing mass device deployments such as government agencies, military facilities, corporate organizations, and healthcare institutions.

VK1100A is a part of ATEN’s Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces, and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user- defined GUIs from any mobile device, ATEN Keypad, and Touch Panel.





Memory

SDRAM

512MB

Flash

8GB

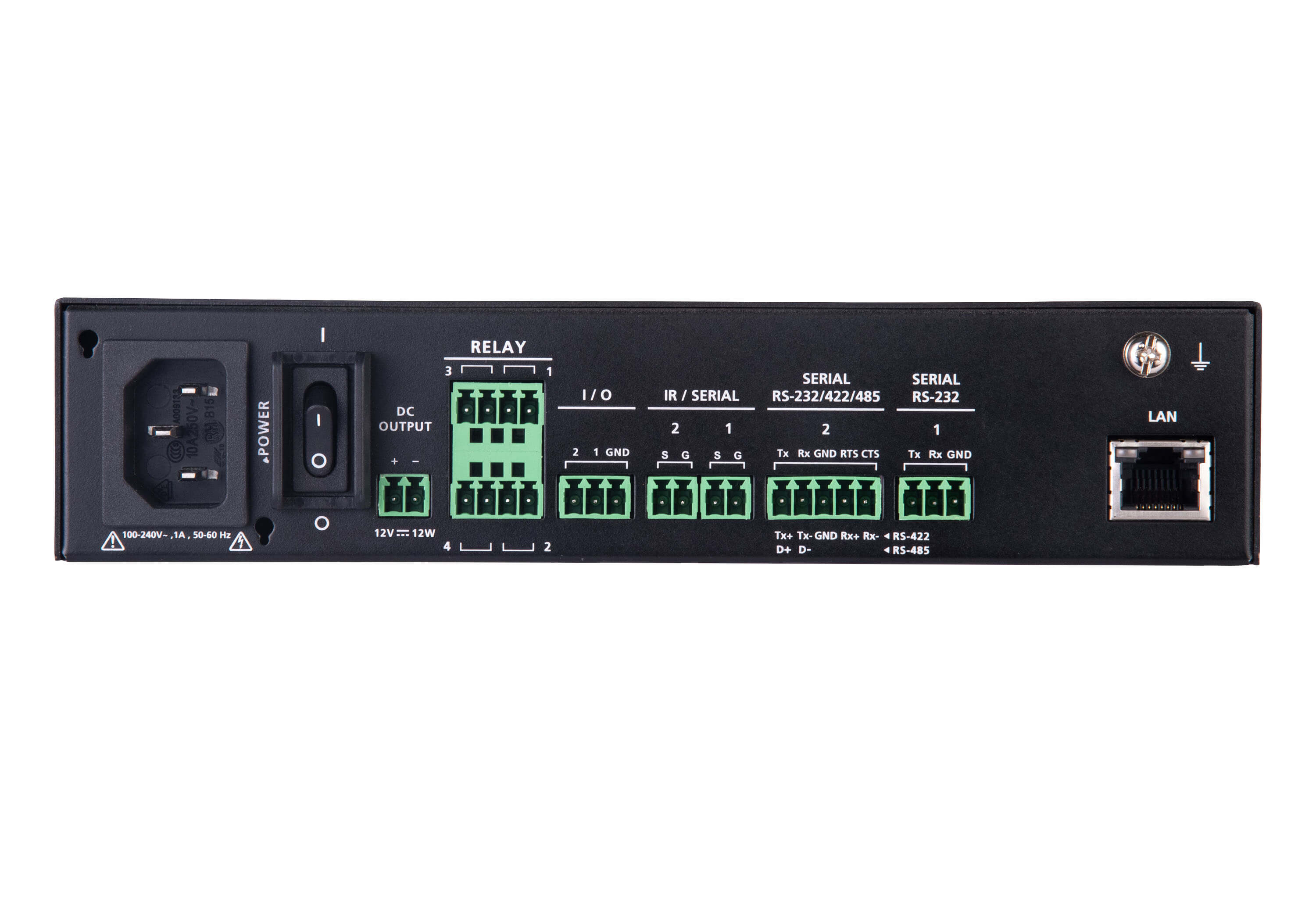

Interfaces

Serial

• 1 x Programmable Bi-directional RS-232/422/485 Port
(1 x 5-Pole Terminal Block Connector, configurable via pin assignments);
 – Baud Rate: 300 to 115200 (default: 9600);
 – Data Bit: 8 (default) or 7;
 – Stop Bit: 1 (default) or 2;
 – Parity: None (default), Even or Odd;
 – Flow Control: None (default) or RTS/CTS
• 1 x Bi-directional RS-232 Port
(1 x 3-Pole Terminal Block Connector);
 – Baud Rate: 300 to 115200 (default: 9600);
 – Data Bit: 8 (default) or 7;
 – Stop Bit: 1 (default) or 2;
 – Parity: None (default), Even or Odd

IR/Serial

• 2 x Programmable IR / Uni-directional RS-232 Port
(2 x 2-Pole Terminal Block Connector);
IR: TTL level (0 to 5 V)
– Carrier Frequency: 10KHz~455KHz;
Serial: Uni-directional RS-232 (0 to 5 V)
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd

Relay

• 4 x Relay Channel (2 x 4-Pole Terminal Block Connector);
• Normally open, isolated Relays;
• Contact Rating: Max 24 VDC, 2A

I/O

• 2 x Programmable Digital Input / Output Channel
(1 x 3-Pole Terminal Block Connector);
Digital Output:
300 mA sink from 24 VDC
Digital Input:
 – VDC Mode
Input Voltage Range: 0 to 24 VDC;
Programmable Range: 1 to 24 VDC;
 – Dry Contact Mode
Pull-up 2k ohms to + 12 VDC

Ethernet

• 1 x RJ-45 Female, 10/100/1000Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
• DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0

VDC

• 1 x 12 VDC Output Port (1 x 2-Pole Terminal Block Connector);
• Power Supply: 12 VDC, 1A Max

USB

1 x USB Type A

Switches

Power

1 x On/Off Switch

IR Learning

1 x IR Receiver LED

Reset Button

1 x Semi-recessed Pushbutton

Power Consumption

AC110V:4.3W:82BTU
AC220V:4.5W:83BTU

Power

Maximum Input Power Rating

Internal Power: 100-240 VAC, 50-60 Hz

Environmental

Operating Temperature

0 – 50°C

Storage Temperature

–20 – 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

1.19 kg ( 2.62 lb )

Dimensions (L x W x H)

20.00 x 16.41 x 4.40 cm
(7.87 x 6.46 x 1.73 in.)

License

Basic (free)

2 free licenses

Max. No. Allowed

16 licenses

Note

The ATEN Control Box comes with two free licenses which are stored in the device itself. Each time a mobile device connects to an ATEN Control Box for remote control, one license on the Control Box will be occupied. To purchase and add additional licenses to your ATEN Control Box, contact your local sales representative for more information.

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.





VK1100A Datasheet PDF
