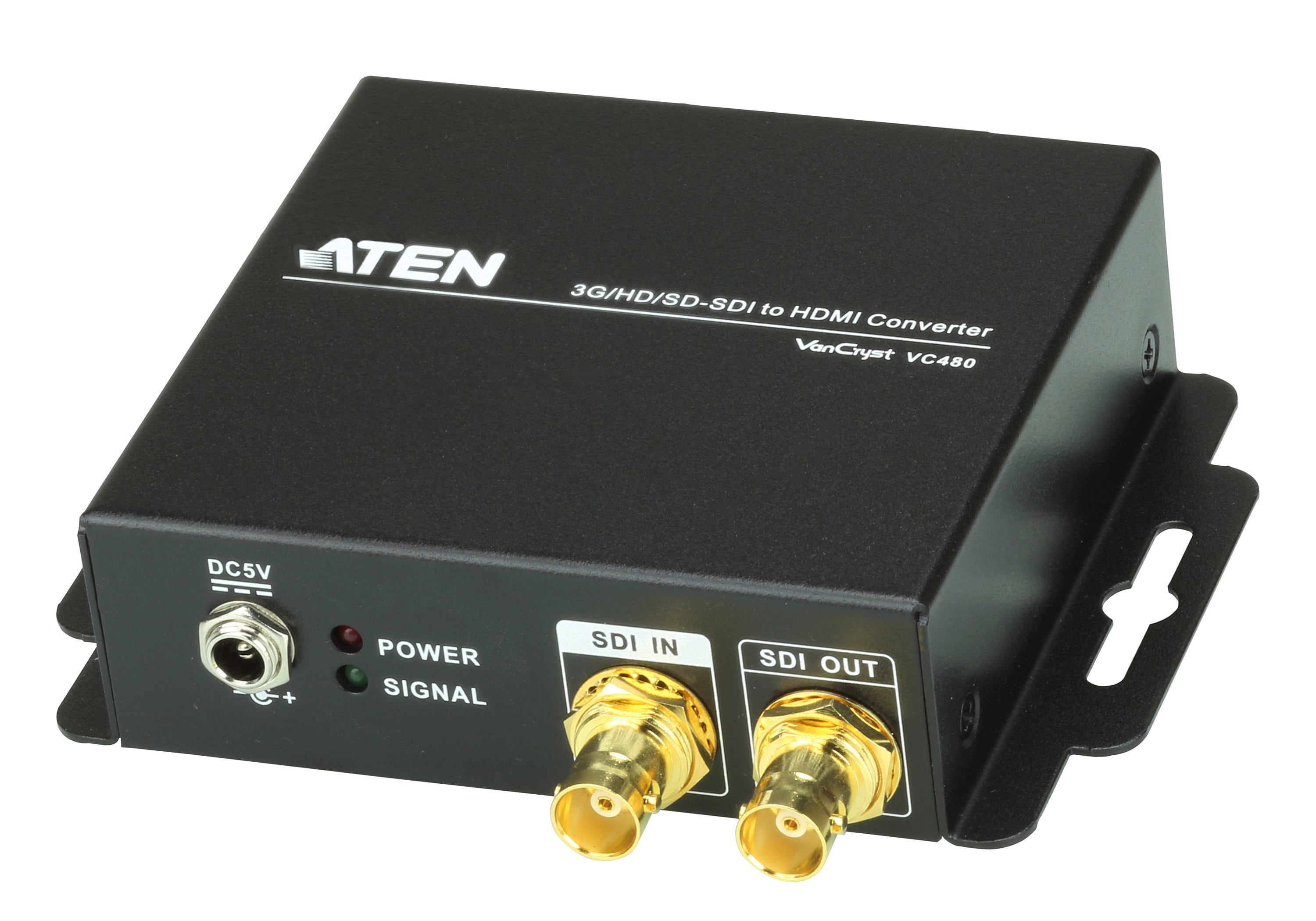

Aten Converter, 3G-SDI to HDMI with Audio - VC480

Aten
ATVC480CONCONVR
R 4,848.30 Ex VAT

• Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals

• Supports additional analogue stereo audio and coaxial digital audio

• HDMI (Deep Colour)

• LED indication of power and signal status

• Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6

• Supported SDI formats:
SD-SDI (SMPTE 259M, up to 270Mbps)
• HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
• 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)

• Video Support:
525i@59.96, 625i@50
720p@23.98/24/25/29.94/30/50/59.94/60
1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60

• Buffered loop-through output provides extended monitoring

• Supports 8 audio channels @48kHz rate

• Features automatic detection of 3G/HD/SD-SDI signals

• Reclocking SDI signals for cascading and thus longer transmission

• Locking power connector for secure communications

The VC480 3G/HD/SD SDI to HDMI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC480 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.

Package Contents

1x VC480 3G/HD/SD-SDI to HDMI Converter

1x Power Adapter

1x User Instructions



Video Input

Interfaces

1 x BNC  (Gold)

Impedance

75 Ω

Video Output

Interfaces

1 x HDMI Type A Female (Black);
1 x BNC  (Gold)

Impedance

100 Ω

Max. Distance

15m at 1920*1080@60 (4:4:4) - HDMI

Video

Max. Data Rate

2.97  Gbps

Max. Pixel Clock

148.5 MHz

Supported Resolutions

NTSC@59.96Hz,  PAL@50 Hz;
720p@50/59.94/60 Hz;
1080i@50/59.94/60 Hz;
1080p@23.97/24/25/29.97/30/50/59.94/60 Hz

Max. Distance

90m  (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)

Audio

Output

Analog: 2 x RCA  (Red/White)
Digital: 1 x RCA  (Yellow)

SDI Formats

SD-SDI (SMPTE 259M, up to 270  Mbps)
HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
3G-SDI (SMPTE 424M, 425M level  A, up to 2.97  Gbps)

Connectors

Power

1 x DC Jack

Power Consumption

DC5V:3.635WBTU

Environmental

Operating Temperature

0 - 40 ºC

Storage Temperature

-20 - 60 ºC

Humidity

20 - 90% RH,  Non-Condensing

Physical Properties

Housing

Metal

Weight

0.29 kg ( 0.64 lb )

Dimensions (L x W x H)

12.30 x 10.87 x 3.05 cm
(4.84 x 4.28 x 1.2 in.)

Carton Lot

5 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VC480 Datasheet PDF
