Aten Converter, VGA to HDMI with audio and Scaler - VC182

Aten
ATVC182CONCONVR
R 4,307.61 Ex VAT

• Converts VGA signals to HDMI output

• Supports analogue / digital audio

• Superior video quality – up to 1080p, 1920 x 1200

• Scaler - a premium scaling engine that converts various input video resolutions into the display's native resolution, while adjusts picture ratio automatically for maximum viewing comfort

• 3D Deinterlacing - increases image clarity for ultimate viewing quality by processing and scanning digital video signals

• Features a built in high-performance scaler function for best image quality

• Features a superior de-interlacer function for smooth video playback quality

• Built-in OSD function for video and system settings configuration

• Integrated superior video noise reduction

• Integrated next generation colour engine – automatic picture quality/colour adjustment and enhancement

• Automatically detects video input signals

• LED indication of power status and source device

• No software required – eliminates incompatibility and installation issues

• Device configuration using a utility tool via mini USB port

• Supports 16:9 and 4:3 video aspect ratios

• Multiple selectable video resolutions

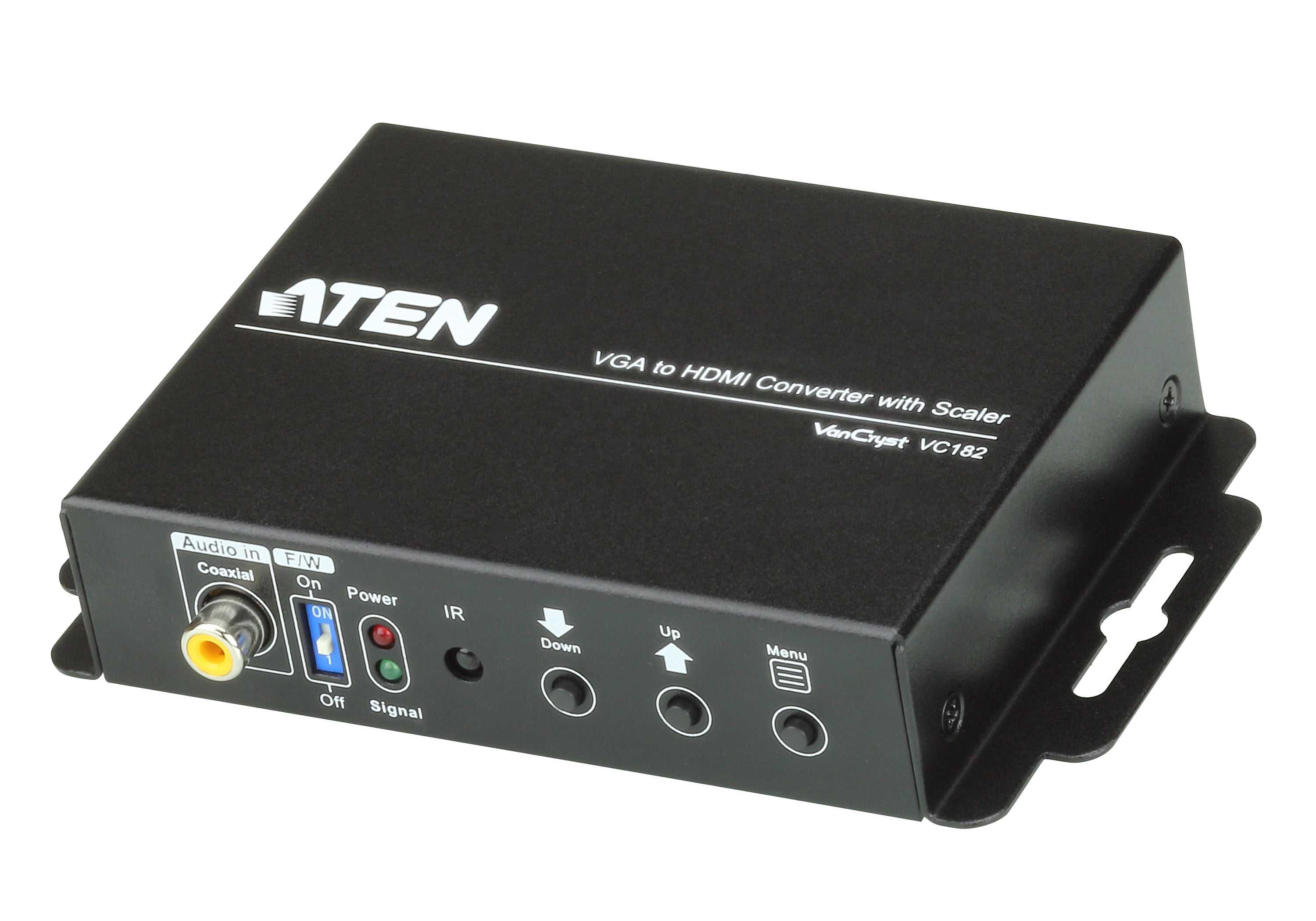

The VC182 VGA to HDMI converter with Scaler offers an easy and convenient way of converting VGA input signals into digital video (HDMI). The VC182 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.

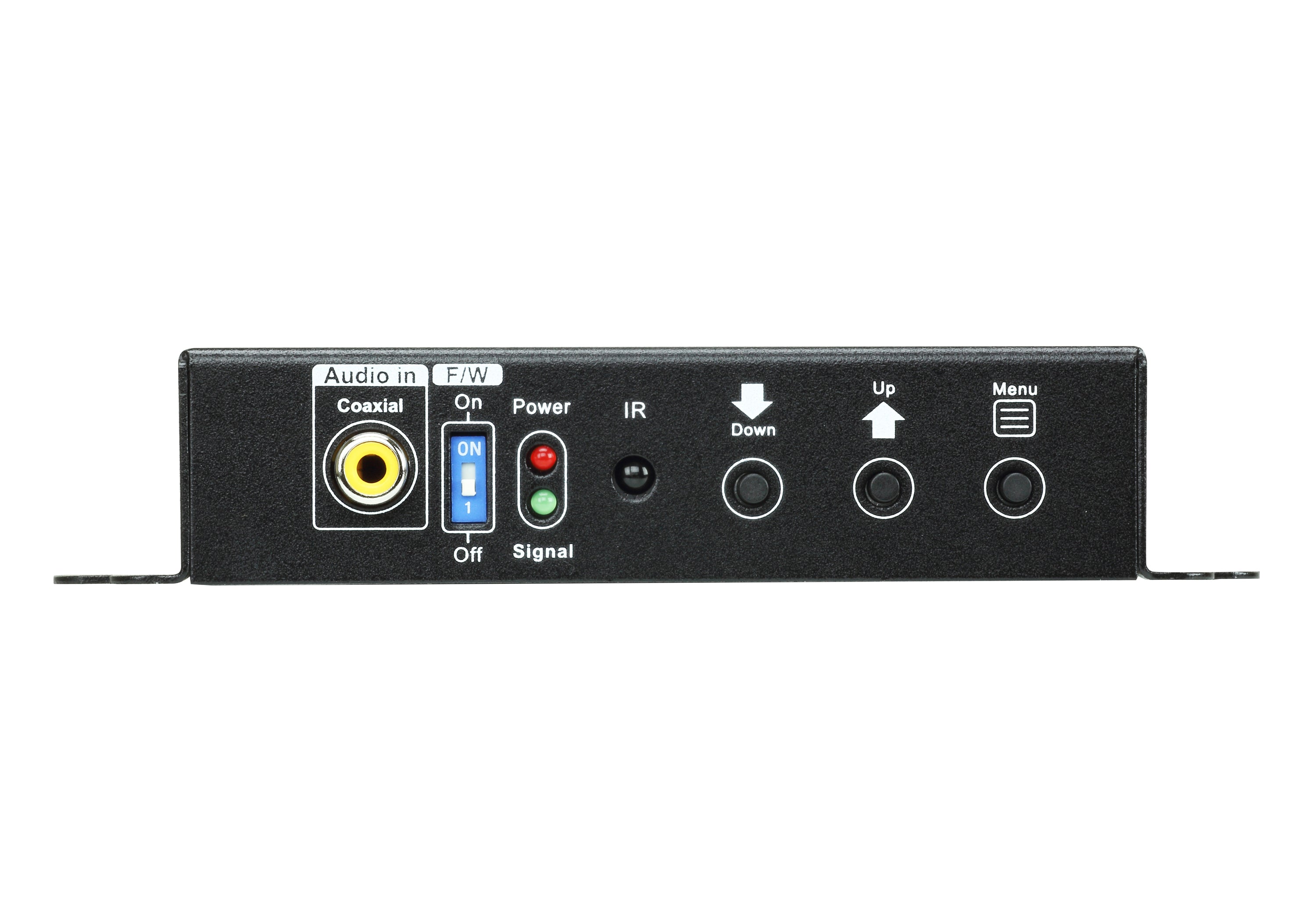

You can operate the VC182 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons.

Package Contents

1x VC182 VGA to HDMI Converter with Scaler

1x Power Adapter

1x Software CD

1x User Instructions



Video Input

Interfaces

1 x HDB-15 Female (Blue)

Impedance

75 Ω

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Video

Max. Pixel Clock

165 MHz

Max. Resolution

Up to 1080p

Scaler Resolutions

480p; 480i; 576p; 576i; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024;
1360 x 768; 1440 x 900; 1400 x 1050; 1600 x 1200; 1680 x 1050;
1080i; 1080p; 1920 x 1200

Audio

Input

Analog: 1 x Mini Stereo Jack Female (Black)
Digital: 1 x RCA (Yellow)

Connectors

Power

1 x DC Jack

Power Consumption

DC5V:1.56WBTU

Environmental

Operating Temperature

0 - 40 ºC

Storage Temperature

-20 - 60 ºC

Humidity

20 - 90% RH,  Non-Condensing

Physical Properties

Housing

Metal

Weight

0.31 kg ( 0.68 lb )

Dimensions (L x W x H)

11.00 x 8.30 x 2.80 cm
(4.33 x 3.27 x 1.1 in.)

Carton Lot

5 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VC182 Datasheet PDF
