Aten Dual Video Capture, HDMI to USB-C - UC3022

Aten
ATUC3022CONCONVR
R 5,892.54 Ex VAT

• Mix and capture two non-HDCP 4K live videos at 1080P UVC format on PC or mobile device via USB 3.x interface with seamless transition

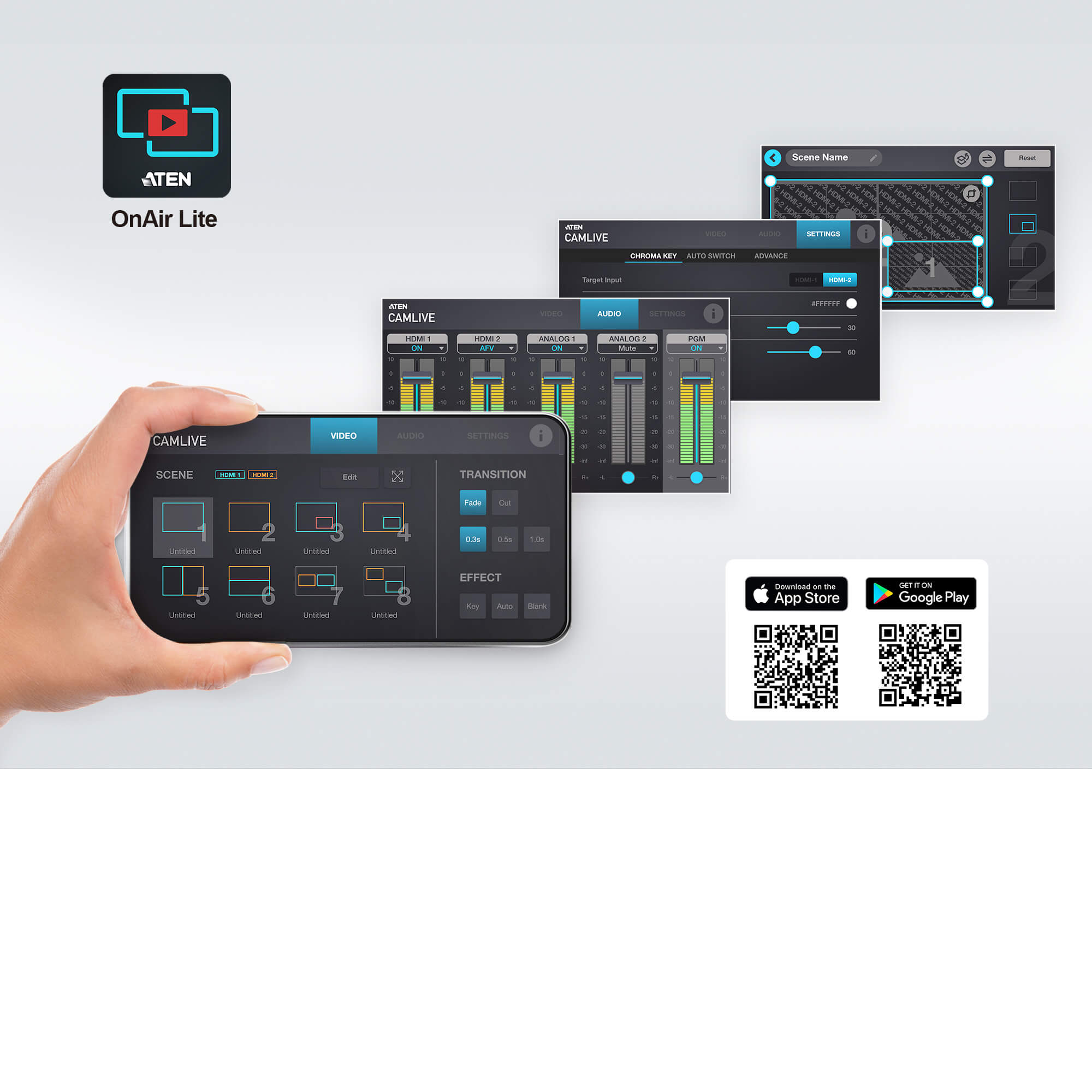

• Intuitive Android / iOS App control – set up your camera gear and direct your show from anywhere

• Supports real-time HDMI program video preview

• Easily identifiable Chroma keys – allows users to appear anywhere they want by changing the background

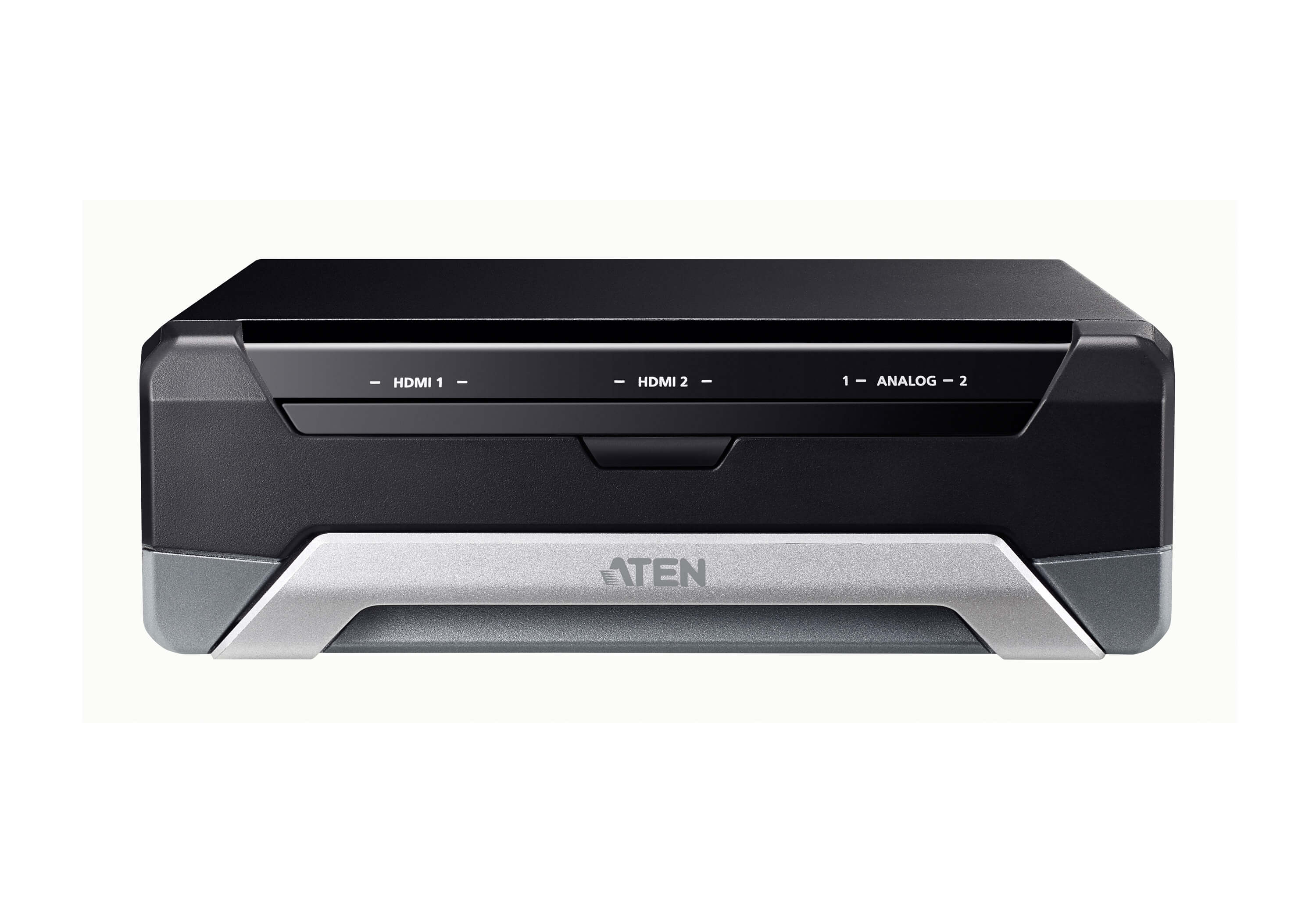

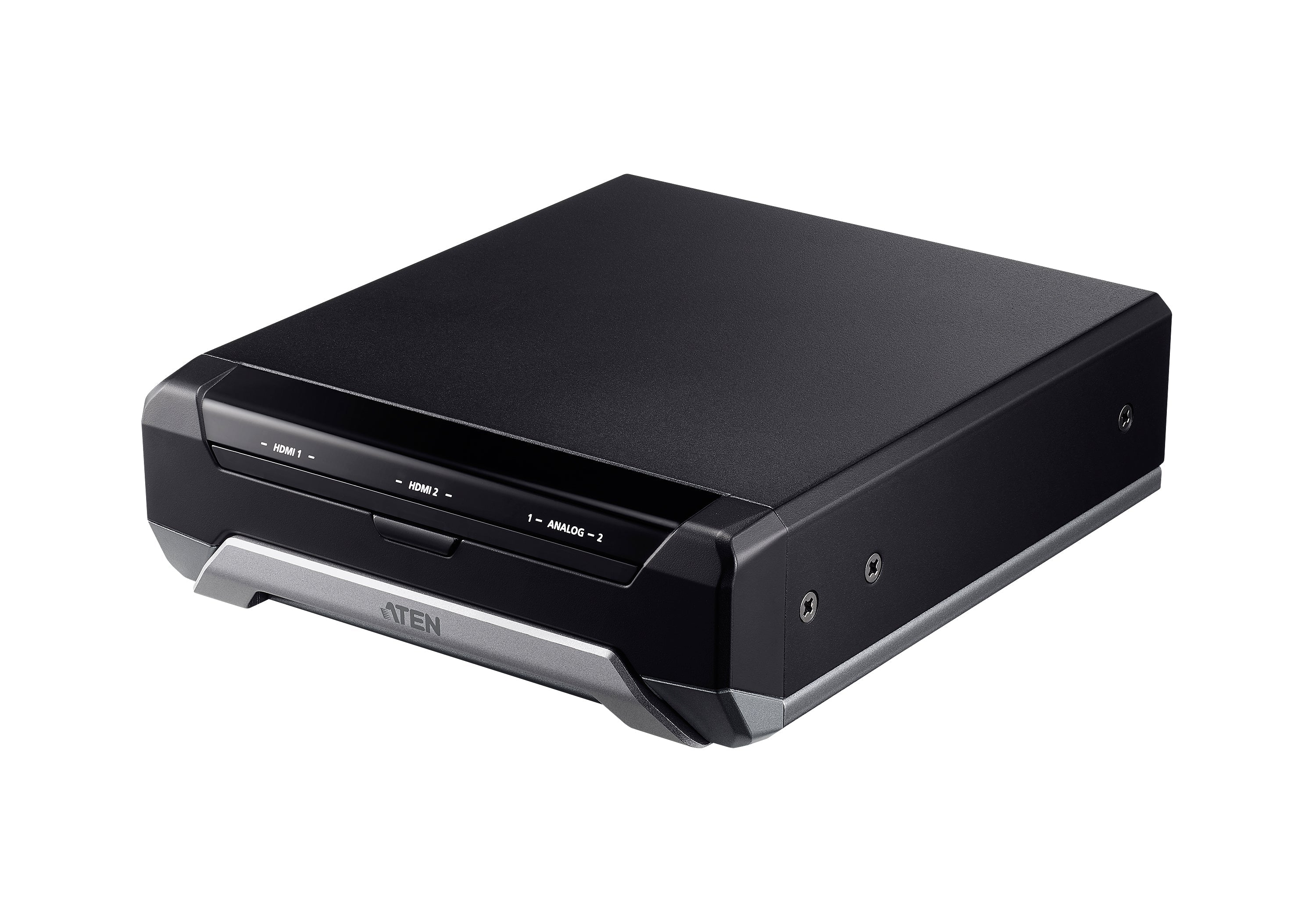

The CAMLIVE™ PRO is designed to capture and mix the two connected 4K video sources in FHD format for live streaming purposes while providing outstanding video effects and remarkable image quality. This video capture device comes with capabilities of video capture, encoding, two-channel video mixing, and content switching from HDMI sources and professional line-level audio devices, making livestreaming production stand out from countless CDN videos. With the CAMLIVE™ PRO, users can easily switch between multiple connected sources and combine them for rich information delivery in streaming. In addition, the device automatically converts the sources to USB video format in 720P or 1080P and sends to the receiving laptop / smartphone via USB port.

Package Contents

1x UC3022 CAMLIVE™ PRO Dual HDMI to USB-C UVC Video Capture

1x USB-B to USB-C Cable

1x USB-B to USB-A Cable

1x Power Adapter

1x camera mount adapter kit

1x User Instructions

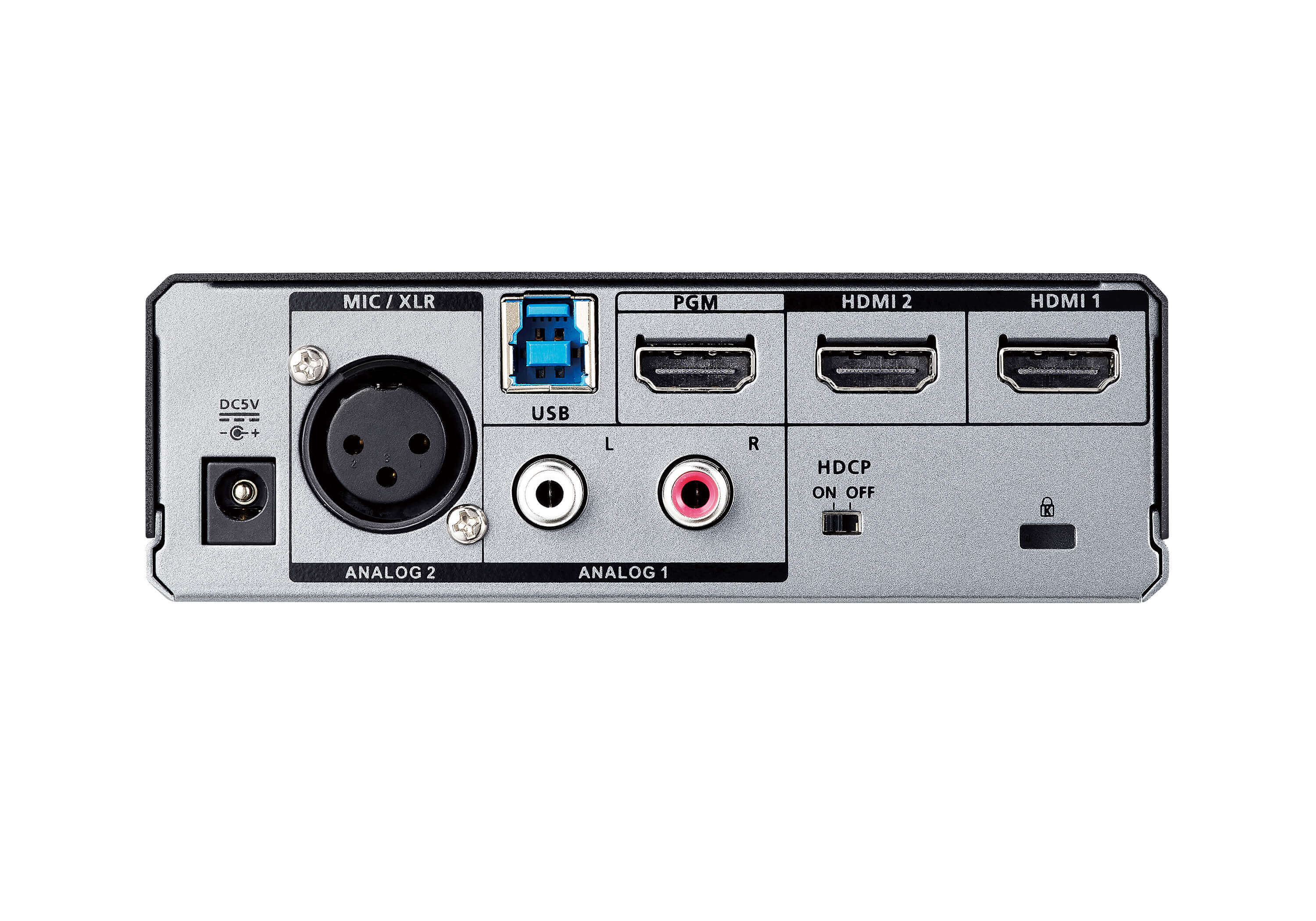

Connectors

Video In

2 x HDMI Type A Female (Black)

USB Port

USB 3.2 Gen1 Type-B Male (Blue)

(USB-B to USB-C and USB-B to USB-A cable package included)

Video Output

1 x HDMI Type A Female (PGM Video, Black)

Audio Inputs

1x balanced analogue audio via XLR connectors
1x unbalanced audio via RCA connectors.

Video Resolution

Video input:
2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 , HDMI unencrypted

PGM video out:
1080p60/50/30/25/24, 720p60/50, HDMI unencrypted
(Support encrypted PGM output at 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 with UVC capture disabled)

Audio Sampling

16-bit PCM audio, 44.1KHz and 48KHz

Output

Uncompressed 1080p60 & 720p60 UVC video stream with UAC audio
(Uncompressed video stream is only available on USB3.1 connection)

Environmental

Operating Temperature

0 - 40 ºC

Storage Temperature

-20 – 60 ºC

Humidity

0 - 80% RH, Non-Condensing

Minimum Hardware Requirements

PC/Mac:
CPU: Intel® i3 Dual Core 2.8Ghz or higher
RAM: 4GB or more
One USB-C interface or USB-A interface

Smartphone:
Android device with UVC support and USB-C interface*

*For detail UVC compatible device list, please refer to following info revealed by third party App. https://www.camerafi.com/supported-devices/

Connection

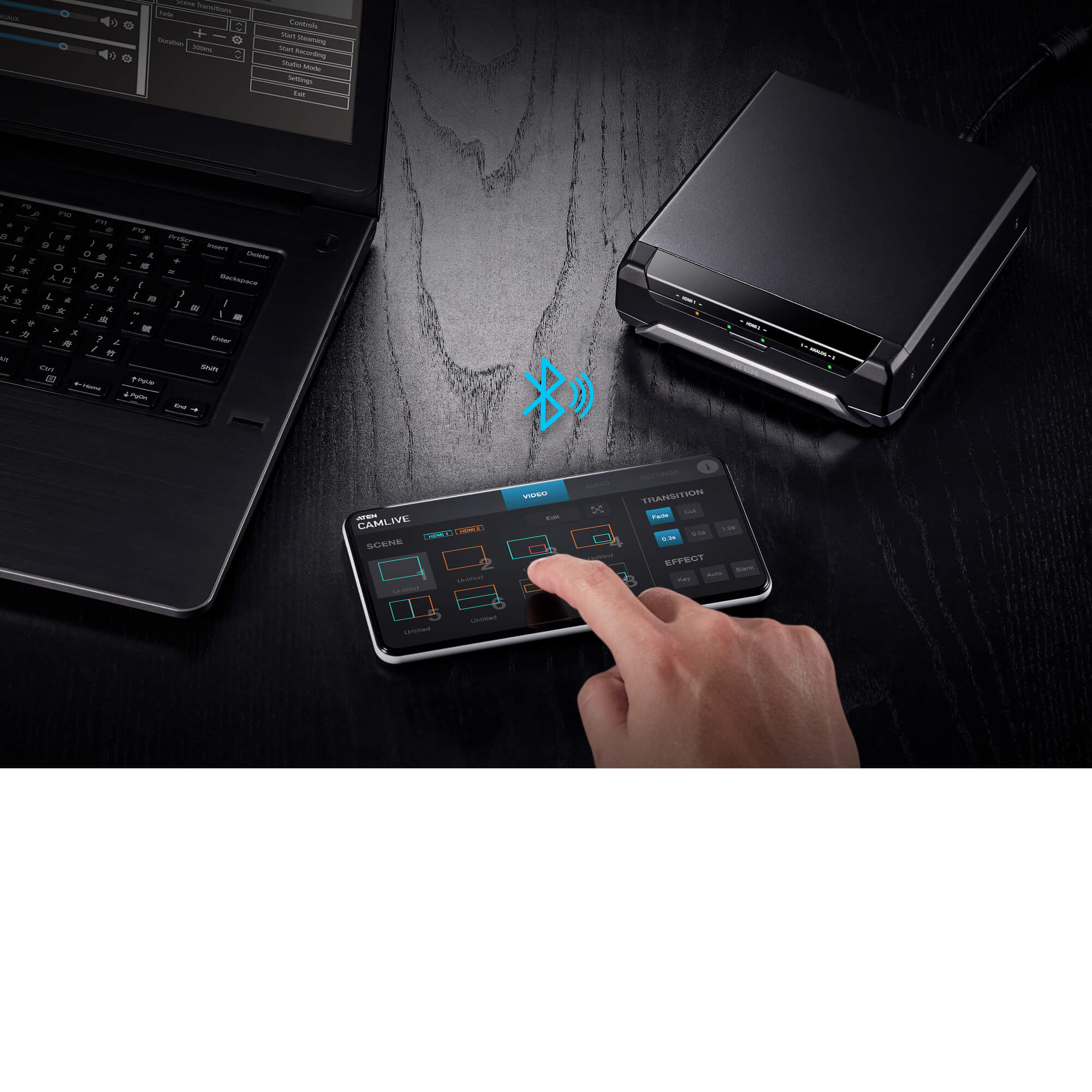

Bluetooth Low Energy(BLE) technology

OS Support

Windows 10 and above *
Mac OS X 10.13 and above
Android 5.x and above or iOS 10.1 and above , with Bluetooth 4.2 or higher supporting Bluetooth Low Energy (BLE)

*Window 7 requires driver installation

Physical Properties

Housing

Metal

Weight

0.68 kg ( 1.5 lb )

Dimensions (L x W x H)

13.00 x 15.18 x 4.25 cm
(5.12 x 5.98 x 1.67 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
