Aten Extender, USB DVI Single Link Console, Audio - CE600

Aten
ATCE600EXTKVMXX
R 7,307.34 Ex VAT

• Local and Remote Units connect at distances up to 60 m using Cat 5e cable

• Features ATEN technology that allows A/V transmission over one cat 5e cable

• Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions

• Manual compensation control to adjust signal strength in order to compensate for distance

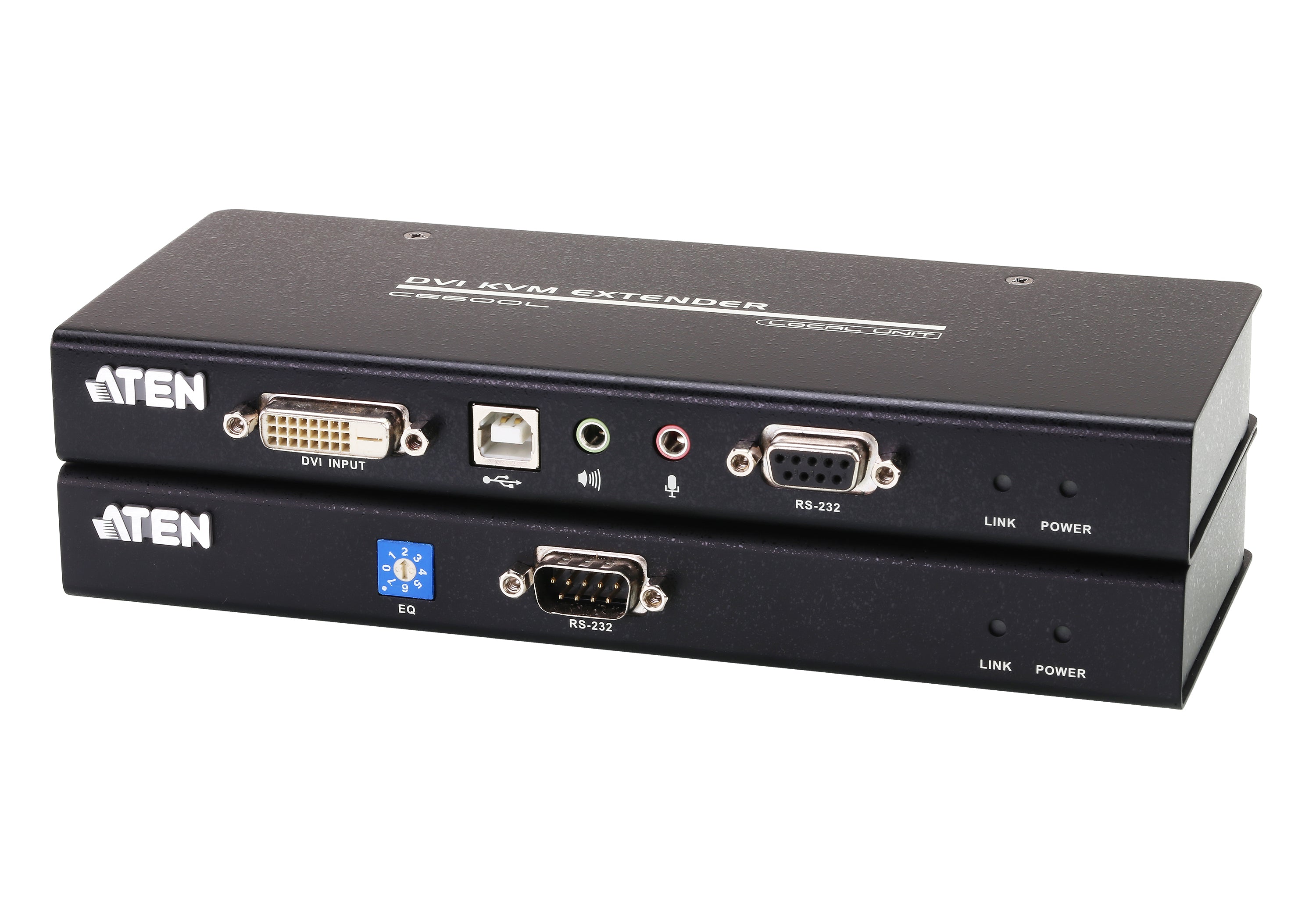

The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.

The CE600 users one Cat 5e cable (DVI Single Link) to support up to 1920 x 1200 video resolution *

* 1. The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals.
   2. ATEN recommends using shielded cables, such as the ATEN 2L-2910 for environments that require high electromagnetic interference (EMI) protection.

Function

CE600L

CE600R

Connectors

Console Ports

N/A

2 x USB Type A Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)

KVM Ports

1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
1 x USB Type B Female (White)

N/A

RS-232

1 x DB-9 Female (Black)

1 x DB-9 Male (Black)

Power

1 x DC Jack

1 x DC Jack

Sub / Main

2 x RJ-45 Female (Black)

2 x RJ-45 Female (Black)

LEDs

Link

1 (Green)

1 (Green)

Power

1 (Green)

1 (Green)

Switches

EQ Switch

N/A

1 x 8-position switch

Firmware Upgrade

1 x Slide Switch

N/A

Emulation

Keyboard / Mouse

USB

USB

Video

1920 x 1200 @ 60Hz (30 m);
1024 x 768 @ 60Hz (60 m);

1920 x 1200 @ 60Hz (30 m);
1024 x 768 @ 60Hz (60 m);

Power Consumption

DC5.3V:1.92W:13BTU

DC5.3V:1.69W:12BTU

Environmental

Operating Temperature

0–50°C

0–50°C

Storage Temperature

-20–60°C

-20–60°C

Humidity

0–80% RH, Non-condensing

0–80% RH, Non-condensing

Physical Properties

Housing

Metal

Metal

Weight

0.48 kg ( 1.06 lb )

0.48 kg ( 1.06 lb )

Dimensions (L x W x H)

20.20 x 8.54 x 2.50 cm
(7.95 x 3.36 x 0.98 in.)

20.20 x 8.50 x 2.50 cm
(7.95 x 3.35 x 0.98 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
