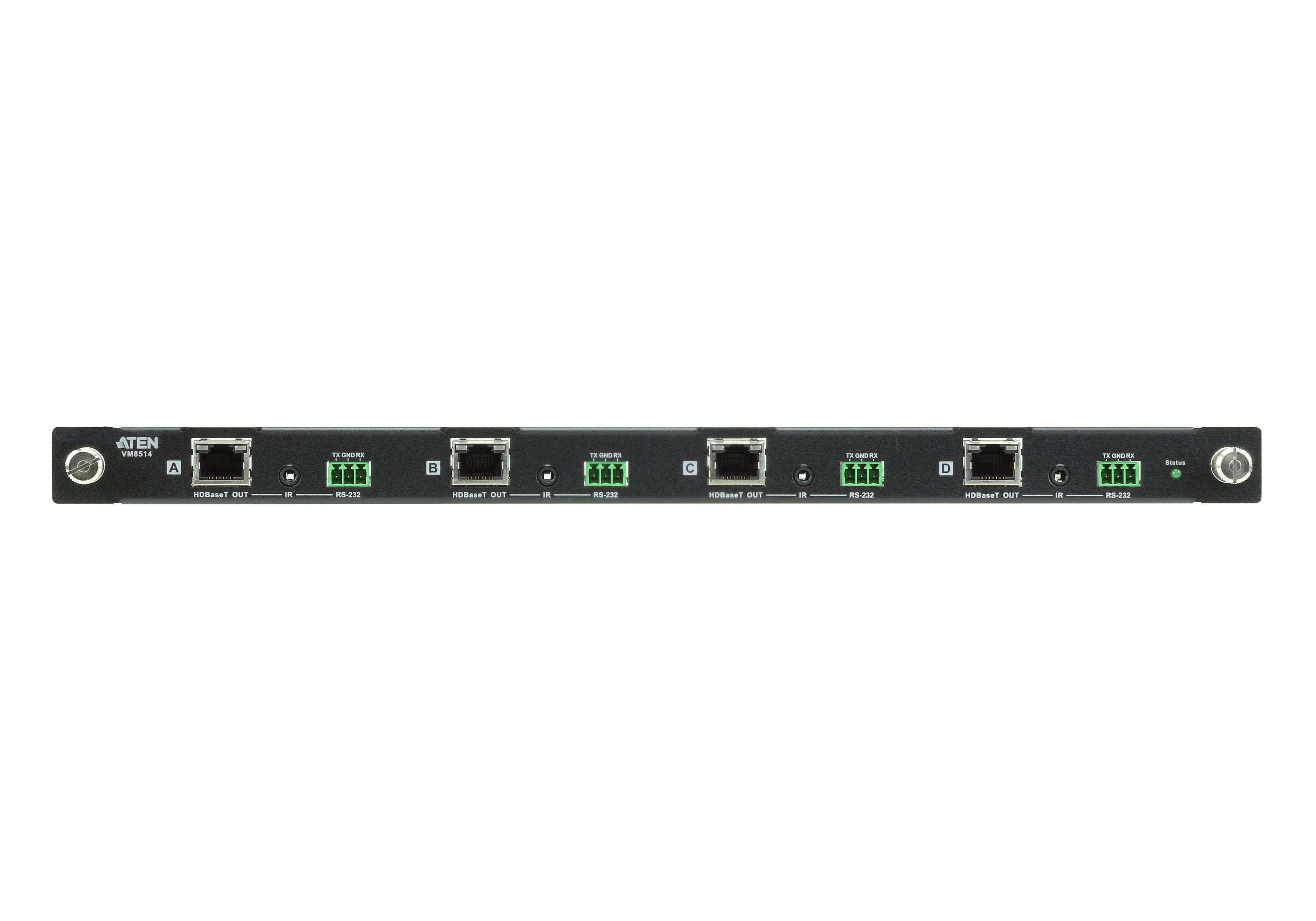

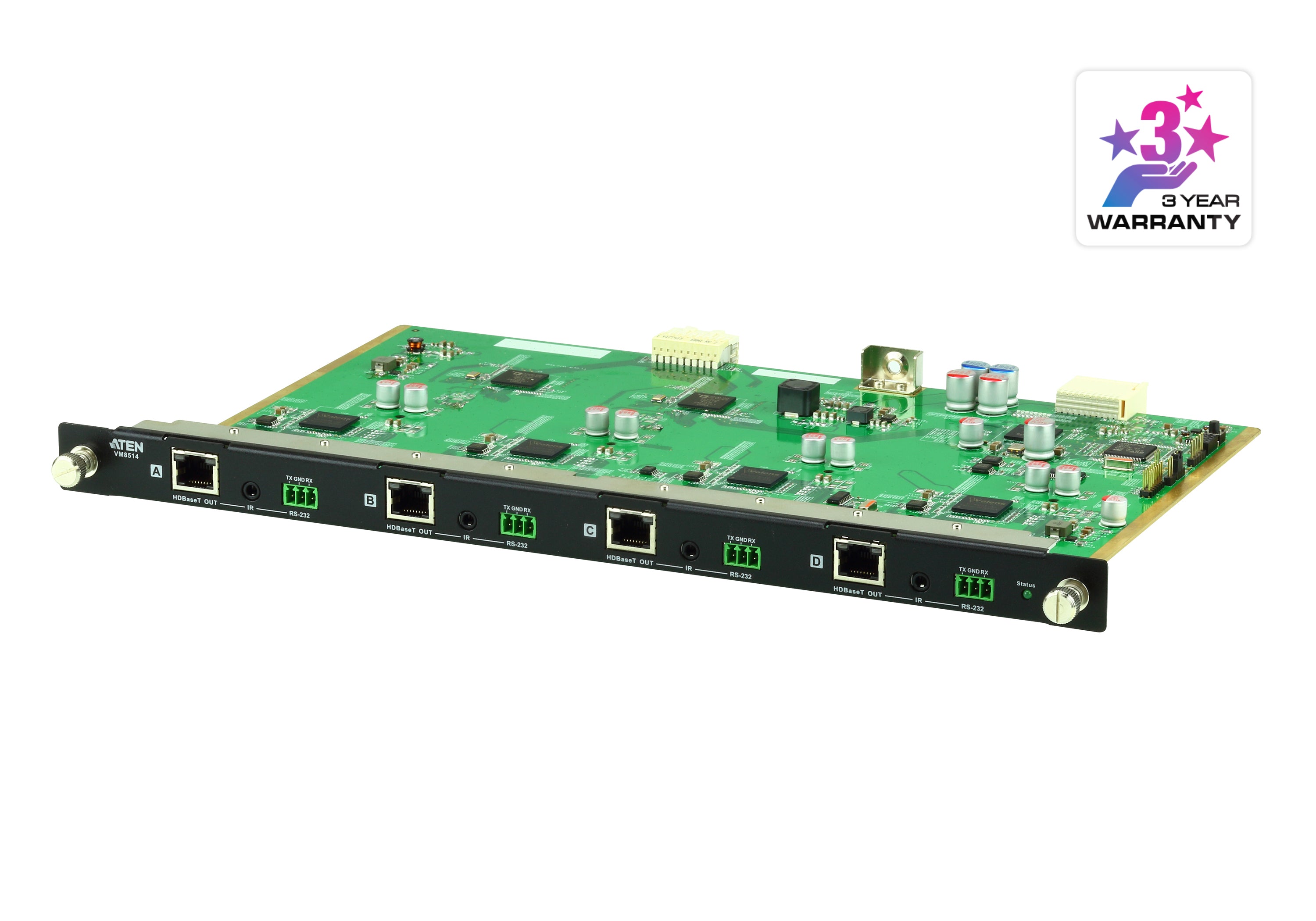

Aten HDBaseT Output Board, 4 Port - VM8514

Aten
ATVM8514SWIHDMIX
R 33,661.22 Ex VAT

• 4-port HDBaseT Output Board that is compatible with the VM1600A/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility

• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners

• HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable

• HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology

• Connected to VE805R/VE816R:
Seamless Switch™ – features close-to-zero-second switching, continuous video streams, real-time switching and stable signal transmissions
Video Wall – features configurable video wall profiles for custom layouts via point-n-click web GUI

• Bi-directional IR channel – IR transmission is processed one direction at a time

• Hot-swappable design for easy integration of I/O boards

The VM8514 4-Port HDBaseT Output Board offers an easy way route 4 HDBaseT transmitters to 4 HDBaseT receivers, and in combination with the ATEN Modular Matrix Switches to provide the ability of routing up to 32 input and 32 output HDBaseT connections.


When the VM8514 HDBaseT Output Board is used in conjunction with the VE805R HDBaseT receiver it features Seamless Switch™ technology and video wall functionality. ATEN’s Seamless Switch™ technology provides video switching in real-time with a built in scaler that handles different video resolutions across different displays and video wall features that allow you to configure up 32 profiles for custom layouts via the point-n-click web GUI.

* Compatible Receivers



Package Contents



1x VM8514 4-Port HDBaseT Output Board

4x Terminal Block Connectors

1x IR Transmitter

1x IR Receiver

1x User Instructions



Video Output

Interfaces

4 x RJ-45 Female (Silver)

Impedance

100 Ω

Video

Max. Data Rate

10.2 Gbps (3.4 Gbps per lane)

Max. Pixel Clock

340 MHz

Compliance

HDBaseT, HDCP 1.4 compatible
Consumer Electronics Control (CEC)

Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Max. Distance

100 m (Cat 6a)

Control

RS-232

4 x Captive Screw Connectors, 3 pole

IR

4 x Mini Stereo Jack Female (Black)

Power Consumption

12.2W:57BTU

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20–60°C

Humidity

0–80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.97 kg ( 2.14 lb )

Dimensions (L x W x H)

35.20 x 23.80 x 2.33 cm
(13.86 x 9.37 x 0.92 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VM8514 Datasheet PDF
