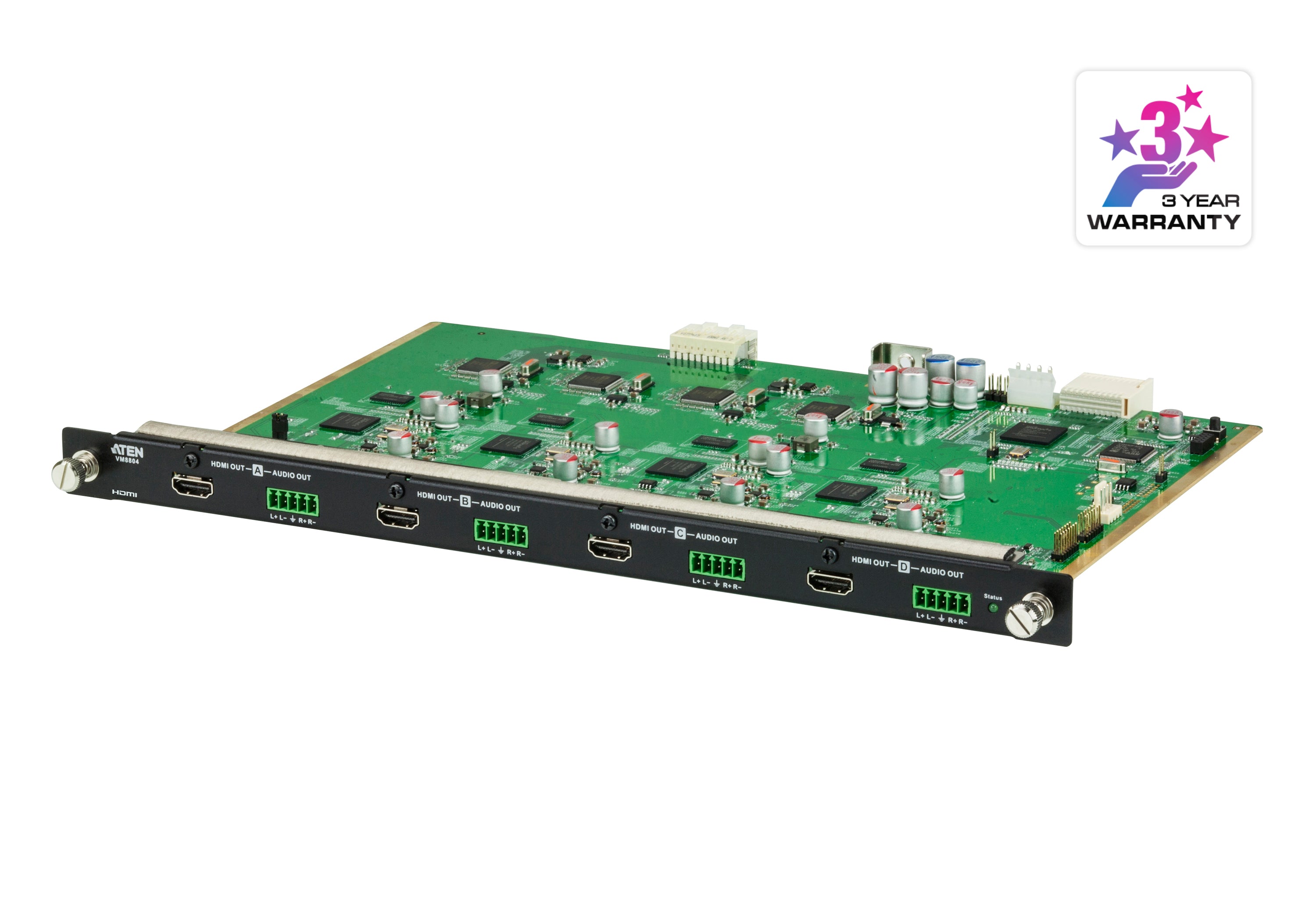

Aten HDMI Output Board, 4 Port - VM8804

Aten
ATVM8804SWIHDMIX
R 22,472.97 Ex VAT

• 4-port HDMI Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility

• Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)

• HDMI (3D, Deep Colour); HDCP 1.4 Compatible

• Seamless Switch™– provides continuous video streams, realtime switching and stable signal transmission*

• Built-in scaler on each output port to support the scaling function for different video Resolutions

• Consumer Electronics Control (CEC) support

• EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display

• Built-in EDID wizard – provides an easy way to customized EDID settings

• Hot-swappable design for easy integration of I/O boards

• Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded

* Note: If Seamless Switch is enabled, the video output will not display 3D, Deep Colour or interlace (i.e., 1080i) resolution features.

To use of these features, you must disable Seamless Switch. Videos may not display within range when Seamless Switch™ or Video Wall

is enabled, in which case please adjust the display settings on your device.

The VM8804 4-Port HDMI Output Board offers an easy way to route any of audio/video sources to any of 4 displays, in combination with an ATEN Modular Matrix Switch.


The VM8804 supports Seamless Switch™ technology that provides video switching in real-time, a built in scaler that handles different video resolutions, and EDID Expert technology for fast smooth switching between displays, giving you the perfect viewing experience. The VM8804 also supports HDMI audio can be extracted and stereo audio that can be embedded.



Package Contents



1x VM8804 4-Port HDMI Output Board with Scaler

4x Terminal Blocks

1x User Instructions



Video Output

Interfaces

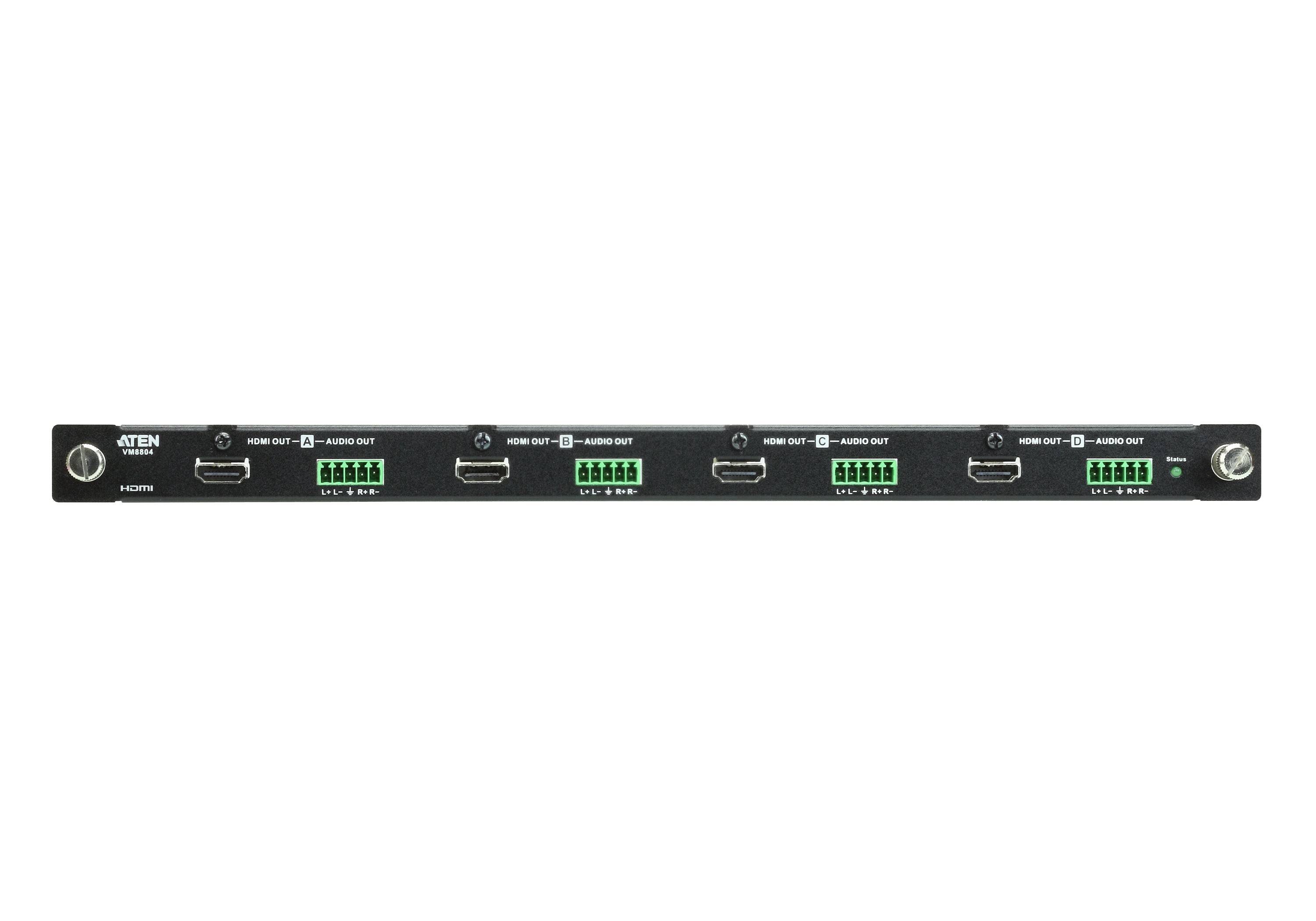

4 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

Up to 15m

Video

Max. Data Rate

6.75 Gpbs (2.25 Gbps Per Lane)

Max. Pixel Clock

225 MHz

Compliance

HDMI (3D, Deep Colour)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)

Max. Resolution

Up to 1920 x 1200

Audio

Output

4 x Captive Screw Connector, 5 pole
* Audio signal type: stereo, balanced/unbalanced.

Power Consumption

23.13W:108BTU

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.58 kg ( 1.28 lb )

Dimensions (L x W x H)

35.20 x 23.80 x 2.33 cm
(13.86 x 9.37 x 0.92 in.)

Carton Lot

2 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VM8804 Datasheet PDF
