Aten Matrix Switch, HDMI, 2 Port - VM0202HB

Aten
ATVM0202HBSWIHDMIX
R 5,316.84 Ex VAT

• Connects 2 HDMI sources to any 2 HDMI displays

• Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR

• Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio

• Auto switching – automatically detects and switches to a new source once connected (Default: off)

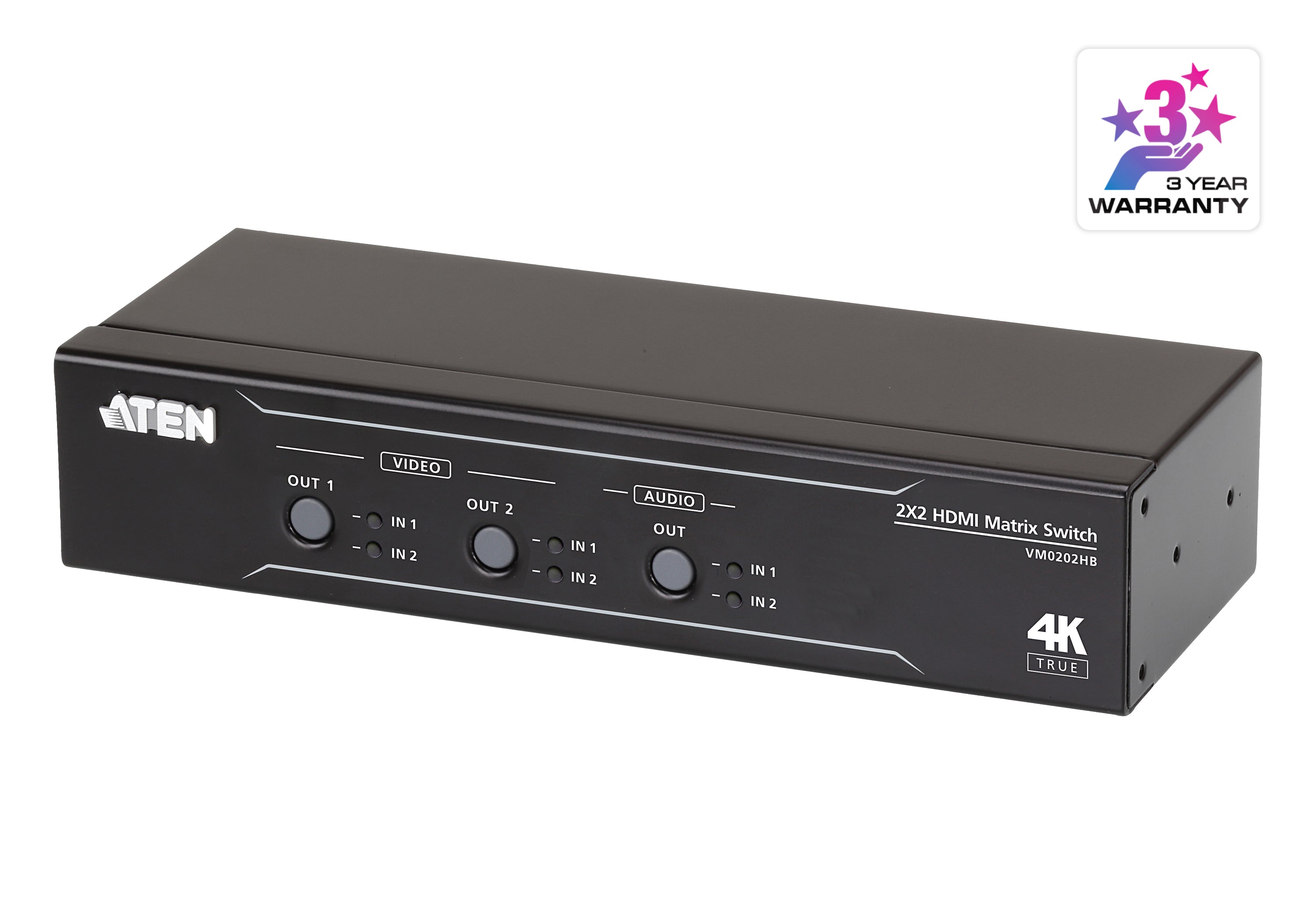

The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.

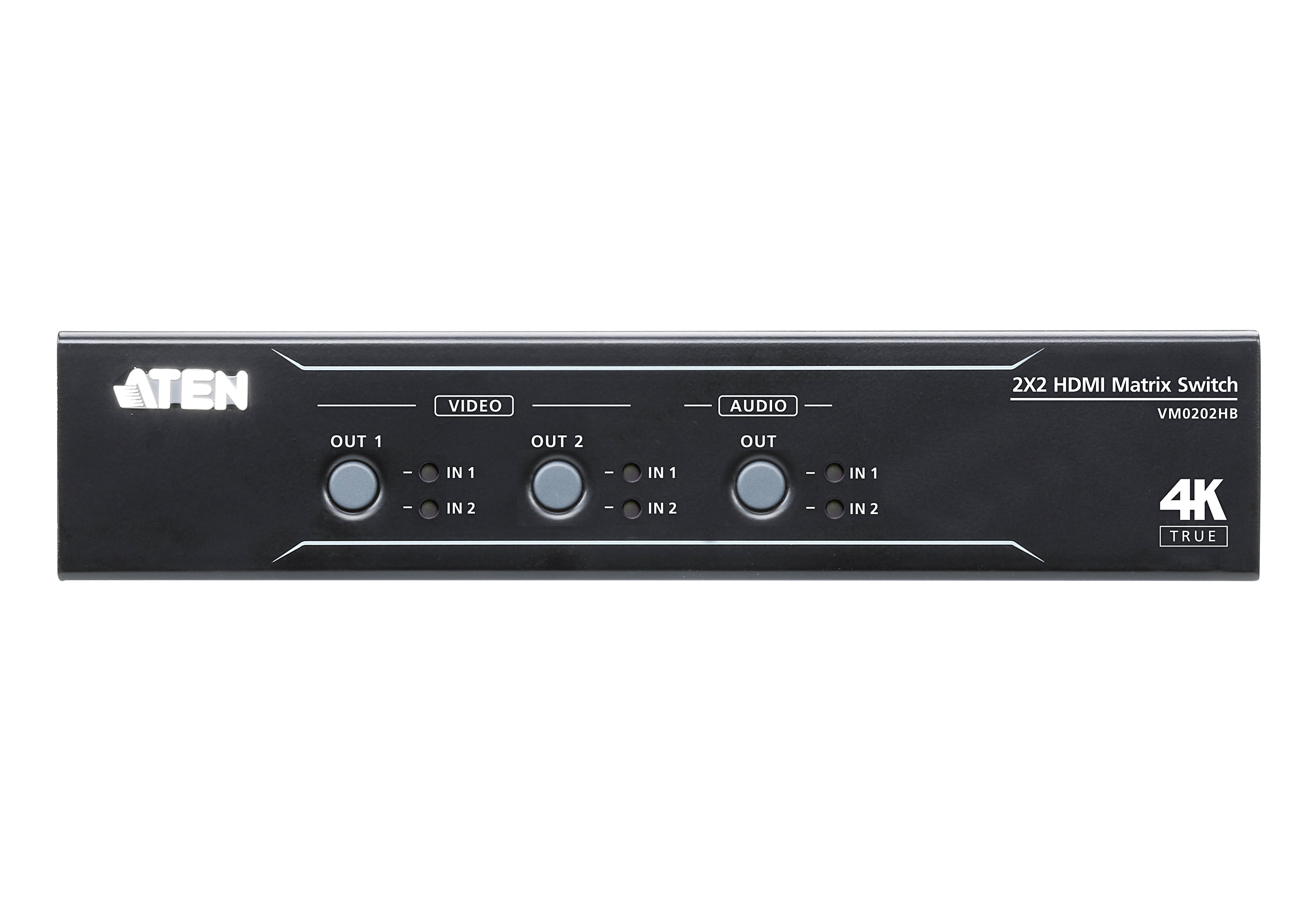

The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides high-performance routing of 2 HDMI video sources such as high definition Blu-ray players, home theatre PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays. In addition, the built-in audio de-embedder allows HDMI audio extraction for independent analog audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.

  • Connects 2 HDMI sources to any 2 HDMI displays
  • Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
  • SupportsTrue 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
  • Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
  • Supports Dolby True HD and DTS HD Master Audio
  • Auto switching – automatically detects and switches to a new source once connected (Default: off)
  • Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
  • Long-distance transmission up to 5 meters
  • HDMI (3D, 4K, Deep Colour);HDCP2 Compatible
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • EDID Expert™ – selects optimumEDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
  • Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections
  • All metal casing
  • Firmware upgradable
  • Rack mountable

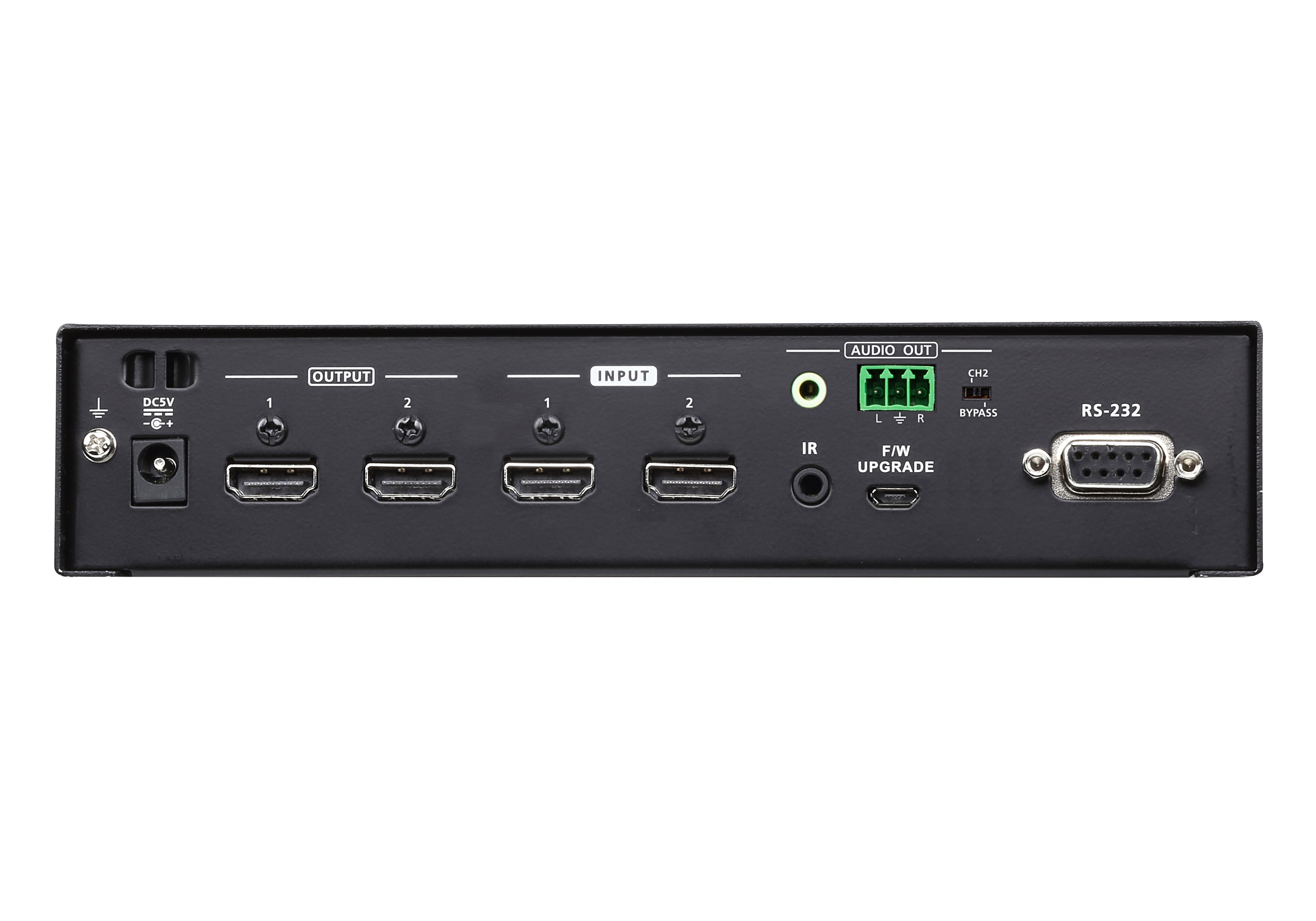

Video Input

Interfaces

2 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

5.0 m

Video Output

Interfaces

2 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

5.0 m

Video

Max. Data Rate

18.0 Gbps (6.0 Gbps Per Lane)

Max. Pixel Clock

600 MHz

Compliance

HDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)

Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Max. Distance

Up to 5.0 m

Audio

Output

1x Mini Stereo Jack Female; 1x Captive Screw Connector, 3 pole

Control

USB

1 x Micro USB
F/W upgrade

RS-232

Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

IR

1 x Mini Stereo Jack Female (Black)

EDID Settings

EDID Mode: Default / Port1 / Remix

Connectors

Power

1 x DC Jack (Black)

Power Consumption

DC5V:2.47W:11BTU

Environmental

Operating Temperature

0-40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.60 kg ( 1.32 lb )

Dimensions (L x W x H)

20.00 x 7.60 x 4.20 cm
(7.87 x 2.99 x 1.65 in.)

Carton Lot

5 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
