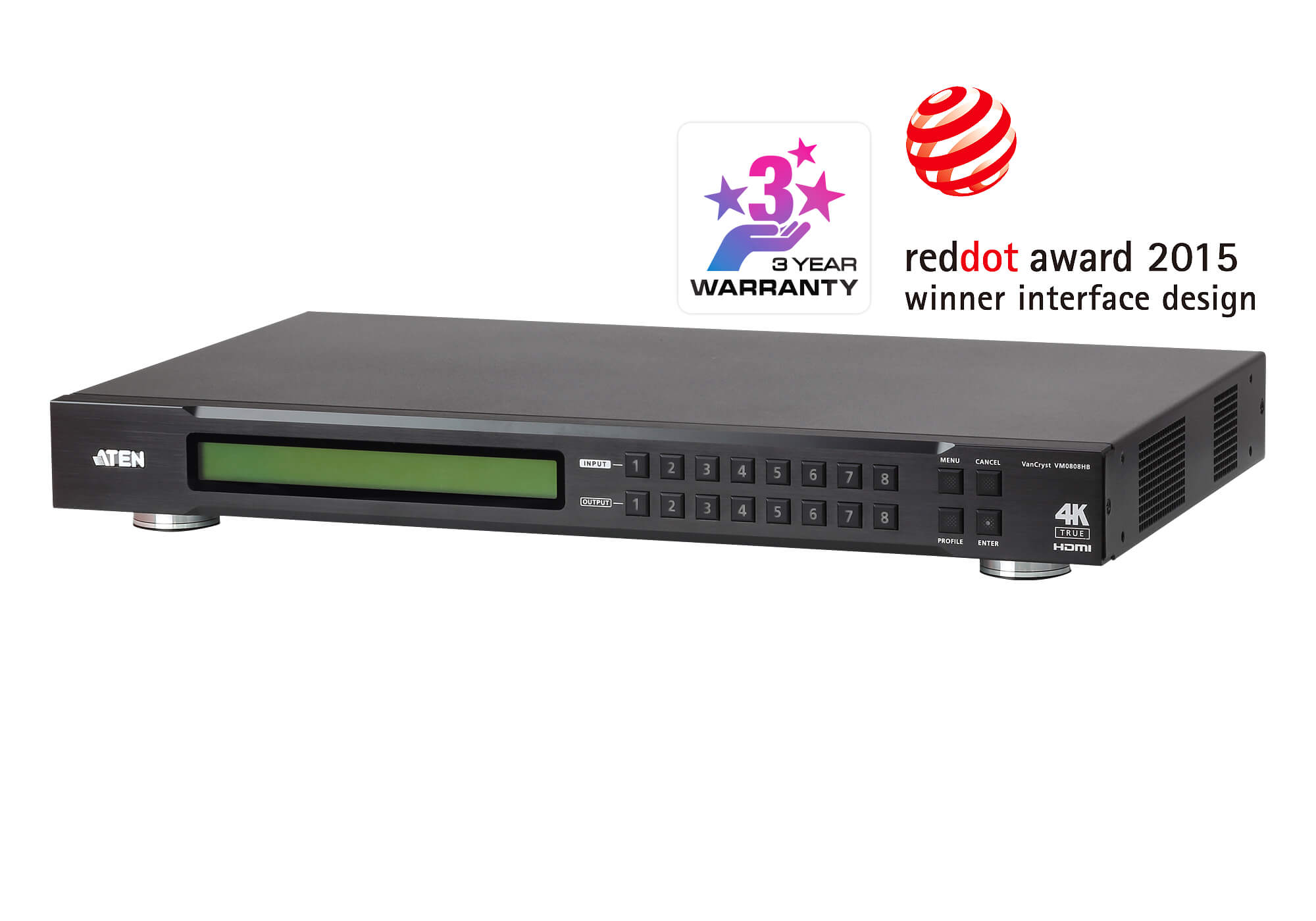

Aten Matrix Switch, HDMI, 8 Port - VM0808HB

Aten
ATVM0808HBSWIHDMIX
R 38,567.11 Ex VAT

• Connects any of 8 HDMI sources to any of 8 HDMI displays

• Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)

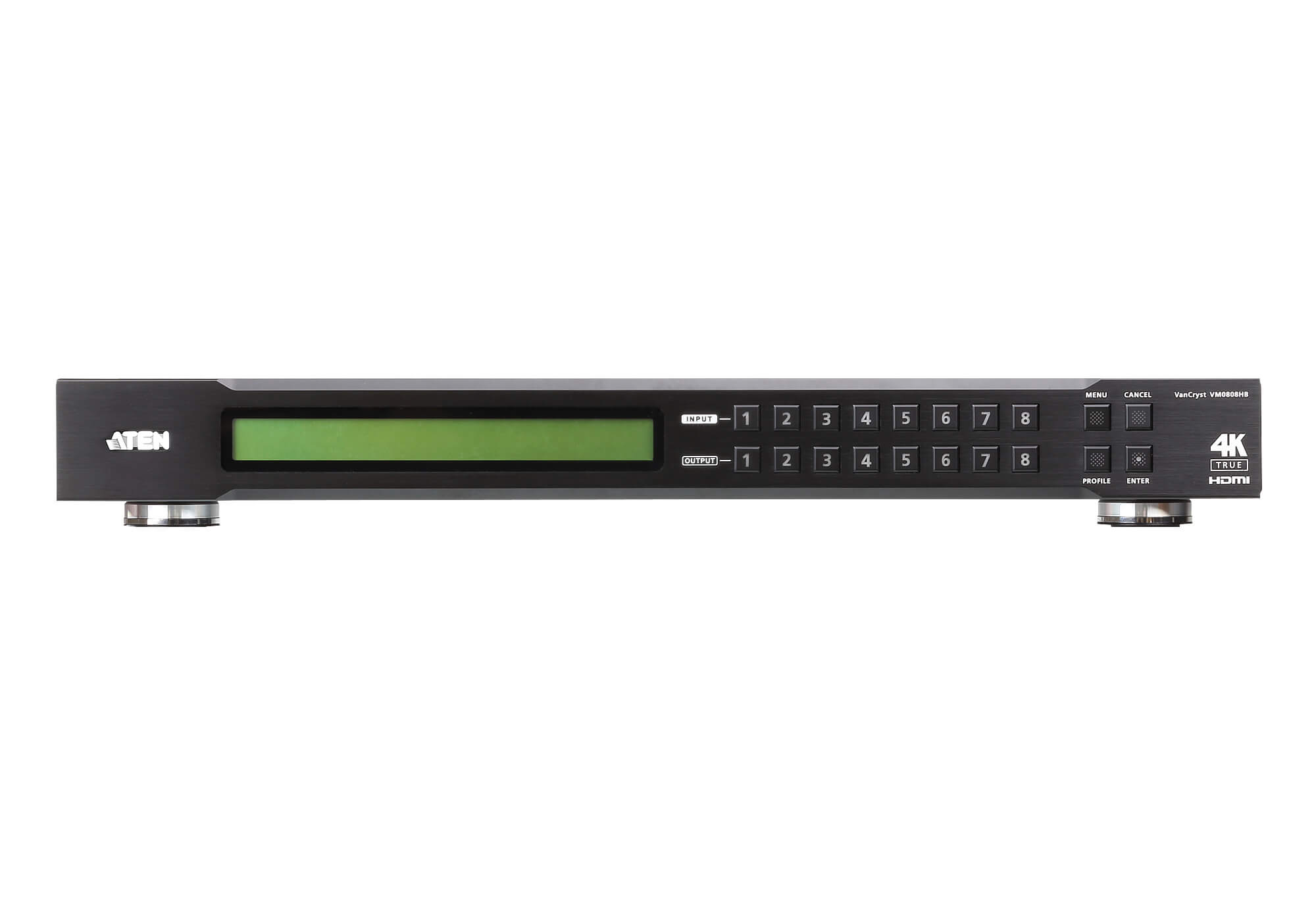

• Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections

• HDMI (3D, Deep Colour, 4K) and HDCP 2.2 compatible

ATEN’s VM0808HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0808HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.

The intuitive GUI design of the VM0808HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0808HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.

Package Contents

1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch

1x Power Cord

1x IR Remote Control

1x IR Receiver

1x Rack Mounting Kit

1x User Instructions

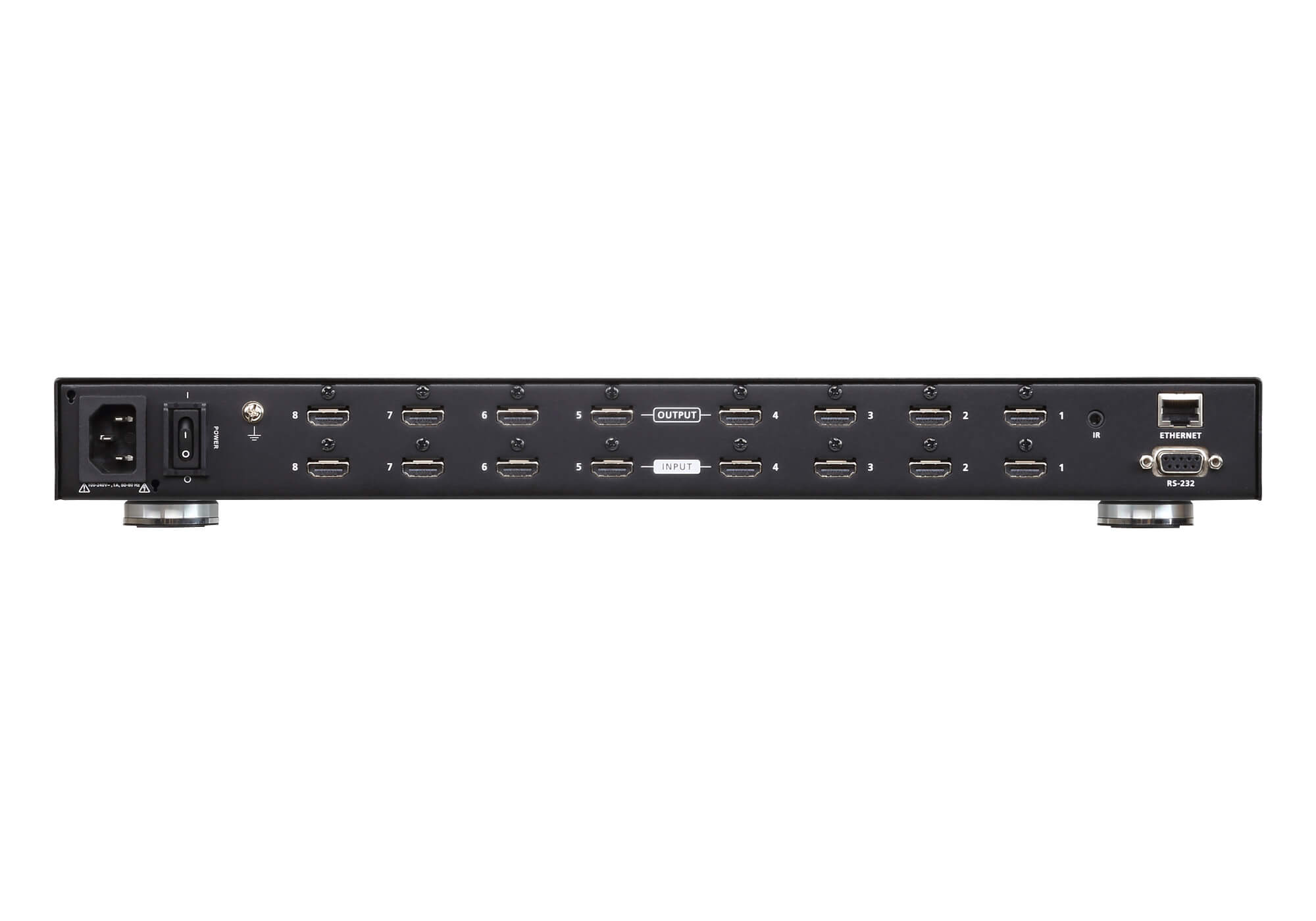

Video Input

Interfaces

8 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

5.0 m / 4K@60Hz (4:4:4)

Video Output

Interfaces

8 x HDMI Type A Female (Black)

Max. Distance

5m / 4K@60Hz (4:4:4)
15m / 1920 x 1200

Impedance

100 Ω

Video

Max. Pixel Clock

600 MHz

Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Max. Data Rate

18 Gbps( 6 Gbps Per Lane)

Compliance

HDMI (3D, 4K, Deep Colour)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)

Control

RS-232

Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

IR

1 x Mini Stereo Jack Female (Black)

Ethernet

1 x RJ-45 Female

EDID Settings

EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)

Environmental

Operating Temperature

0-40°C

Humidity

0 - 80% RH, Non-Condensing

Storage Temperature

-20 - 60°C

Physical Properties

Weight

3.99 kg ( 8.79 lb )

Housing

Metal

Dimensions (L x W x H)

43.24 x 26.23 x 4.40 cm
(17.02 x 10.33 x 1.73 in.)

Connectors

Power

1 x 3-Prong AC Socket

Carton Lot

1 pc

Power Consumption

AC110V:38.1W:179BTU
AC220V:37.8W:177BTU

Power

Maximum Input Power Rating

100-240 VAC; 50-60 Hz; 1.0A

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VM0808HB Datasheet PDF
