Aten Switch, HDMI, 4 Port - VS481B

Aten
ATVS481BSWIHDMIX
R 1,455.00 Ex VAT

• Allows up to four HDMI A/V sources to be connected to one HDMI display

• HDMI (3D, Deep Colour, 4kx2k); HDCP 2.2 compatible

• Supports 340MHz bandwidth for ultrahigh 4kx2k video

• Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control

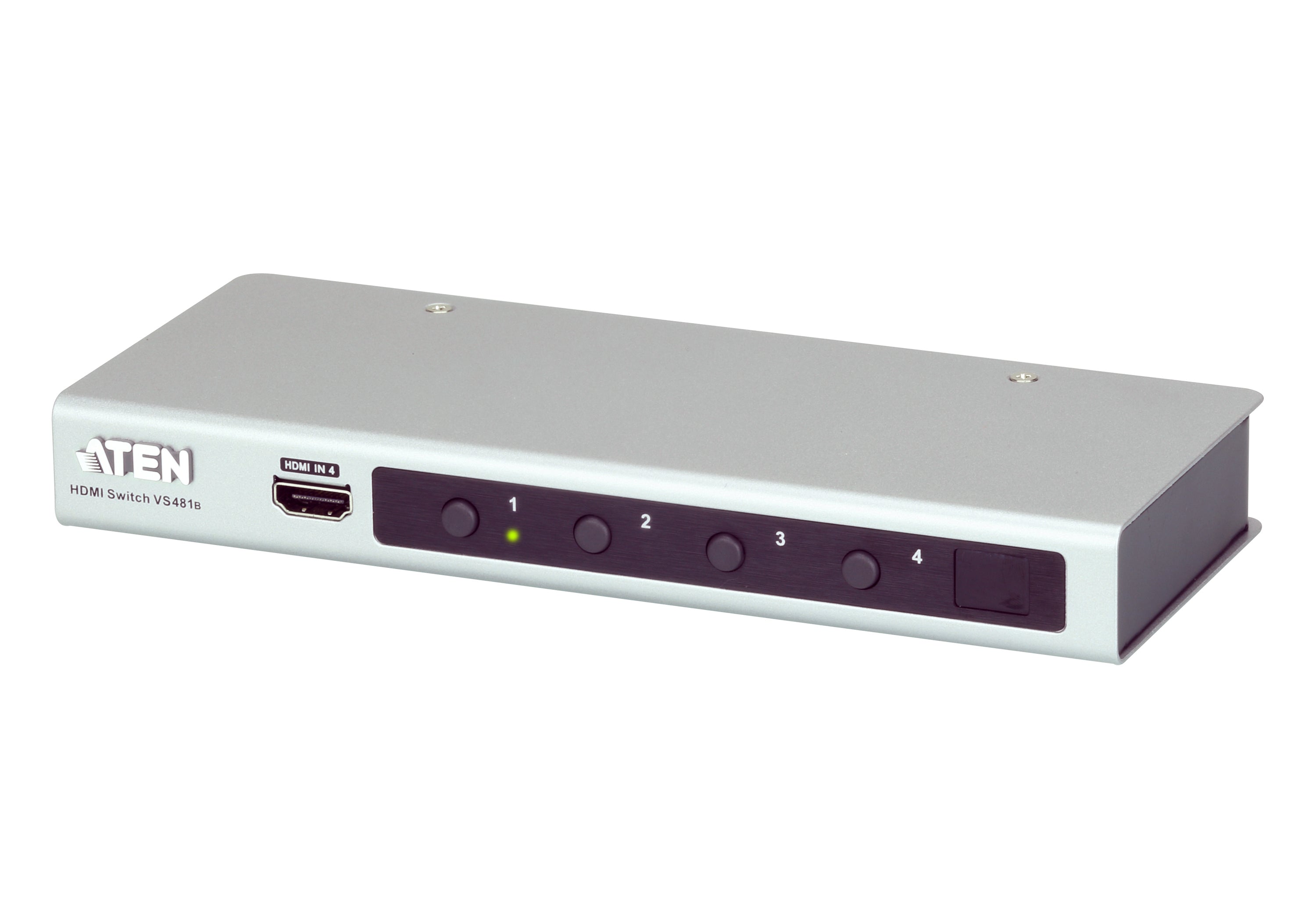

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.


The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection; Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theatre software package.

Package Contents

  • 1x VS481B 4-Port HDMI Switch
  • 1x HDMI Cable (1.8m/6ft)
  • 1x IR Remote Control
  • 1x Power Adapter
  • 1x User Instructions



Video Input

Interfaces

4 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

3m @3840x2160@30 (4:4:4)

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

15m @3840x2160@30 (4:4:4)

Video

Max. Data Rate

10.2 Gbps (3.4 Gbps per lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI (3D, Deep Colour, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)

Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Control

RS-232

Connector: 1 x DB-9 Female (Black)
Baud Rate and Protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

IR

1 x Mini Stereo Jack Female (Black)

Connectors

Power

Connector: 1 x DC Jack

Power Consumption

DC5V:1.76W:8BTU

Environmental

Operating Temperature

0 - 50°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.48 kg ( 1.06 lb )

Dimensions (L x W x H)

20.00 x 8.25 x 2.50 cm
(7.87 x 3.25 x 0.98 in.)

Carton Lot

10 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VS481B Datasheet PDF
