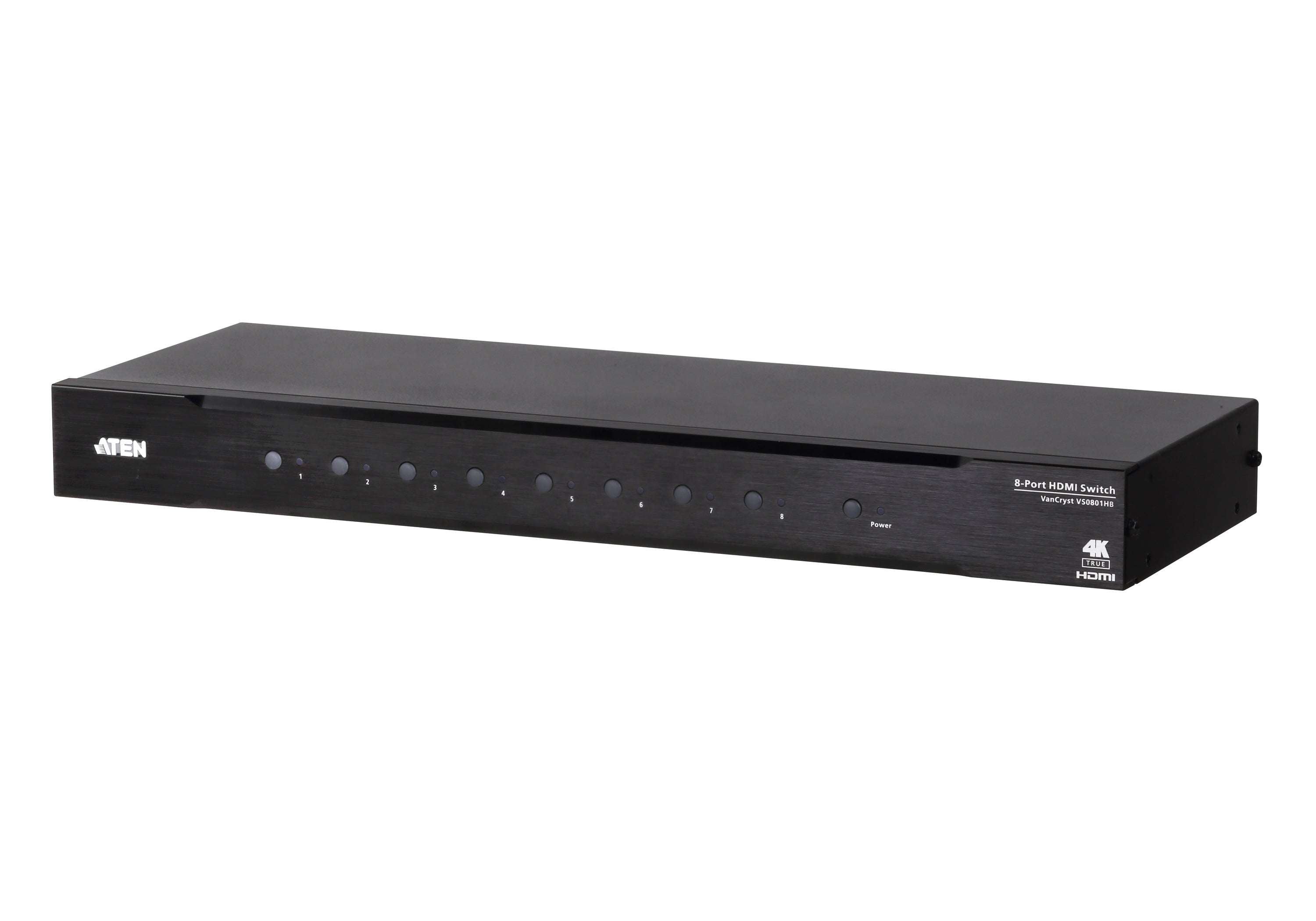

Aten Switch, HDMI, 8 Port - VS0801HB

Aten
ATVS0801HBSWIHDMIX
R 5,129.83 Ex VAT

• Allows up to 8 HDMI sources to be connected to one HDMI display

• Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)

• HDMI (3D, Deep Colour, 4K); HDCP 2.2 compliant

• Built-in bi-directional RS-232 serial port for high-end system control

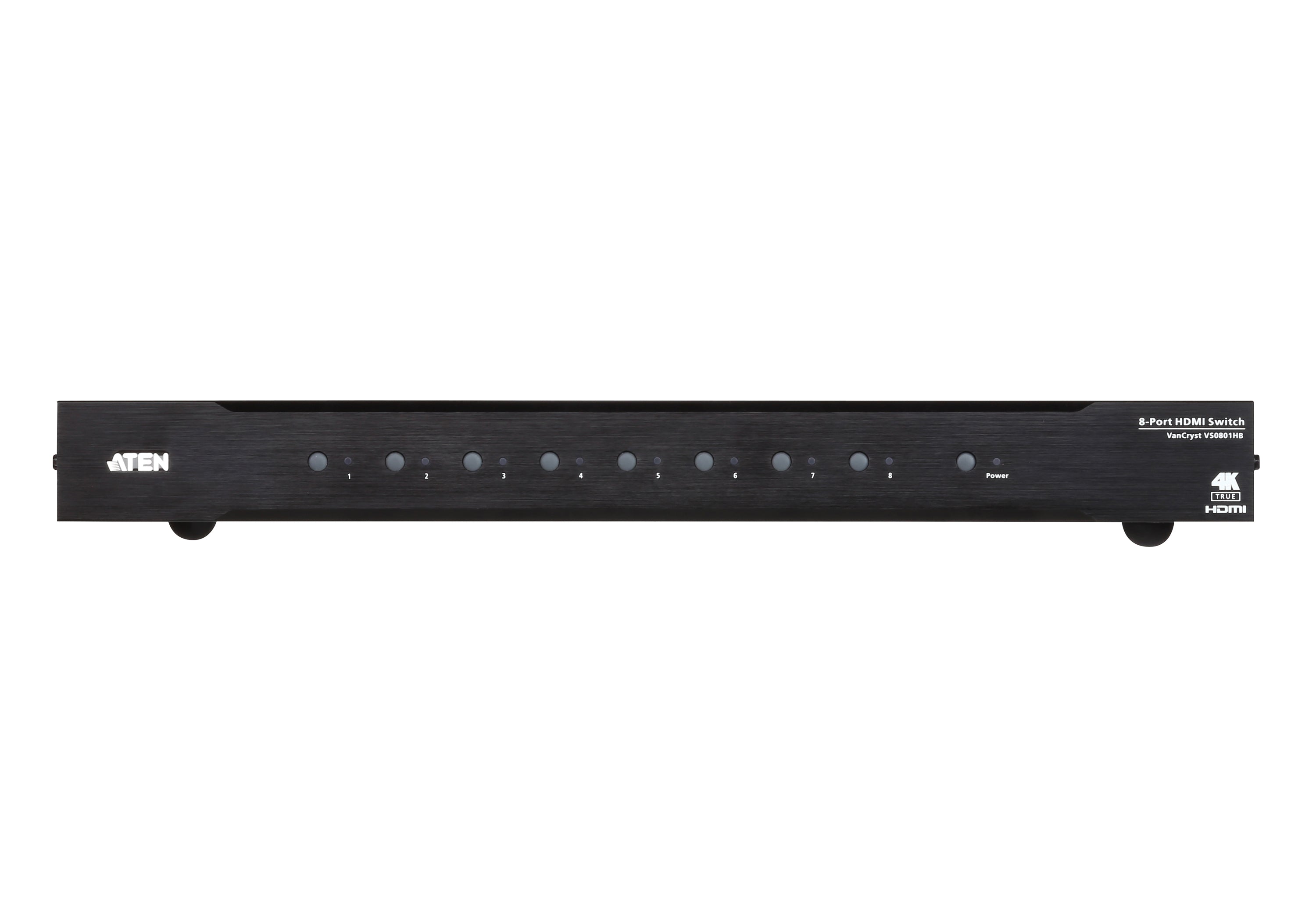

The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Colour up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.

Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theatre, meeting rooms, trade shows, and shopping centres.

Package Contents

  • 1x VS0801HB 8-port True 4K HDMI Switch
  • 1x IR Remote Control Unit
  • 1x IR Receiver Cable
  • 1x Power Adapter
  • 1x Rack Mounting Kit
  • 1x User Instructions



Switches

DIP

1 x Auto Switch ON / OFF

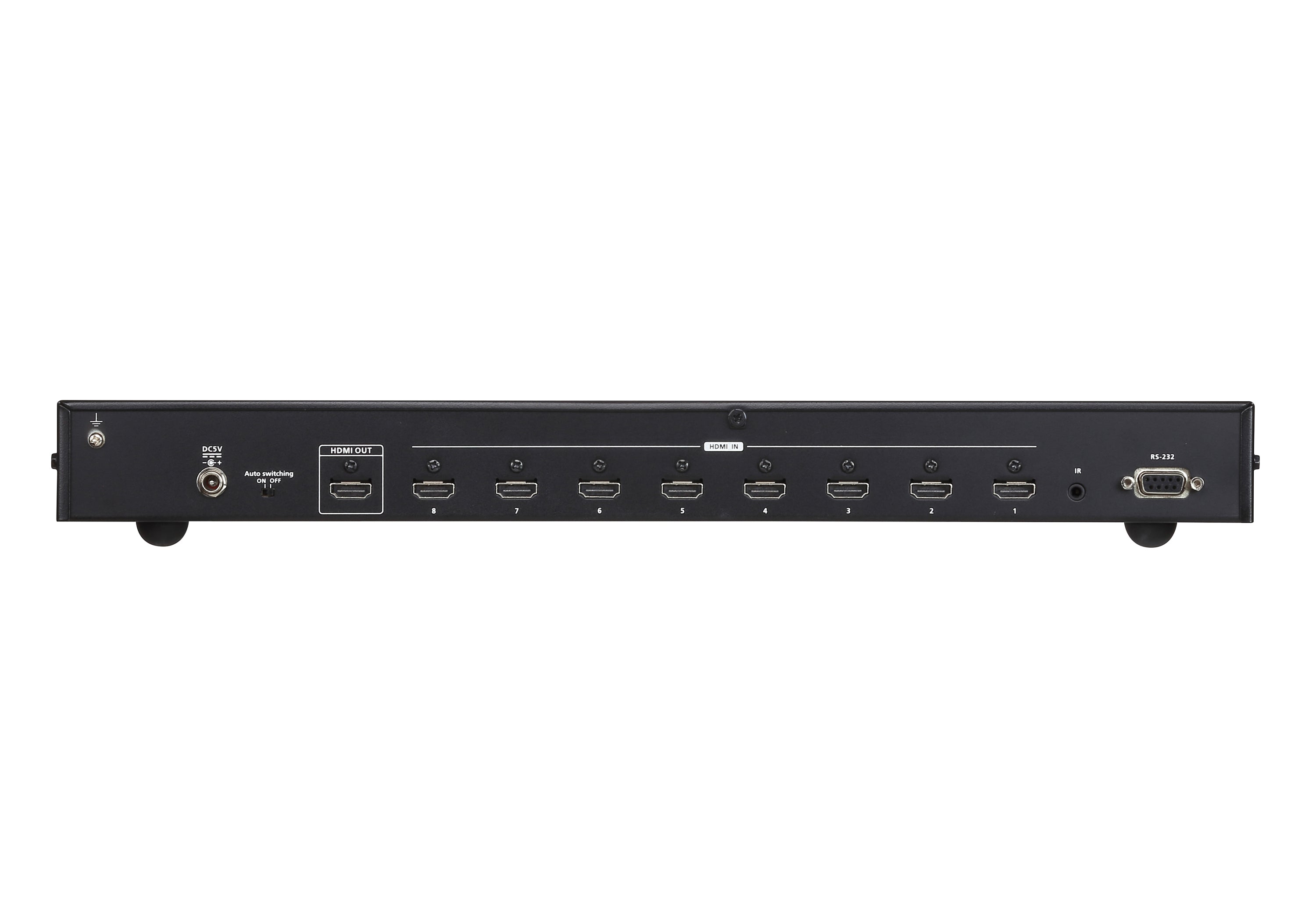

Video Input

Interfaces

8 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Video

Max. Data Rate

18 Gbps (6 Gbps Per Lane)

Max. Pixel Clock

600 MHz

Compliance

HDMI 2.0 (3D, Deep Colour)
HDCP 2.2
Consumer Electronics Control (CEC)

Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Max. Distance

5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Control

RS-232

Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

IR

1 x Mini Stereo Jack Female (Black)

Connectors

Power

1 x DC Jack (with locking)

Power Consumption

DC5.3V:3.73W:17BTU

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

2.14 kg ( 4.71 lb )

Dimensions (L x W x H)

43.72 x 15.83 x 4.40 cm
(17.21 x 6.23 x 1.73 in.)

Carton Lot

3 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VS0801HB Datasheet PDF
