Aten Emulator, HDMI - VC080

Aten
ATVC080CONCONVR
R 1,556.70 Ex VAT

• Automatically manages EDID communication between connected devices

• EDID Wizard – allows a user an easy way to manage EDID settings

• EDID mode selection – Default, Learning, Programming

• HDMI (3D, Deep Colour), HDCP compatible

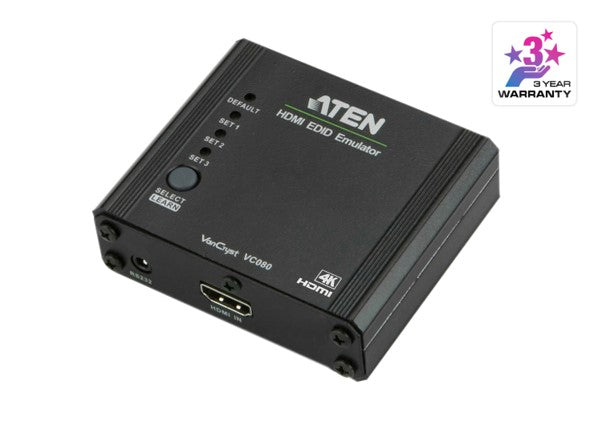

The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the HDMI source device to efficiently optimize video resolution.

The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.

Package Contents

1x VC080 4K HDMI EDID Emulator with Programmer

1x RS-232 Configuration Cable

1x USB to DC Power Cord

1x User Instructions



Max. Video Resolution

4096*2160@30Hz (4:4:4)
3840*2160@30Hz (4:4:4)

Data Rate

10.2 Gbps

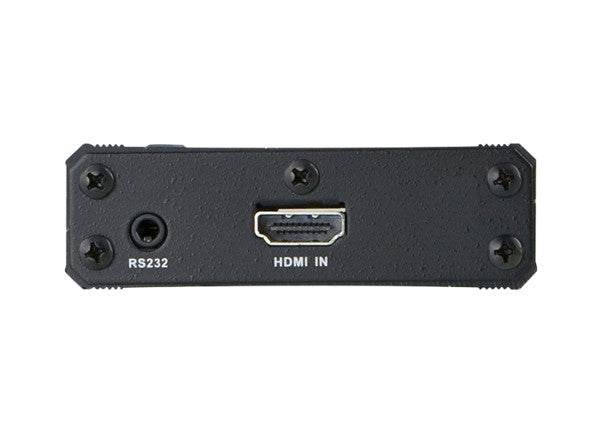

Video Input

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

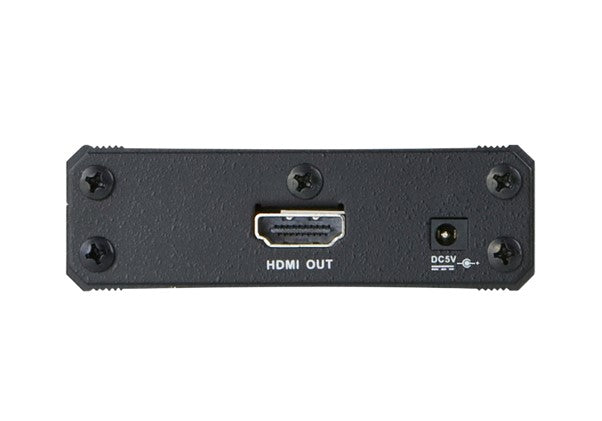

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Video

Compliance

HDMI 1.4 (3D, Deep Colour)
HDCP Compatible
Consumer Electronic Control (CEC)

Audio

Output

1 x HDMI Type A Female (Black)

EDID Settings

EDID Mode: Default / Learn / Customized (EDID Wizard support)

Connectors

Power

1 x DC Jack

Power Consumption

DC5V:0.17W:1BTU

Environmental

Operating Temperature

0 - 50 ºC

Storage Temperature

-20 - 60 ºC

Humidity

0 - 80% RH,  Non-Condensing

Physical Properties

Housing

Metal

Weight

0.15 kg ( 0.33 lb )

Dimensions (L x W x H)

7.90 x 7.76 x 2.45 cm
(3.11 x 3.06 x 0.96 in.)

Carton Lot

5 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VC080 Datasheet PDF
