Aten Extender, Fiber Optic, HDMI, Transmitter and Receiver - VE882

Aten
ATVE882EXTHDMIX
R 17,631.16 Ex VAT

• Extends the transmission range of HDMI, IR and RS-232 signals using one fibre optic cable

• Very long distance transmission – up to 600m

• HDMI (3D, Deep Colour), HDCP compatible – signalling rates up to 3.125 Gbits

• Supports bi-directional IR signal transmission, one way at a time

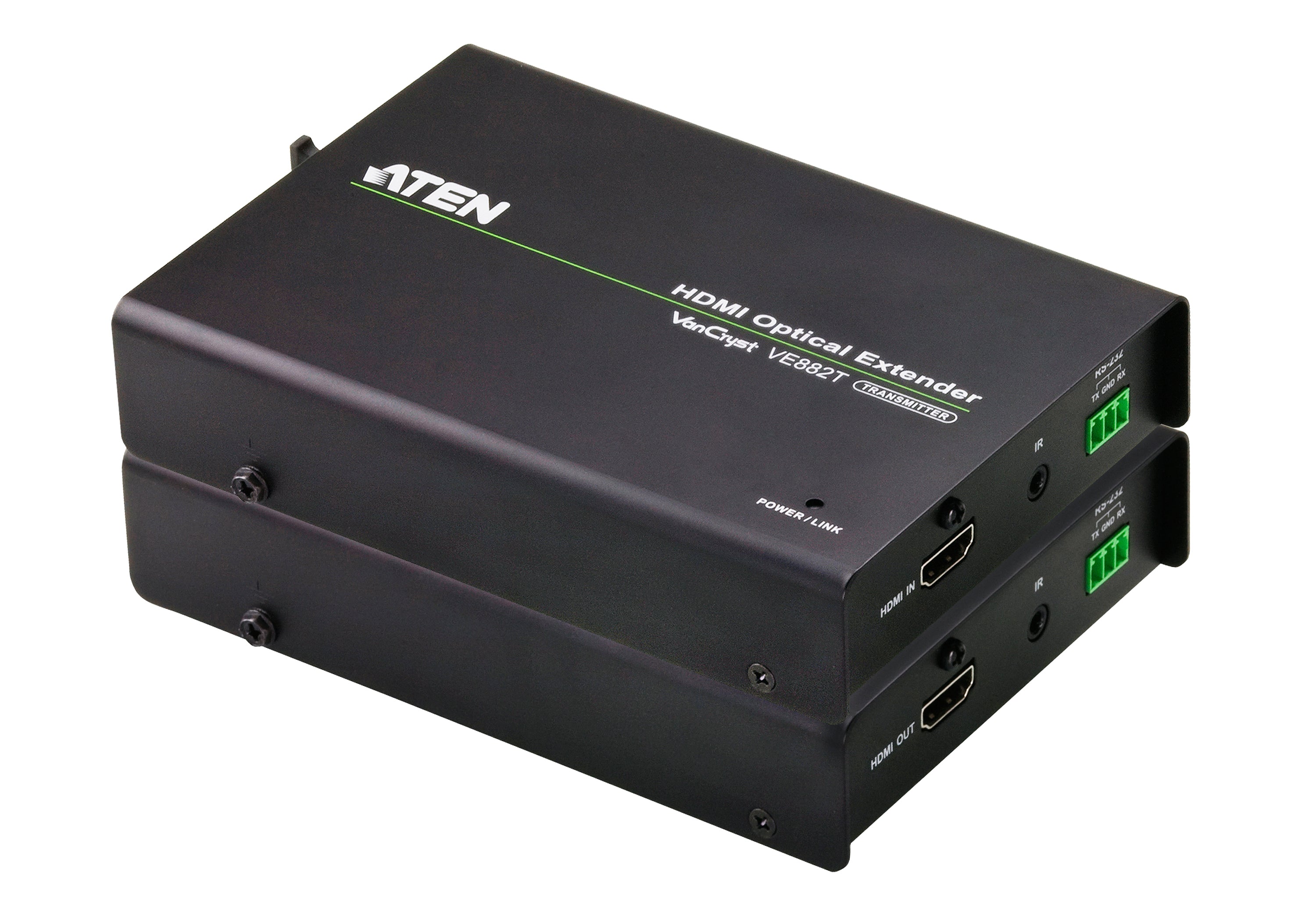

The VE882 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fibre to send high definition audio and video signals over large distances.

The VE882 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits).

The VE882 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.

Package Contents

1x VE882T

1x VE882R

1x IR Transmitter

1x IR Receiver

1x Mounting Kit

2x Power Adapters

1x User Instructions



Function

VE882R

VE882T

Video Input

Interfaces

N/A

1 x HDMI Type A Female (Black)

Impedance

N/A

100 Ω

Max. Distance

N/A

3 m

Video Output

Interfaces

1 x HDMI Type A Female (Black)

N/A

Impedance

100 Ω

N/A

Max. Distance

3 m

N/A

Video

Max. Data Rate

6.75 Gbps (2.25 Gbps Per Lane)

6.75 Gbps (2.25 Gbps Per Lane)

Max. Pixel Clock

225 MHz

225 MHz

Compliance

HDMI (3D, Deep Colour)
HDCP 1.4 Compatible

HDMI (3D, Deep Colour)
HDCP 1.4 Compatible

Max. Resolution

Up to 1080p

Up to 1080p

Max. Distance

1 x SFP Module (*Note)
600m @ Single mode (SM) fibre
300m @ OM3 Multi mode (MM) filber

1 x SFP Module (*Note)
600m @ Single mode (SM) fibre
300m @ OM3 Multi mode (MM) filber

Audio

Input

N/A

1 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

N/A

Connectors

Unit To Unit

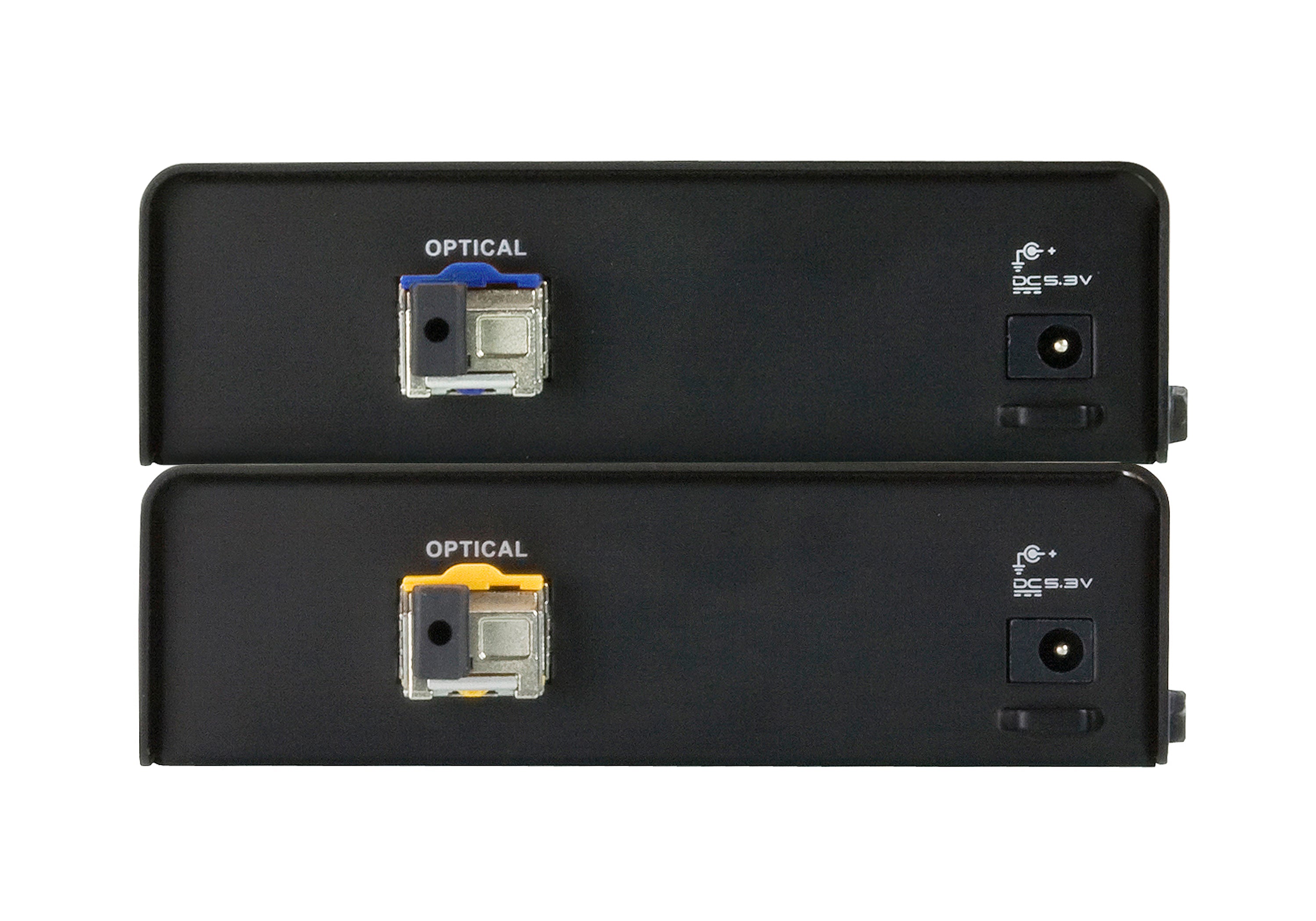

1 x bi-directional SFP (LC)

1 x bi-directional SFP (LC)

Power

1 x DC Jack

1 x DC Jack

Control

IR Channel

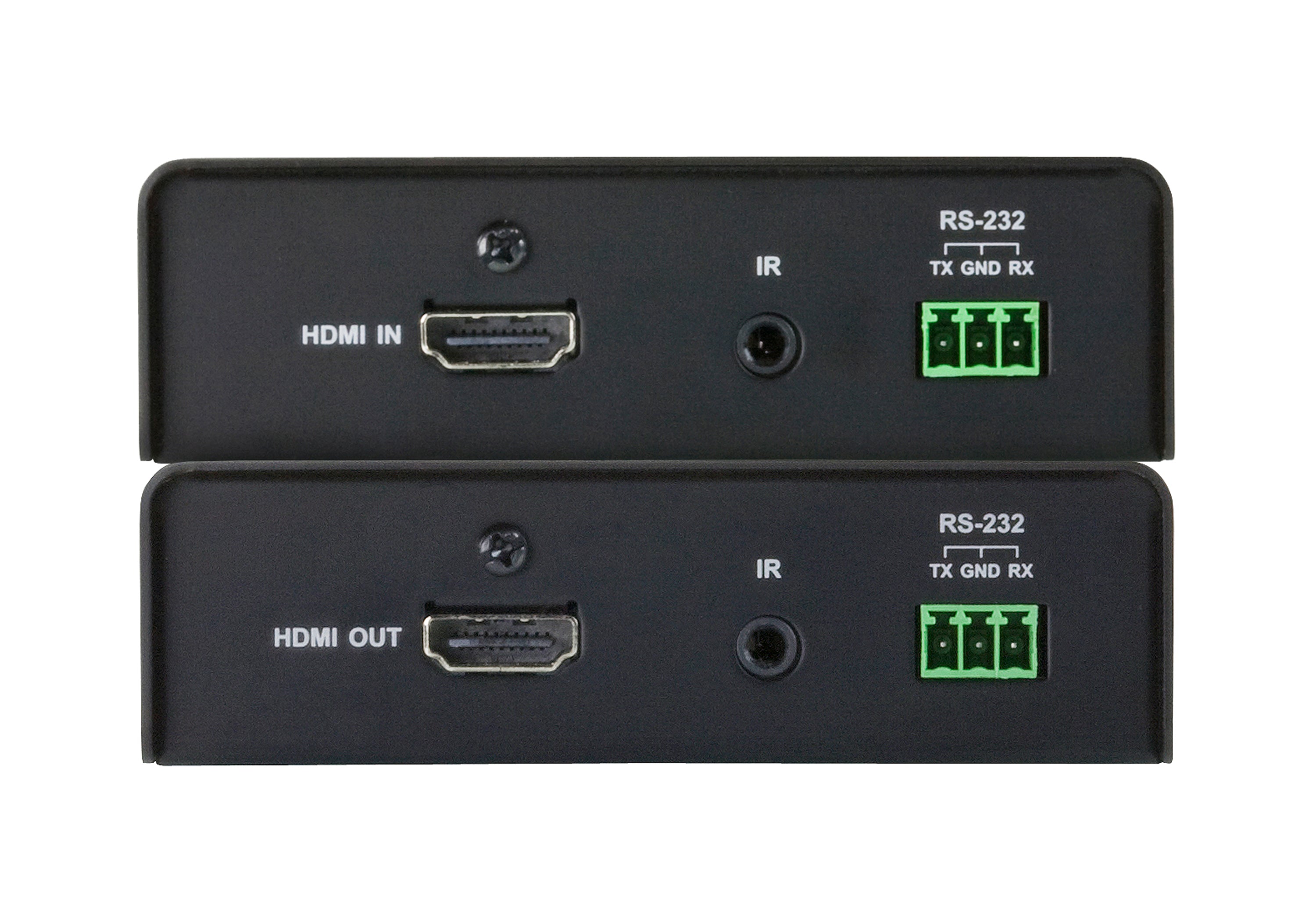

1 x Mini Stereo Jack Female (Black);
30~56 KHz full range transmission

1 x Mini Stereo Jack Female (Black);
30~56 KHz full range transmission

RS-232 Channel

1 x Terminal Block, 3 pole (Green)

1 x Terminal Block, 3 pole (Green)

Power Consumption

DC5.3V:4.69W:22BTU

DC5.3V:5.80W:27BTU

Environmental

Operating Temperature

0-40°C

0-40°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.44 kg ( 0.97 lb )

0.44 kg ( 0.97 lb )

Dimensions (L x W x H)

14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)

14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)

Carton Lot

5 pcs

5 pcs

Note

1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fibre type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
2. It is recommended that you use a Single Mode optical fibre cable that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications.
3. The VE882 supports OM3 optical fibre which can extend the transmission distance up to 300 meters

1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fibre type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
2. It is recommended that you use a Single Mode optical fibre cable that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifi cations.
3. The VE882 supports OM3 optical fibre which can extend the transmission distance up to 300 meters

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



Input Resolutions

640 x 480 @ 60 Hz

1366 x 768 @ 60 Hz

720 x 480 @ 60 Hz

1440 x 900 @ 60 Hz

800 x 600 @ 60 Hz

1600 x 1200 @ 60 Hz

1024 x 768 @ 60 Hz

1680 x 1050 @ 60 Hz

1280 x 720 @ 60 Hz

1920 x 1080 @ 50/60 Hz

1280 x 800 @ 60 Hz

1920 x 1200 @ 60 Hz

1280 x 1024 @ 60 Hz




VE882 Datasheet PDF
