Aten Extender, HDMI, Transmitter and Receiver - VE800A

Aten
ATVE800AEXTHDMIX
R 1,946.80 Ex VAT

• Uses Cat 5e cable to extends the distance between HDMI source and HDMI display

• Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m

• HDMI (3D, Deep Color); HDCP Compatible

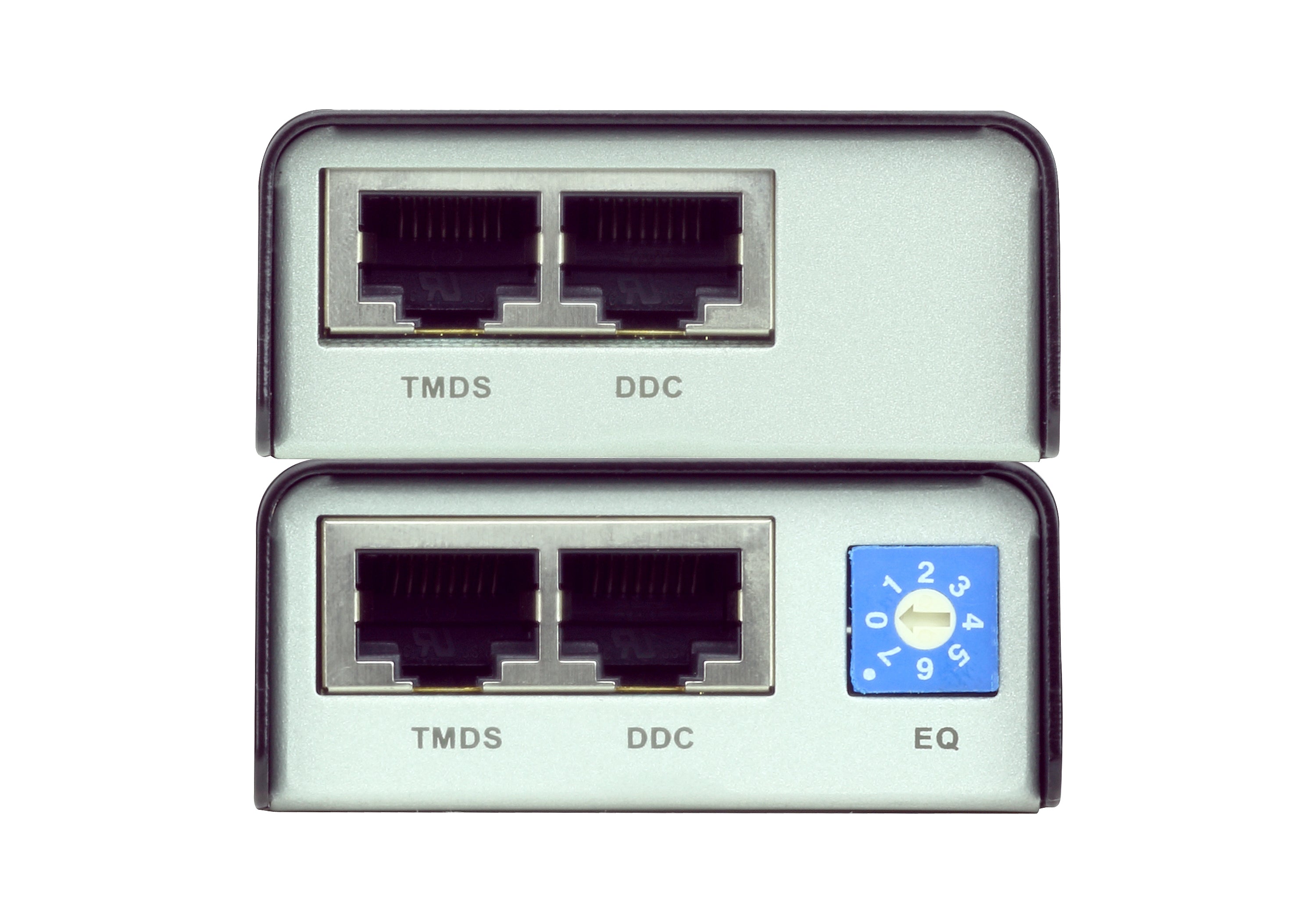

• 8 segment equalization adjustment switch optimizes display quality

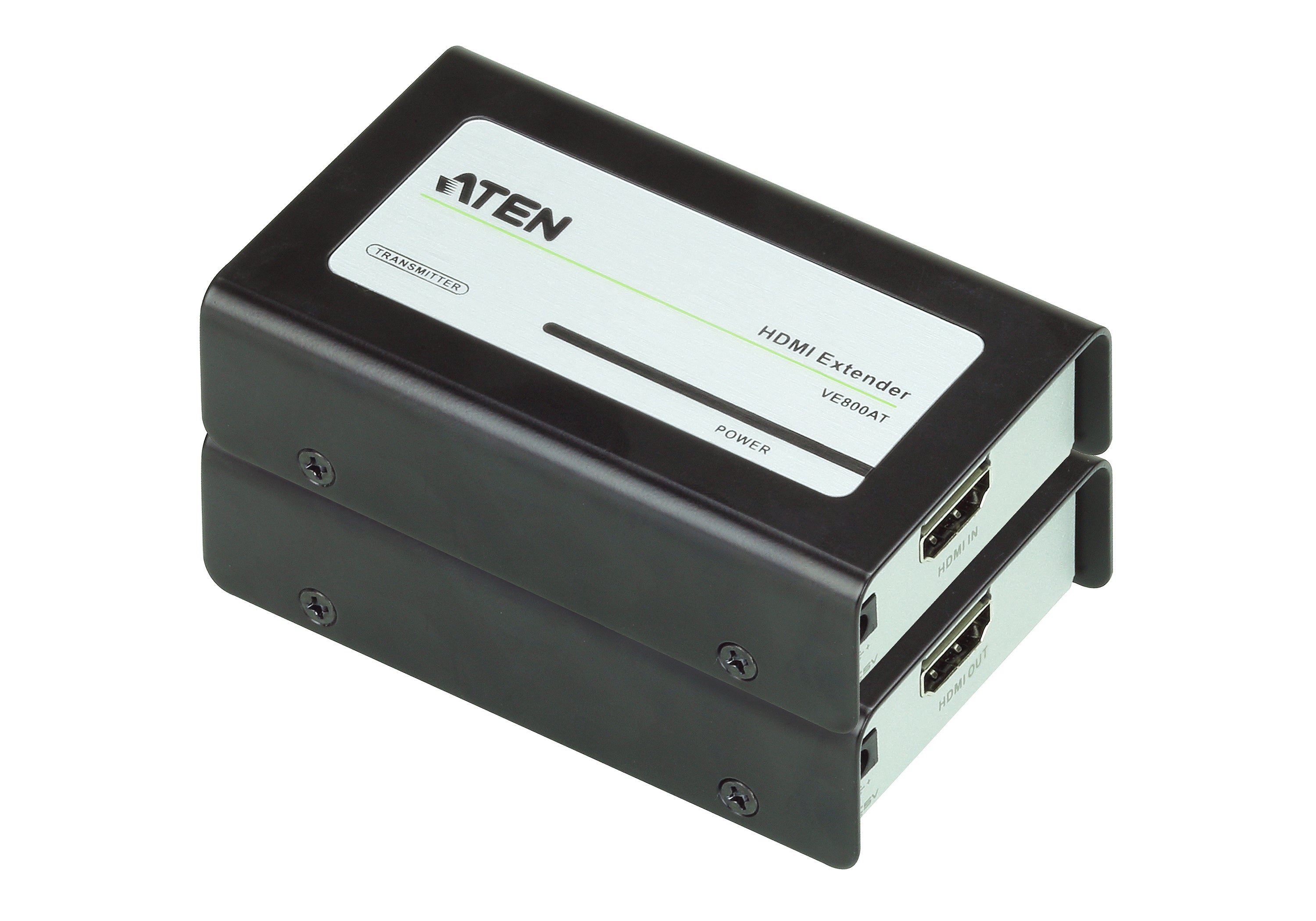

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.



Package Contents

  • 1x VE800AT HDMI Extender
  • 1x VE800AR HDMI Extender
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions

Function

VE800AR

VE800AT

Video Output

Interfaces

1 x HDMI Type A Female (Black)

N/A

Impedance

100 Ω

N/A

Max. Distance

3 m

N/A

Video Input

Impedance

N/A

100 Ω

Interfaces

N/A

1 x HDMI Type A Female (Black)

Max. Distance

N/A

3 m

Video

Max. Data Rate

6.75 Gbps (2.25 Gbps Per Lane)

6.75 Gbps (2.25 Gbps Per Lane)

Max. Pixel Clock

225 MHz

225 MHz

Compliance

HDMI (3D, Deep Color)
HDCP Compatible

HDMI (3D, Deep Color)
HDCP Compatible

Max. Resolutions / Distance

Up to 1080p@40m; 1080i@60m

Up to 1080p@40m; 1080i@60m

Audio

Output

1 x HDMI Type A Female (Black)

N/A

Input

N/A

1 x HDMI Type A Female (Black)

Connectors

Power

1 x DC Jack

1 x DC Jack

Power Consumption

DC5V:0.61W:3BTU

DC5V:0.9W:4BTU

Environmental

Operating Temperature

0 - 50°C

0 - 50°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.16 kg ( 0.35 lb )

0.16 kg ( 0.35 lb )

Dimensions (L x W x H)

9.00 x 5.50 x 2.20 cm
(3.54 x 2.17 x 0.87 in.)

9.00 x 5.50 x 2.20 cm
(3.54 x 2.17 x 0.87 in.)

Carton Lot

5 pcs

5 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VE800A Datasheet PDF
