Aten Extender, HDMI, HDBaseT - VE811

Aten
ATVE811EXTHDMIX
R 7,777.93 Ex VAT

• HDBaseT connectivity – extends 4K HDMI signals up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable

• Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p

• Supports resolutions of up to 4K and 1080p

• HDCP 2.2 compatible

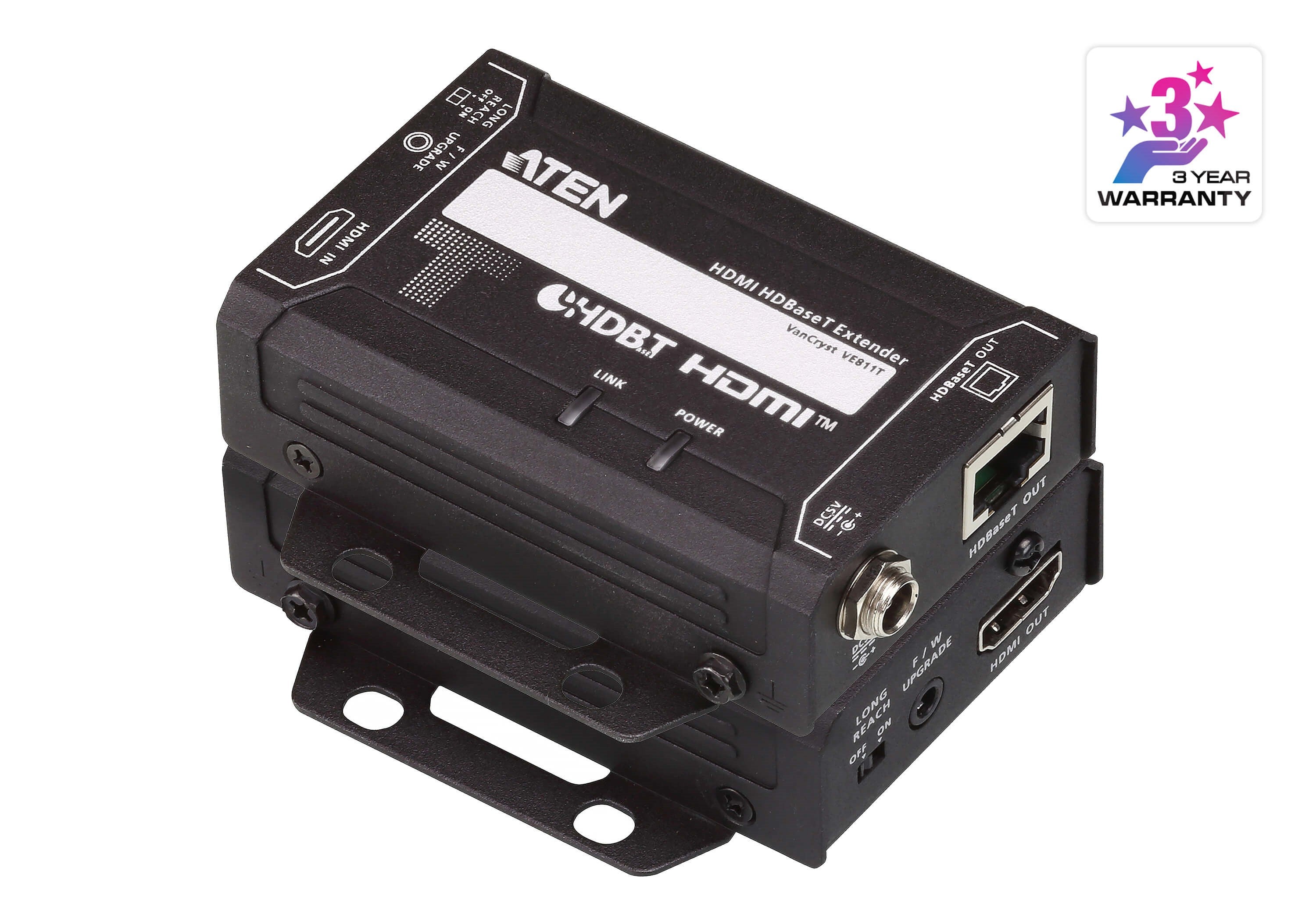

The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811 meets HDMI specification features including 3D, Deep Colour, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 7.1 ch and DTS HD audio.

Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.

Features:

• HDBaseT connectivity – extends 4K HDMI signals up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable

• Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p

• HDMI (3D, Deep Colour, 4K)

• HDCP 2.2 compatible

• Supports resolutions of up to 4K and 1080p

• Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control

• Supports wide screen format

• Plug and play – no software required

• Built-in 8 kV / 15 kV ESD protection

• Rack mountable

Function

VE811R

VE811T

Video Input

Interfaces

N/A

1 x HDMI Type A Female (Black)

Impedance

N/A

100 Ω

Max. Distance

N/A

3 m

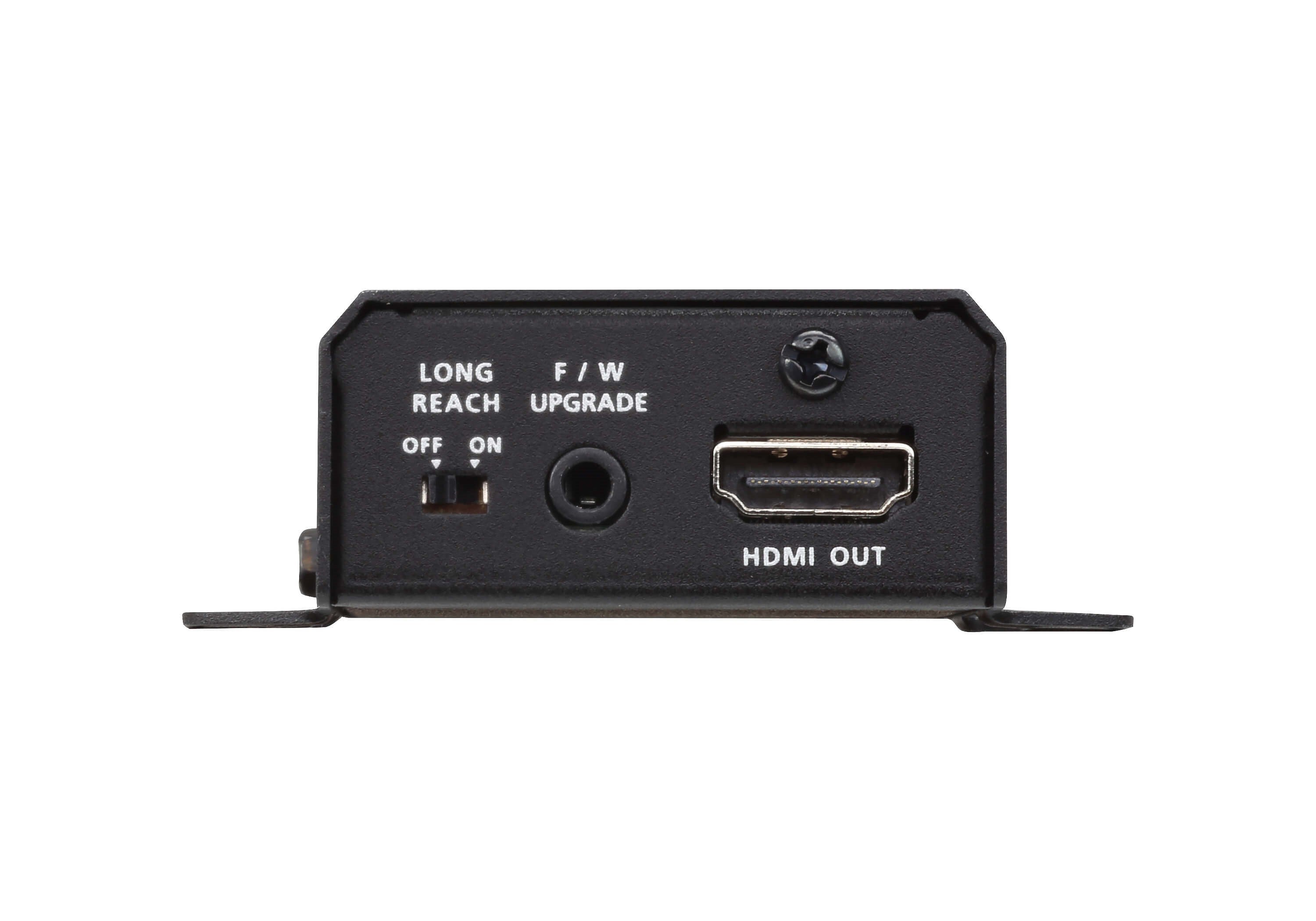

Video Output

Interfaces

1 x HDMI Type A Female (Black)

N/A

Impedance

100 Ω

N/A

Max. Distance

3 m

N/A

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

340 MHz

Compliance

HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

N/A

1 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

N/A

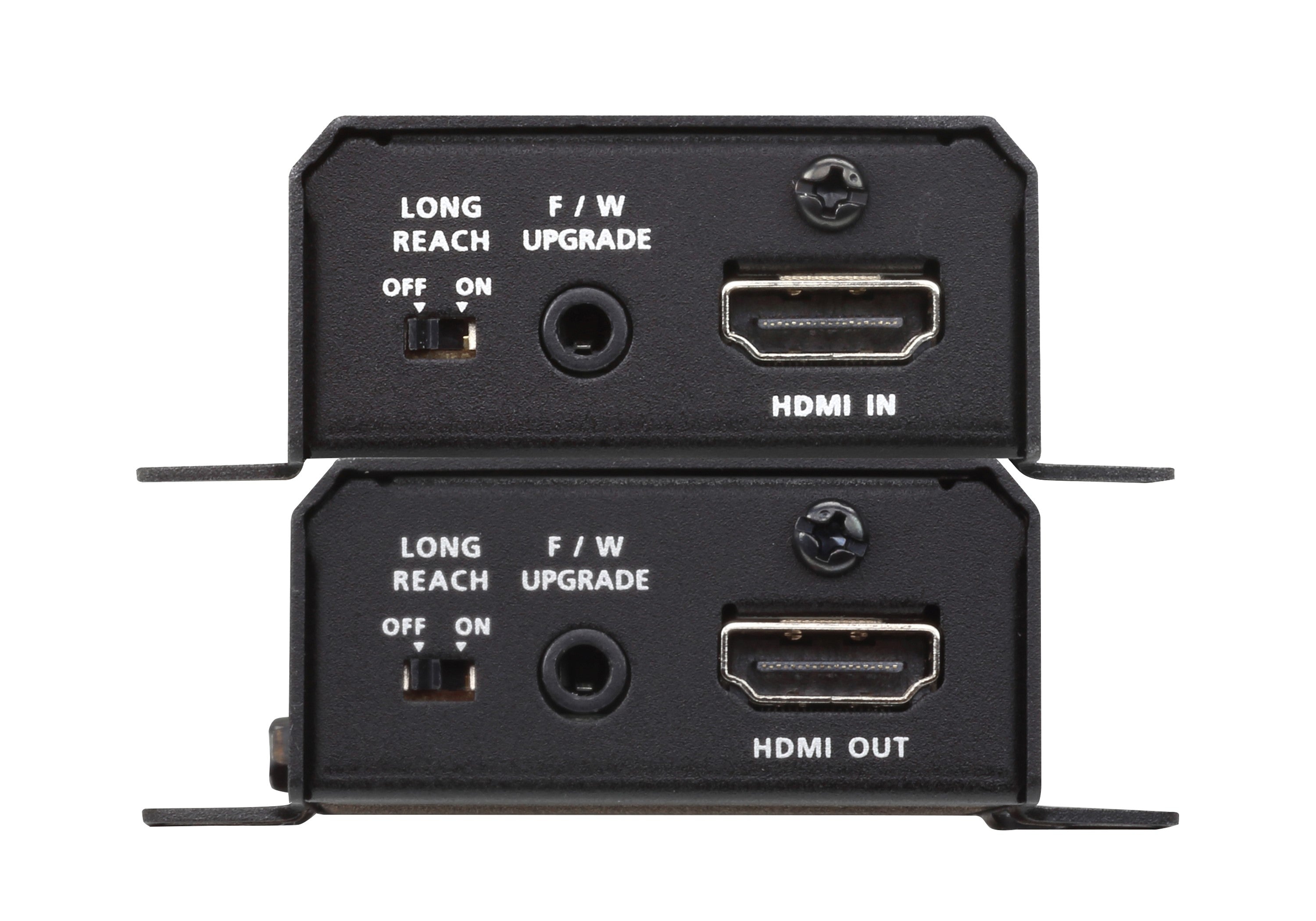

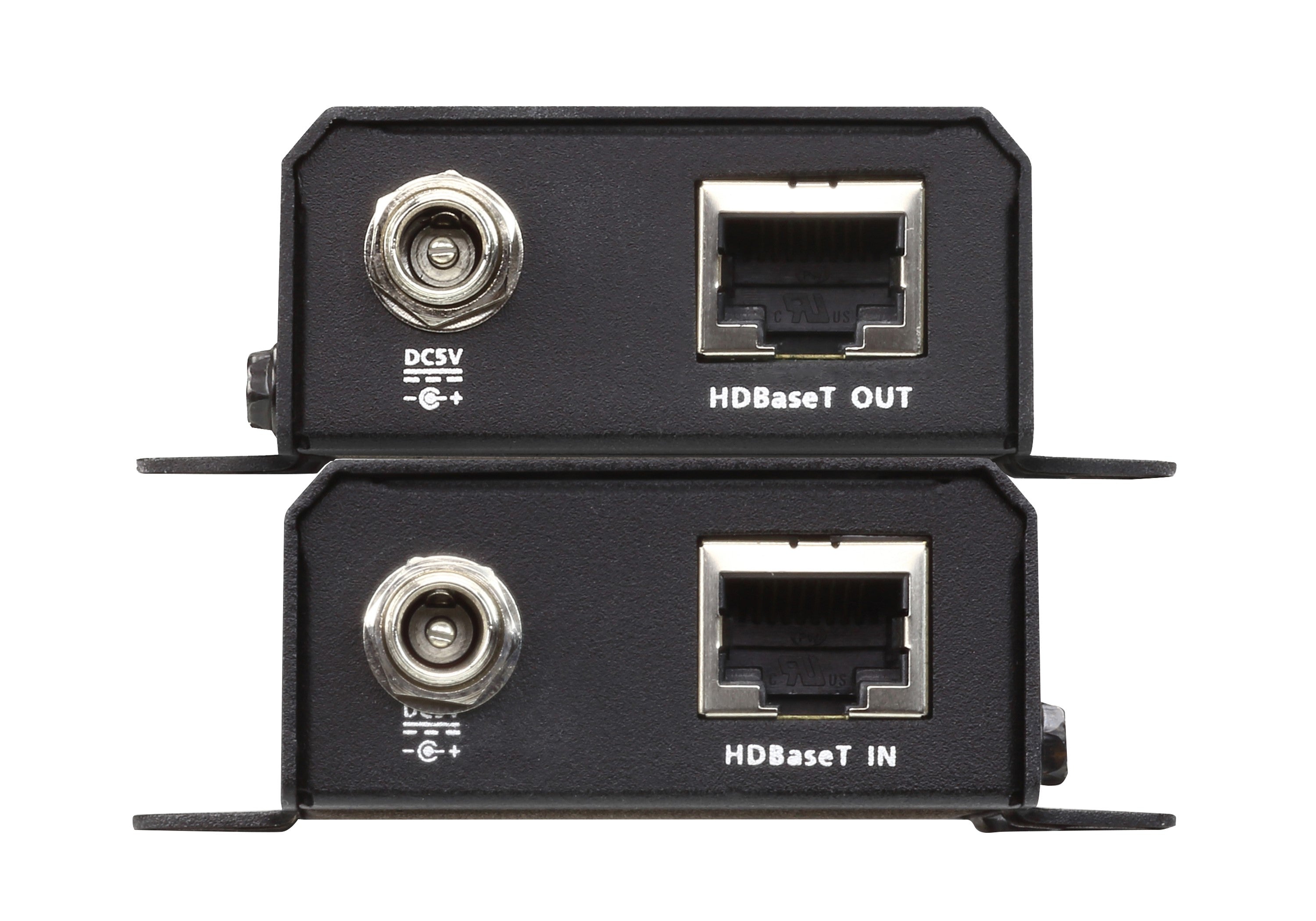

Connectors

Unit To Unit

1 x RJ-45 Female

1 x RJ-45 Female

Firmware Upgrade

1 x Mini Stereo Jack Female (Black)

1 x Mini Stereo Jack Female (Black)

Power

1 x DC Jack (Black) with locking

1 x DC Jack (Black) with locking

Switches

Long Reach Mode Switch

1 x Slide Switch - ON/OFF

1 x Slide Switch - ON/OFF

Power Consumption

DC5V:3.84W:18BTU

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

DC5V:3.77W:18BTU

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature

0 - 40°C

0 - 40°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.17 kg ( 0.37 lb )

0.16 kg ( 0.35 lb )

Dimensions (L x W x H) with bracket

8.64 x 7.30 x 2.47 cm
(3.4 x 2.87 x 0.97 in.)

8.64 x 7.30 x 2.47 cm
(3.4 x 2.87 x 0.97 in.)

Dimensions (L x W x H) without bracket

8.20 x 5.20 x 2.37 cm
(3.23 x 2.05 x 0.93 in.)

8.20 x 5.20 x 2.37 cm
(3.23 x 2.05 x 0.93 in.)



Input Resolutions

640 x 480 @ 60/67/72/75 Hz

1920 x 1200 @ 60 Hz (Reduced Blanking)

640 x 480 @ 60Hz (4:3)

480p 60 Hz (4:3)/(16:9)

720 x 400 @ 70 Hz

576p 50 Hz (4:3)/(16:9)

800 x 600 @ 56/60/72/75 Hz

720p 50/60 Hz

1024 x 768 @ 60/70/75 Hz

1080i 50/ 60 Hz

1280 x 800 @ 60 Hz

1080p 24/25/30/50/60 Hz

1280 x 1024 @ 60/75 Hz

3840 x 2160p 24/25/30 Hz

1400 x 1050 @ 60 Hz

3840 x 2160p 50/60 Hz 4:2:0

1440 x 900 @ 60 Hz

4096 x 2160p 24/25/30 Hz

1600 x 1200 @ 60 Hz

4096 x 2160p 50/60 Hz 4:2:0

1680 x 1050 @ 60 Hz



1920 x 1080 @ 60 Hz



1920 x 1200 @ 60 Hz
