Aten Extender, HDMI, HDBaseT, Receiver - VE812R

Aten
ATVE812REXTHDMIX
R 4,401.30 Ex VAT

• Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver

• HDMI (3D, Deep Colour, 4k); HDCP Compatible

• Long distance transmission - up to 100m

• Supports up to 340MHz bandwidth for high performance video

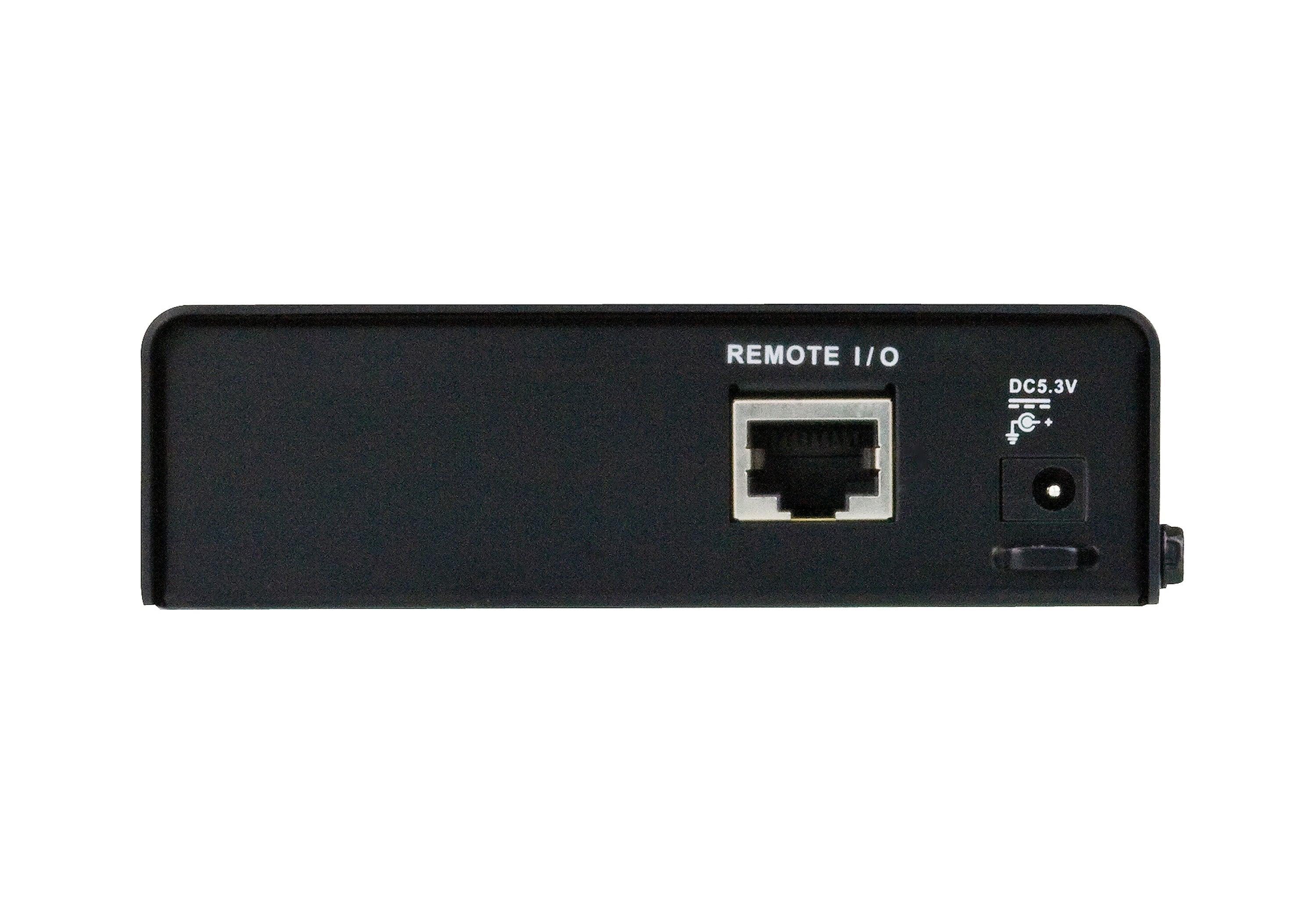

The VE812R HDMI HDBaseT Receiver enables an HDMI display to be located up to 100 meters away from the source device. It can be conveniently extended using only one Cat 5e cable, which is cost-effective.

The VE812R supports HDMI (3D, Deep Colour), Ultra HD (4k x 2k), and is HDCP compatible. Furthermore, the remote EDID pass-through ensures optimum video quality for any HDMI display.

The VE812R is perfect for the meeting room, home theatre or any installation that needs long distance transmission and superior video quality.

Package Contents

1x VE812R HDMI HDBaseT Receiver

1x Power Adapter

1x Mounting Kit

1x User Instructions

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

3 m

Video

Max. Data Rate

10.2 Gbps (3.4 Gbps Per Lane)

Max. Pixel Clock

Up to 340 MHz

Compliance

HDMI (3D, Deep Colour, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Output

1 x HDMI Type A Female (Black)

Connectors

Power

1 x DC Jack

Power Consumption

DC5.3V:5.06W:24BTU

Environmental

Operating Temperature

0 - 50°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.41 kg ( 0.9 lb )

Dimensions (L x W x H)

14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)

Carton Lot

5 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
