Aten Extender, HDMI, HDBaseT - Lite, Receiver - VE801R

Aten
ATVE801REXTHDMIX
R 2,284.56 Ex VAT

• HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable

• Rack- Mountable

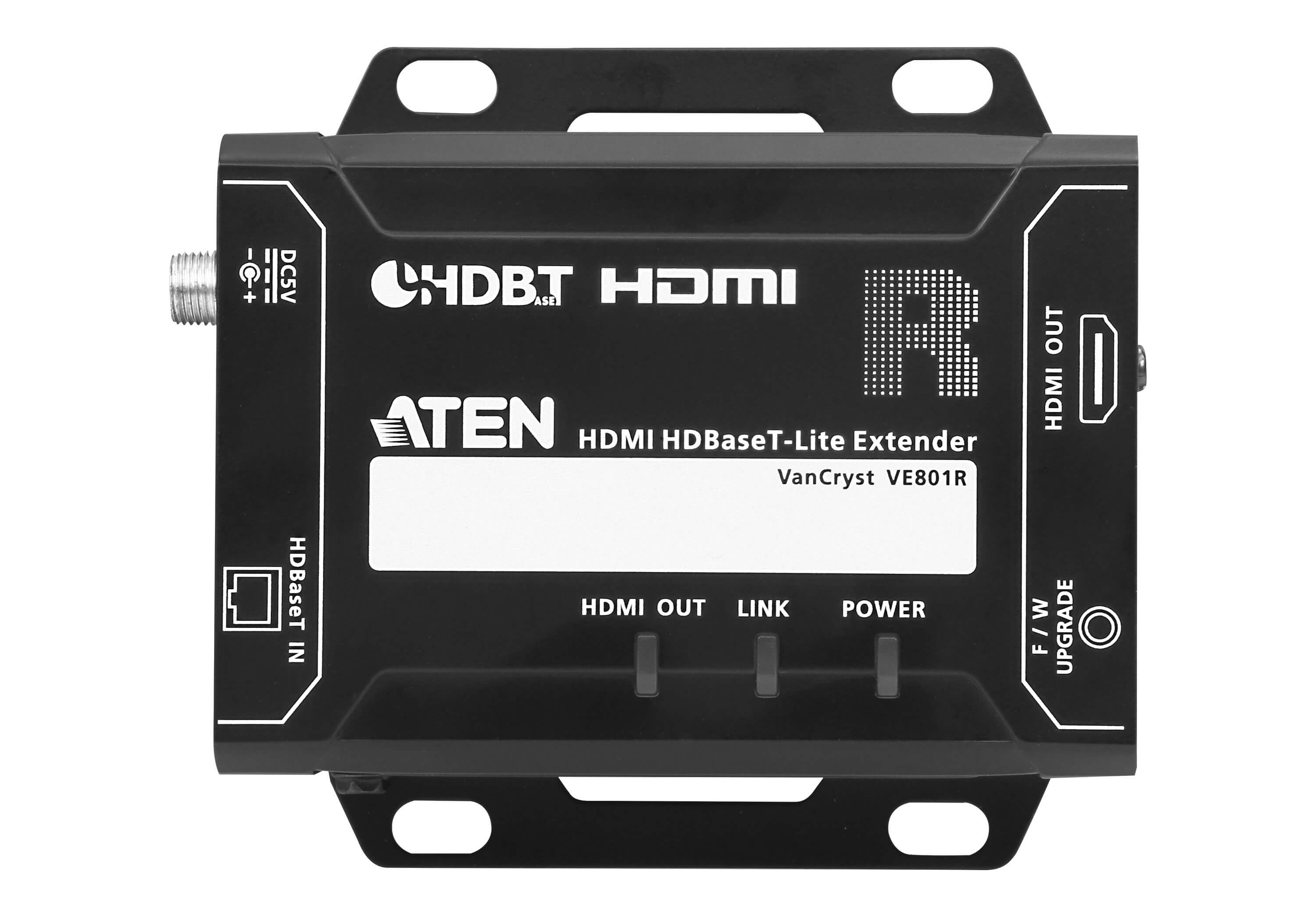

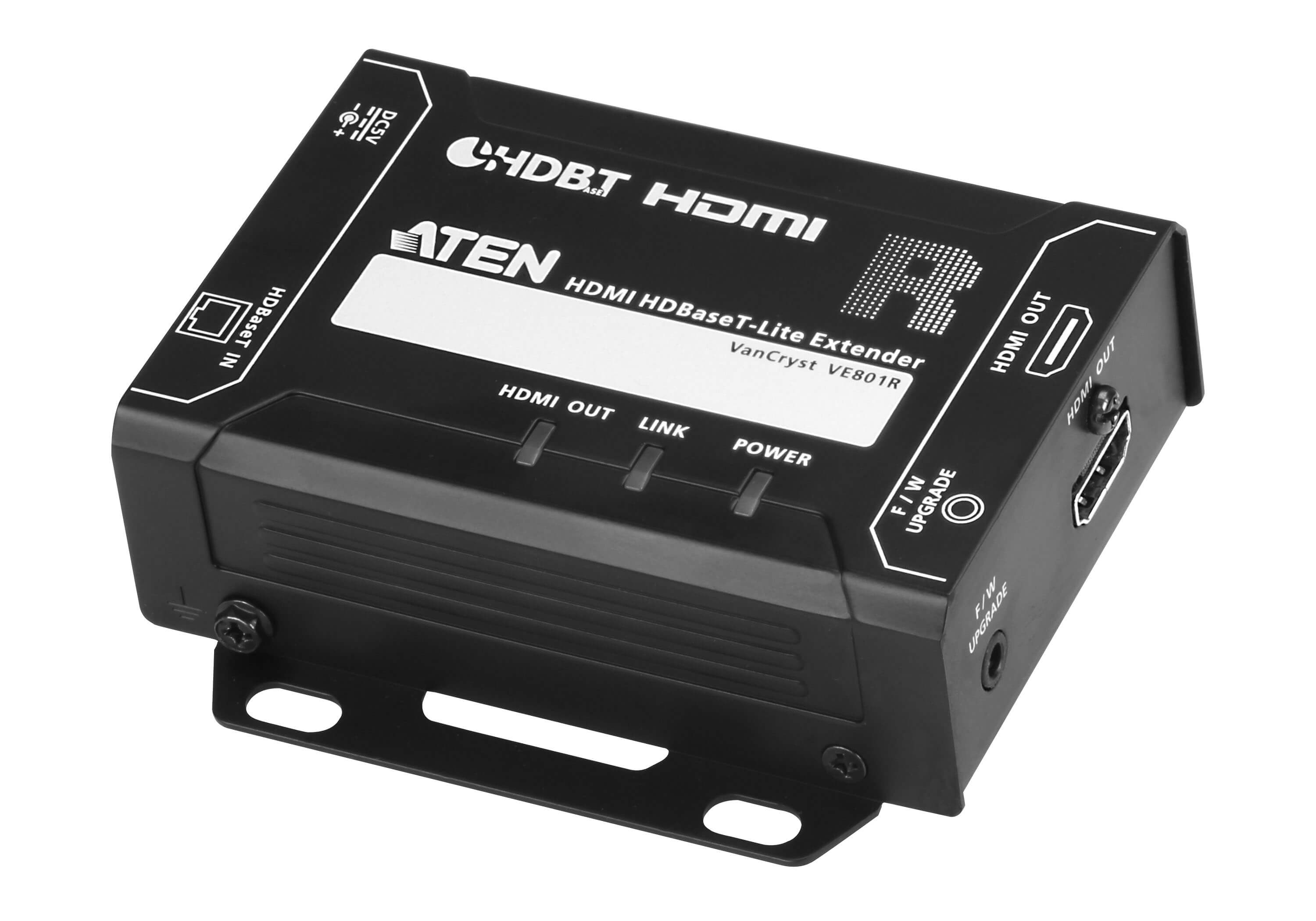

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centres or any installation that requires superior HDMI video quality to be extended for great distances.

* Compatible HDBaseT Transmitter Units: VE801T

Package Contents

  • 1x VE801R HDMI HDBaseT-Lite Extender
  • 1x Power Adapter
  • 1x User Instructions

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100Ω

Max. Distance

3 m

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Output

1 x HDMI Type A Female (Black)

Connectors

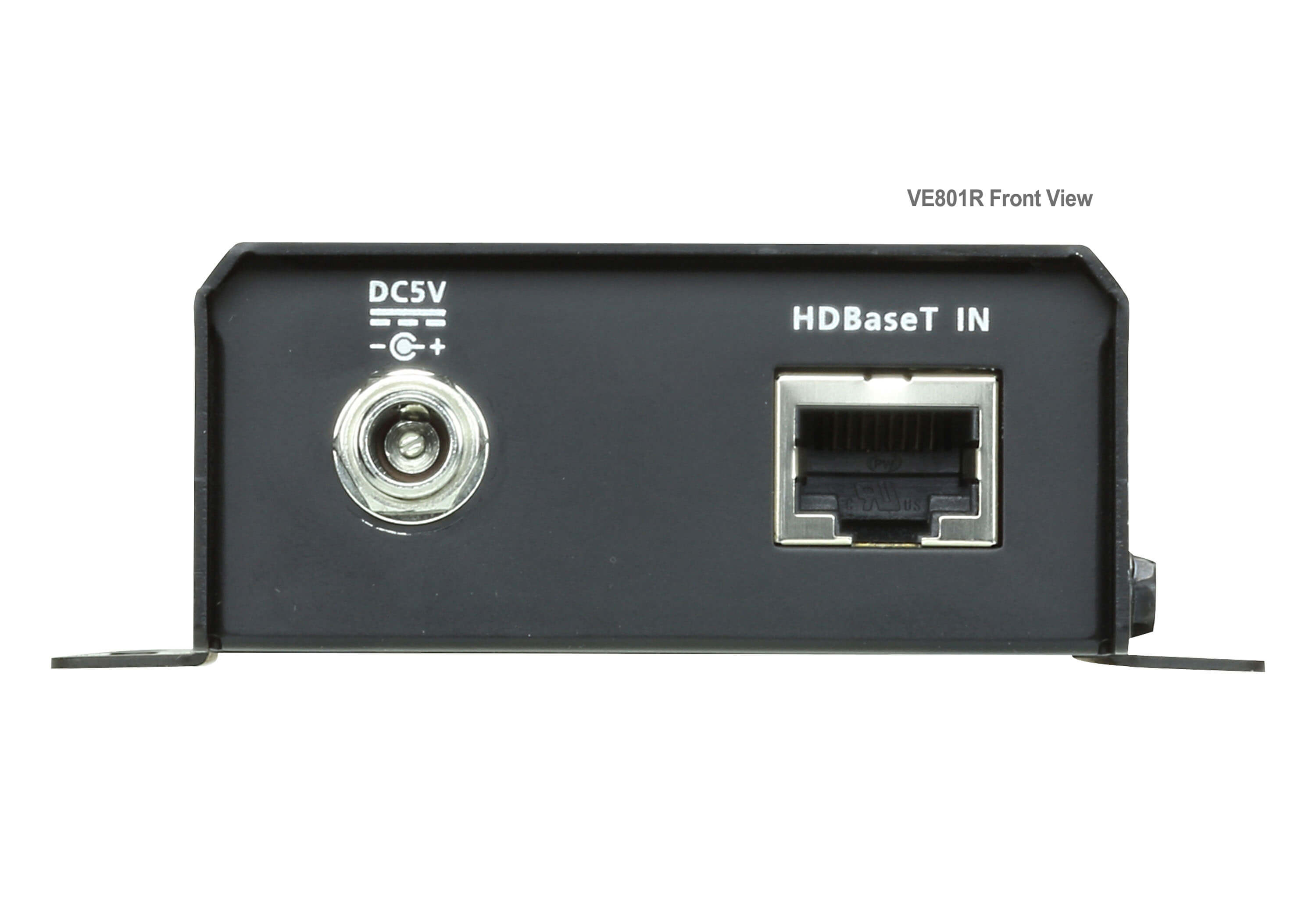

Power

1 x DC Jack (Black) with locking

Unit To Unit

1 x RJ-45 Female

Power Consumption

DC5V:4.24W:20BTU

Environmental

Operating Temperature

0 - 50°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.25 kg ( 0.55 lb )

Dimensions (L x W x H) with bracket

9.86 x 8.70 x 3.00 cm
(3.88 x 3.43 x 1.18 in.)

Dimensions (L x W x H) without bracket

9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)



VE801R Datasheet PDF
