Aten Extender, HDMI, HDBaseT, Receiver - VE811R

Aten
ATVE811REXTHDMIX
R 4,010.43 Ex VAT

• HDBaseT connectivity – extends 4K HDMI signals up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable

• Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p

• Supports resolutions of up to 4K and 1080p

• HDCP 2.2 compatible

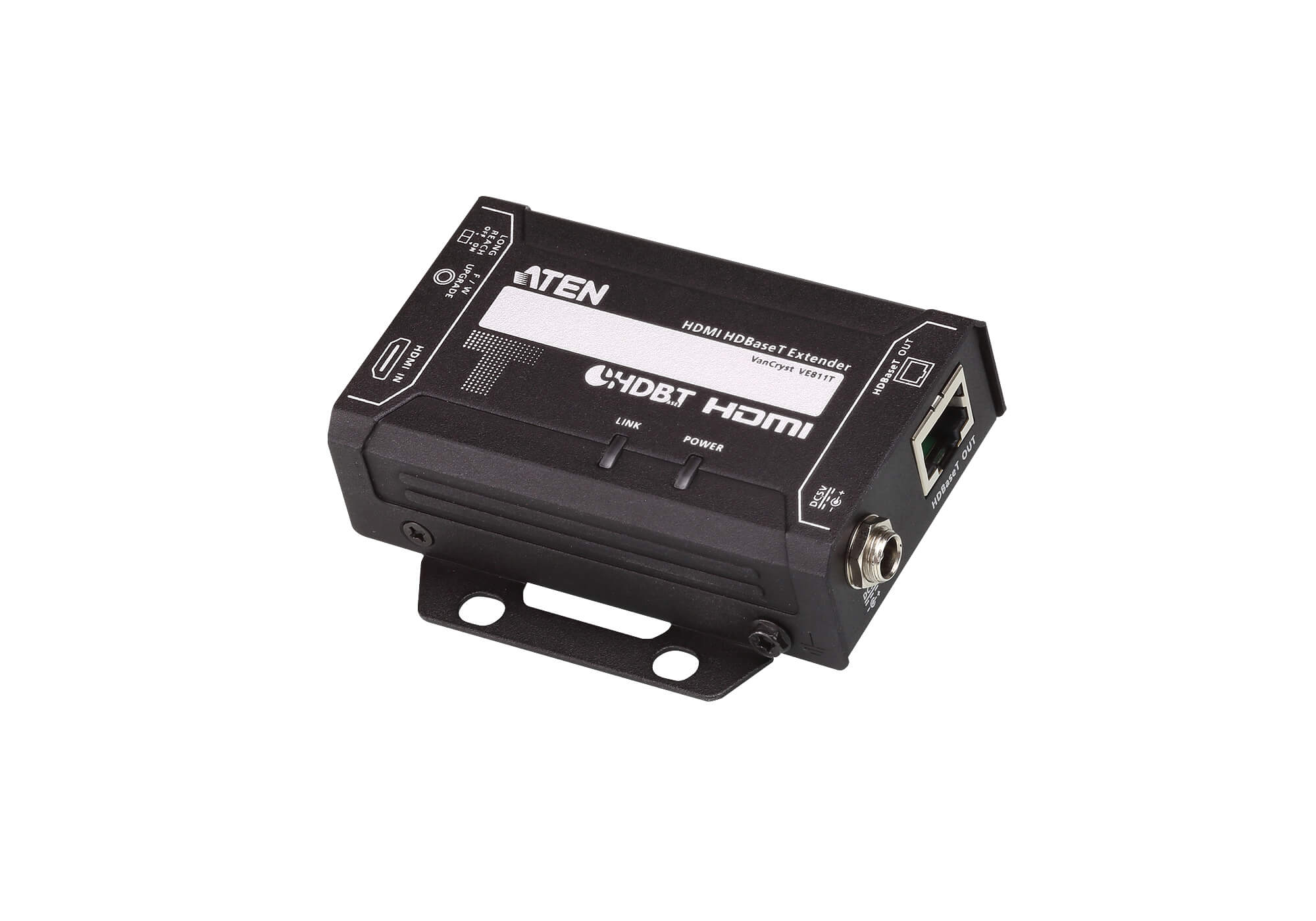

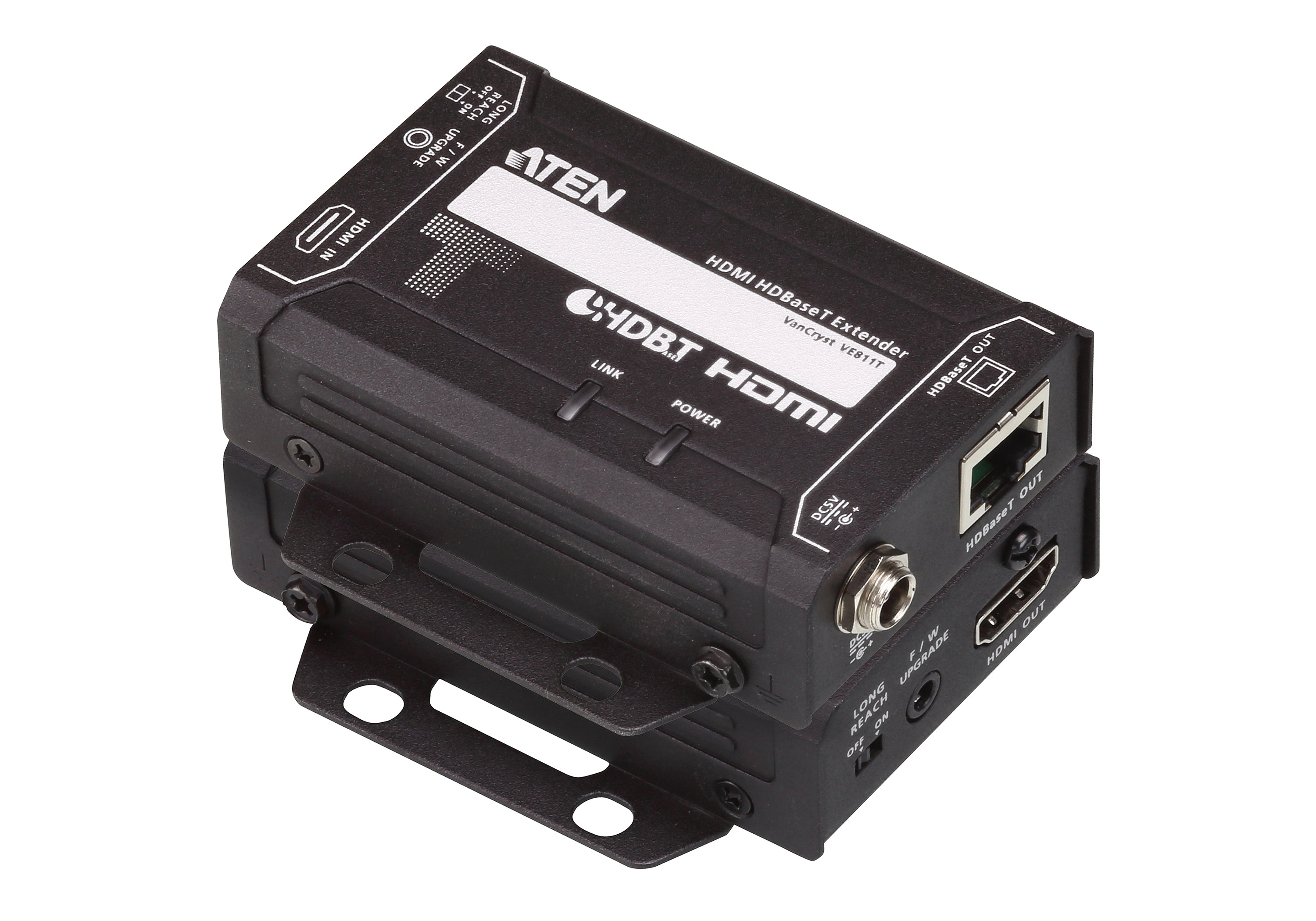

The ATEN VE811R HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to 100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811R meets HDMI specification features, including 3D, Deep Colour, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 5.1 and DTS HD audio.

Pushing the technology and design to the limit, the compact design makes the VE811R easy to mount in any location. Engineered for today’s digital trends, the VE811R is ideal for meeting rooms or any setting that requires high-quality HDMI video to be extended for great distances.

Package Contents

1x VE811R HDMI HDBaseT Receiver

1x Power Adapter

1x User Instructions

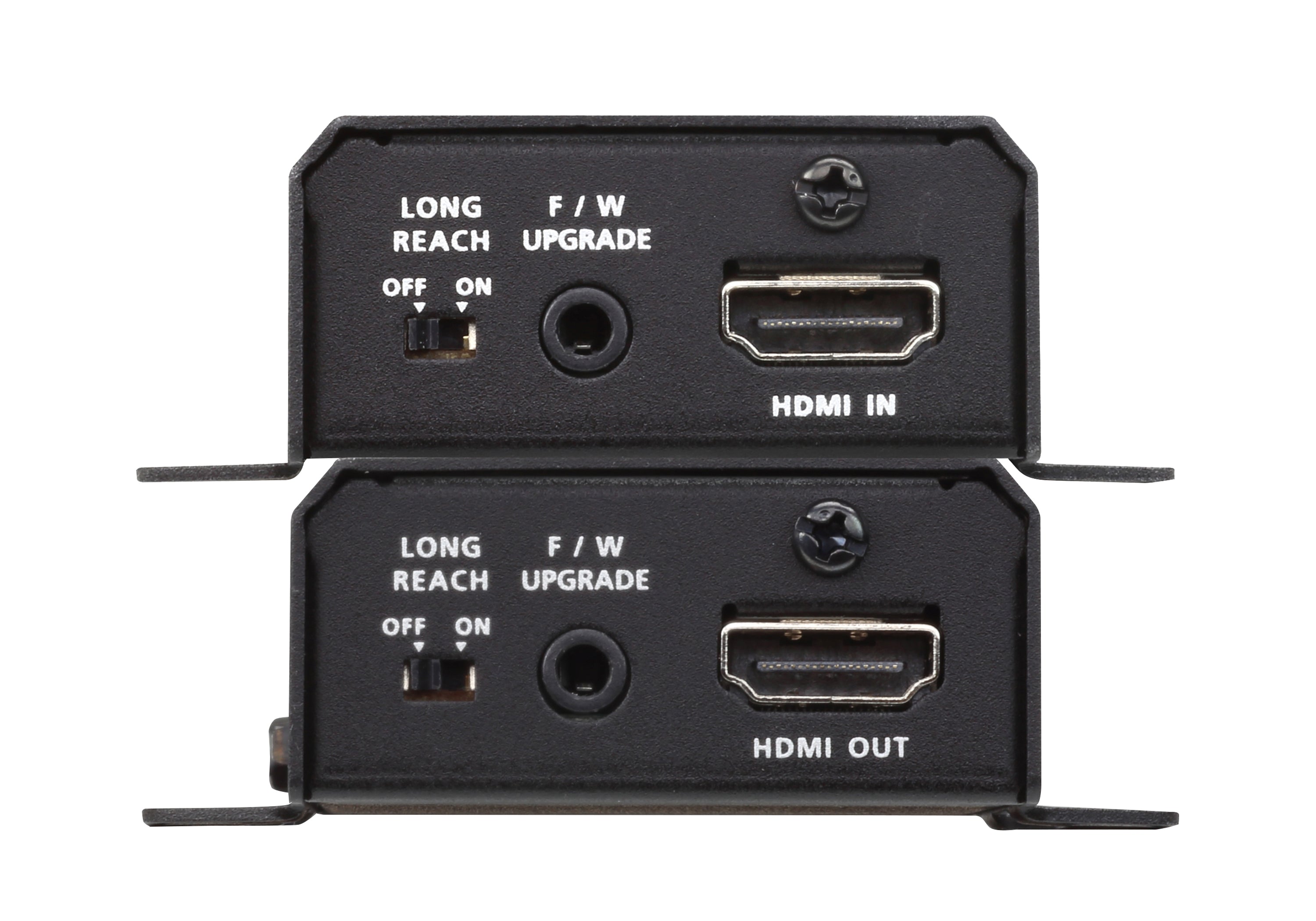

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

3 m

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI (3D, Deep Colour, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

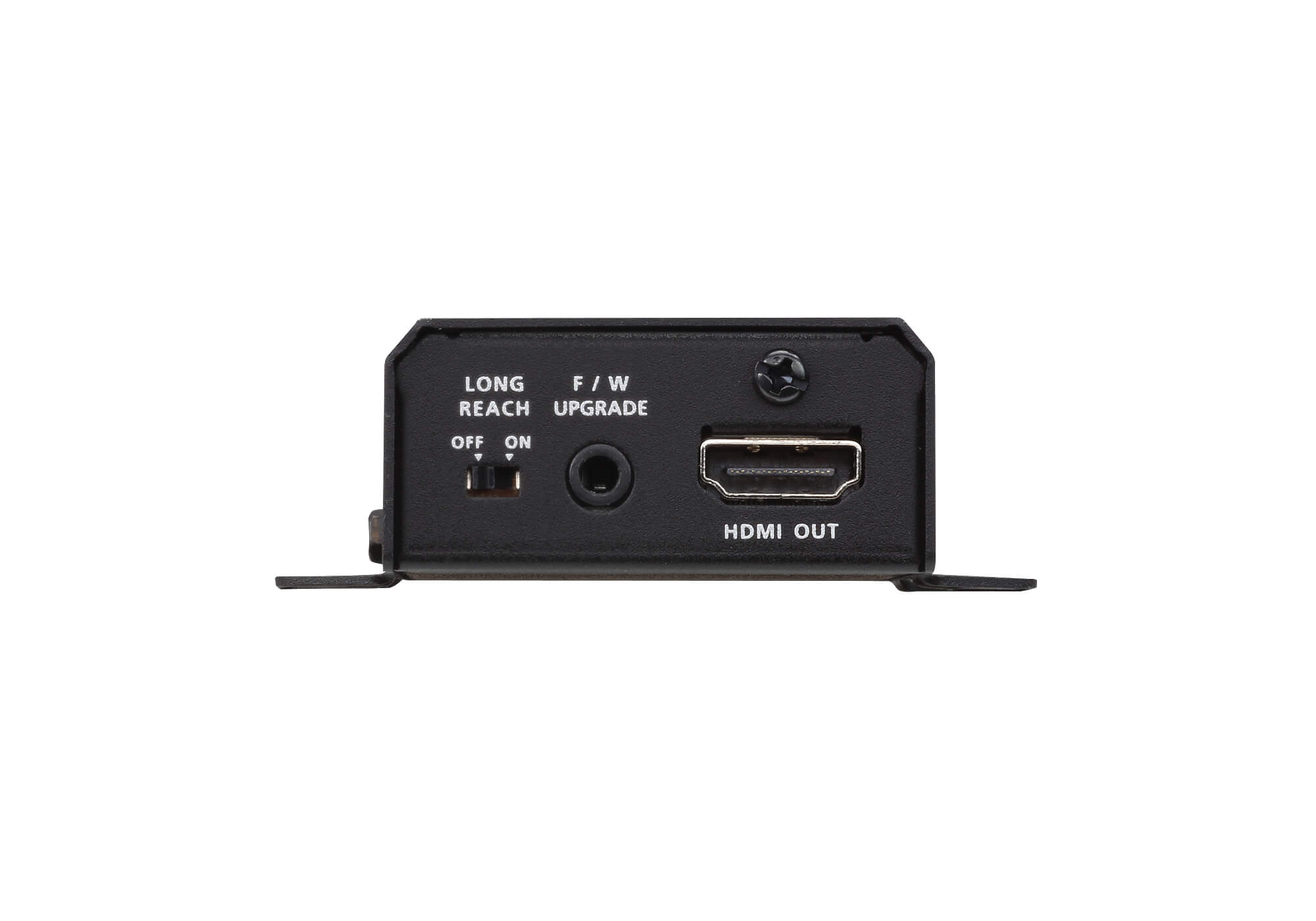

Output

1 x HDMI Type A Female (Black)

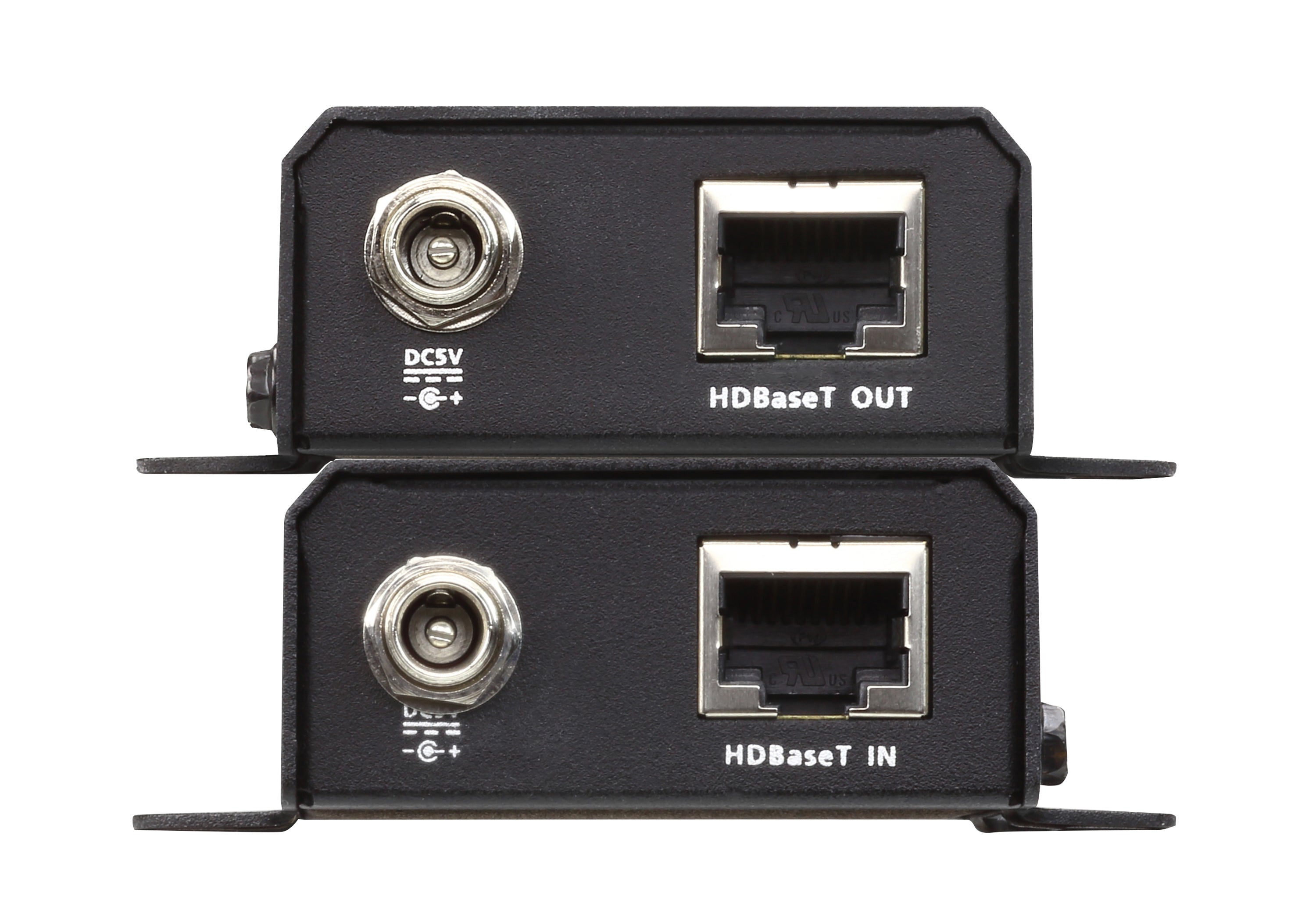

Connectors

Unit To Unit

1 x RJ-45 Female

Firmware Upgrade

1 x Mini Stereo Jack Female (Black)

Power

1 x DC Jack (Black) with locking

Switches

Long Reach Mode Switch

1 x Slide Switch - ON/OFF

Power Consumption

DC5V:3.84W:18BTU

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.17 kg ( 0.37 lb )

Dimensions (L x W x H) with bracket

8.64 x 7.30 x 2.47 cm
(3.4 x 2.87 x 0.97 in.)

Dimensions (L x W x H) without bracket

8.20 x 5.20 x 2.37 cm
(3.23 x 2.05 x 0.93 in.)



VE811R Datasheet PDF
