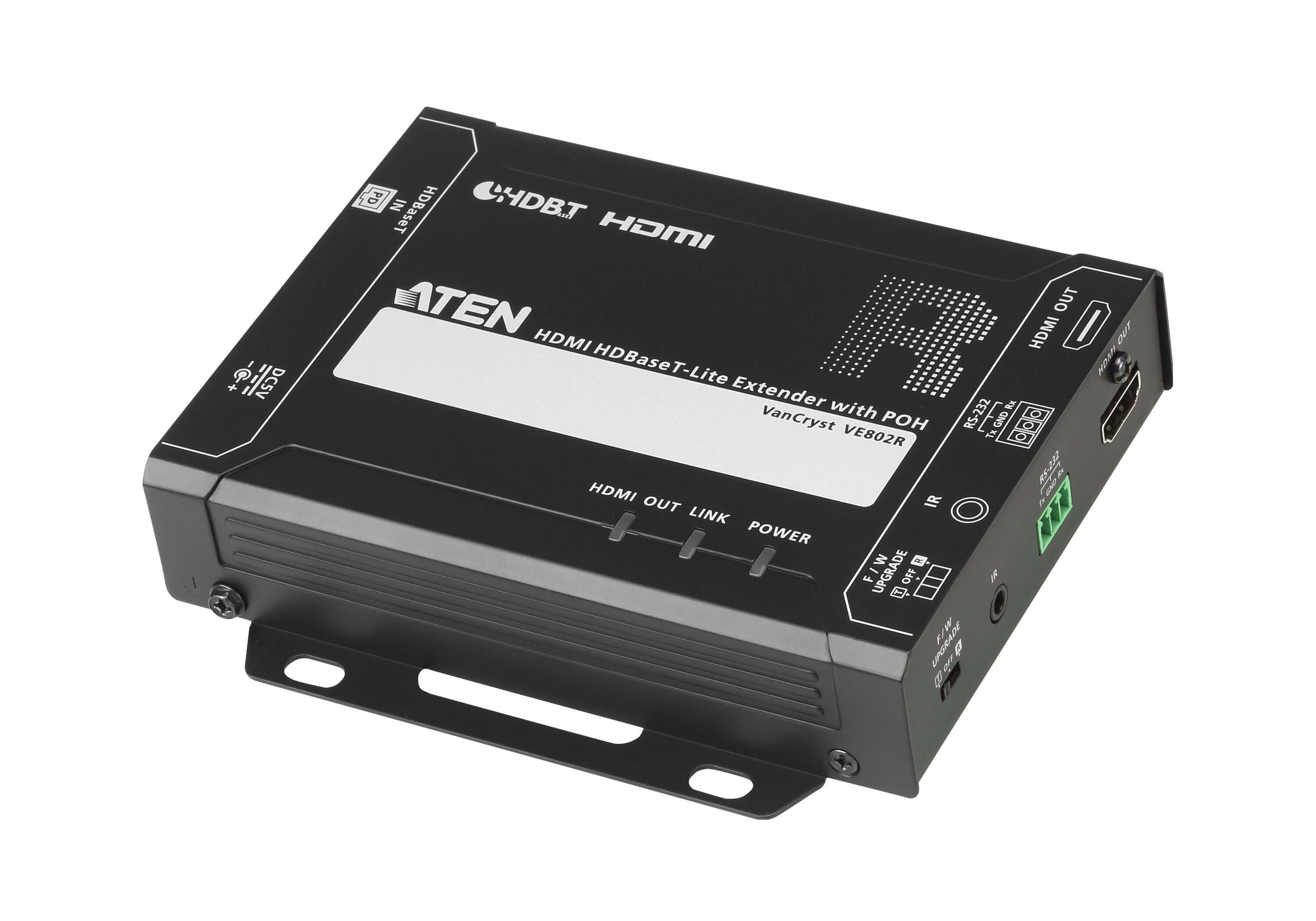

Aten Extender, HDMI, HDBaseT - Lite, Receiver - VE802R

Aten
ATVE802REXTHDMIX
R 2,745.00 Ex VAT

• HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable

• PoH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable

• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners

• Bi-directional IR channel – IR transmission is processed one direction at a time

The VE802R HDMI HDBaseT-Lite Receiver connects with HDBaseT transmitters* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signalling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment centre or any installation that requires superior video quality.

* Compatible HDBaseT Transmitter Units: VE802T

Package Contents

1x VE802R HDMI HDBaseT-Lite Receiver with PoH

1x Power Adapter

1x IR Receiver

1x Terminal Block

1x User Instructions



Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100Ω

Max. Distance

3 m

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI (3D, Deep Colour, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

1 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

Control

RS-232

Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control

IR

1 x Mini Stereo Jack Female (Black)

Connectors

Power

1 x DC Jack (Black) with locking
or 1 x RJ-45 (Power Over HDBaseT, POH)

Unit To Unit

1 x RJ-45 Female

Power Consumption

DC5V:4.37W:20BTU
POH:5.46W:25BTU

Environmental

Operating Temperature

0 - 50°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.46 kg ( 1.01 lb )

Dimensions (L x W x H) with bracket

14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)

Dimensions (L x W x H) without bracket

13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)





VE802R Datasheet PDF
